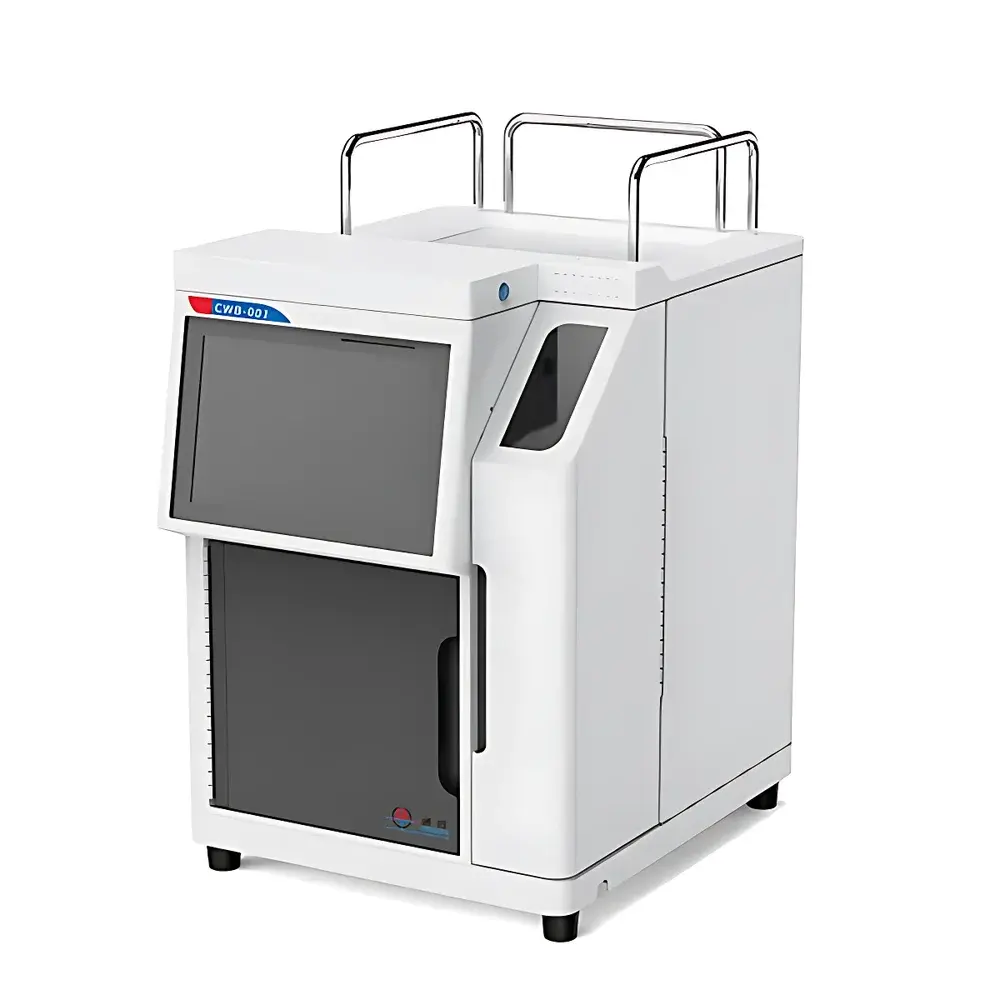

Unimicro CWB-001 Column Flushing and Pre-equilibration System

Overview

The Unimicro CWB-001 Column Flushing and Pre-equilibration System is a dedicated, standalone benchtop instrument engineered to automate and decouple column maintenance workflows from primary HPLC or UHPLC analytical platforms. It operates on a dual-purpose fluidic architecture: one mode enables post-run column flushing using programmable solvent sequences and flow profiles; the other executes pre-run column conditioning—i.e., gradient equilibration—to minimize system dwell volume effects and ensure chromatographic reproducibility across consecutive injections. Unlike conventional approaches that rely on idle instrument time or manual solvent swaps, the CWB-001 employs a precision dual-pump solvent delivery system with active backpressure regulation, ensuring consistent flow stability (<±0.5% RSD) and accurate solvent composition control during extended low-flow protocols (0.1–5.0 mL/min). Its design eliminates cross-contamination risk between analytical runs and supports method transfer integrity by maintaining column history traceability.

Key Features

• Integrated 5-position, high-pressure, low-dead-volume switching valve for automated sequential processing of up to five HPLC columns without manual intervention.
• Four independently selectable solvent channels with chemically resistant fluid paths (PEEK, stainless steel, and sapphire components), compatible with aqueous, organic, and aggressive solvents including TFA, HFIP, and chlorinated media.
• Intelligent solvent gradient programming: user-defined step gradients, linear ramps, or hold periods—each with independent flow rate, duration, and solvent ratio parameters.
• Dual-control interface: full-featured 7-inch capacitive color touchscreen with real-time pressure/flow monitoring and event logging; optional Ethernet/USB connectivity for remote operation via Windows-based Unimicro ColumnManager™ software.
• Auto-shutdown logic with pressure fault detection, leak sensing, and solvent depletion alerts—fully compliant with GLP-compliant lab environment requirements.
• Modular chassis design with front-accessible solvent reservoirs and quick-release column fittings (1/16″ VCR-compatible), minimizing downtime during routine maintenance.

Sample Compatibility & Compliance

The CWB-001 accommodates standard analytical and preparative HPLC columns (2.1–30 mm ID, up to 250 mm length) with common fitting types (e.g., Waters, Agilent, Shimadzu). It supports reversed-phase, HILIC, ion-exchange, and size-exclusion chromatography columns—including silica- and polymer-based packings—and is validated for use with columns requiring high-pH (>10) or low-pH (<2) regeneration protocols. All firmware and software modules comply with data integrity principles per FDA 21 CFR Part 11 (audit trail, electronic signatures, role-based access control) when operated with ColumnManager™ v3.2 or later. The system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and conforms to ISO/IEC 17025:2017 documentation practices for calibration traceability and operational verification records.

Software & Data Management

Unimicro ColumnManager™ provides a validated, secure desktop application for method development, execution, and reporting. Each flushing or pre-equilibration sequence is stored as a version-controlled method file containing full parameter metadata: solvent IDs (with lot tracking), flow profiles, pressure limits, temperature setpoints (when paired with optional column oven integration), and completion timestamps. Raw log files include second-by-second pressure, flow, and valve position data in CSV format for third-party analysis. Audit trails record all user actions—including method edits, run starts/stops, and parameter overrides—with immutable timestamps and operator IDs. Software validation packages (IQ/OQ/PQ documentation templates) are available upon request for regulated laboratories operating under GMP or ISO 13485 frameworks.

Applications

• Routine column regeneration after high-sensitivity bioanalysis (e.g., peptide mapping, mAb purity assays) to prevent carryover and restore retention time stability.
• High-throughput screening labs performing multi-column method scouting—automated parallel conditioning reduces method development cycle time by >60% versus serial instrument-based equilibration.
• Reference material certification labs requiring documented column history for ISO/IEC 17025 accreditation—each run generates a PDF summary report with digital signature and QR-code-linked raw data archive.
• QC environments validating column lifetime per USP guidelines, where consistent equilibration performance directly impacts system suitability test pass rates.
• Academic core facilities supporting shared-instrument access: centralized column maintenance scheduling prevents analytical instrument bottlenecks and improves equipment utilization metrics.

FAQ

Can the CWB-001 be integrated into an existing LIMS or ELN platform?
Yes—via RESTful API support in ColumnManager™ v3.2+, enabling bidirectional synchronization of method definitions, run status, and compliance reports.
Does it support gradient elution during pre-equilibration?
Yes—up to four-solvent linear or step gradients with programmable ramp rates (0.1–10% per minute) and hold times, replicating HPLC system dwell volume behavior.
What is the maximum backpressure rating of the switching valve?
The 5-port valve is rated to 600 bar (8700 psi) at 40°C, fully compatible with UHPLC column pressures.
Is method validation support included with purchase?
Standard delivery includes IQ/OQ protocol templates and factory calibration certificates; PQ assistance and on-site validation services are available as optional add-ons.
How is solvent consumption minimized during extended overnight flushing protocols?
The system implements adaptive flow reduction logic: after initial high-flow purge, it automatically transitions to low-flow (0.2 mL/min) maintenance mode while preserving column bed integrity and solvent gradient fidelity.
