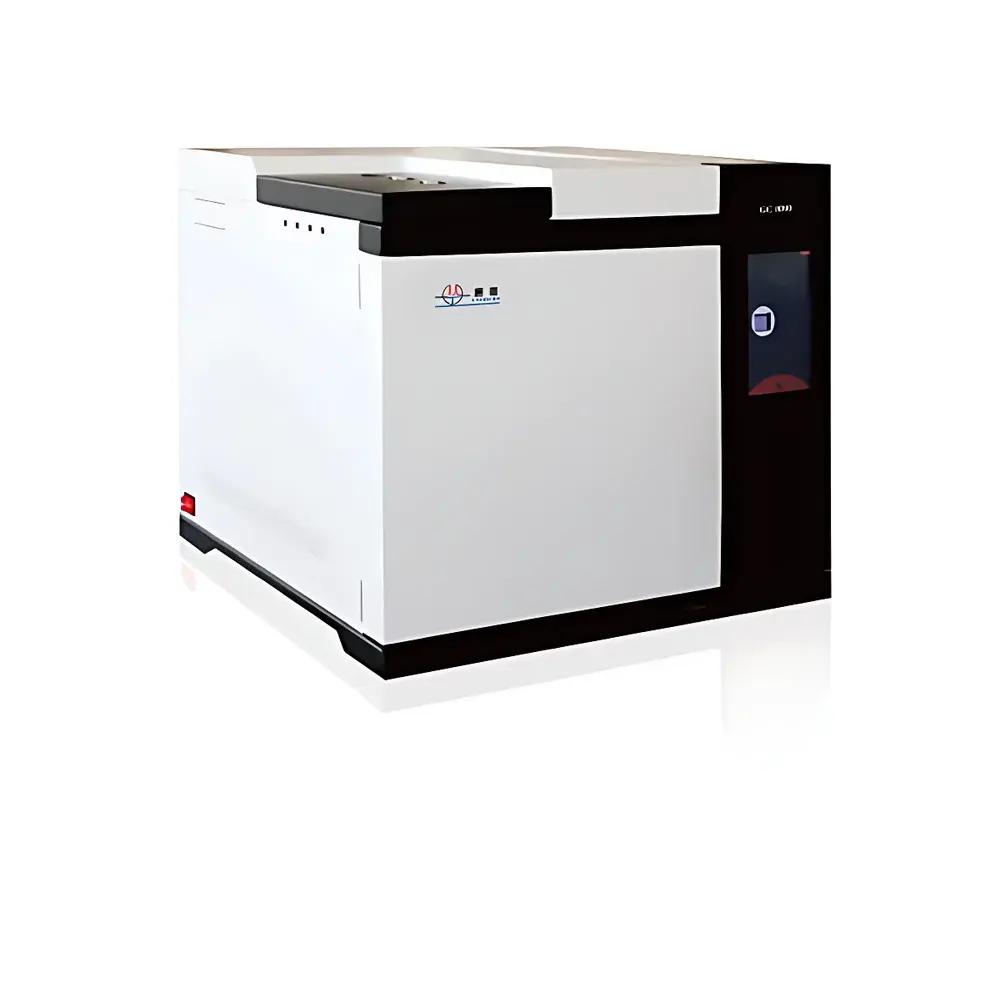

Unimicro Technologies GC-8090 Gas Chromatograph

Overview

The Unimicro Technologies GC-8090 is a modular, laboratory-grade gas chromatograph engineered for precision, reproducibility, and operational flexibility in routine and method-development environments. It operates on the fundamental principle of differential partitioning—separating volatile and semi-volatile compounds based on their relative affinities for a stationary phase and a mobile carrier gas phase under precisely controlled thermal gradients. The instrument’s column oven supports a wide operational temperature range (4 °C to 450 °C), enabling analysis of compounds ranging from light hydrocarbons to high-boiling-point pesticides or polymers. Its programmable ramp rate (0.1–120 °C/min) accommodates both rapid screening and high-resolution isothermal or gradient separations. Designed for long-term stability, the GC-8090 employs a multi-processor architecture that decouples oven control, detector signal processing, and gas flow management—minimizing cross-talk and ensuring deterministic real-time response.

Key Features

• 7-inch high-brightness capacitive touchscreen interface with intuitive icon-driven navigation; supports hot-swap functionality and can be detached for remote handheld operation during method setup or maintenance.
• Integrated Electronic Flow Control (EFC) and Electronic Pressure Control (EPC) modules deliver digital pneumatic regulation across all gas channels—eliminating mechanical valves and improving retention time stability (<0.02% RSD over 24 h).
• Modular detector bay accepts up to three independently configurable detectors—including Flame Ionization Detector (FID), Thermal Conductivity Detector (TCD), Electron Capture Detector (ECD), Flame Photometric Detector (FPD), and Nitrogen-Phosphorus Detector (NPD)—enabling simultaneous multi-analyte detection without hardware reconfiguration.
• Onboard 24-bit analog-to-digital converter with ultra-low noise floor (<0.5 µV RMS) and real-time baseline correction algorithms, including dynamic baseline storage and mathematical subtraction for enhanced peak integration accuracy.
• Firmware-level MODBUS/TCP protocol support enables seamless integration into distributed control systems (DCS) and centralized laboratory informatics platforms—fully compatible with industrial SCADA architectures and LIMS interfaces.

Sample Compatibility & Compliance

The GC-8090 is validated for use with standard capillary and packed columns (0.1–0.53 mm ID, up to 60 m length) and accommodates common carrier gases (He, H₂, N₂) with full EPC/EFC optimization. Its injector design supports split, splitless, on-column, and cool-on-column injection modes. The system meets core requirements of ISO/IEC 17025:2017 for analytical instrument validation and supports GLP/GMP-compliant workflows through audit-trail-enabled method storage and user-access logging. While not pre-certified for FDA 21 CFR Part 11, its firmware architecture permits implementation of electronic signature and data integrity controls when deployed with compliant third-party chromatography data systems (CDS).

Software & Data Management

The GC-8090 operates with Unimicro’s proprietary GCControl software suite (Windows-based), offering method editor, sequence scheduler, real-time chromatogram display, and quantitative report generation. Raw data are stored in vendor-neutral .CDF format (compatible with OpenChrom and Chromeleon). All acquisition parameters—including temperature programs, flow profiles, detector settings, and calibration tables—are saved as encrypted binary files with timestamped version history. Remote monitoring and control are supported via Ethernet/IP or optional Wi-Fi module, with TLS 1.2 encryption for secure network communication.

Applications

The GC-8090 serves diverse analytical domains: environmental testing (EPA Method 8021B, 8260D for VOCs; 8081B for organochlorine pesticides); petrochemical QA/QC (ASTM D3606, D5599); food safety (residue analysis per EU SANTE/11312/2021); pharmaceutical impurity profiling (ICH Q2(R2)-aligned validation); and forensic toxicology (blood alcohol, drug metabolites). Its dual-injector option and multi-detector capacity make it suitable for regulatory laboratories requiring orthogonal detection confirmation and method redundancy.

FAQ

Does the GC-8090 support compliance with FDA 21 CFR Part 11?
The instrument’s firmware provides foundational capabilities—including user authentication, audit trail logging, and electronic signature placeholders—but full Part 11 compliance requires deployment with a validated third-party CDS and documented procedural controls.
What is the minimum detectable concentration for FID operation?
Detection limits depend on column efficiency, sample introduction technique, and integration settings; typical MDLs for hydrocarbons range from 0.1–5 pg on-column under optimized conditions.
Can the GC-8090 be integrated into an existing LIMS environment?
Yes—via MODBUS/TCP or ASCII-based RS-232/485 protocols; API documentation and driver libraries are provided for custom middleware development.
Is cryogenic cooling available for the oven?
No—the GC-8090 does not include liquid nitrogen or CO₂ cooling; its lowest operating temperature is 4 °C (ambient-assisted).
What column types are mechanically and thermally compatible?
All standard fused-silica capillary columns (e.g., DB-5ms, HP-INNOWAX) and stainless-steel packed columns rated to 450 °C are supported; maximum column outer diameter is 5.5 mm.
