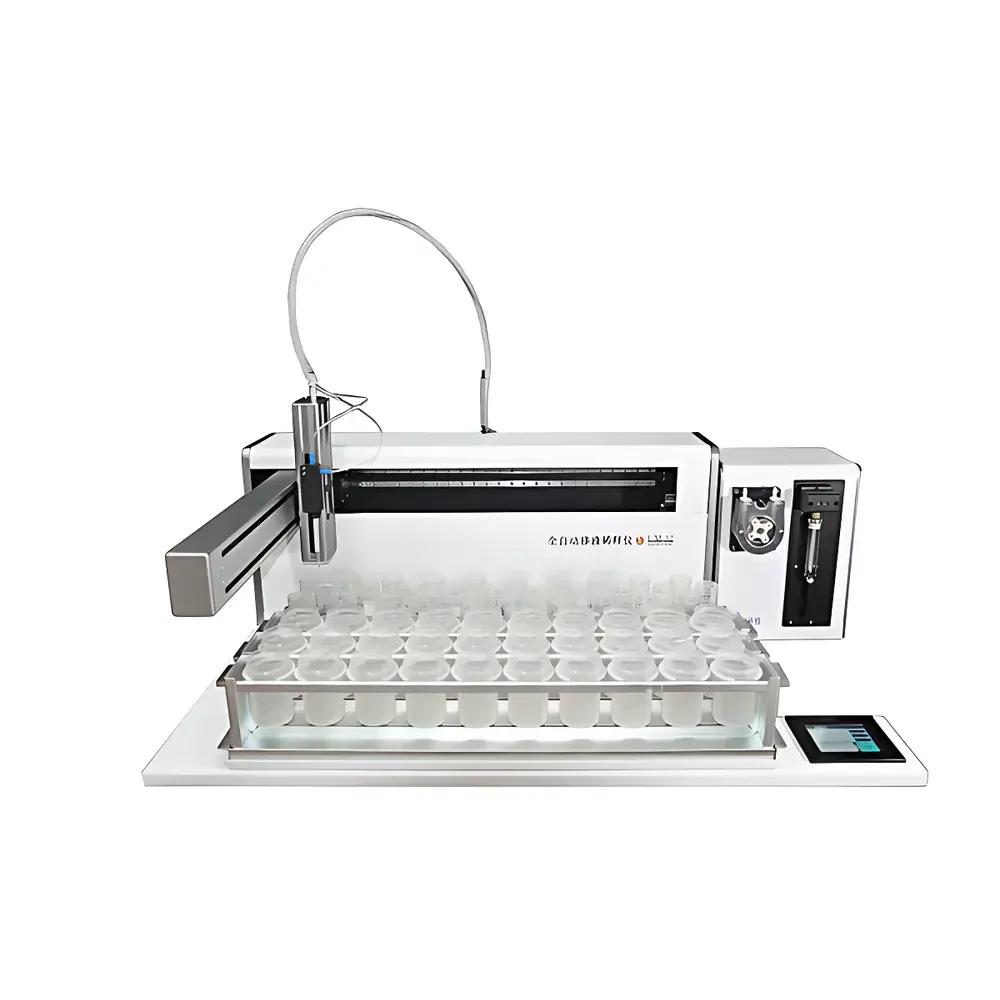

UXS UM-12 Automated Soil Extractant Dilution & Reagent Dispensing System

Overview

The UXS UM-12 Automated Soil Extractant Dilution & Reagent Dispensing System is a dedicated liquid handling platform engineered for high-throughput, reproducible sample preparation in agricultural soil testing laboratories. It operates on a positive-displacement pipetting principle with gravimetric and volumetric verification capability, enabling precise aspiration of soil extractants (e.g., Mehlich-3, Olsen, ammonium acetate, CaCl₂ extracts) followed by automated addition of diluents (deionized water, buffer solutions) and colorimetric reagents. Designed specifically for routine agronomic analysis, the system eliminates manual pipetting variability and cross-contamination risks associated with multi-step dilution and reagent addition workflows. Its architecture supports standardized extraction chemistry protocols aligned with widely adopted national and international soil testing guidelines—including those referenced in ISO 11260, ASTM D5084, and Chinese NY/T standards for soil nutrient analysis.

Key Features

• Integrated dual-channel dispensing: independent control for extractant transfer and reagent/diluent addition, minimizing carryover via air-gap aspiration and tip ejection logic.
• Programmable batch processing: process 1 to 30 samples per run with configurable volume steps across the 0–100 mL range, supporting serial dilutions and parallel reagent addition.
• Method-driven operation: pre-installed assay templates for common soil nutrient determinations—including orthophosphate (molybdate-blue), potassium (flame photometry prep), calcium/magnesium (EDTA titration or AAS prep), sulfate (turbidimetric/barium chloride), ammonium (indophenol blue), and nitrate (cadmium reduction + diazotization).
• Traceable liquid handling: onboard log records aspiration/dispense volumes, timestamps, tip usage, and method ID—compatible with GLP-compliant audit trail requirements.
• Modular tip management: accepts standard universal 1–100 mL polypropylene tips; optional rack-based tip loading for unattended operation over extended batches.
• Robust mechanical design: stainless-steel fluid path components and chemically resistant seals ensure longevity when handling acidic, chelating, and saline extractants typical in soil analysis.

Sample Compatibility & Compliance

The UM-12 accommodates standard 50 mL centrifuge tubes, 100 mL volumetric flasks, and custom assay cuvettes used in spectrophotometric and ion-selective electrode workflows. It is validated for use with common soil extractants including Mehlich-3, Olsen bicarbonate, ammonium acetate (pH 7.0), and calcium chloride solutions. All liquid handling parameters adhere to ISO/IEC 17025:2017 clause 7.2.2 (method validation) and support laboratory compliance with CNAS accreditation requirements for soil testing laboratories in China. While not FDA 21 CFR Part 11 certified out-of-the-box, the system’s data logging architecture allows integration with third-party electronic lab notebook (ELN) or LIMS platforms that provide full electronic signature and audit trail functionality.

Software & Data Management

The UM-12 runs on embedded Linux-based firmware with a touchscreen GUI optimized for glove-compatible operation in wet-lab environments. Method files are stored locally and exportable via USB or Ethernet as CSV logs containing sample ID, step sequence, dispensed volumes, operator ID, and execution timestamp. No cloud connectivity is enabled by default—data residency remains on-device unless explicitly transferred. Software updates are delivered via signed firmware packages, ensuring integrity and version control. The interface supports multilingual labels (English, Simplified Chinese) and allows user-defined method cloning, parameter adjustment (e.g., dilution factor, reagent concentration), and QC checkpoint insertion (e.g., blank verification step, calibration standard injection).

Applications

• Routine quantification of plant-available phosphorus, potassium, calcium, magnesium, sulfur, ammonium-nitrogen, and nitrate-nitrogen in agricultural soils.
• Preparation of calibration standards and matrix-matched quality control samples for ICP-OES, UV-Vis spectrophotometry, and ion chromatography.
• Standardized dilution of high-salinity or viscous extracts prior to instrumental analysis—reducing instrument fouling and improving measurement linearity.
• Supporting ISO 14001-certified environmental monitoring programs requiring documented, repeatable sample preparation procedures.
• Enabling inter-laboratory comparison studies under national soil fertility survey protocols (e.g., China’s National Soil Testing Program).

FAQ

Does the UM-12 require external calibration with certified reference materials?

No—volumetric accuracy is factory-verified using NIST-traceable gravimetric standards at multiple points across its operational range (10 mL, 50 mL, and 100 mL). Users may perform periodic verification using deionized water density correction.
Can the system be integrated into an existing LIMS environment?

Yes—via ASCII-based serial output (RS-232) or TCP/IP socket communication. Output format is configurable to match common LIMS ingestion schemas (e.g., ASTM E1384, HL7 v2.x).
Is maintenance limited to authorized service centers?

Basic preventive maintenance (tip ejector cleaning, seal inspection, fluid path flushing) can be performed by trained lab personnel. Firmware updates and precision recalibration require UXS-issued service tools and authorization.
What safety certifications does the device hold?

The UM-12 complies with GB 4793.1–2019 (Chinese equivalent of IEC 61010-1) for electrical safety and electromagnetic compatibility (EMC Class B). CE marking is not applicable as it is classified as a domestic-use instrument under current EU regulatory scope.
Are reagent kits or consumables supplied by UXS?

UXS provides validated tip racks and optional pre-packaged reagent sets for specific methods (e.g., NH₄⁺-N colorimetric kit); however, users retain full flexibility to source reagents from preferred vendors.
