Vacuubrand MZ 2C NT+AK+M+D Chemical-Resistant Dual-Stage Diaphragm Vacuum System

Overview

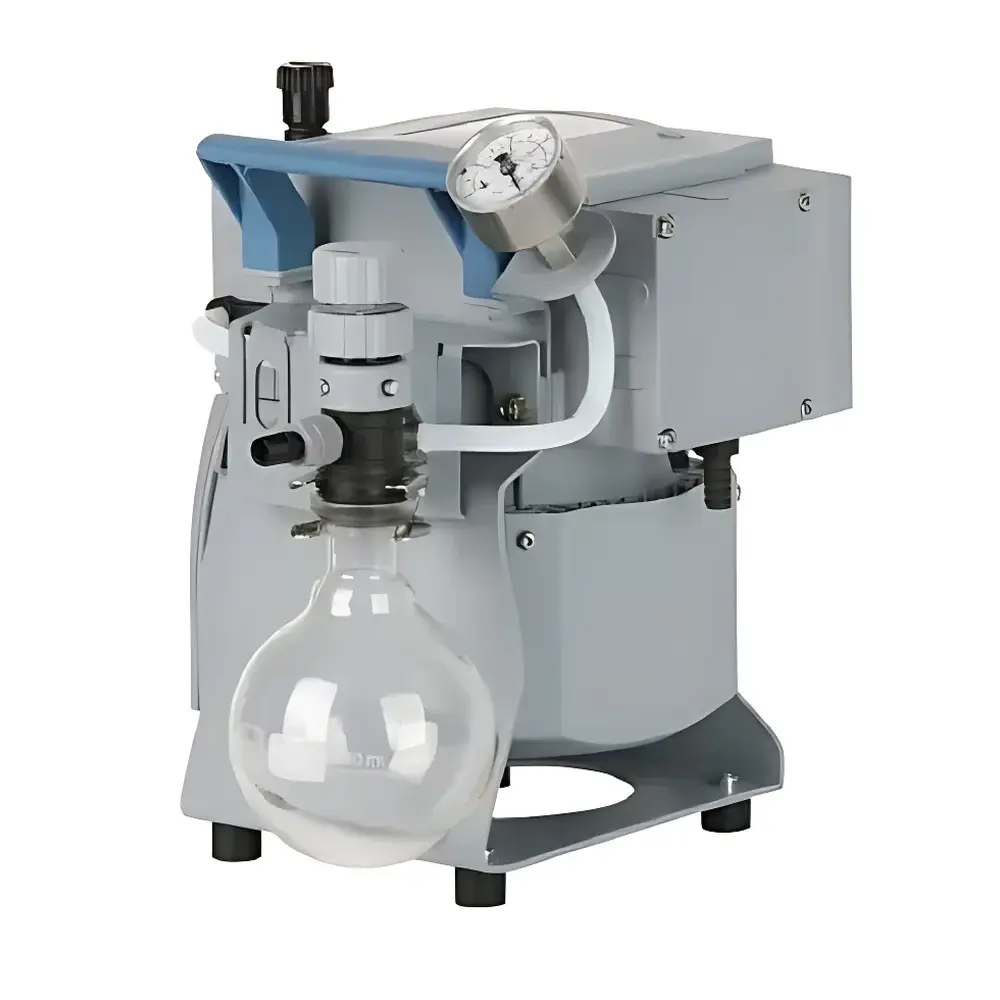

The Vacuubrand MZ 2C NT+AK+M+D is a fully integrated, oil-free dual-stage diaphragm vacuum system engineered for demanding chemical, biological, and pharmaceutical laboratory applications. It operates on the principle of positive displacement via elastomeric diaphragms driven by an eccentric cam mechanism—eliminating lubricants and ensuring contamination-free evacuation. Unlike rotary vane or scroll pumps, this system delivers consistent performance across aggressive vapors (e.g., acetone, chloroform, ethanol, HCl fumes) without degradation of internal components. Its design prioritizes long-term stability under continuous operation in solvent-laden environments where condensable vapors are present but do not require post-pump cold trapping. The system is particularly suited for vacuum filtration, rotary evaporation (low-boiling-point solvents), lyophilization pre-evacuation, and controlled atmosphere sample preparation—applications requiring reliable vacuum levels between 7 and 12 mbar absolute, with minimal vibration and acoustic emission.

Key Features

• Dual-stage diaphragm architecture enables deeper ultimate vacuum (7 mbar abs. without gas ballast) while maintaining high volumetric throughput (2.0 m³/h at 50 Hz)
• Chemically resistant PTFE-coated pump head, Viton® diaphragms, and EPDM valves ensure extended service life when exposed to organic solvents, acids, and bases
• Integrated gas ballast valve allows operation under high vapor load conditions without compromising ultimate vacuum integrity—critical for distillation and extraction workflows
• Manual flow control valve upstream of the inlet permits precise regulation of effective suction speed at the application interface, improving process reproducibility
• Analog pointer-type vacuum gauge provides immediate, drift-free pressure readout without dependency on digital calibration cycles or battery power
• AK-series glass separator bottle (DN 10 inlet) features reinforced borosilicate 3.3 construction with protective polymer sleeve—mechanically robust and chemically inert
• Low-noise (45 dBA @ 50 Hz) and low-vibration (<0.5 mm/s RMS) operation supports use on sensitive analytical benches and shared lab spaces

Sample Compatibility & Compliance

The MZ 2C NT+AK+M+D is validated for compatibility with non-explosive, non-particulate-laden gas streams containing condensable vapors common in academic and industrial labs. It is not rated for explosive atmospheres beyond its certified ATEX zone (II 3G IIC T3 X), nor for particulate-laden or highly corrosive gases exceeding ISO 8573-1 Class 4 purity limits. All wetted materials comply with USP Class VI biocompatibility requirements and meet FDA-recommended material specifications for GMP-compliant pharmaceutical processes. The system conforms to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and carries NRTL certification for safe operation in North American laboratories per UL 61010-1 and CSA C22.2 No. 61010-1. Documentation includes full traceable CE Declaration of Conformity and RoHS 2 compliance statements.

Software & Data Management

This is a standalone analog vacuum system with no embedded microcontroller or digital communication interface. As such, it does not require firmware updates, network configuration, or cybersecurity validation. Its operational simplicity aligns with GLP/GMP Annex 11 principles for “low-risk” equipment: no audit trail, no electronic records, and no user-accessible software—therefore exempt from 21 CFR Part 11 electronic signature requirements. Pressure readings are recorded manually using the analog gauge; integration with external data acquisition systems (e.g., LabVIEW, SCADA) requires optional analog output modules (sold separately) or third-party pressure transducers calibrated against the built-in gauge.

Applications

• Vacuum-assisted gravity filtration of crystalline precipitates and cell suspensions using Büchner or Hirsch funnels
• Rotary evaporation of heat-sensitive compounds where solvent recovery efficiency depends on stable, pulse-free vacuum
• Pre-evacuation of freeze-dryer chambers prior to primary drying phase
• Controlled inert-gas purging of reaction vessels and Schlenk lines
• Gas-phase sampling for GC-MS or FTIR analysis where hydrocarbon contamination from oil-based pumps must be avoided
• Decompression sterilization validation studies requiring documented vacuum ramp profiles

FAQ

Is the MZ 2C NT+AK+M+D suitable for continuous 24/7 operation?
Yes—its brushless induction motor and sealed diaphragm assembly are rated for indefinite duty cycle under ambient temperatures ≤40 °C and relative humidity <80% non-condensing.
Can the AK separator bottle be replaced with a different size or material?
Only Vacuubrand-certified AK-series glass bottles (Part No. 2701, 2702) are recommended; substitution with non-OEM glassware voids warranty and compromises pressure rating and chemical resistance.
Does the system include a vacuum regulator or automatic pressure control?
No—the MZ 2C NT+AK+M+D relies on manual needle-valve adjustment at the inlet; for programmable setpoint control, integrate with Vacuubrand’s VACUU·SELECT digital controller (optional accessory).
What maintenance intervals are recommended for routine operation?
Diaphragm replacement every 12–18 months under normal lab use; valve kits annually; visual inspection of AK bottle integrity before each use; no oil changes or filter replacements required.
Is the ATEX certification valid for global use?
ATEX approval applies only to 230 V models operated in Zone 2/22 hazardous areas per EU Directive 2014/34/EU; it does not satisfy IECEx, NEC 500, or other regional explosion-protection standards without additional evaluation.
