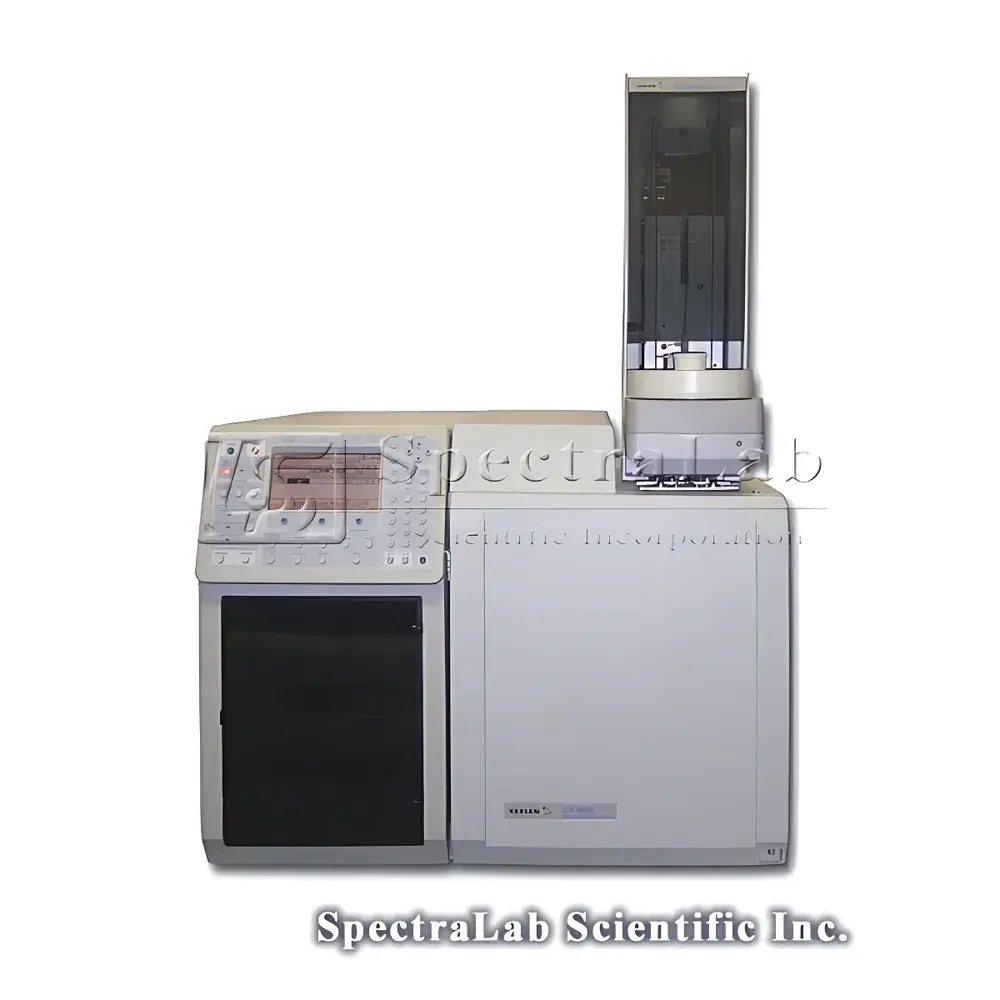

Varian CP 3800 Gas Chromatograph with Thermal Conductivity Detector (TSD) and Electron Capture Detector (ECD), Paired with Varian CP 8200 Autosampler

Overview

The Varian CP 3800 Gas Chromatograph is a high-stability, modular benchtop GC platform originally engineered for demanding routine and regulatory laboratory environments. When integrated with both a Thermal Conductivity Detector (TSD) and an Electron Capture Detector (ECD), this system delivers orthogonal detection capabilities essential for comprehensive volatile organic compound (VOC) analysis—particularly in environmental monitoring, pesticide residue screening, and halogenated hydrocarbon quantification. The TSD provides universal, non-destructive detection of gases and light hydrocarbons with excellent linearity and long-term baseline stability, while the ECD offers sub-picogram sensitivity for electronegative analytes including chlorinated pesticides, PCBs, and nitroaromatics. This dual-detector configuration enables simultaneous or sequential analysis without hardware reconfiguration, significantly improving lab throughput and method flexibility. All core modules—including oven temperature control (±0.01 °C stability), pressure-programmable pneumatic control, and detector electronics—have been subjected to full functional recalibration and leak-checked per ISO/IEC 17025 traceable procedures during refurbishment.

Key Features

• Factory-refurbished Varian CP 3800 GC chassis with verified column oven thermal uniformity (±0.5 °C across 300 mm axial length)
• Dual-detector architecture: TSD optimized for permanent gases (H₂, O₂, N₂, CO, CH₄) and light hydrocarbons; ECD calibrated for 10⁻¹⁴ g/s sensitivity to γ-HCH (lindane)
• Varian CP 8200 Autosampler with 100-position vial capacity, programmable injection volume (0.1–100 µL), and solvent wash protocol support
• Integrated electronic pressure control (EPC) with real-time backpressure monitoring and retention time locking capability
• Robust architecture compliant with GLP/GMP documentation requirements: audit trail enabled, detector response logging, and method versioning supported
• Full diagnostic suite accessible via front-panel interface and optional Star Chromatography Workstation software

Sample Compatibility & Compliance

This system accommodates standard 0.1–0.53 mm ID fused-silica capillary columns and packed columns up to 6 mm ID. It supports split, splitless, on-column, and cold-on-column injection techniques. The TSD is compatible with helium, hydrogen, or argon carrier gases; the ECD requires nitrogen or argon/methane makeup gas and operates in constant current or pulsed modes. The refurbished unit meets performance criteria defined in EPA Method 8081B (chlorinated pesticides), ASTM D3606 (benzene/toluene in gasoline), and USP (system suitability testing for GC). All detector response factors, retention indices, and noise/drift specifications were validated against NIST-traceable standards prior to release.

Software & Data Management

The system operates natively with Varian’s Star Chromatography Workstation (v6.4 or later), which supports 21 CFR Part 11-compliant user access control, electronic signatures, and secure audit trail generation. Raw data files (.SRD) are stored with embedded metadata including instrument configuration, calibration history, and acquisition parameters. Integration with LIMS platforms is enabled via ASTM E1394-compliant file export (AIA/ANDI format). Optional upgrades include OpenLab CDS compatibility for labs transitioning to Agilent-based enterprise workflows.

Applications

• Environmental analysis: Quantification of chlorinated solvents (e.g., PCE, TCE) and organochlorine pesticides in soil/water extracts
• Fuel analysis: Benzene, toluene, ethylbenzene, and xylenes (BTEX) profiling in gasoline per ASTM D3606
• Pharmaceutical QC: Residual solvent testing (ICH Q3C Class 2 solvents) using TSD detection
• Food safety: Screening for hexachlorobenzene and heptachlor epoxide in dairy and cereal matrices
• Industrial hygiene: Workplace air monitoring for halogenated hydrocarbons using active charcoal tube desorption

FAQ

Is this instrument supplied with original Varian documentation and calibration certificates?
Yes—all units include scanned copies of the original factory manuals, detector calibration reports, and post-refurbishment verification records signed by SpectraLab’s certified GC applications engineers.
Can the system be configured for FID or other detectors?
The CP 3800 chassis supports detector swapping; however, this specific unit is validated and warranted only for the installed TSD/ECD configuration. Retrofitting additional detectors requires separate qualification and may void warranty coverage.
What consumables and spare parts are included?
Each shipment includes one set of GC inlet septa, two gold-plated ferrules, one ECD radioactive foil shield inspection report, and a complete set of TSD reference gas calibration mixtures (certified to ISO 6141).
Does the 6-month warranty cover labor and travel for on-site service?
The warranty covers all parts and labor for defects in materials or workmanship. On-site service is available within North America and Western Europe; remote diagnostics and phone support are global.
