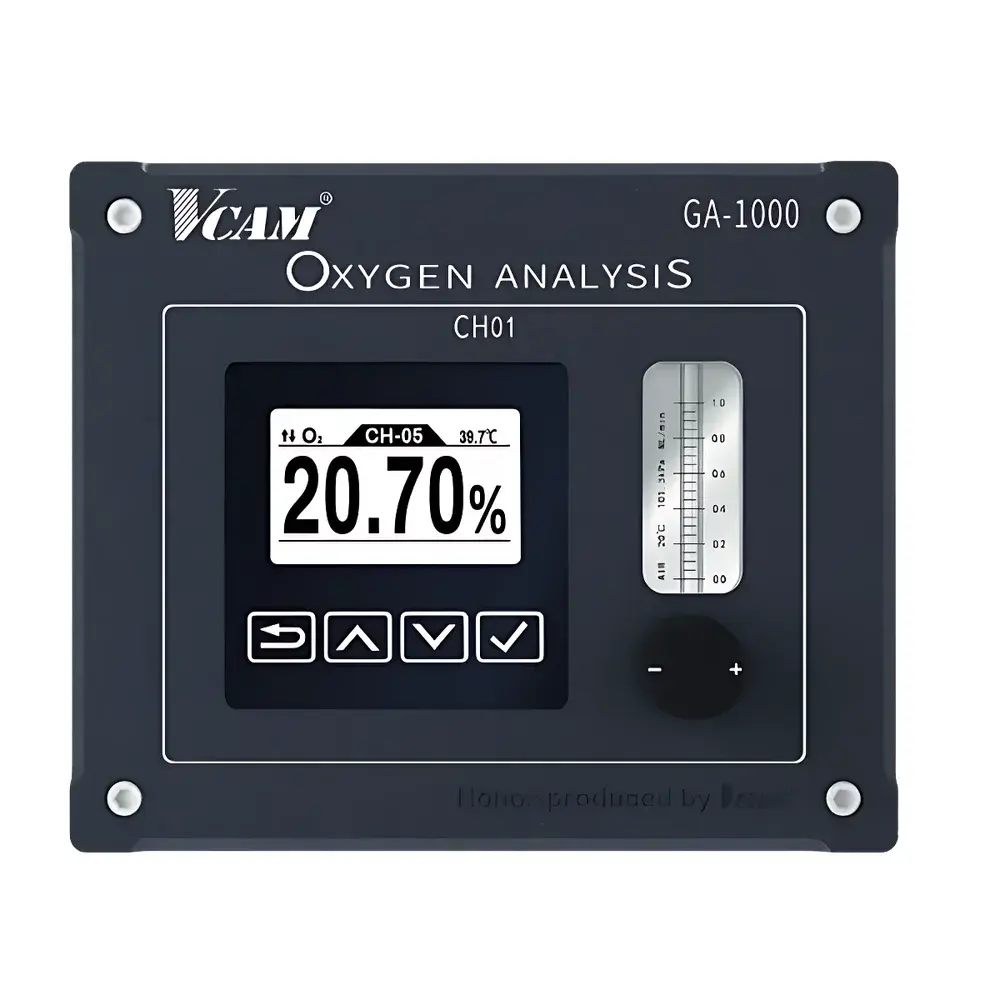

Vcam GA2000-1 Single-Channel Oxygen Concentration Analyzer

Overview

The Vcam GA2000-1 Single-Channel Oxygen Concentration Analyzer is an industrial-grade paramagnetic and electrochemical hybrid sensing platform engineered for real-time, high-stability oxygen monitoring in inerted process environments. Designed specifically for nitrogen-purged or vacuum-assisted thermal processing zones—such as reflow ovens, wave soldering systems, and hermetic packaging chambers—the GA2000-1 delivers trace-level O₂ quantification with calibrated accuracy across four dynamic concentration ranges. Its core measurement principle leverages temperature-compensated electrochemical cell technology, optimized for low-drift performance under continuous operation at elevated ambient temperatures (up to 85 °C). Unlike generic zirconia-based analyzers, the GA2000-1 integrates active thermal stabilization of the sensor head to minimize thermal gradient-induced signal drift—a critical requirement for SMT line yield control where oxygen excursions >50 ppm directly correlate with solder balling, void formation, and intermetallic degradation.

Key Features

• Single-channel architecture with field-expandable modular design—supports up to 14 parallel measurement nodes via optional GA-EXP expansion modules
• Multi-range electrochemical oxygen sensor with automatic range-switching logic and built-in temperature compensation (±0.02 °C resolution)
• Synchronous dual-point temperature monitoring at sensor inlet and process zone—enables real-time correction of O₂ partial pressure against local thermal conditions
• Integrated anti-oxidation control interface: triggers automated N₂ flow modulation or chamber purge escalation upon configurable O₂ threshold violation
• RS-485 Modbus RTU and Ethernet TCP/IP communication protocols compliant with ISA-88/ISA-95 automation frameworks

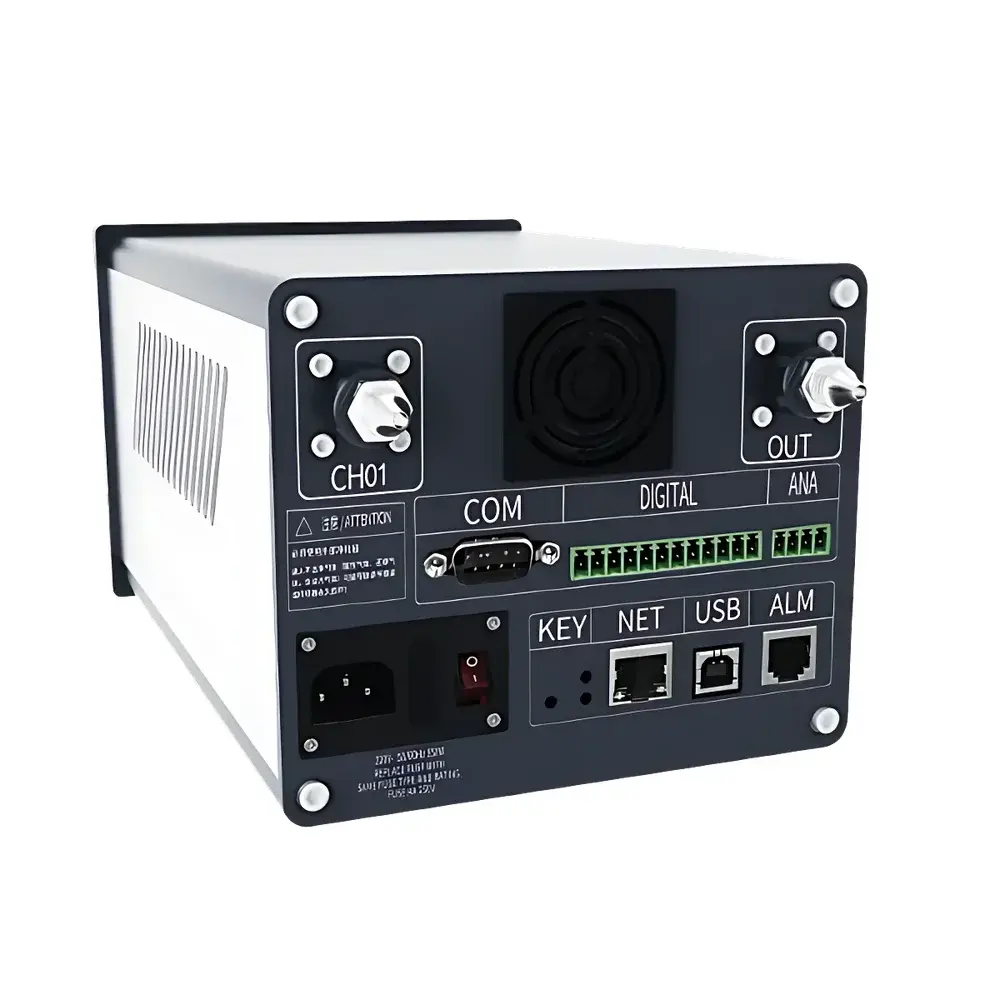

• IP65-rated enclosure with stainless-steel sensor housing and PTFE-lined sample path—resistant to flux vapors, halogenated residues, and condensate ingress

Sample Compatibility & Compliance

The GA2000-1 is validated for continuous sampling of dry, non-corrosive gas streams with dew point ≤ −40 °C and particulate loading < 0.3 µm. It is routinely deployed in Class 1000 cleanroom environments and qualified per IPC-A-610 and J-STD-001 requirements for electronics assembly process control. The analyzer supports audit-ready data integrity through timestamped event logging, user-access level controls (admin/operator/viewer), and optional 21 CFR Part 11-compliant electronic signature and audit trail functionality when paired with Vcam’s GA-SCADA Suite. All firmware and calibration records are stored internally with SHA-256 hash verification to ensure GLP/GMP traceability.

Software & Data Management

The GA2000-1 operates natively with Vcam’s GA-Link Configuration Utility (Windows-based) and integrates seamlessly into MES/SCADA platforms via OPC UA or MQTT. Real-time O₂ trends, alarm history, calibration logs, and system health diagnostics are accessible through a responsive web HMI supporting role-based dashboards. Batch-level compliance reporting—including SMT oven profile correlation, barcode-linked lot traceability, and root-cause analysis timelines—is generated automatically per IATF 16949 clause 8.5.1.2. Raw sensor output is recorded at 1 Hz resolution with 32-bit floating-point precision and retained for ≥90 days onboard; extended archival is supported via network-attached storage or cloud sync (AWS IoT Core or Azure IoT Hub).

Applications

• Reflow soldering process validation and closed-loop inerting control in SMT lines
• Oxygen monitoring during die attach, wire bonding, and encapsulation in semiconductor packaging
• Atmosphere verification in vacuum brazing furnaces for power electronics and EV battery module assembly
• Leak rate estimation and purge cycle optimization in nitrogen-sealed test chambers for aerospace avionics
• Real-time O₂ feedback for adaptive thermal profiling in high-reliability PCB assembly (e.g., medical, defense, automotive ECUs)

FAQ

What is the recommended calibration frequency for the GA2000-1 in continuous 24/7 operation?
Calibration is advised every 30 days using certified zero gas (99.999% N₂) and span gas (100 ppm O₂ in N₂); full verification including response time check is required quarterly.
Does the GA2000-1 support integration with Siemens Desigo CC or Rockwell FactoryTalk?
Yes—native Modbus TCP and OPC UA server mode are preconfigured; certified drivers for FactoryTalk View SE and Desigo CC are available in Vcam’s Integration Partner Portal.
Can the analyzer operate in a vacuum environment below 100 mbar?
No—the GA2000-1 requires minimum sample pressure of 0.8–1.2 bar (gauge); for sub-atmospheric applications, a pressure-regulated sample draw system with back-pressure control must be installed upstream.
Is sensor replacement a field-serviceable procedure?
Yes—the electrochemical cell is user-replaceable without tools; full recalibration is performed automatically upon hot-swap detection.
How is measurement uncertainty calculated across the full dynamic range?
Uncertainty is specified per ISO/IEC 17025:2017 Annex A as combined standard uncertainty (k=2), incorporating repeatability, linearity deviation, temperature coefficient error, and calibration gas certificate uncertainty—documented in the Certificate of Conformance shipped with each unit.
