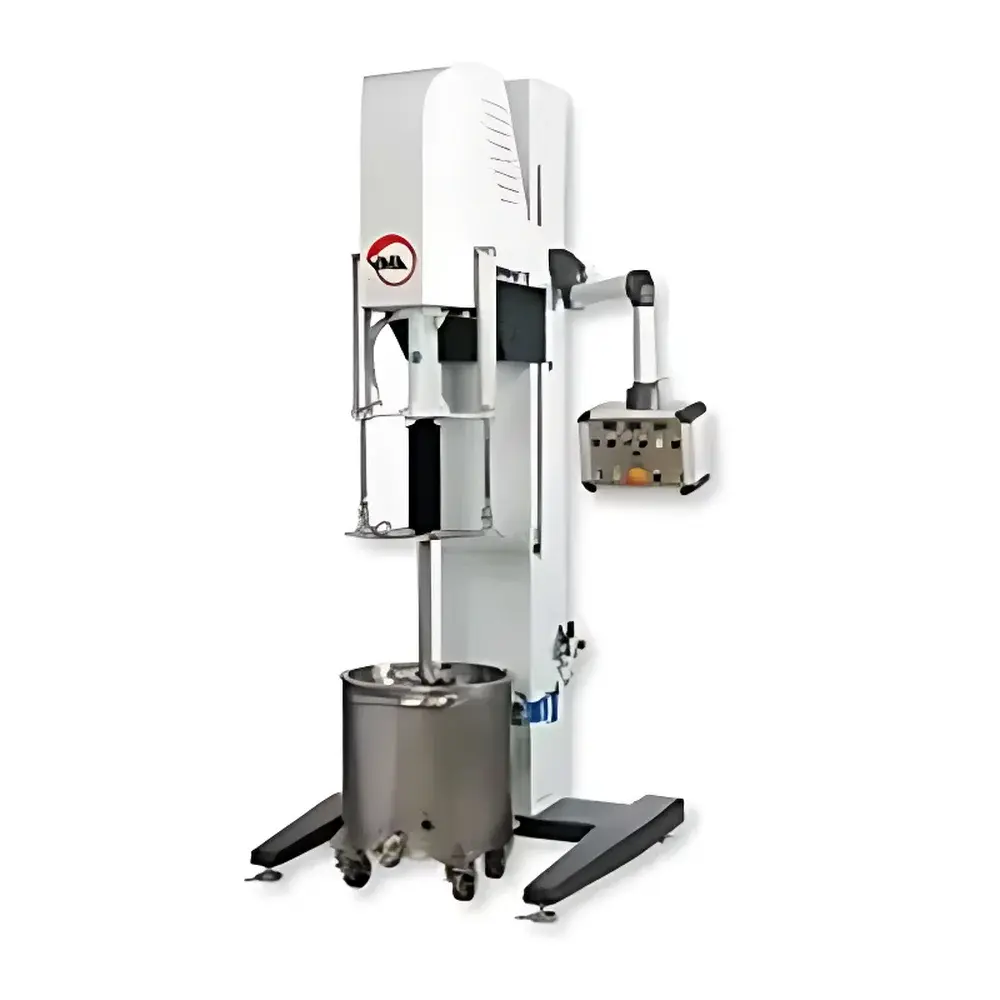

VMA SC530 High-Speed Disperser
| Brand | VMA |
|---|---|
| Origin | Germany |
| Model | SC530 |
| Power | 30 kW |
| Maximum Dispersion Capacity | 200–1250 L |
| Compliance | CE, ISO 9001, ATEX Directive 2014/34/EU |
Overview
The VMA SC530 High-Speed Disperser is an industrial-grade, torque-free cantilever dispersing system engineered for reproducible, scalable dispersion of high-viscosity pastes, pigment concentrates, battery slurries, and advanced composite formulations. Operating on the principle of hydrodynamic shear generation via high-tip-speed rotor-stator interaction, the SC530 delivers controlled energy input across a wide viscosity range (100 mPa·s to >50,000 mPa·s), enabling deagglomeration, wetting, and uniform distribution of nanoscale and micron-sized particles in liquid matrices. Designed for laboratory-scale development through pilot-line validation and pre-commercial batch production, the system bridges the gap between R&D agility and process-relevant scalability—supporting technology transfer under GLP, GMP, and ISO 22716-compliant environments.
Key Features
- Torque-free cantilever drive architecture eliminates mechanical torsional stress on the shaft and vessel, ensuring consistent rotational alignment and minimizing particle attrition during prolonged high-shear operation.
- Digitally programmable control panel with intuitive HMI interface allows precise setting and real-time monitoring of rotational speed (0–3,500 rpm), dispersion time (0.1–999 min), and multi-step ramp profiles.
- Cantilever height adjustment mechanism enables vertical positioning within ±120 mm range, accommodating vessels from 200 L to 1250 L without reconfiguration—critical for maintaining optimal tip clearance and shear gradient consistency.
- Integrated container fixation system with hydraulic clamping and anti-slip base ensures mechanical stability under full-load operation, preventing lateral displacement or resonance-induced vibration at elevated speeds.
- Modular design supports seamless integration of optional safety-critical subsystems: ATEX-certified explosion-proof enclosures (Zone 0/1/2 per EN 60079-0 & EN 60079-7), vacuum-assisted headspace removal (≤10 mbar absolute) for oxygen-sensitive dispersions, and PLC-based automation with Ethernet/IP or PROFINET communication protocols.
Sample Compatibility & Compliance
The SC530 accommodates non-Newtonian and thixotropic systems including electrode slurries (NMC, LFP), UV-curable resins, ceramic suspensions, conductive inks, and pharmaceutical suspensions. Its stainless-steel wetted parts (AISI 316L) meet FDA CFR 21 Part 117 requirements for food-contact applications and EU Regulation (EC) No. 1935/2004. Full traceability is supported via audit-ready electronic logs, user-access-level permissions, and timestamped parameter records compliant with 21 CFR Part 11 Annex 11 expectations. The system carries CE marking under Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU, and its explosion-proof variants are certified by notified bodies (e.g., DEKRA, PTB) per ATEX 2014/34/EU.
Software & Data Management
The SC530 operates with VMA’s proprietary DispersionControl™ software suite, offering recipe management, real-time torque and power consumption logging, and automatic detection of dispersion endpoint via dynamic viscosity trend analysis. Data export is available in CSV, PDF, and XML formats; raw sensor streams (torque, temperature, speed) are timestamped at 10 Hz resolution. The system supports integration into enterprise MES platforms via OPC UA server functionality, enabling centralized batch record archiving, deviation flagging, and SPC charting for critical process parameters.
Applications
- Battery materials: Homogeneous dispersion of cathode/anode slurries with <5 µm particle size distribution (PSD) control and minimal agglomerate reformation.
- Coatings & inks: Stabilization of TiO₂, carbon black, and organic pigments in solvent- and water-based media with <±2% batch-to-batch viscosity deviation.
- Pharmaceuticals: Preparation of nano-suspensions and amorphous solid dispersions under inert atmosphere or vacuum to prevent oxidative degradation.
- Advanced composites: Uniform incorporation of CNTs, graphene, or SiC nanoparticles into epoxy and polyurethane matrices without fiber breakage or filler settling.
- Adhesives & sealants: High-shear mixing of fumed silica thickeners into RTV silicones while preserving rheological recovery behavior.
FAQ
What is the minimum and maximum batch volume the SC530 can process effectively?
The SC530 is validated for reliable dispersion performance between 200 L and 1250 L. Below 200 L, vortex formation and insufficient immersion depth compromise shear efficiency; above 1250 L, motor torque saturation may limit peak tip speed consistency.
Does the SC530 support automated cleaning-in-place (CIP) protocols?
While not equipped with integrated CIP manifolds, the system’s open-vessel architecture and quick-release rotor assembly enable external CIP loop connection. VMA provides validated cleaning procedure documentation aligned with ISO 14644-1 Class 7 cleanroom standards.
Can the SC530 be operated under inert gas blanket?
Yes—when configured with the optional vacuum module and gas purge port, the system supports continuous N₂ or Ar sparging at regulated flow rates (0.5–5 L/min) with integrated pressure relief and O₂ monitoring interfaces.
Is remote diagnostics and firmware update capability available?
Standard Ethernet connectivity enables secure remote access via VMA’s authorized service portal, supporting predictive maintenance alerts, firmware version verification, and configuration backup/restore—all logged with digital signatures for regulatory review.
