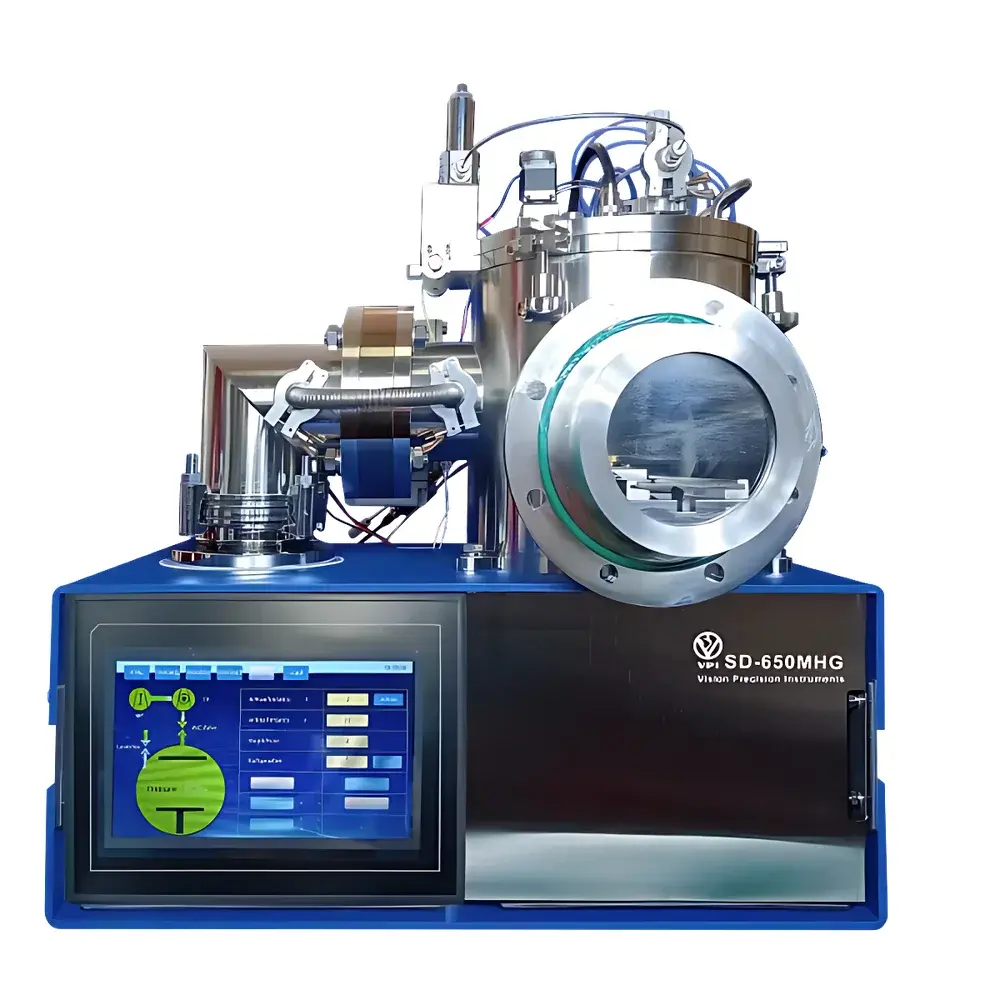

VPI SD-650MHG High-Vacuum Magnetron Sputtering Coater for Glovebox Integration

Overview

The VPI SD-650MHG is an engineered high-vacuum magnetron sputtering coater specifically designed for seamless integration into inert-atmosphere gloveboxes. Unlike conventional benchtop sputter systems, the SD-650MHG adopts a front-flush mounting architecture—its observation viewport aligns precisely with the outer surface of the glovebox wall, eliminating internal footprint while preserving full operational access via integrated glove ports. The system operates under high-vacuum conditions (base pressure ≤5×10⁻⁶ Torr), enabling deposition of high-purity, low-defect thin films—including metals (Al, Ti, Au, Pt), oxides (ITO, SiO₂, Al₂O₃), and nitrides (TiN, Si₃N₄)—without atmospheric contamination. Its core physics relies on magnetron-enhanced plasma confinement: permanent magnets behind the 2-inch diameter target generate closed-loop magnetic fields that increase electron path length, enhancing ionization efficiency and sputter yield at lower working pressures (typically 1–15 mTorr Ar). This configuration supports reproducible, stoichiometric film growth critical for battery electrode development, perovskite photovoltaics, and air-sensitive 2D material encapsulation.

Key Features

• Zero-footprint glovebox integration: Front-mounted viewport with CF-40 or KF-40 flange ensures mechanical alignment within ±0.1 mm tolerance to glovebox wall plane, verified via laser interferometry during factory acceptance testing.
• Double-sealed vacuum interface: Dual-stage metal gasket sealing (copper or aluminum) compliant with ISO 16053-2 for static vacuum integrity; leak rate <1×10⁻⁹ mbar·L/s He (per ASTM E493).
• Dual-target capability: Two independently powered 2-inch magnetron heads support sequential or co-sputtering modes; each head features water-cooled cathode housing and adjustable magnetic field strength.
• Modular power delivery: Standard DC supply (0–1200 V, 0–1 A); optional RF (13.56 MHz, 0–300 W) and pulsed DC configurations available for insulating targets.
• Glove-port optimized controls: All manual actuators (target shutter, substrate tilt, gas inlet valves) positioned for direct manipulation through standard 8-inch glove ports; no internal electronics or cables required inside the glovebox.

Sample Compatibility & Compliance

The SD-650MHG accommodates substrates up to Φ100 mm and 10 mm thickness, including silicon wafers, glass slides, flexible polymer foils, and battery separator membranes. Substrate heating is not integrated but compatible with external resistive heaters (up to 200 °C) mounted externally on the glovebox port. The system meets essential safety and regulatory requirements for controlled-environment laboratories: it complies with IEC 61000-6-3 (EMC emission limits), UL 61010-1 (electrical safety), and incorporates interlocked vacuum venting to prevent accidental over-pressurization. For GLP/GMP-aligned workflows, optional audit-trail-enabled controller firmware supports 21 CFR Part 11-compliant electronic signatures and operation logs.

Software & Data Management

Operation is managed via a dedicated touchscreen HMI (Human-Machine Interface) mounted externally on the glovebox frame. The interface records real-time parameters—including chamber pressure (capacitance manometer), forward/reflected power, argon flow (mass flow controller, 0–100 sccm), and deposition time—with timestamped CSV export. No proprietary software installation is required; data files are stored on removable industrial-grade microSD card (included) and compatible with LabVIEW™, Python pandas, or MATLAB® for post-processing. All firmware updates are performed via secure USB transfer with SHA-256 signature verification.

Applications

• Encapsulation of moisture- and oxygen-sensitive optoelectronic devices (e.g., OLED test pixels, perovskite solar cells).
• In-situ electrode coating for solid-state battery R&D, including Li-metal anode protection layers (LiPON, Al₂O₃) and cathode current collector modifications.
• Deposition of catalytic overlayers (Pt, IrO₂) on electrochemical sensors prior to sealed-cell electrochemical impedance spectroscopy (EIS).
• Functionalization of graphene and transition metal dichalcogenide (TMD) flakes with ultrathin metallic contacts without ambient exposure.
• Development of reference standards for XPS and AES analysis requiring atomically clean, oxide-free metal films.

FAQ

Can the SD-650MHG be retrofitted into an existing glovebox?
Yes—provided the glovebox wall has a standard KF-40 or CF-40 port with ≥150 mm clearance behind the mounting surface for magnetron head depth and cooling line routing.
Is remote operation supported?
No native Ethernet or RS-485 interface is included; however, the HMI’s USB-C port enables connection to external PCs for script-based automation using Modbus RTU over virtual COM port.
What vacuum pumps are recommended?
A two-stage rotary vane pump (for roughing) paired with a turbomolecular pump (≥200 L/s N₂ speed) is required to achieve and maintain ≤5×10⁻⁶ Torr base pressure.
Does the system include film thickness monitoring?
Quartz crystal microbalance (QCM) thickness control is available as an add-on module (model QCM-200G), calibrated for common sputtered materials and integrated into the HMI display.
Are spare parts and service documentation available internationally?
All consumables—including 2-inch target blanks, copper gaskets, and O-rings—are stocked in VPI’s EU distribution hub (Rotterdam) and US warehouse (Chicago); English-language technical manuals and maintenance SOPs are provided with shipment.
