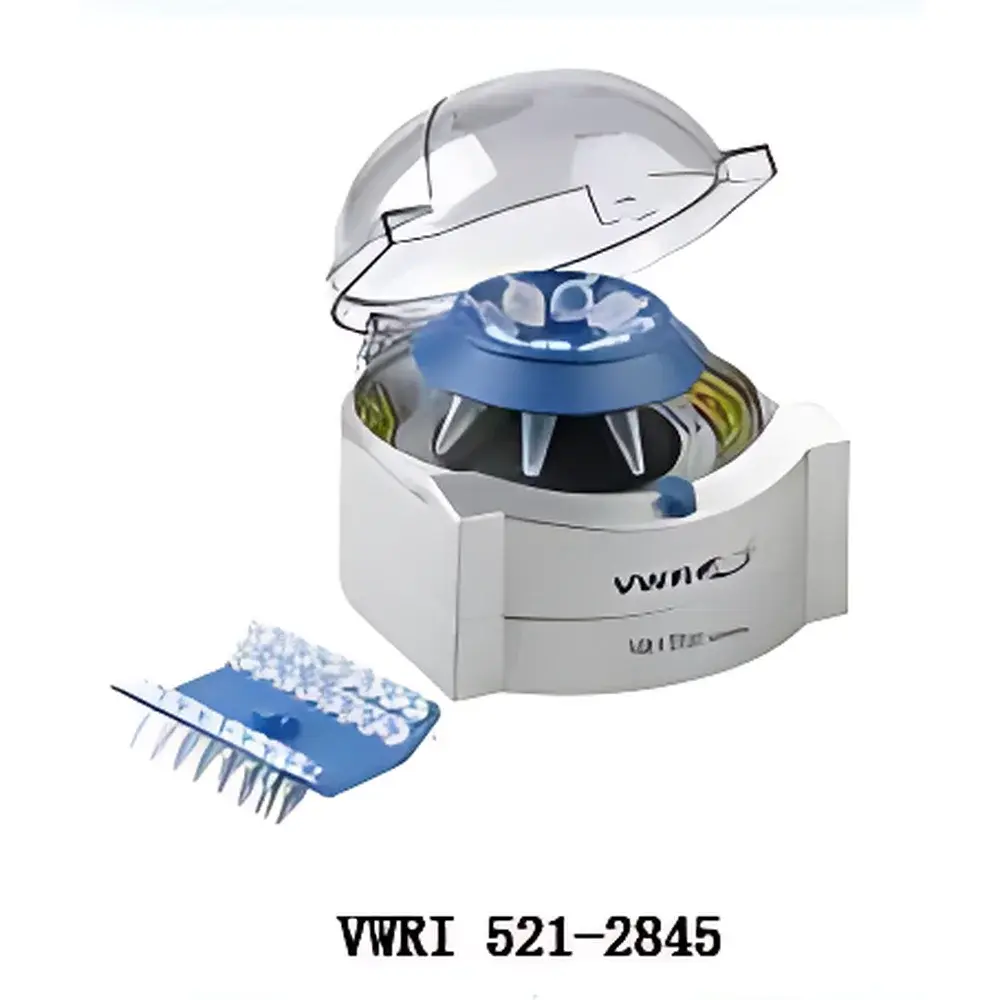

VWR MiniStar Silverline Compact Centrifuge (Model 521-2845)
| Brand | VWR |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | 521-2845 |
| Instrument Type | Palm-Sized Centrifuge |
| Speed Range | ≥6,000 rpm |
| Max RCF | 2,000 × g |
| Max Capacity | 8 × 1.5 mL microtubes |
| Dimensions (W×D×H) | 132 × 155 × 110 mm |
| Construction | Metal base, ABS housing, transparent polycarbonate safety lid |
| Compliance | CE, IEC 61010-1, UL 61010-1 |
Overview
The VWR MiniStar Silverline Compact Centrifuge (Model 521-2845) is an engineered solution for routine low-speed centrifugation tasks in life science laboratories, clinical sample preparation areas, and quality control environments. Designed around a brushless DC motor and precision-balanced rotor assembly, it operates on the principle of sedimentation under controlled centrifugal force—enabling rapid pelleting of cells, particulates, or precipitates from small-volume liquid samples without thermal stress or mechanical degradation. Unlike high-speed or ultracentrifuges, this palm-sized instrument targets applications where moderate g-force (up to 2,000 × g) and rapid cycle times are prioritized over ultra-high rotational speeds. Its fixed-angle rotor configuration ensures reproducible orientation and consistent sedimentation geometry across all eight positions, supporting method standardization in GLP-compliant workflows.
Key Features
- Compact footprint (132 × 155 × 110 mm) optimized for benchtop use in biosafety cabinets, cold rooms, or mobile lab setups
- Brushless DC motor delivering stable speed control with minimal heat generation and extended service life
- Integrated safety interlock system: automatic rotor deceleration upon lid opening and immediate power cutoff
- Transparent polycarbonate lid with optical clarity for real-time sample monitoring during operation
- Two-operation mode: front-panel push-button start/stop and rear-mounted toggle switch for integrated system control
- Metal base and reinforced ABS housing provide structural rigidity and vibration damping for quiet operation (<55 dB(A))
- No calibration required—factory-set speed accuracy ±3% at nominal 6,000 rpm
Sample Compatibility & Compliance
The MiniStar Silverline accommodates standard 1.5 mL microcentrifuge tubes (including PCR-grade and low-retention variants) in its fixed-angle rotor. It supports common laboratory protocols involving cell harvesting (e.g., mammalian suspension cultures), nucleic acid precipitation, antibody clarification, and microfiltration spin-down steps. Tube compatibility extends to capped and skirted formats; no adapters are needed for standard tube dimensions. The device complies with IEC 61010-1:2012 and UL 61010-1 safety standards for electrical equipment used in laboratory environments. While not classified as a medical device under FDA 21 CFR Part 820, its design aligns with ISO 13485-aligned manufacturing practices and supports audit-ready documentation when deployed in GMP-regulated QC labs.
Software & Data Management
This centrifuge operates as a standalone electromechanical instrument without embedded firmware or digital connectivity. All operational parameters—including run time, speed, and status—are managed manually via physical controls. As such, it does not generate electronic records, nor does it support FDA 21 CFR Part 11-compliant audit trails or user access controls. However, its simplicity ensures full compliance with paper-based SOPs and manual logbook entries required under basic GLP frameworks. For laboratories requiring traceable run data, integration with external timers or environmental monitoring systems (e.g., temperature-loggers in cold rooms) is recommended and routinely implemented in ISO/IEC 17025-accredited testing facilities.
Applications
- Routine pelleting of bacterial or yeast cells prior to lysis or genomic DNA extraction
- Spin-down of column-based purification kits (e.g., silica-membrane spin columns)
- Clarification of crude lysates or serum supernatants before HPLC or ELISA analysis
- Microvolume solvent exchange in synthetic chemistry workflows
- Pre-centrifugation step for capillary electrophoresis sample loading
- Field-deployable separation in point-of-care or veterinary diagnostic settings
FAQ
Is this centrifuge suitable for viral pellet isolation?
No. With a maximum RCF of 2,000 × g, it does not meet the minimum force requirements (typically ≥10,000 × g) for reliable viral particle sedimentation.
Can I use 2.0 mL tubes in this unit?
Not without risk of imbalance or lid interference. The rotor is dimensionally optimized for 1.5 mL tubes only.
Does the unit include a rotor and adapters in the standard package?
Yes—the VWR catalog number 521-2845 ships with the fixed-angle rotor pre-installed and includes universal 0.5 mL tube adapters.
What is the expected service life under daily usage?
Based on accelerated lifetime testing per IEC 60068-2-64, the motor and bearing assembly are rated for ≥20,000 hours of cumulative operation at rated load.
Is maintenance required beyond routine cleaning?
No scheduled maintenance is specified. Users should wipe the rotor chamber weekly with 70% ethanol and inspect the lid seal for cracks or deformation every 6 months.
