Walk-in Environmental Chamber Manufacturer

Overview

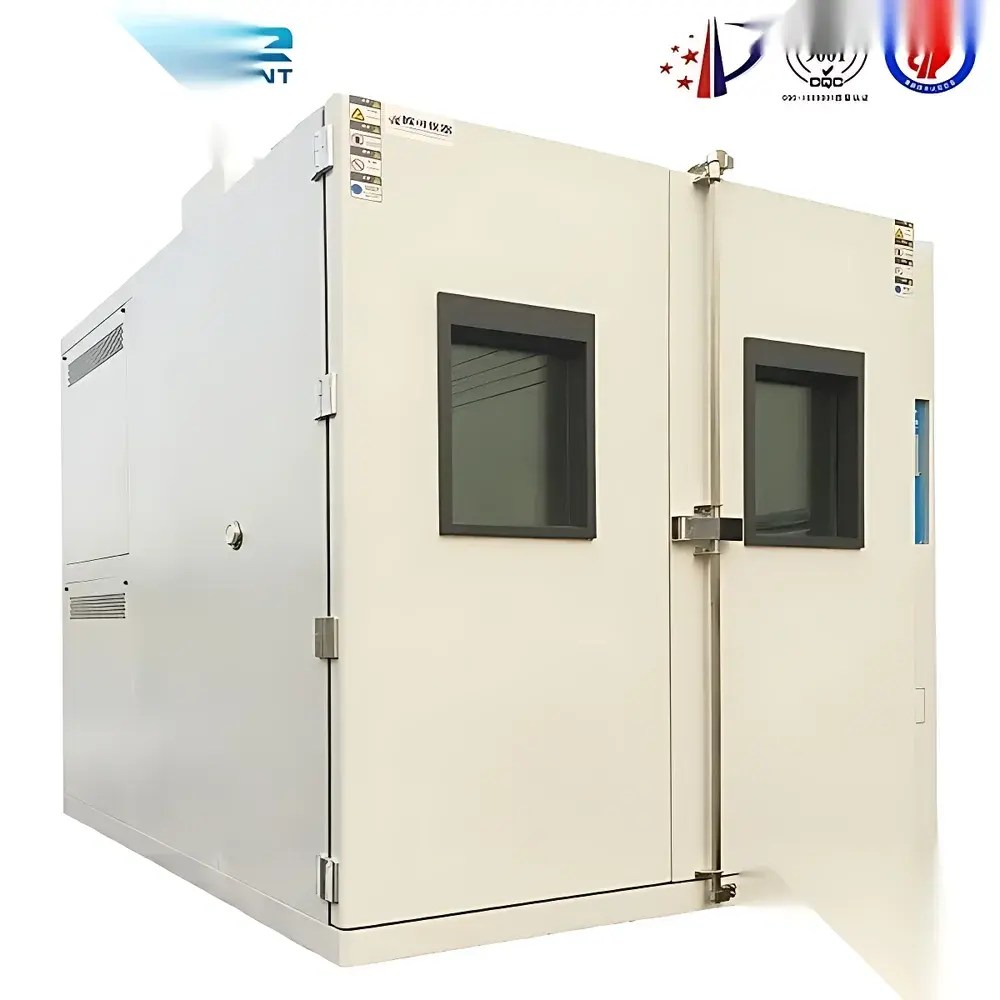

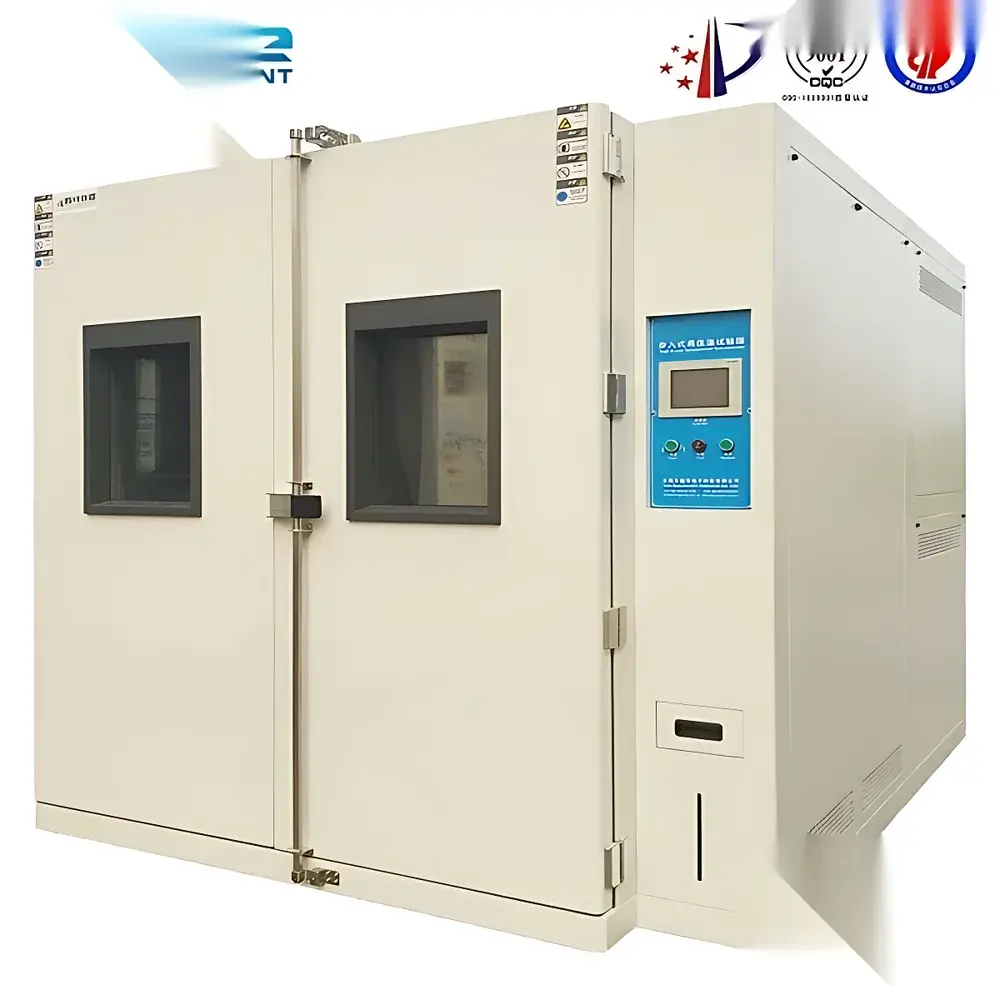

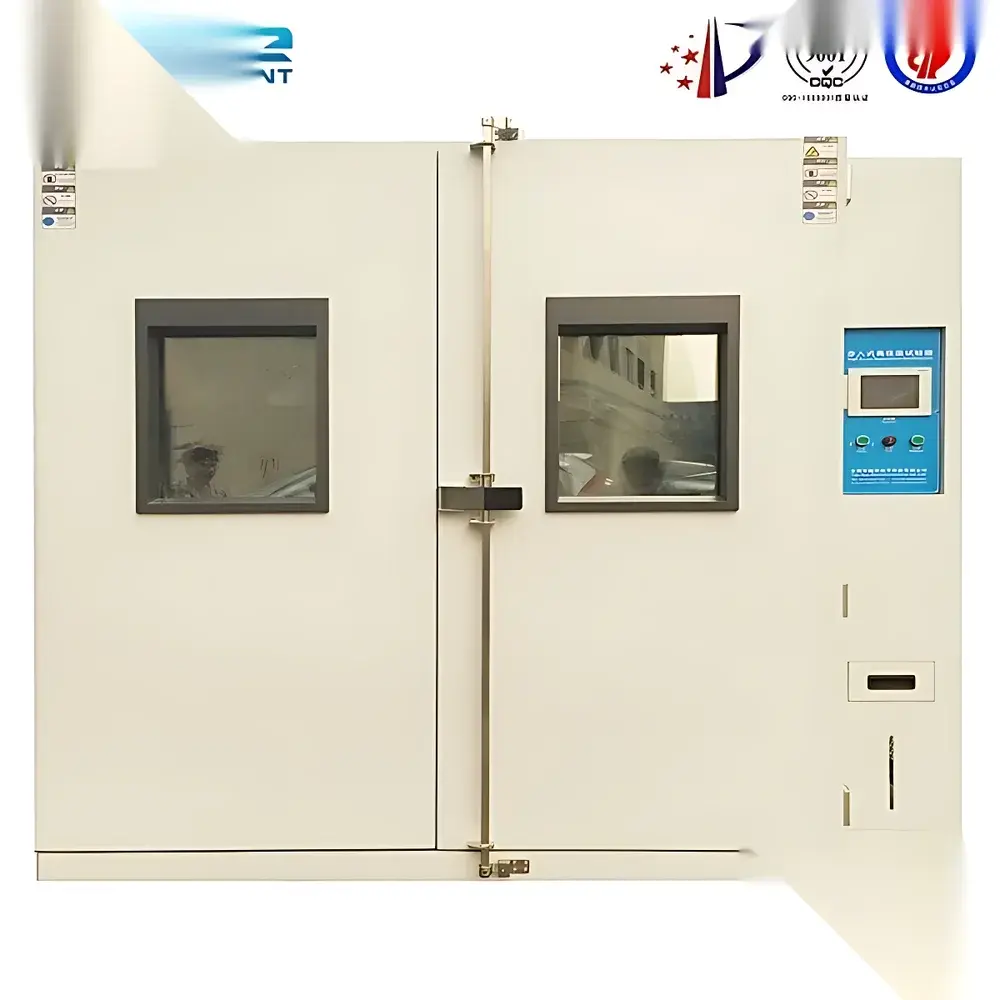

The Walk-in Environmental Chamber is an industrial-grade, fully enclosed climatic test enclosure engineered for long-duration thermal stress testing, accelerated aging, and stability evaluation of large-scale products, components, or batches under precisely controlled temperature conditions. Designed in accordance with fundamental principles of convective heat transfer and thermal mass management, the chamber utilizes forced-air circulation driven by high-efficiency centrifugal blowers and a scientifically optimized air distribution system—including adjustable directional vanes and a vortex-type air inlet manifold—to ensure uniform thermal distribution across the entire working volume (typically ≥2 m³). Its structural architecture integrates modular insulated panels, load-bearing floor reinforcement, and sealed joint construction to maintain environmental integrity during extended operation cycles—critical for compliance-driven validation protocols in electronics, automotive, aerospace, and pharmaceutical packaging sectors.

Key Features

• Modular panel construction using double-skin insulated sandwich panels (EPS, polyurethane, or rock wool core) with thickness options of 50 mm, 60 mm, 70 mm, or 100 mm—selected based on required thermal resistance (R-value) and operational duty cycle.
• Exterior and interior cladding available in galvanized color-coated steel (0.326 mm or 0.5 mm thickness) or stainless steel (SUS304), with aluminum or stainless steel edging and silicone sealant at all panel joints for enhanced airtightness and corrosion resistance.
• High-strength internal framework composed of galvanized steel C-sections and aluminum extrusions, supporting floor loading capacity up to 500 kg/m² and integrated sample handling rails for trolley-based product insertion/removal.
• Large-format true-color LCD touchscreen controller with full Chinese/English bilingual interface, intuitive menu navigation, and real-time graphical display of setpoints, actual values, and alarm status.
• Integrated data logging capability: 300-day continuous recording (temperature only) with timestamped storage; USB 2.0 port supports export to USB flash drives, connection to external printers, and optional PC-based supervision via proprietary software.
• Compliance-ready design: Meets mechanical safety requirements per IEC 61000-6-2/6-4 and thermal performance benchmarks aligned with ASTM E145, ISO 16750-4, and JEDEC JESD22-A104 for high-temperature operating life (HTOL) testing.

Sample Compatibility & Compliance

The chamber accommodates oversized or multi-unit test specimens—including vehicle ECUs, server racks, battery modules, medical device assemblies, and packaged consumer goods—without requiring disassembly. Internal dimensions are customizable to meet footprint and height constraints. Standard configurations support ambient +5°C to +60°C (optional extension to +80°C); temperature uniformity is maintained within ±3.0°C (spatial deviation) and stability within ±0.5°C (temporal fluctuation) under steady-state operation. All electrical systems comply with CE marking directives and IEC 61000 electromagnetic compatibility standards. Optional upgrades include humidity control integration, redundant sensor arrays, and audit-trail-enabled controllers compliant with FDA 21 CFR Part 11 for regulated environments.

Software & Data Management

The embedded controller firmware supports program editing (up to 120 segments), ramp/soak profiles, and event-triggered alarms (e.g., door open, over-temperature, fan failure). Data files are stored in CSV format for direct import into LIMS or statistical process control (SPC) platforms. The optional PC software provides remote monitoring, report generation (PDF/Excel), and user-level access control (administrator/operator modes). Raw log files include UTC timestamps, sensor IDs, and checksum validation—enabling traceability required under GLP and GMP quality systems.

Applications

• Accelerated life testing (ALT) and HALT/HASS screening of electronic control units and power electronics.
• Thermal aging validation of polymer-based enclosures, adhesives, and wire insulation materials per UL 746B.
• Stability assessment of pharmaceutical secondary packaging under ICH Q1A(R2) long-term and accelerated storage conditions.
• Pre-conditioning of lithium-ion battery packs prior to cycling or safety testing (UN 38.3, GB/T 31467.3).
• Environmental stress screening (ESS) of avionics hardware per MIL-STD-810H Method 501.7.

FAQ

What is the standard temperature range for this walk-in chamber?

Standard operation spans ambient +5°C to +60°C; extended range up to +80°C is available upon request with upgraded heating elements and insulation specification.

Can the chamber be configured for humidity control?

Yes—optional humidification and dehumidification subsystems can be integrated, enabling combined temperature/humidity testing per ISO 4892-2 or IEC 60068-2-30.

Is the controller compliant with FDA 21 CFR Part 11?

Base configuration supports audit trails and electronic signatures when equipped with the optional validated software package and user authentication module.

What power supply is required for installation?

Three-phase AC 380 V ±10%, 50 Hz, with dedicated grounding and circuit protection per local electrical codes.

How is temperature uniformity verified and documented?

Uniformity mapping is performed using NIST-traceable PT100 sensors at nine predefined locations (per ASTM E145 Annex A1); calibration certificates and as-built test reports are provided upon commissioning.
