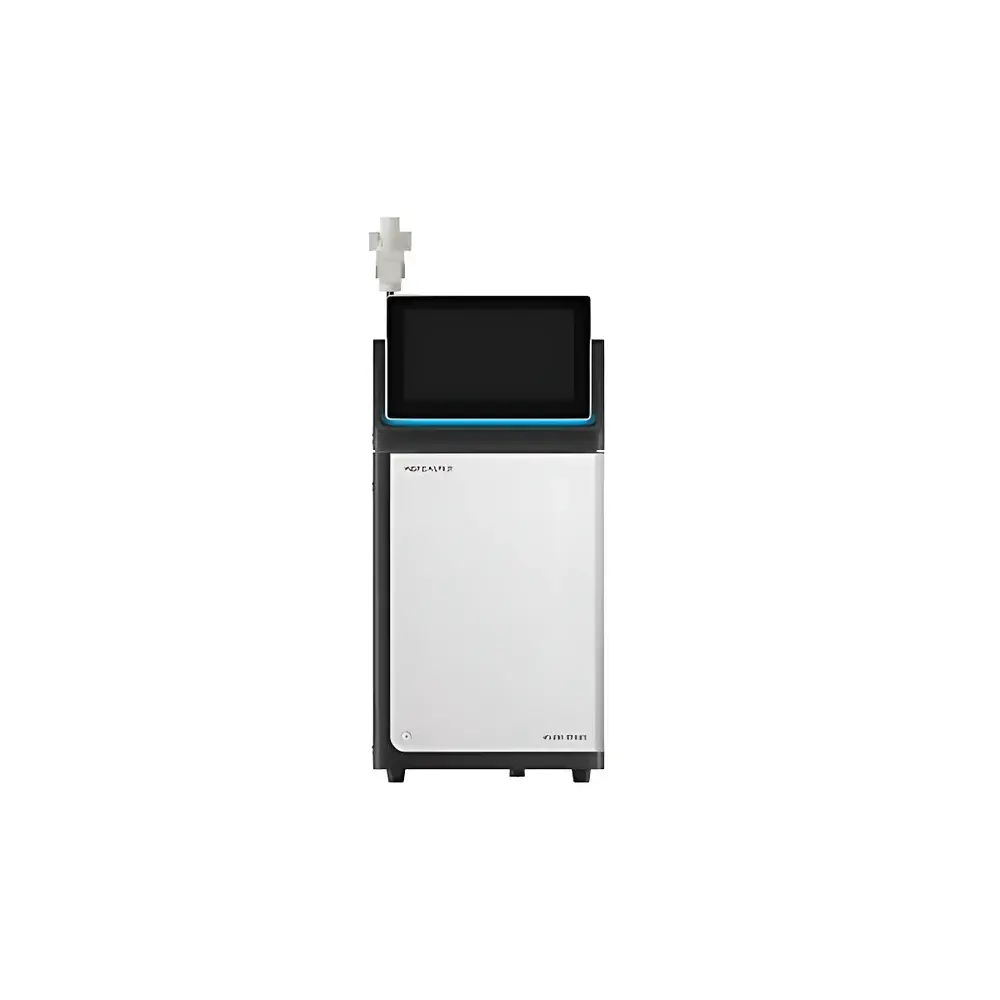

WAYEAL IC6200 Series Integrated Ion Chromatograph
| Brand | WAYEAL |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | Domestic (China) |
| Model | IC6200 Series |
| Instrument Type | Laboratory Benchtop System |
| Application Scope | General-Purpose Ion Analysis |
| Maximum Pump Pressure | 35 MPa |
| Flow Rate Range | 0.001–10.000 mL/min |
| Eluent Flow Rate Range | 0.001–10.000 mL/min |
| Max Operating Pressure | 35 MPa (main unit) / 21 MPa (Eluent Generator) |
| Temperature Control Range | 4–65 °C |
| Temperature Reproducibility | ±0.005 °C |
| Eluent Concentration Range | 0–100 mmol/L (KOH) or 0–15 mmol/L (K₂CO₃) |
Overview
The WAYEAL IC6200 Series Integrated Ion Chromatograph is a fully integrated, benchtop ion chromatography system engineered for precision, robustness, and long-term operational stability in routine and regulated laboratory environments. It employs suppressed conductivity detection with electrolytic self-regenerating membrane suppressors and integrates an on-demand eluent generation (EG) module—enabling high-accuracy, low-drift anion and cation analysis without manual eluent preparation. The system operates on the principle of ion exchange chromatography, where analyte ions are separated on high-efficiency, low-capacity ion-exchange columns under precisely controlled isocratic or gradient elution conditions. Separated ions are then detected via temperature-stabilized, high-sensitivity conductivity detection—optionally augmented by pulsed amperometric detection (PAD) when coupled with the ECD3100 amperometric detector. Designed for compliance-critical workflows, the IC6200 supports audit-ready data integrity through time-stamped event logging, user-access control, and full GLP/GMP-aligned instrument health monitoring.
Key Features
- Fully integrated architecture with unified touchscreen GUI: 7-inch high-brightness LCD controller with intuitive navigation, real-time status visualization, and embedded method storage.
- Electrolytic eluent generator (EG): Produces high-purity KOH (0–100 mmol/L) or K₂CO₃ (0–15 mmol/L) eluents from deionized water—eliminating human error, contamination risk, and batch-to-batch variability in manual preparation.
- PEEK-based non-metallic fluidic path: Entire flow path—including pump head, injection valve, tubing, fittings, and eluent reservoirs—is constructed from PEEK, PTFE, and PP to ensure chemical inertness across pH 0–14 and compatibility with organic modifiers.
- High-precision dual-column reciprocating PEEK pump: Features electronic pulse-dampening technology, suspended drive mechanism, and integrated high/low-pressure protection—delivering stable flow (<0.1% RSD) and extended seal life.
- Active thermal management system: Includes column oven with rapid heat exchange, pre-heated eluent/sampler lines, and temperature-compensated conductivity cell (±0.005 °C stability)—minimizing baseline drift and peak broadening.
- Self-regenerating electrolytic suppressors: Available for both anion (ASRS™-300 compatible) and cation (CSRS™-300 compatible) modes; zero reagent consumption, no external regeneration pumps, 5,000 injections per cartridge.
- One-touch intelligent maintenance suite: “One-Touch Rinse” initiates post-run column and detector cleaning sequences; “One-Touch Maintenance” executes automated leak checks, pressure calibration, and suppressor regeneration—reducing operator dependency and downtime.
Sample Compatibility & Compliance
The IC6200 accommodates aqueous samples containing inorganic anions (F⁻, Cl⁻, NO₂⁻, Br⁻, NO₃⁻, PO₄³⁻, SO₄²⁻), small organic acids (acetate, formate), cations (Li⁺, Na⁺, NH₄⁺, K⁺, Mg²⁺, Ca²⁺), and transition metal complexes. Sample matrices include drinking water, wastewater, pharmaceutical excipients, battery electrolytes, food extracts, and semiconductor process chemicals. All hardware and firmware comply with IEC 61010-1 (electrical safety), ISO/IEC 17025 traceability requirements for calibration, and support 21 CFR Part 11-compliant electronic records when used with validated workstation software. Column and suppressor configurations adhere to ASTM D4327 (anions in water) and USP (conductivity of purified water).
Software & Data Management
Controlled via WAYEAL Chromatography Workstation (v3.2+), a Windows-based platform supporting method development, sequence scheduling, real-time chromatogram overlay, peak integration with ISO 17998-compliant algorithms, and customizable report templates. The software includes full audit trail functionality—recording all user actions, parameter changes, and instrument events with immutable timestamps. Data files conform to ASTM E1921-compliant .CDF format and support direct export to LIMS via ODBC or CSV. Optional modules enable automated system suitability testing (SST), peak purity assessment, and multi-point calibration curve validation with residual analysis.
Applications
- Environmental monitoring: Quantification of regulated anions/cations in surface water, groundwater, and effluent per EPA Methods 300.0, 300.1, and 317.0.
- Pharmaceutical quality control: Testing of counterions in APIs, residual acetate/formate in biologics, and chloride in parenteral solutions per USP , , and .
- Food & beverage safety: Nitrate/nitrite in cured meats, sulfite in wines, and phosphate additives in dairy products per AOAC 999.10 and ISO 10304-1.
- Electronics manufacturing: Trace halide analysis in photoresists and ultrapure water used in wafer cleaning (SEMI F57).
- Academic research: Speciation studies of metal complexes, ion mobility correlation, and method development for novel stationary phases.
FAQ
Does the IC6200 support gradient elution without a multi-pump system?
Yes—the integrated eluent generator enables precise current-controlled gradient formation using a single high-pressure pump, eliminating need for complex low-pressure mixing or expensive quaternary solvent delivery systems.
Can the system be upgraded to two-dimensional ion chromatography?
Yes—via optional switching valves and secondary detection modules, the IC6200 platform supports 2D-IC configurations for complex matrix separation (e.g., hydrophilic interaction + ion exchange coupling).
Is the ECD3100 amperometric detector compatible with the IC6200’s existing electronics and software?
Yes—it connects directly to the main controller via RS-485 and is fully recognized and configured within the Chromatography Workstation without third-party drivers.
What is the maximum operating temperature for the column oven and how is thermal uniformity ensured?
The column compartment maintains 4–65 °C with ±0.005 °C reproducibility via PID-controlled forced-air circulation and insulated chamber design—validated per ISO 17025 thermal mapping protocols.
How does the system handle carryover in high-sensitivity trace analysis?
AS2800/AS3110 autosamplers feature programmable coarse/fine needle wash cycles, pressurized rinse with dual internal/external solvents, and cold-tray options (4 °C) to suppress analyte volatility and adsorption.
