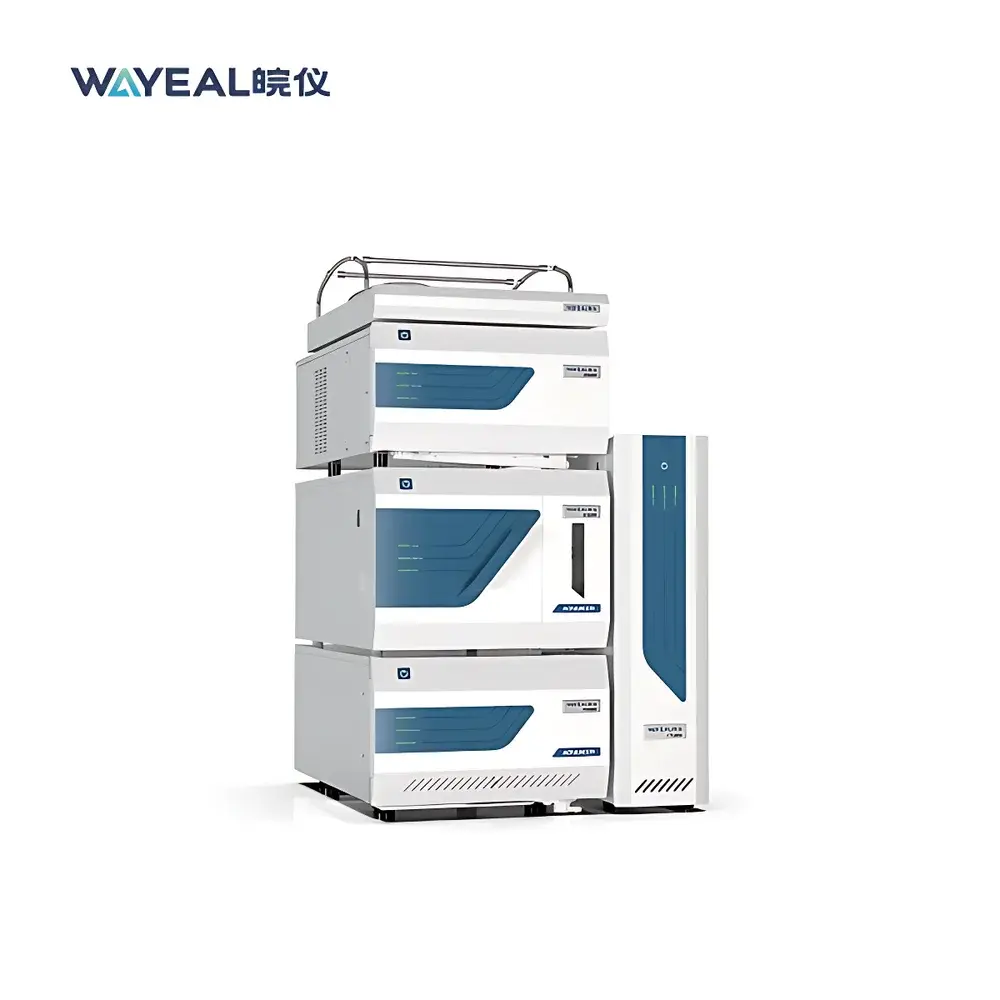

WAYEAL LC3200S Series High-Performance Liquid Chromatograph

Overview

The WAYEAL LC3200S Series is a modular, high-reliability high-performance liquid chromatography (HPLC) system engineered for precision, method transfer robustness, and long-term operational stability in regulated and research laboratories. Built upon a unified fluidic architecture, the platform supports interchangeable pump configurations—including quaternary and binary gradient systems—each compliant with ISO 13842 and ASTM D7627 standards for gradient accuracy and flow precision. Its core measurement principle relies on pressure-driven mobile phase delivery through packed analytical columns, coupled with selective detection via absorbance (UV-Vis/DAD), fluorescence (FLD), refractive index (RID), evaporative light scattering (ELSD), or electrochemical response. The system is designed to meet routine QC/QA requirements across pharmaceutical, environmental, food safety, and academic applications while supporting method development workflows requiring sub-2 µm particle column compatibility enabled by its 45 MPa maximum pressure rating.

Key Features

• Modular hardware architecture: Interchangeable pump units (quaternary with 5-channel integrated degassing; binary with solvent selection valve for 4-solvent expansion), column oven, autosampler, and detector modules allow flexible system configuration and future scalability.
• “Needle-in-Flow-Path” autosampler: Minimizes carryover (<0.005%) and sample loss through direct injection into the high-pressure flow stream; includes optimized needle wash path with dual-solvent rinse capability and programmable wash cycles.
• Advanced pump technologies: Patented secondary suspension seal design reduces plunger seal wear; fluid compressibility compensation algorithm enables real-time electronic pulse suppression; high-accuracy acetonitrile-compatible check valves ensure stable delivery under aggressive organic mobile phases.
• Column oven with dual-mode temperature control: Peltier-based cooling + resistive heating enables precise -10 °C to 80 °C operation; forced-air circulation ensures ±0.15 °C uniformity across full chamber volume; pre-heating module matches setpoint range for thermal equilibration consistency.
• Expandable 2D-LC readiness: Integrated high-pressure switching valve position and optional external valve support enable comprehensive heart-cutting or comprehensive 2D-LC implementations without third-party hardware integration.

Sample Compatibility & Compliance

The LC3200S Series accommodates standard 3.0–300 mm analytical columns (ID 2.1–4.6 mm) and supports GLP-compliant column tracking with embedded RFID or manual metadata logging. All detectors comply with ICH Q2(R2) guidelines for detector suitability testing. UV/Vis and DAD modules meet USP requirements for wavelength accuracy (±0.5 nm via holmium oxide, potassium dichromate, and erbium perchlorate calibration) and baseline noise (<0.5 × 10⁻⁵ AU). The system architecture supports 21 CFR Part 11-compliant audit trails when operated with Smart Lab software under validated configurations. Electrical safety conforms to IEC 61010-1; electromagnetic compatibility meets EN 61326-1 Class A.

Software & Data Management

Smart Lab Chromatography Workstation provides intuitive method building, sequence scheduling, real-time monitoring, and post-run processing. It supports multi-detector synchronization, peak purity analysis (DAD), spectral library matching, and customizable report templates aligned with ISO/IEC 17025 documentation requirements. Raw data files are stored in vendor-neutral .CDF format (compatible with OpenLab CDS, Chromeleon, and Empower import utilities). Audit trail functionality records user actions, parameter changes, and instrument events with time stamps and operator IDs. Data integrity safeguards include electronic signatures, role-based access control, and automatic backup to network drives or NAS devices.

Applications

The LC3200S Series serves as a primary analytical platform for small-molecule quantification in pharmaceutical stability studies (ICH Q1–Q5), residual solvent analysis per USP , pesticide residue screening in food matrices (AOAC 2007.01), PAHs and PCBs in environmental water samples (EPA 8330B), and amino acid profiling in clinical diagnostics. Its DAD detector enables spectral deconvolution of co-eluting peaks in complex natural product extracts; FLD supports trace-level analysis of polycyclic aromatic hydrocarbons and mycotoxins; ELSD delivers universal response for non-chromophoric carbohydrates and lipids; RID ensures accurate quantitation of sugars and alcohols without derivatization.

FAQ

Does the LC3200S Series support method transfer from legacy Agilent or Waters systems?
Yes—its gradient delay volume (<150 µL), dwell volume consistency, and pressure-rated flow accuracy enable seamless migration of isocratic and gradient methods developed on major OEM platforms.
Is the DAD detector capable of spectral library searching?
Yes—Smart Lab includes built-in NIST-compatible spectral libraries and supports user-defined library creation with peak-specific spectrum extraction and match factor scoring.
Can the system be operated without a connected PC?
Yes—integrated touchscreen panels on the pump, autosampler, and detectors allow standalone method execution, status monitoring, and basic diagnostics via front-panel controls.
What column oven accessories are available for extended method validation?
Optional column identification modules (RFID readers), column leakage sensors, and external column switch manifolds for parallel column testing are supported.
How is detector linearity verified during qualification?
Each detector includes factory-installed linearity verification kits (e.g., caffeine dilution series for UV, riboflavin for FLD); Smart Lab automates linearity report generation per USP and EP 2.2.44 protocols.
