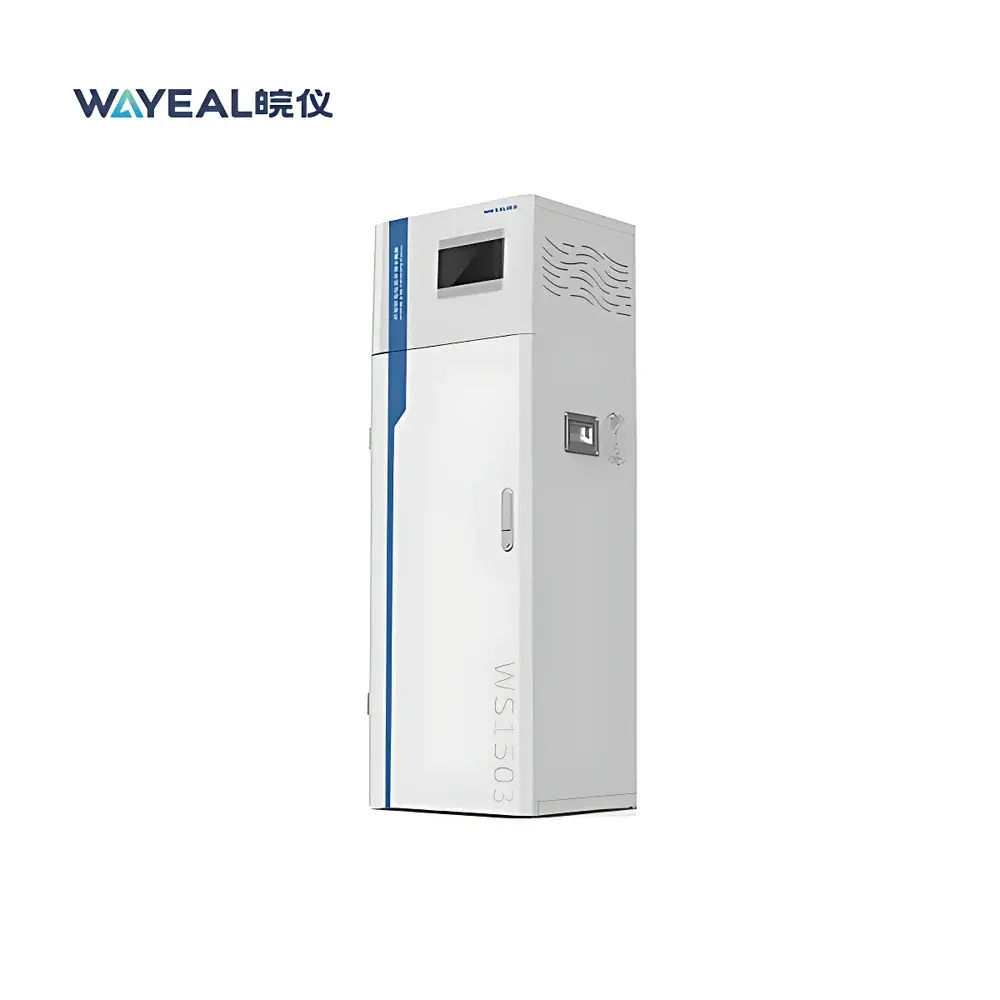

WAYEAL WS1503 Online Ammonia-Nitrogen (NH₃-N) Water Quality Analyzer

Overview

The WAYEAL WS1503 Online Ammonia-Nitrogen (NH₃-N) Water Quality Analyzer is an industrial-grade, fully automated monitoring system engineered for continuous, unattended measurement of total ammonia nitrogen concentration in surface water, wastewater effluents, and municipal or industrial discharge streams. It operates on the spectrophotometric salicylate method—a standardized colorimetric technique recognized in ISO 11732:2005 and EPA Method 350.1. In alkaline medium with sodium nitroprusside (nitroferricyanide) as a catalyst, ammonium ions react stoichiometrically with salicylate and hypochlorite to form a stable, water-soluble indophenol blue complex. This chromophore exhibits maximal absorbance at 697 nm, enabling quantification via photometric detection based on the Lambert-Beer law. The system integrates real-time temperature compensation algorithms, ambient light rejection optics, and integrated cold-condensation reagent preservation—ensuring analytical consistency across seasonal ambient variations from −5 °C to 45 °C.

Key Features

• Triple-stage precision photometric dosing system: Minimizes volumetric error (<±0.8% RSD) and mitigates peristaltic tube fatigue effects through adaptive flow calibration and pressure-compensated aspiration.
• Integrated thermal stabilization module: Maintains reaction cuvette temperature within ±0.3 °C of setpoint (typically 37 °C), critical for kinetic reproducibility of the salicylate reaction.
• Automated interference suppression: Onboard masking agent injection (EDTA-based chelator) selectively sequesters Ca²⁺ and Mg²⁺, eliminating turbidity and spectral overlap in hard water matrices.
• Modular valve manifold with ceramic rotor design: Rated for >500,000 actuation cycles; supports remote diagnostics and predictive maintenance alerts via embedded I/O status monitoring.
• Field-editable maintenance scheduler: Operators define custom calibration frequency, cleaning intervals, and reagent replacement triggers directly via HMI—no firmware update required.
• Capacitive touchscreen HMI (7″, 800×480 resolution): IP65-rated front panel with multi-language support (English, Spanish, Portuguese); stores ≥12 months of local event logs and method parameters.

Sample Compatibility & Compliance

The WS1503 accepts raw influent and treated water samples with suspended solids ≤50 mg/L and pH 6.0–9.0 without pre-filtration. It complies with national Chinese standards HJ 101–2019 (Ammonia Nitrogen Water Quality Monitoring Technical Specification) and meets functional equivalency requirements for ISO/IEC 17025:2017 accredited laboratories performing routine environmental testing. Data integrity conforms to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trails—including method changes, calibration events, and reagent lot entries—are timestamped and user-logged, satisfying basic traceability needs under GLP frameworks.

Software & Data Management

Embedded firmware supports Modbus TCP (port 502), RS-485 (RTU/ASCII), and optional 4–20 mA analog output (isolated, HART-enabled). Data export formats include CSV and XML via USB host interface or Ethernet FTP push. The onboard data logger retains ≥30 days of 15-minute interval measurements (NH₃-N concentration, temperature, optical density, system status flags). Remote access is enabled via secure SSH tunneling; no cloud dependency or vendor-hosted platform is required. All configuration files are encrypted and digitally signed to prevent unauthorized modification—aligning with cybersecurity baseline expectations for SCADA-adjacent instrumentation.

Applications

• Real-time compliance monitoring at municipal wastewater treatment plant (WWTP) final effluent outfalls per national discharge permits.
• Continuous surveillance of industrial point-source discharges (e.g., food processing, pharmaceutical manufacturing, textile dyeing) where NH₃-N load variability demands rapid response capability.
• Integration into national water quality surveillance networks (e.g., China’s National Surface Water Monitoring Network) requiring stable, low-maintenance analyzers for unmanned station deployment.
• Process control feedback loops in denitrification bioreactors, where sub-hourly NH₃-N trends inform aeration rate adjustments and carbon dosing strategies.

FAQ

What is the typical measurement range and detection limit?
The instrument is calibrated for 0.05–10.0 mg/L NH₃-N (as N), with a method detection limit (MDL) of 0.02 mg/L determined per EPA Guidance Document 530-R-12-001.
Does the analyzer require daily manual intervention?
No—routine operation is fully autonomous for ≥30 days with standard reagent packs; only quarterly verification and annual optical path cleaning are recommended.
Can it be deployed in outdoor cabinets without climate control?
Yes—the integrated Peltier-based cold condenser maintains reagent stability at ambient temperatures up to 45 °C; optional heater kit extends operational range to −10 °C.
Is remote firmware update supported?
Firmware updates are performed offline via USB drive using signed binary packages; no over-the-air (OTA) capability is implemented to preserve system integrity.
How does the system handle high-turbidity samples?
Samples exceeding 50 NTU must be filtered inline using a 40-µm stainless-steel mesh prefilter; the analyzer includes dry-run protection and clog-detection logic on the sample intake line.
