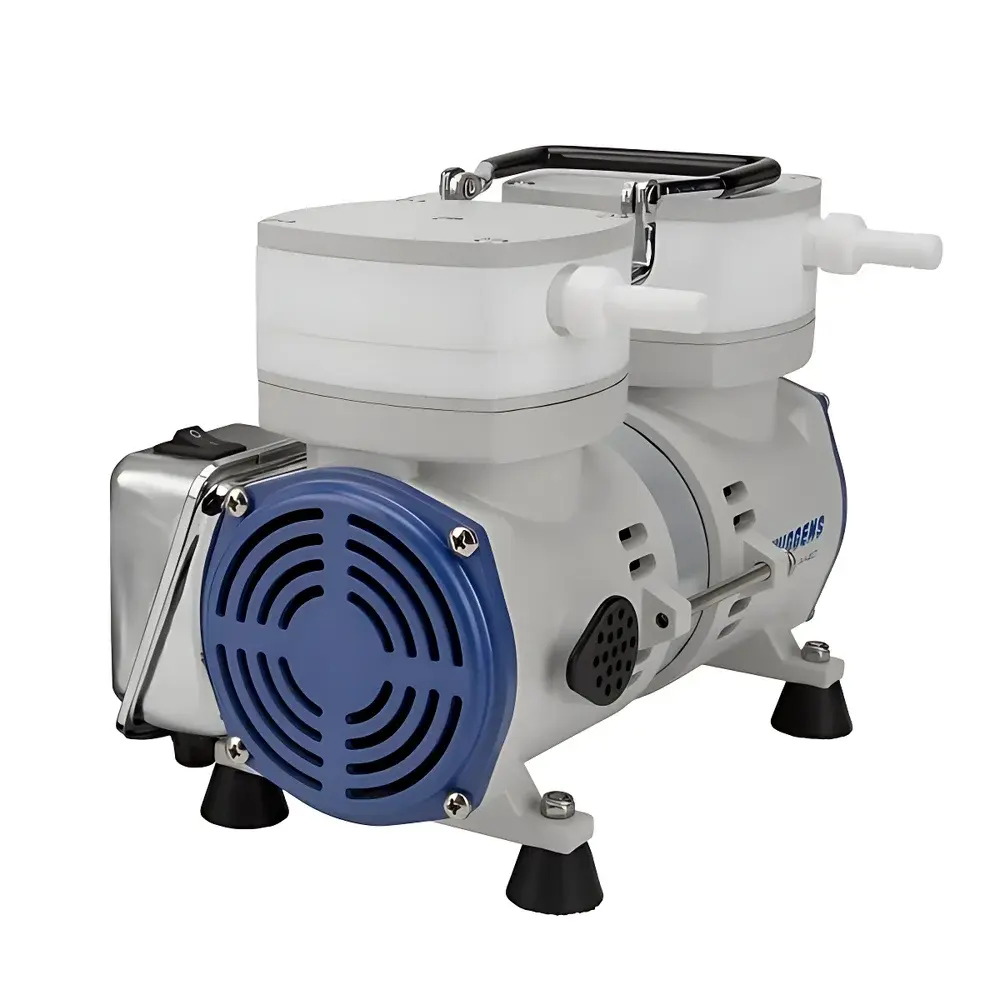

WIGGENS A410 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS A410 Corrosion-Resistant Diaphragm Vacuum Pump is an oil-free, dual-stage positive displacement vacuum source engineered for reliable operation in chemistry, pharmaceutical, and materials science laboratories. Utilizing a chemically resistant PTFE-coated diaphragm and stainless steel valve assembly, the A410 generates stable vacuum levels down to 13 mbar while maintaining consistent flow rates up to 25 L/min — ideal for applications requiring clean, dry, and hydrocarbon-free vacuum environments. Unlike oil-lubricated rotary vane pumps, the A410 eliminates risks associated with oil backstreaming, vapor contamination, or disposal of hazardous waste oil. Its sealed motor and thermally protected design ensure continuous duty-cycle operation under variable load conditions, making it a robust replacement for water aspirators and conventional oil-sealed vacuum systems.

Key Features

• Chemical resistance: PTFE-coated diaphragm, EPDM elastomer seals, and stainless steel internal components provide extended service life when handling mildly corrosive vapors (e.g., HCl, acetic acid, acetone, ethanol)
• Dual-stage architecture: Delivers deeper ultimate vacuum (≤13 mbar) and improved pumping efficiency across a broad pressure range compared to single-stage diaphragm pumps
• Thermal protection circuitry: Integrated temperature sensor automatically interrupts power at critical motor housing temperatures (>85 °C); auto-restart occurs only after safe thermal recovery
• Low-noise operation: Optimized vibration damping and balanced rotor design achieve ≤50 dB(A) at 1 m distance — suitable for shared lab spaces and quiet environments
• Compact footprint & lightweight construction: Measures just 230 × 155 × 173 mm and weighs only 4.5 kg, enabling flexible benchtop integration without structural reinforcement
• Energy-efficient drive: 95 W brushless AC motor delivers high torque-to-power ratio, minimizing heat generation and operational cost over extended use

Sample Compatibility & Compliance

The A410 is compatible with standard laboratory vacuum interfaces (10 mm ID tubing/hose barbs) and supports connection to filtration manifolds, rotary evaporators (e.g., Buchi R-210, IKA RV 10), gel dryers, desiccators, and vacuum ovens. It meets CE marking requirements per EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity), and complies with RoHS Directive 2011/65/EU. While not certified for explosive atmospheres (ATEX), its oil-free operation reduces ignition risk in solvent-rich environments. For GLP/GMP workflows, optional vacuum regulators and particulate filters (e.g., WIGGENS F-10C corrosion-resistant filter kit) support traceable process control and prevent pump chamber contamination.

Software & Data Management

The A410 operates as a standalone analog device without embedded firmware or digital connectivity. However, it is fully compatible with third-party vacuum controllers (e.g., Vacuubrand VACUU·SELECT, KNF Laboport N860.3FT.18) via 0–10 V analog input or relay-triggered start/stop signals. When integrated into automated systems, its stable vacuum output enables reproducible endpoint detection in gravimetric drying or timed filtration protocols. All mechanical settings (e.g., regulator position, filter installation) are manually documented per SOP, supporting audit readiness under ISO/IEC 17025 and FDA 21 CFR Part 11-compliant data governance frameworks where external logging is employed.

Applications

• Vacuum-assisted filtration: Rapid clarification of aqueous and organic suspensions using Buchner or Hirsch funnels
• Rotary evaporation: Efficient solvent removal from heat-sensitive compounds at controlled bath temperatures
• Gel electrophoresis drying: Uniform dehydration of polyacrylamide or agarose gels without cracking
• Desiccation & lyophilization pre-chilling: Maintaining sub-atmospheric pressure during sample freezing stages
• Gas sampling & purge cycles: Controlled evacuation of headspace in reaction vessels prior to inert gas introduction
• Environmental testing: Supporting ASTM D2879 (vapor pressure of liquids) and ISO 21620-1 (vacuum drying of plastics)

FAQ

Is the A410 suitable for continuous-duty operation?

Yes — its thermally protected motor and dual-stage diaphragm design support uninterrupted operation for up to 8 hours per cycle under nominal load (20–25 L/min at 20–50 mbar).
Can it handle highly corrosive gases such as chlorine or nitrogen dioxide?

No — the A410 is rated for mild-to-moderate corrosives (e.g., organic solvents, dilute acids/bases). For aggressive oxidizers or halogens, WIGGENS C-series pumps with enhanced fluoropolymer housings and ceramic components are recommended.
Does it require periodic oil changes or lubrication?

No — the A410 is completely oil-free; only routine inspection of inlet filters and diaphragm integrity (every 6–12 months depending on usage intensity) is required.
What vacuum accessories are compatible with the A410?

Standard 10 mm vacuum hose, WIGGENS F-10C corrosion-resistant filter kit, adjustable vacuum regulators (e.g., VR-10), and vacuum gauges with analog output (0–10 V or 4–20 mA) integrate seamlessly.
Is the pump compliant with FDA or ISO 13485 standards?

While not certified under ISO 13485, its material composition (USP Class VI elastomers, FDA-compliant PTFE) and documentation package support qualification in medical device manufacturing environments per QSR 21 CFR Part 820.
