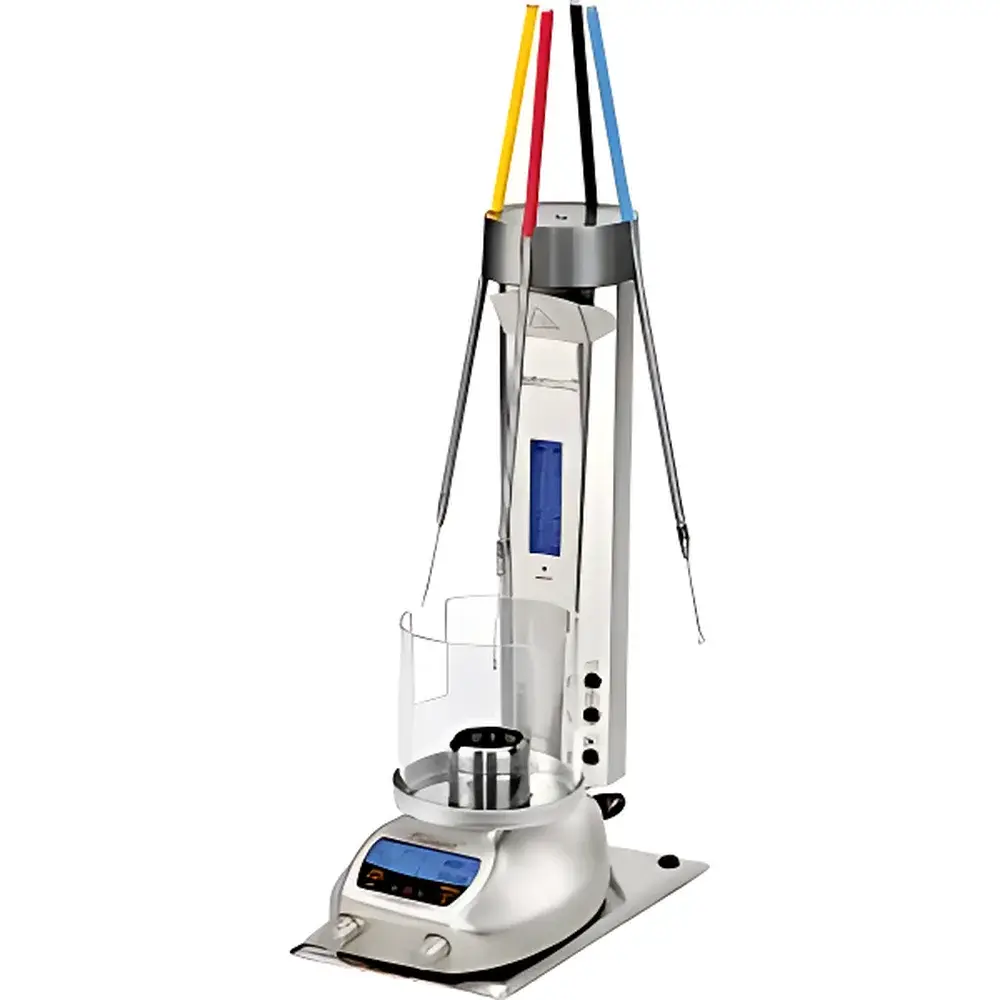

WIGGENS Autoloop Pro Automated Rotating Inoculation Loop Sterilizer

Overview

The WIGGENS Autoloop Pro Automated Rotating Inoculation Loop Sterilizer is an engineered solution for flame-based sterilization of microbiological inoculation loops and needles in regulated laboratory settings. Unlike manual flaming over a Bunsen burner—subject to operator variability, inconsistent dwell time, and thermal degradation of loop integrity—the Autoloop Pro implements a programmable, sensor-monitored rotational cycle synchronized with a compatible WIGGENS Fuego series Bunsen burner. Its core principle relies on controlled exposure of metallic loops to calibrated flame intensity for a precisely defined duration, followed by a timed passive cooling phase in a designated station. This eliminates human error in timing, positioning, and repetition, thereby supporting reproducible aseptic technique across microbial isolation, streaking, subculturing, and colony picking workflows. The device is not a standalone heat source but a precision motion and timing controller designed exclusively for integration with validated gas-powered flame systems, making it suitable for ISO 13485, CLIA, and GLP-aligned laboratories where documentation of sterilization parameters and process consistency are mandatory.

Key Features

• Microprocessor-controlled sterilization cycle with independent adjustment of flame exposure (1–15 s) and post-sterilization cooling (1–45 s), both configurable to the second
• Optical position sensing system that detects loop presence/absence at each station, enabling automatic rotation only when a loop is correctly seated
• Bidirectional rotation motor with user-selectable direction (clockwise or counterclockwise), optimizing ergonomic access for left- and right-handed operators
• Dual-intensity flame mode—low and high—allowing differentiation between thin-wire loops (e.g., 0.6 mm diameter) and heavier-duty variants (e.g., 5 mm diameter)
• Real-time dual-color LED status indicators: red for active heating or residual heat; green for thermally safe, ready-to-use condition
• Footswitch interface for hands-free operation—critical during laminar flow hood use or when gloves limit dexterity; supports loop insertion, retraction, and initiation of full-cycle sterilization
• Stainless steel chassis with heat-resistant tempered glass front panel, rated for continuous operation in Class II biosafety cabinets and cleanroom environments
• Auto-shutdown function with dual timeout options (15 minutes or 1 hour), reducing gas consumption and mitigating unattended operational risk

Sample Compatibility & Compliance

The Autoloop Pro accommodates up to four standard stainless steel inoculation loops (diameters: 1 mm, 3 mm, or 5 mm) mounted on 245 mm-length handles with 0.6–1.0 mm shank diameters. It is fully compatible with all WIGGENS Fuego SCS and Fuego Classic Bunsen burners, ensuring stable flame geometry and consistent thermal flux. The system adheres to foundational requirements of microbiological aseptic practice as described in USP <71>, EU GMP Annex 1, and ISO 14644-1 for cleanroom-associated equipment. While flame sterilization itself falls outside ISO 17664 (which governs steam and ethylene oxide validation), the Autoloop Pro’s programmable parameters, audit-ready timing logs (via optional software integration), and repeatable thermal cycling support traceability under FDA 21 CFR Part 11–compliant data management frameworks when paired with validated LIMS or ELN systems.

Software & Data Management

The Autoloop Pro operates via embedded firmware without external PC dependency; however, its parameter settings—including sterilization duration, cooling interval, flame intensity, and auto-shutdown threshold—are retained across power cycles and can be recalled without recalibration. For laboratories requiring electronic recordkeeping, the device supports optional RS-232 or USB-to-serial connectivity (via third-party interface module) to export timestamped event logs: loop load/unload detection, cycle start/end timestamps, thermal status transitions, and fault codes (e.g., misalignment, incomplete rotation). These logs comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when ingested into validated electronic lab notebooks or quality management systems.

Applications

• Routine sterilization of inoculation loops and needles in clinical microbiology labs performing bacterial/fungal isolation from blood, urine, or wound specimens
• High-throughput colony picking in biobanking and strain archiving facilities where loop longevity and cross-contamination prevention are critical
• Cell culture core facilities requiring rapid, standardized loop sterilization between passages of sensitive mammalian or stem cell lines
• Teaching laboratories seeking to standardize aseptic technique training while minimizing student exposure to open flames
• Pharmaceutical QC labs conducting environmental monitoring (EM) swab streaking, where documented thermal exposure time supports investigation of out-of-spec colony counts

FAQ

Does the Autoloop Pro include a Bunsen burner?
No. The device is designed exclusively for integration with existing WIGGENS Fuego-series Bunsen burners (sold separately). It does not generate heat or flame.
Can it sterilize items other than inoculation loops?
It is validated only for standard metallic inoculation loops and needles. Use with pipette tips, forceps, or glass rods is not supported and may compromise safety or performance.
Is calibration required before first use?
No factory calibration is needed. All timing parameters are digitally set and maintained within ±0.1 s accuracy across operating temperature ranges (15–35 °C).
How is loop alignment verified during operation?
An optical sensor array confirms physical contact and axial orientation at each station prior to initiating rotation or flame exposure—preventing partial sterilization or mechanical jamming.
What maintenance is recommended?
Monthly inspection of rotation bearings and optical sensors; wipe-down of stainless steel surfaces with 70% ethanol; no lubrication or internal servicing required under normal use conditions.
