WIGGENS ChemVak C400 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

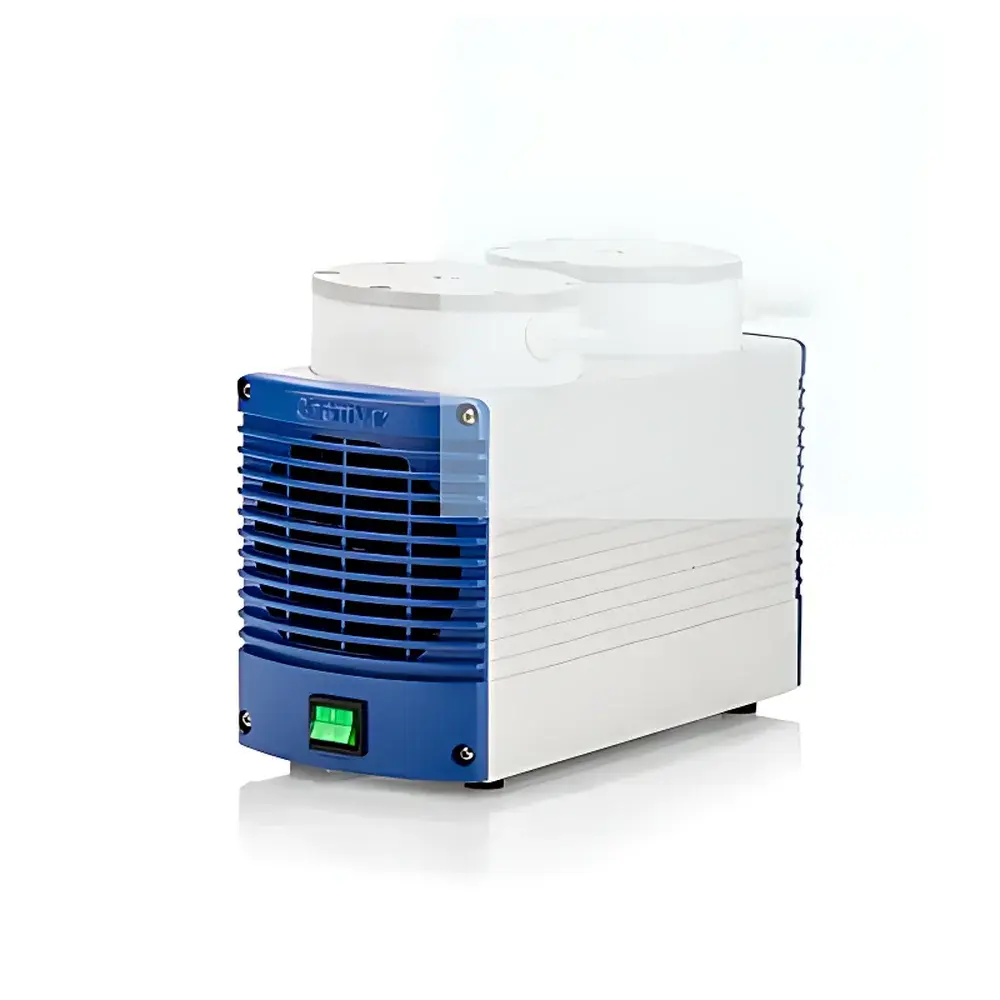

The WIGGENS ChemVak C400 is a high-reliability, oil-free diaphragm vacuum pump engineered for continuous operation in chemically aggressive laboratory environments. Designed on the principle of positive displacement via elastomeric diaphragm oscillation, it generates vacuum without lubricating oil—eliminating risk of hydrocarbon contamination, oil backstreaming, or disposal-related regulatory burdens. Its core architecture separates the gas-handling chamber from the mechanical drive assembly via hermetic sealing, ensuring long-term integrity of motor components even under sustained exposure to corrosive vapors and condensates. This design directly supports GLP-compliant workflows where vacuum source purity, operational repeatability, and traceable maintenance history are critical—particularly in regulated pharmaceutical development, analytical sample preparation, and synthetic chemistry labs.

Key Features

• Chemically inert wetted path constructed entirely from polytetrafluoroethylene (PTFE), including diaphragm, valves, inlet/outlet manifolds, and internal gaskets—providing broad resistance to halogenated solvents, strong acids (e.g., HCl, HNO₃), alkalis, and organic vapors.
• Hermetically isolated drive chamber prevents ingress of corrosive condensates or particulates, significantly extending service intervals and reducing unscheduled downtime.
• Integrated thermal protection circuit automatically interrupts power when internal temperature exceeds safe operating threshold; auto-resumes operation once thermally stabilized—ensuring compliance with IEC 61000-4-5 surge immunity and EN 60335-1 safety requirements.
• Noise emission limited to ≤50 dB(A) at 1 m distance—enabling placement within shared benchtop spaces without acoustic interference to sensitive instrumentation (e.g., mass spectrometers, microbalances).
• Compact footprint (294 × 156 × 195 mm) and lightweight construction (8.5 kg) facilitate integration beneath fume hoods, inside gloveboxes, or adjacent to rotary evaporators and vacuum ovens.
• Standard 10 mm barbed ports compatible with reinforced silicone or fluoropolymer tubing; optional corrosion-resistant vacuum regulators and sintered PTFE inlet filters available for particulate mitigation and fine vacuum control.

Sample Compatibility & Compliance

The ChemVak C400 is validated for use with vapors and condensates generated during common vacuum-assisted techniques—including acid digestion off-gas, chlorinated solvent distillation, thionyl chloride workups, and HF-based etching exhaust streams. Its PTFE fluid path meets USP <661.1> material classification for Class VI polymers and complies with ISO 8573-1:2010 Class 0 air purity standards for oil-free operation. When deployed in GMP-regulated settings, the pump supports 21 CFR Part 11–aligned data integrity protocols when paired with WIGGENS’ optional digital vacuum controller (not included), which provides audit-trail-capable setpoint logging and event timestamping.

Software & Data Management

While the base ChemVak C400 operates as a standalone analog device, it is fully interoperable with third-party vacuum monitoring systems via 0–10 V or 4–20 mA analog output interfaces (available on optional digital control module). The pump’s stable flow-pressure profile enables precise integration into automated platforms governed by LabVIEW™, MATLAB®, or PLC-based process controllers. Firmware-upgradable variants support Modbus RTU communication for centralized HVAC and utility monitoring networks—facilitating predictive maintenance scheduling based on runtime accumulation and thermal cycling history.

Applications

• Vacuum filtration of aggressive reagents (e.g., KMnO₄ in H₂SO₄, CrO₃ in acetic anhydride)
• Rotary evaporation of chlorinated solvents (CH₂Cl₂, CHCl₃), nitric acid mixtures, or trifluoroacetic acid solutions
• Reduced-pressure drying of moisture-sensitive catalysts (e.g., Pd/C, Raney Ni) and hygroscopic APIs
• Lyophilization pre-freeze stage vacuum conditioning for acidic or basic formulations
• Solid-phase extraction (SPE) manifolds handling PFAS-containing aqueous matrices
• Gas scavenging in Schlenk-line setups using corrosive purge gases (SO₂, Cl₂, HBr)

FAQ

Is the ChemVak C400 suitable for pumping hydrogen chloride (HCl) gas continuously?
Yes—the entire gas path is fabricated from virgin PTFE, which exhibits negligible permeation and swelling when exposed to anhydrous or aqueous HCl vapor below 80 °C.
Can this pump handle saturated water vapor at 60 °C?
Yes; its diaphragm and valve assemblies are rated for intermittent exposure to hot condensate, and the sealed drive chamber prevents steam intrusion into motor windings.
Does the pump require periodic oil changes or lubrication?
No—it is a true oil-free design with no lubricants in the vacuum path or drive train; only routine inspection of diaphragm integrity and inlet filter cleaning is recommended every 500 operating hours.
What is the expected service life under typical lab usage (6 hrs/day, 5 days/week)?
Based on accelerated lifetime testing per DIN EN 60068-2-64, the diaphragm assembly maintains ≥95% volumetric efficiency after 15,000 hours of operation under ≤100 mbar load conditions.
Is electrical certification provided for North American markets?
The unit ships with CE marking (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU); UL/cUL listing is available upon request for OEM integration into certified lab furniture or analytical systems.
