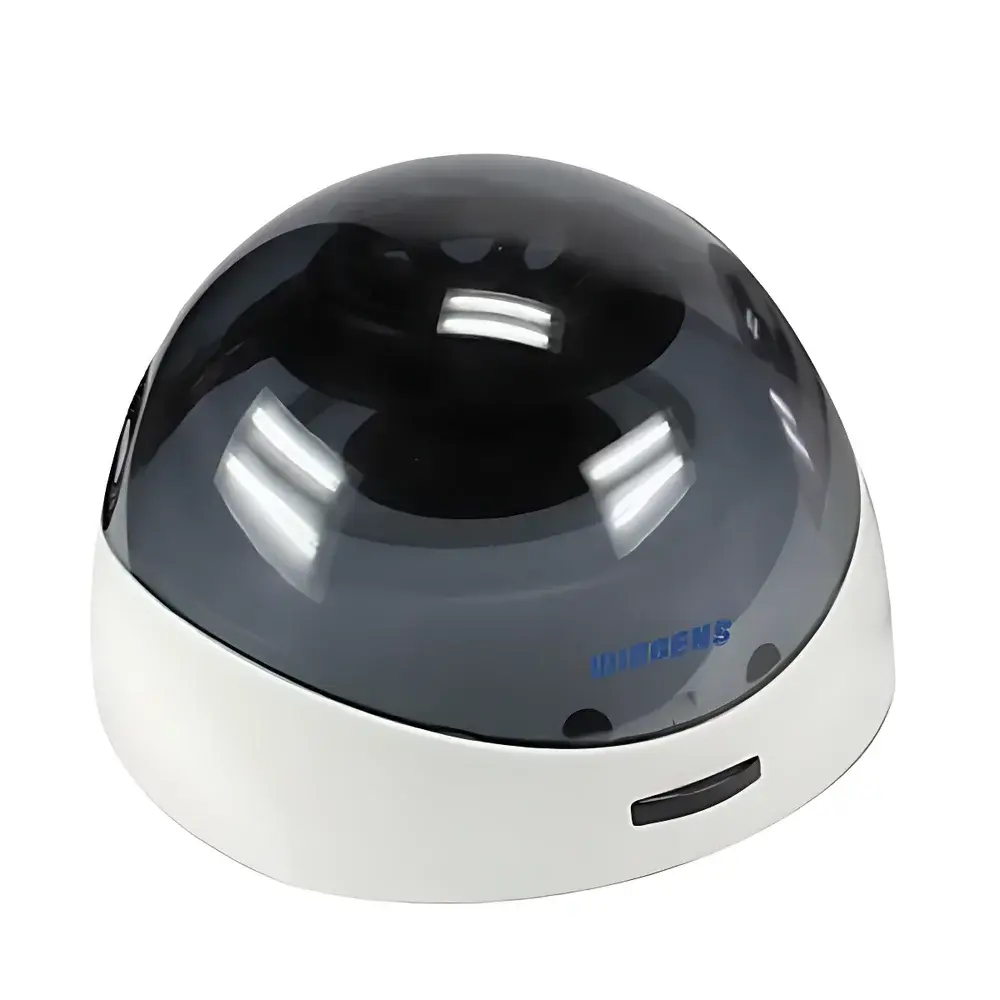

WIGGENS MINICEN 10 Compact Benchtop Centrifuge
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | MINICEN 10 |
| Maximum Speed | ≤7000 rpm |
| Maximum RCF | ≤2680 ×g |
| Capacity | 2 mL × 8 tubes |
| Motor | Brushless DC |
| Power Input | AC 100–240 V, 50/60 Hz |
| Noise Level | ≤45 dB(A) |
| Dimensions (D×W×H) | 150 × 150 × 117 mm |
| Weight | 0.5 kg |
| Rotor Material | High-strength polymer |
| Compliance | CE, IEC 61010-1, RoHS |
Overview
The WIGGENS MINICEN 10 is a compact, high-efficiency benchtop centrifuge engineered for rapid, reliable microcentrifugation in demanding laboratory environments—including molecular biology labs, clinical diagnostics workstations, and quality control settings where space, safety, and operational consistency are critical. Operating on the principle of radial acceleration via rotational force, the MINICEN 10 delivers precise separation of biological samples—such as nucleic acids, proteins, cell lysates, and precipitated reagents—within microliter-scale volumes. Its brushless DC motor ensures stable torque delivery across variable input voltages (100–240 V, 50/60 Hz), eliminating speed drift due to line fluctuations—a key requirement for reproducible downstream workflows under GLP or ISO 17025-compliant conditions. With a footprint smaller than an A5 sheet and weighing only 0.5 kg, it integrates seamlessly into biosafety cabinets, laminar flow hoods, or crowded benchtop configurations without compromising mechanical stability or thermal management.
Key Features
- Double-latch safety lid mechanism with automatic rotor stop upon lid opening—compliant with IEC 61010-1 mechanical interlock requirements.
- Tool-free rotor exchange system enabling sub-10-second rotor removal and installation—optimized for high-throughput sample processing cycles.
- Intelligent lid-actuated operation: centrifugation initiates automatically upon lid closure and halts immediately upon lid opening—reducing operator error and enhancing procedural safety.
- Ultra-low acoustic signature (≤45 dB[A]) achieved through precision-balanced rotor assembly and vibration-damped housing—suitable for noise-sensitive environments such as core facilities or shared lab spaces.
- Wide-range universal power supply (100–240 V, 50/60 Hz) with built-in voltage regulation—ensuring consistent rotational speed and RCF output regardless of regional grid instability.
- Continuous-run mode support for extended pelleting or phase separation protocols without duty-cycle limitations.
Sample Compatibility & Compliance
The MINICEN 10 accommodates diverse microsample formats without requiring dedicated hardware swaps. Standard configurations include 2 mL × 8 tube capacity using the RT08-2 rotor, 16 × 0.2 mL PCR tubes with the RT02-PCR8 rotor, or dual 0.2 mL PCR-8 strips (2 × 8-well). Optional adapters (e.g., WSA02P and WSA05P) extend compatibility to 0.2 mL and 0.5 mL tubes in the 2 mL rotor format—enabling method harmonization across assay development, qPCR setup, and RNA extraction workflows. All rotors are constructed from medical-grade high-strength polymer certified for autoclaving at 121 °C for 20 minutes (per ISO 17664), supporting routine decontamination in regulated environments. The device carries CE marking under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and conforms to IEC 61010-1:2010 for laboratory electrical equipment safety.
Software & Data Management
As a standalone microcentrifuge, the MINICEN 10 operates without embedded firmware or digital interface—intentionally designed to eliminate software validation overhead in GxP-regulated laboratories. All operational parameters (speed, run time, acceleration/deceleration profiles) are set manually via tactile rotary dial and LED indicators, ensuring deterministic behavior, zero risk of firmware corruption, and full auditability of user actions. This architecture aligns with FDA 21 CFR Part 11 expectations for instruments where electronic records are not generated—facilitating straightforward IQ/OQ documentation and reducing qualification burden during facility audits.
Applications
- Routine pelleting of PCR products, restriction digests, and enzymatic reaction mixtures prior to electrophoresis or sequencing.
- Clarification of bacterial lysates and mammalian cell supernatants in protein expression pipelines.
- Spin-down of column-based nucleic acid purification kits (e.g., silica-membrane spin columns).
- Quick sedimentation of resin beads in affinity chromatography prep steps.
- Centrifugal concentration of low-volume samples in microvolume spectrophotometry workflows.
- Point-of-use centrifugation in field-deployable diagnostic platforms or mobile testing units.
FAQ
Is the MINICEN 10 suitable for use inside a biosafety cabinet?
Yes—the unit’s compact dimensions (150 × 150 × 117 mm), low heat dissipation, and silent operation () make it compatible with Class II A2 and B2 biosafety cabinets without airflow disruption.
Can the rotor be autoclaved?
Yes—both RT08-2 and RT02-PCR8 rotors are autoclavable at 121 °C for 20 minutes; adapter components (WSA02P, WSA05P) are also autoclave-compatible per manufacturer specifications.
Does the centrifuge support timed runs?
No—the MINICEN 10 operates in continuous mode only; timing is managed externally by the user, consistent with its design for simplicity and regulatory transparency.
What safety certifications does it hold?
CE marking under Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU; compliance with IEC 61010-1:2010 for laboratory electrical equipment safety.
Is rotor imbalance detection included?
No—imbalance protection is provided exclusively via mechanical design (precision-balanced rotors, rigid housing, and dual-latch lid interlock), eliminating reliance on electronic sensors that may require calibration or fail unpredictably.
