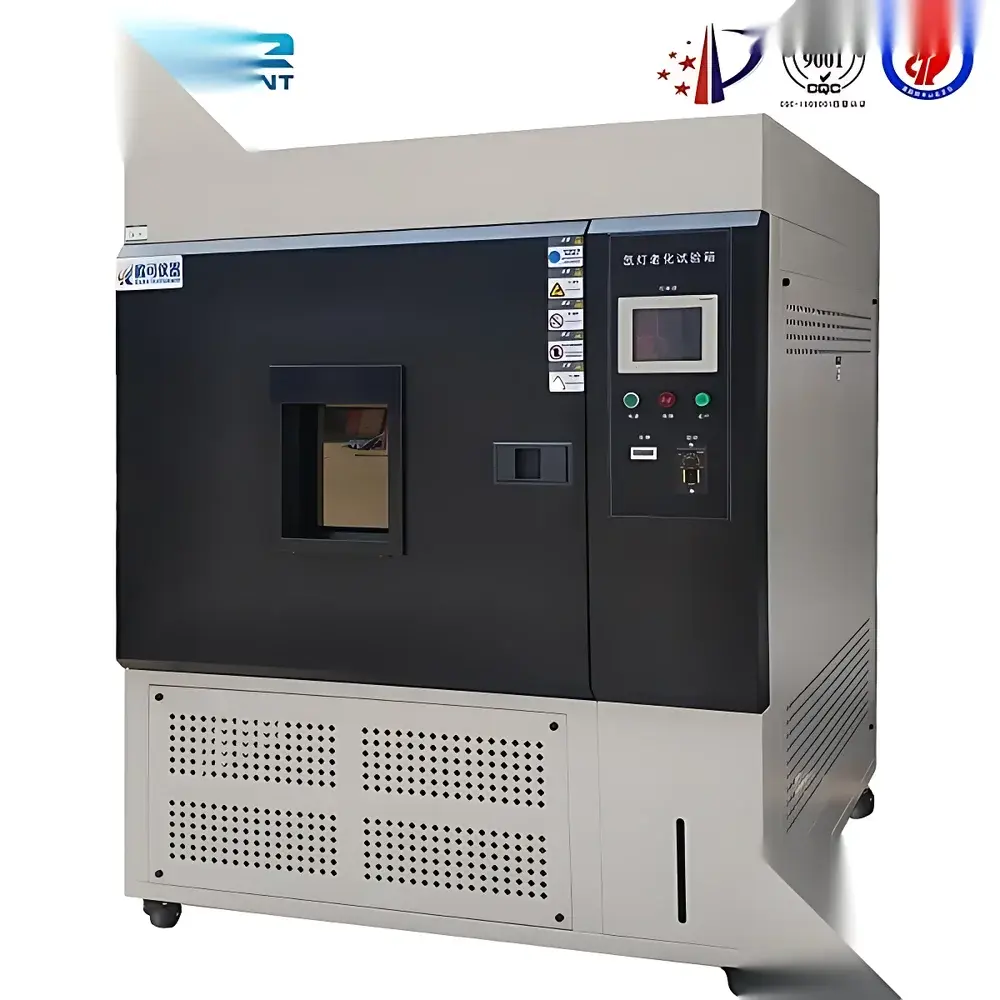

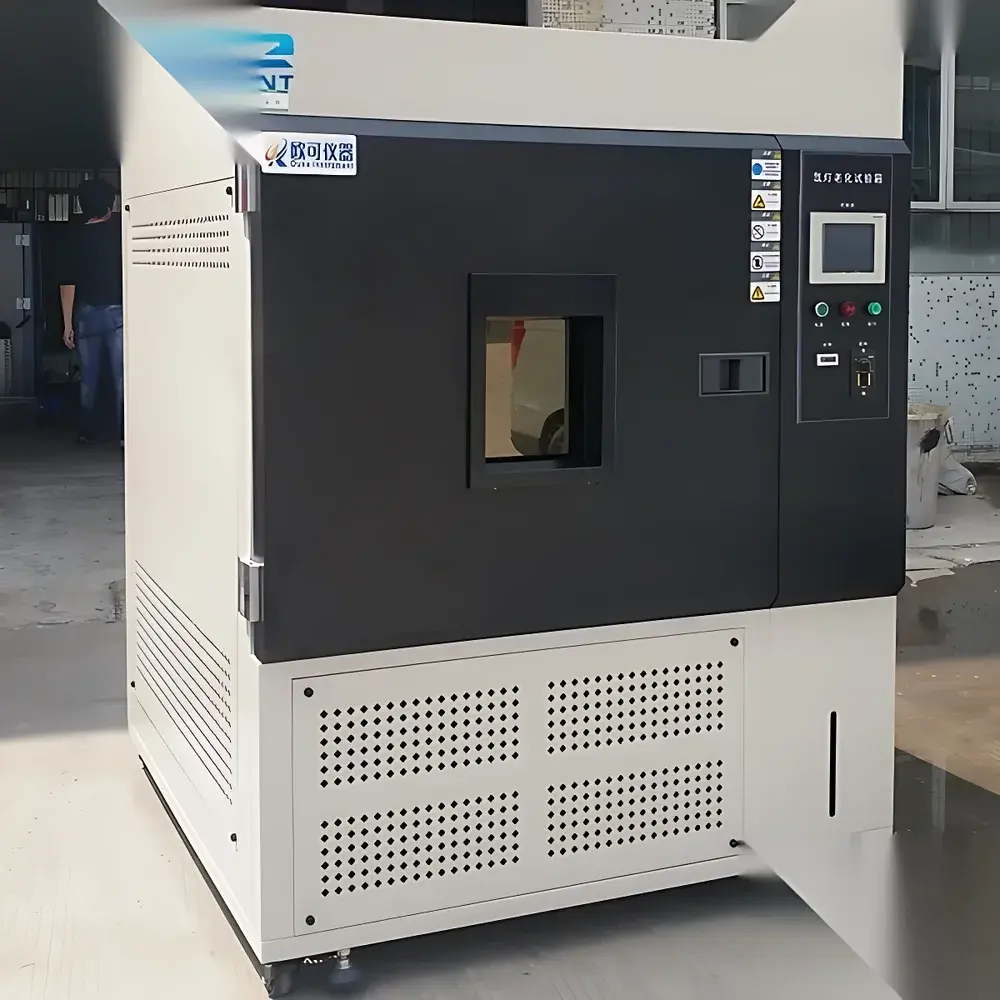

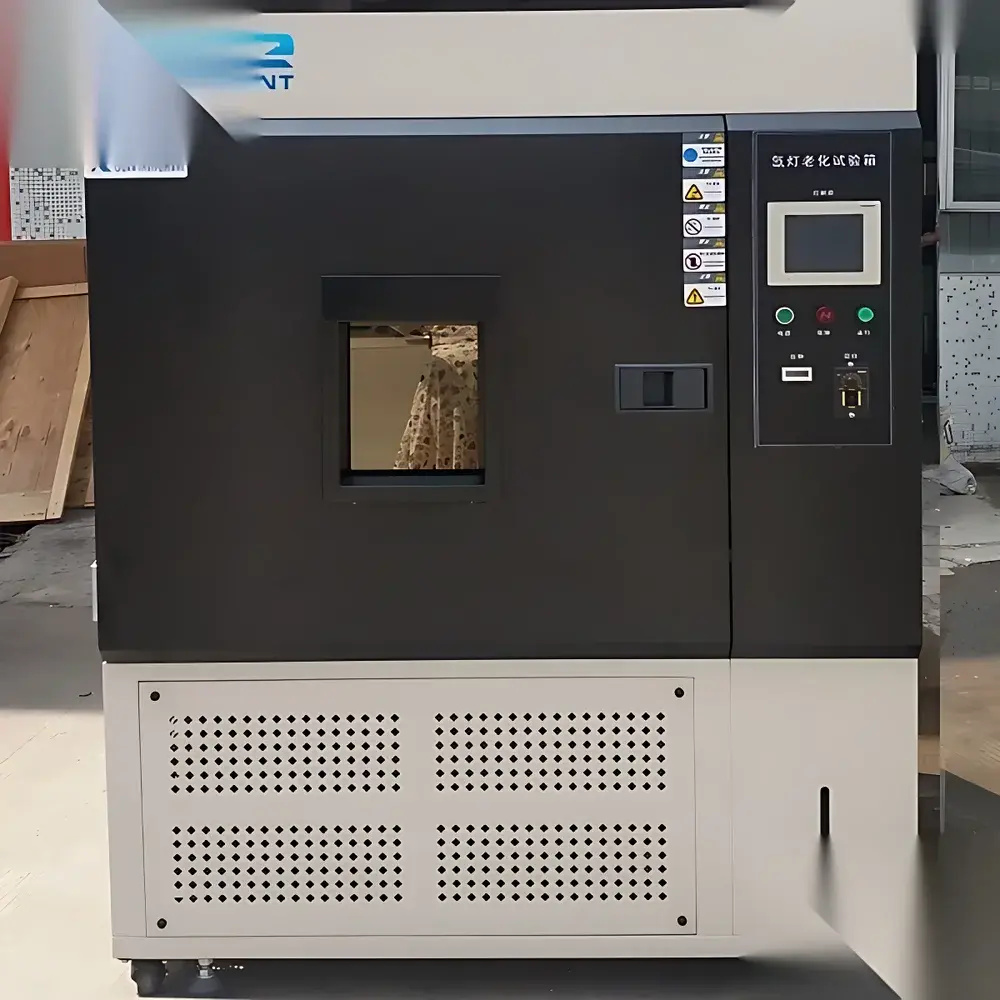

OK-XD-225 Xenon Arc Weathering Test Chamber

Overview

The OK-XD-225 Xenon Arc Weathering Test Chamber is an engineered environmental test system designed to replicate the damaging effects of full-spectrum sunlight, heat, and moisture on non-metallic materials under controlled laboratory conditions. Based on ISO 4892-2, ASTM G155, and SAE J2527 standards, it employs a high-intensity air-cooled xenon arc lamp whose spectral output—when filtered through precision borosilicate inner and outer filters—is spectrally matched to terrestrial solar irradiance (AM1.5). This enables accurate simulation of UV, visible, and near-infrared radiation exposure. The chamber integrates precise temperature and humidity regulation, forced-air circulation, and real-time irradiance monitoring (optional fiber-optic sensor) to deliver reproducible, traceable aging cycles. Its robust architecture supports continuous operation in QC labs, R&D facilities, and third-party testing laboratories requiring compliance with automotive, aerospace, coatings, and polymer industry specifications.

Key Features

• Stainless steel (SUS304) interior chamber for corrosion resistance, ease of cleaning, and long-term dimensional stability under thermal cycling and humidity exposure.
• Electrostatically coated steel exterior in computer-white finish, providing mechanical durability and aesthetic consistency in shared lab environments.
• Programmable touchscreen controller with intuitive HMI interface, supporting multi-step irradiance, temperature, and humidity profiles with ramp/soak logic and data logging at user-defined intervals.
• Compressor-based cooling system ensures stable thermal control across the full operating range (+10 °C to +70 °C), even during high-irradiance exposure phases.

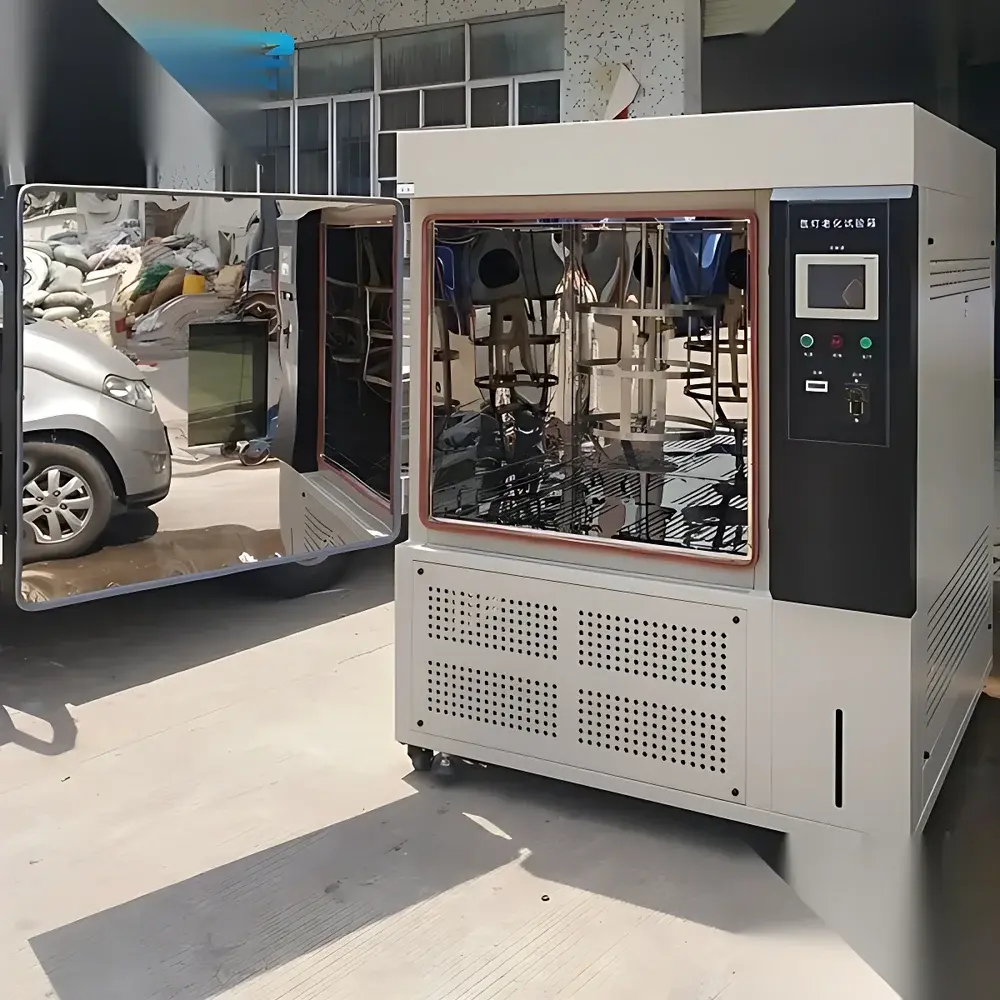

• Rotating specimen rack centered around the xenon lamp axis guarantees uniform irradiance distribution across all sample positions—critical for comparative aging studies per ISO 11341.
• Integrated black panel thermometer (BPT) or black standard thermometer (BST) for direct measurement of specimen surface temperature, enabling correlation with real-world service conditions.
• Comprehensive safety architecture including GFCI-protected mains input, door interlocked lamp power cutoff, overtemperature shutdown, low-water level detection, and redundant thermal fusing on control circuitry.

Sample Compatibility & Compliance

The OK-XD-225 accommodates flat specimens up to 75 mm × 150 mm (standard configuration), with adjustable mounting positions on the rotating stainless-steel rack. It accepts rigid and semi-flexible substrates—including polymer films, painted panels, textile swatches, elastomeric seals, and coated composites—without requiring custom fixtures. The chamber meets functional requirements of ISO 4892-2 (Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps), ASTM G155 (Standard Practice for Operating Xenon Arc Lamp Apparatus for Exposure of Non-Metallic Materials), and IEC 60068-2-5. While not certified as a Class I medical device or GLP-compliant out-of-the-box, its programmable controller supports audit-ready event logging (timestamped alarms, setpoint deviations, cycle completion) when configured with external data acquisition systems compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

The embedded controller stores up to 100 user-defined test programs with up to 99 segments per program. All operational parameters—including irradiance setpoints (W/m² @ 340 nm), chamber temperature, relative humidity, elapsed time, and alarm history—are timestamped and exportable via USB interface in CSV format. Optional PC-based software (sold separately) enables remote monitoring, real-time graphing of irradiance drift, automated report generation (PDF/Excel), and integration with LIMS platforms via Modbus TCP. For regulated environments, validation documentation packages—including IQ/OQ protocols, calibration certificates for BPT/BST sensors, and filter transmission reports—can be supplied upon request.

Applications

This xenon arc weathering chamber is routinely deployed for accelerated aging assessment of: automotive interior and exterior trim components (dashboards, bumpers, seals); architectural coatings and facade materials; outdoor signage and printed textiles; photovoltaic encapsulants and backsheet films; medical device packaging polymers; aerospace sealants and adhesives; and UV-stabilized agricultural films. It supports failure mode analysis—including chalking, cracking, gloss loss, color shift (ΔE*ab per CIE 1976), and tensile property degradation—by enabling correlation between laboratory exposure hours and field service life using established acceleration factors derived from climatic zone modeling.

FAQ

What spectral filters are included with the OK-XD-225?
The standard configuration includes both inner and outer borosilicate glass filters, optimized to approximate the solar cut-off at ~295 nm and suppress excessive short-wave UV that does not occur in natural daylight.
Is irradiance calibration traceable to NIST standards?
Yes—the optional fiber-optic radiometer is supplied with a calibration certificate traceable to NIST or PTB, valid for 12 months from date of shipment.
Can the chamber operate continuously for extended test durations?
Yes—designed for unattended 24/7 operation with automatic lamp replacement alerts, thermal management redundancy, and fail-safe shutdown protocols.
Does the controller support multiple language interfaces?
The default UI is English; firmware updates may include additional language packs (e.g., German, French, Japanese) upon customer request and verification.
What maintenance intervals are recommended for the xenon lamp and filters?
Lamp life is rated at 1,500–2,000 hours depending on operating irradiance; filters require inspection every 500 hours and replacement every 1,000 hours or when transmission drops below 90% of initial value.
