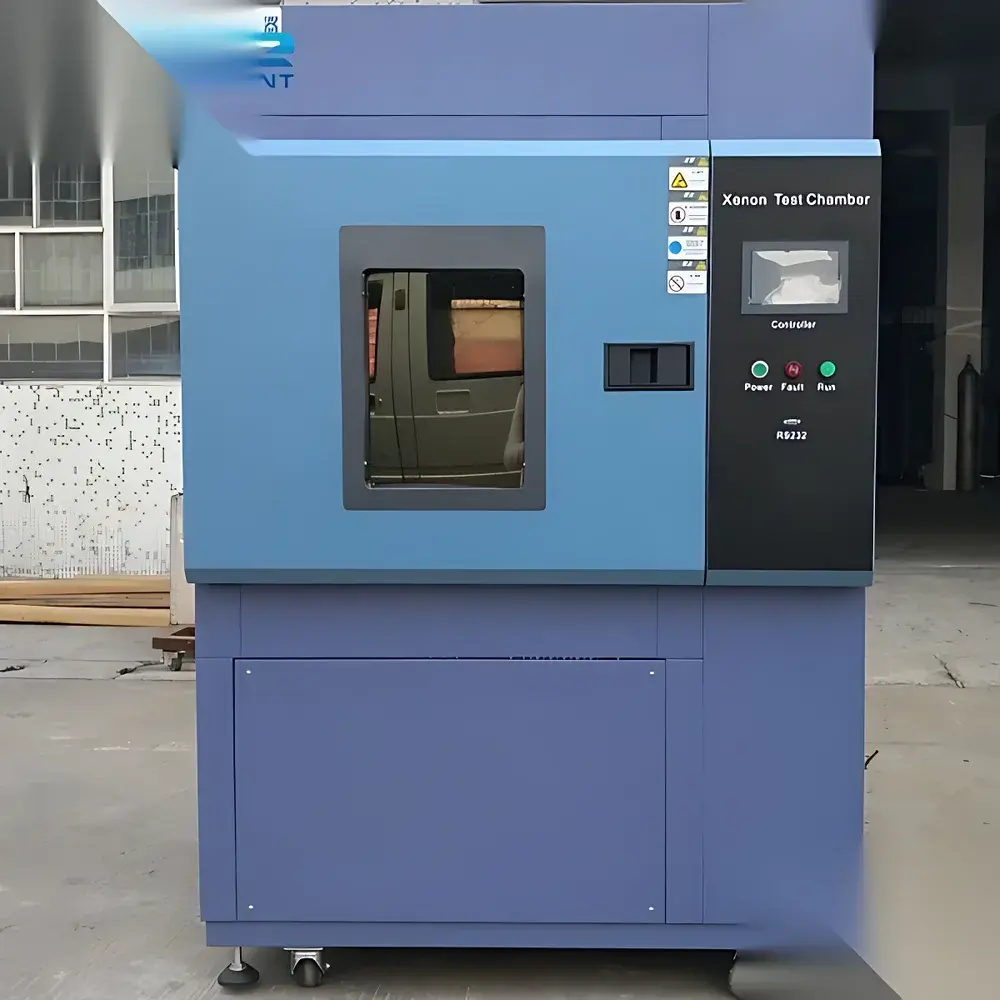

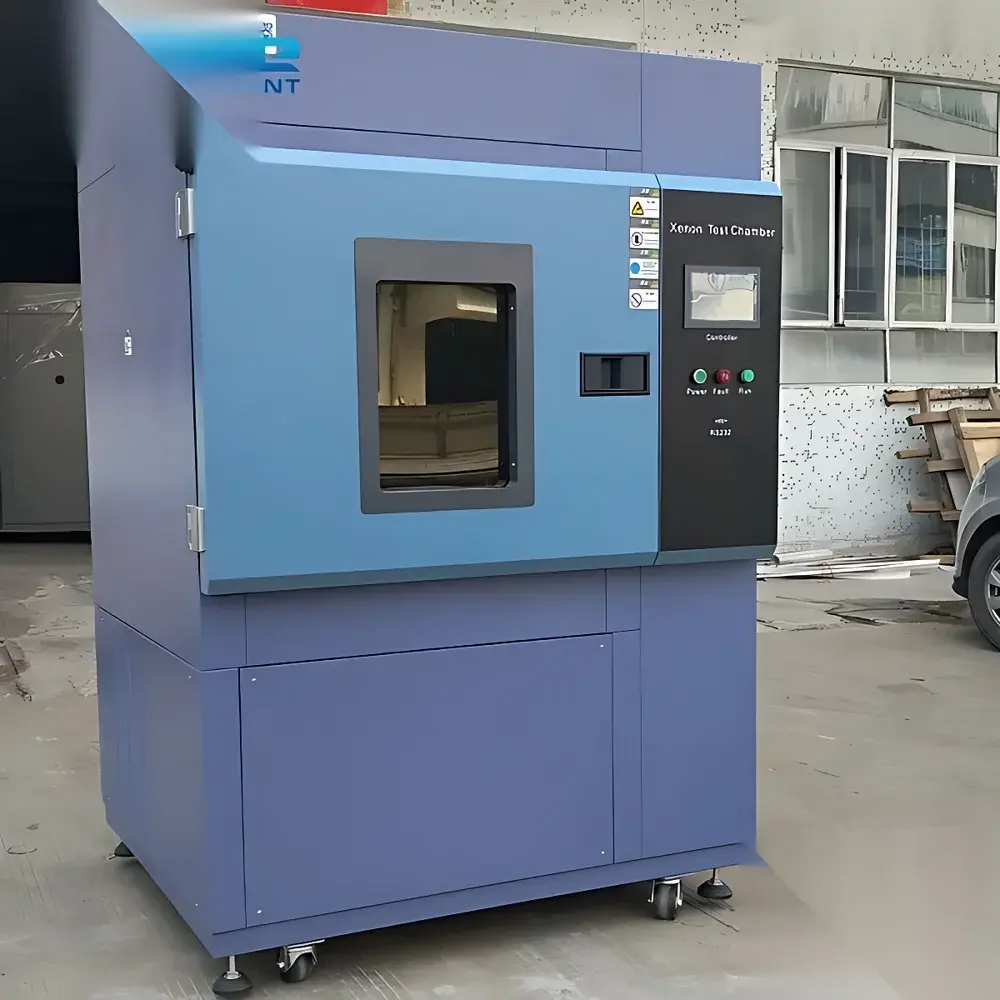

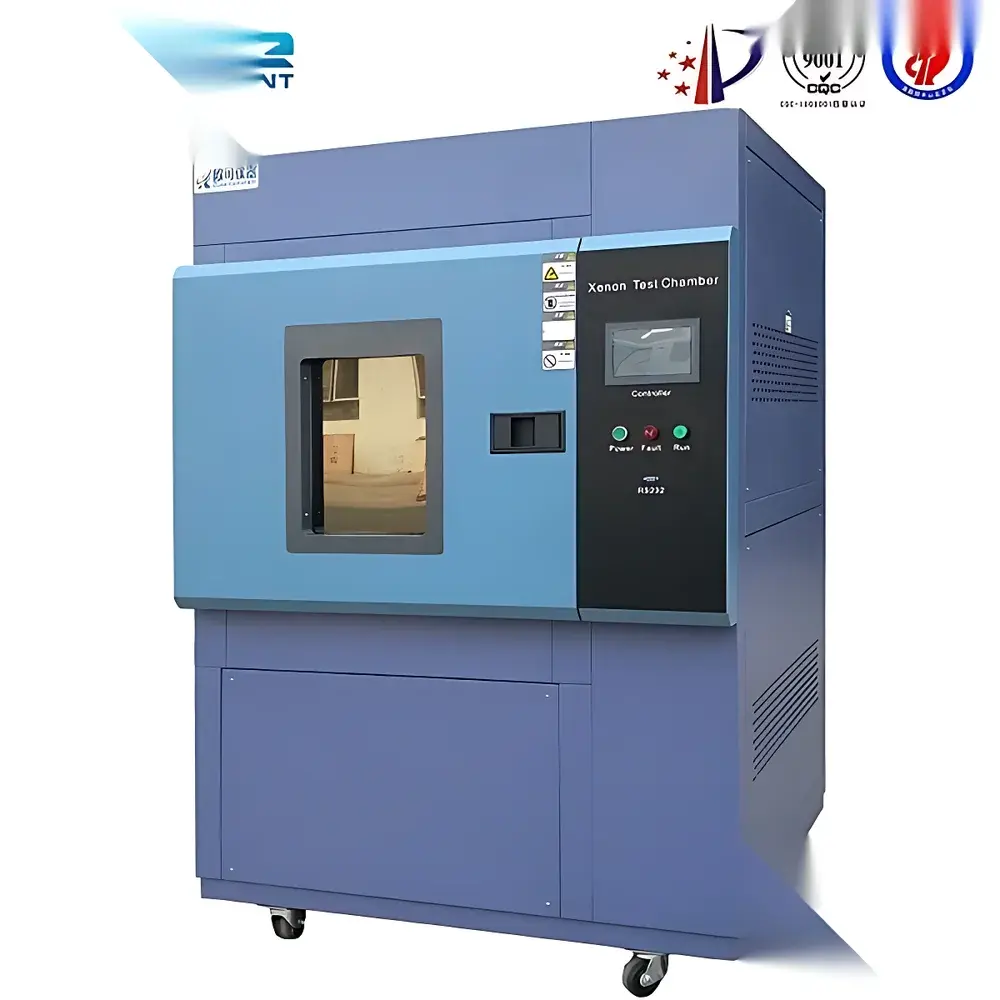

Xenon Arc Weathering Chamber

Overview

The Xenon Arc Weathering Chamber is an engineered environmental simulation system designed to replicate the combined effects of solar radiation, thermal cycling, and moisture exposure—critical stressors in accelerated weathering testing per ISO 4892-2, ASTM G155, SAE J2527, and IEC 60068-2-9. Unlike UV fluorescent or metal halide sources, this chamber employs a water-cooled long-arc xenon lamp that delivers a continuous, full-spectrum irradiance closely matching terrestrial sunlight (290–800 nm), enabling physicochemical degradation analysis of polymers, coatings, textiles, automotive interiors, and architectural materials under realistic spectral conditions. The system integrates closed-loop control of black-panel temperature, chamber air temperature, relative humidity, and programmable water spray cycles—ensuring reproducible, traceable, and standards-compliant exposure profiles across R&D, quality assurance, and regulatory submission workflows.

Key Features

• Water-cooled xenon arc lamp assembly with spectral output validated against CIE No. 85 reference solar irradiance distribution
• Multiple interchangeable optical filter systems—including Daylight-Q (direct sunlight simulation), Window-Glass-Q (indoor exposure), and Extended UV-Q (enhanced short-wavelength output)—to match application-specific spectral requirements
• Programmable rain simulation module with independent duration (1–9,999 seconds per hour) and interval timing (1–240 minutes), supporting cyclic wet/dry protocols per ASTM D4329 and ISO 20340
• PID-controlled humidity regulation (30–95% RH) with dual-chamber humidity sensor redundancy and dew-point monitoring for stability under irradiated conditions
• Thermal management architecture featuring forced-air convection, insulated double-wall construction, and calibrated black-panel temperature sensors compliant with ASTM G151 calibration practices
• Non-standard sample mounting rack with adjustable geometry and rotational capability (≥1 rpm, infinitely variable), accommodating irregularly shaped components without mechanical interference
• Modular lamp housing with tool-free xenon lamp replacement (<90 seconds average downtime) and integrated spectral filter alignment verification port
• Irradiance feedback loop using NIST-traceable broadband radiometers (290–800 nm), enabling real-time power compensation via regulated lamp voltage/current to maintain setpoint stability within ±2% over lamp lifetime

Sample Compatibility & Compliance

The chamber accommodates flat panels, 3D molded parts, and multi-material assemblies up to 7,500 cm² total exposed surface area. Sample-to-arc distance (350–380 mm) ensures uniform irradiance distribution per ISO 4892-2 Annex B spatial mapping requirements. All internal surfaces are constructed from non-reflective, corrosion-resistant stainless steel (AISI 316L) to prevent stray-light artifacts and condensation buildup. The system meets electromagnetic compatibility (EMC) per EN 61326-1 and safety standards per IEC 61010-1. Full compliance documentation—including factory calibration certificates for irradiance, temperature, and humidity sensors—is supplied with each unit. Optional IQ/OQ/PQ validation packages support GLP, GMP, and FDA 21 CFR Part 11 audit readiness.

Software & Data Management

Control and data acquisition are managed via a dedicated Windows-based platform supporting multi-user role-based access, electronic signature, and audit trail logging per 21 CFR Part 11. Test programs can be configured using hierarchical step sequences (irradiance, temperature, humidity, spray, dark periods) with conditional branching and failure-triggered alarms. Real-time trending displays irradiance drift, chamber deviation, and sensor health metrics. Raw data export is available in CSV, Excel, and PDF formats; all measurements include embedded metadata (timestamp, operator ID, calibration status, lamp hours). Historical test archives are encrypted and stored locally with optional network backup to NAS or cloud-based LIMS integration via REST API.

Applications

• Automotive: Accelerated aging of dashboards, seat fabrics, exterior trim, and LED lens materials per SAE J2412 and GMW14124
• Aerospace: UV resistance validation of composite resins, sealants, and cockpit display overlays under MIL-STD-810H Method 505.6
• Photovoltaics: Module encapsulant yellowing and backsheet delamination assessment per IEC 61215-2 MQT03
• Building & Construction: Color fade, gloss loss, and chalking evaluation of paints, cladding, and roofing membranes per ASTM D4798 and EN 1062-6
• Medical Devices: Biocompatibility material stability testing under ISO 10993-12 simulated environmental aging protocols
• Consumer Electronics: Housing durability of smartphones, wearables, and outdoor IoT enclosures subjected to tropical or desert climate profiles

FAQ

What spectral filters are included as standard equipment?
The base configuration includes the Daylight-Q filter. Window-Glass-Q and Extended UV-Q filters are available as optional accessories with individual calibration reports.
Is the chamber compatible with external data logging systems?
Yes—RS-485 Modbus RTU and Ethernet TCP/IP interfaces are provided for third-party SCADA or MES integration. OPC UA support is available upon request.
How is irradiance uniformity verified during installation qualification?
A 9-point spatial irradiance map is performed using a handheld spectroradiometer (calibrated per NIST SRM 2065) across the sample plane; uniformity must meet ±15% tolerance per ISO 4892-2 Clause 7.3.
Can the system operate continuously for extended test durations (e.g., >1,000 hours)?
Yes—continuous operation is supported with scheduled lamp and filter maintenance intervals. The controller logs cumulative lamp hours and triggers preventive maintenance alerts at 1,400 hours.
Does the chamber meet CE marking requirements for EU deployment?
Yes—the unit carries full CE marking under the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, with Declaration of Conformity and technical file available upon order confirmation.
