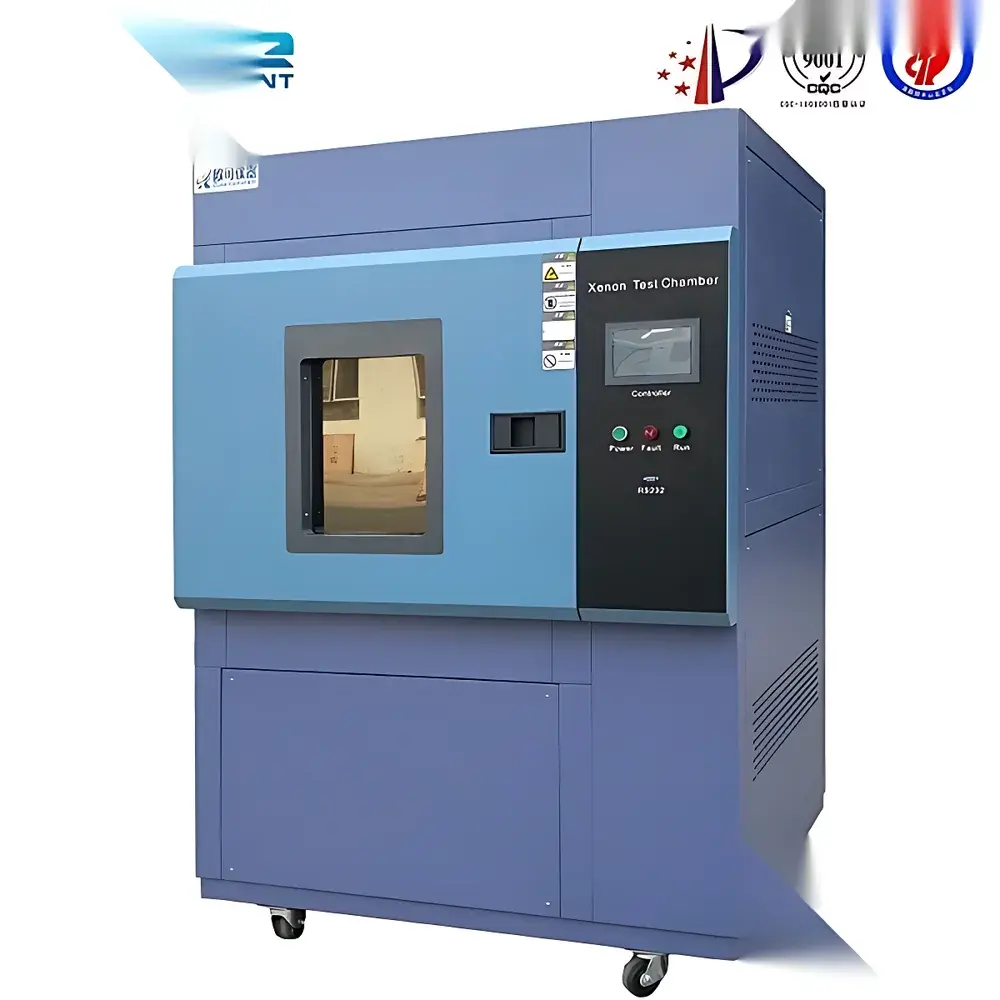

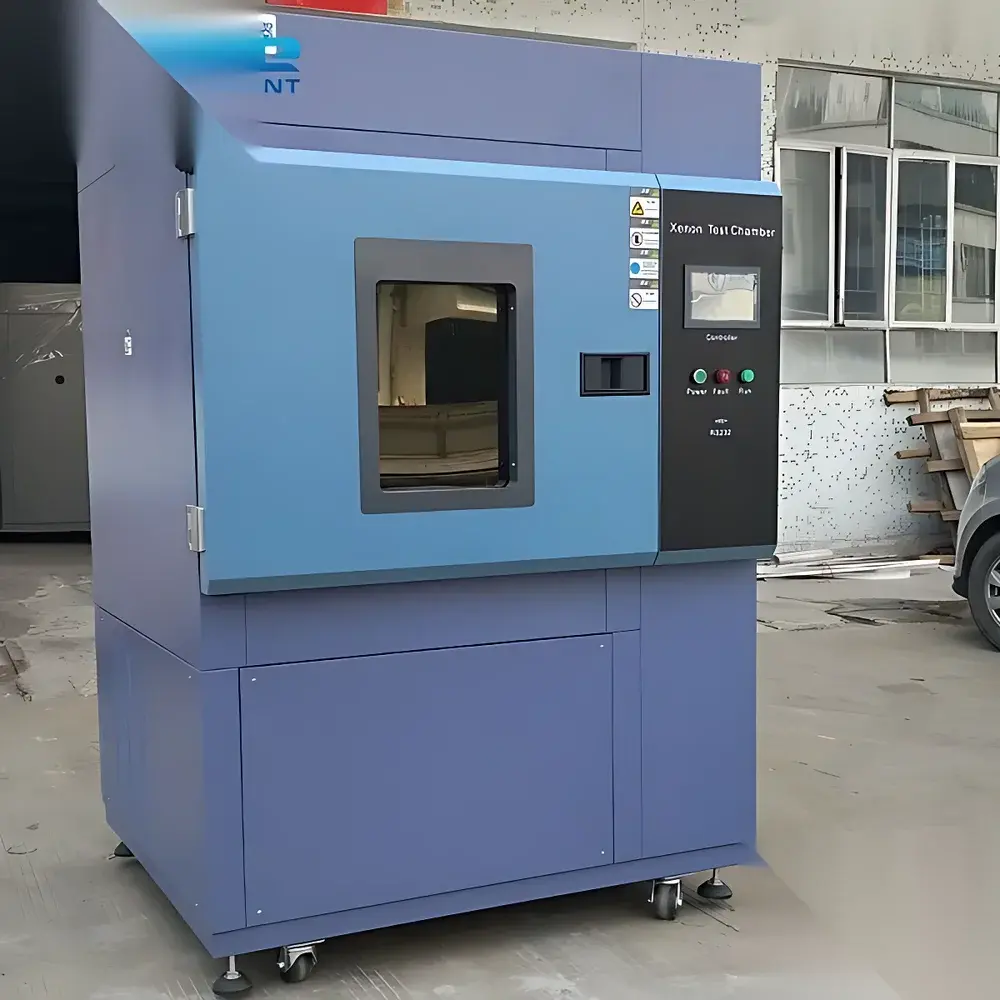

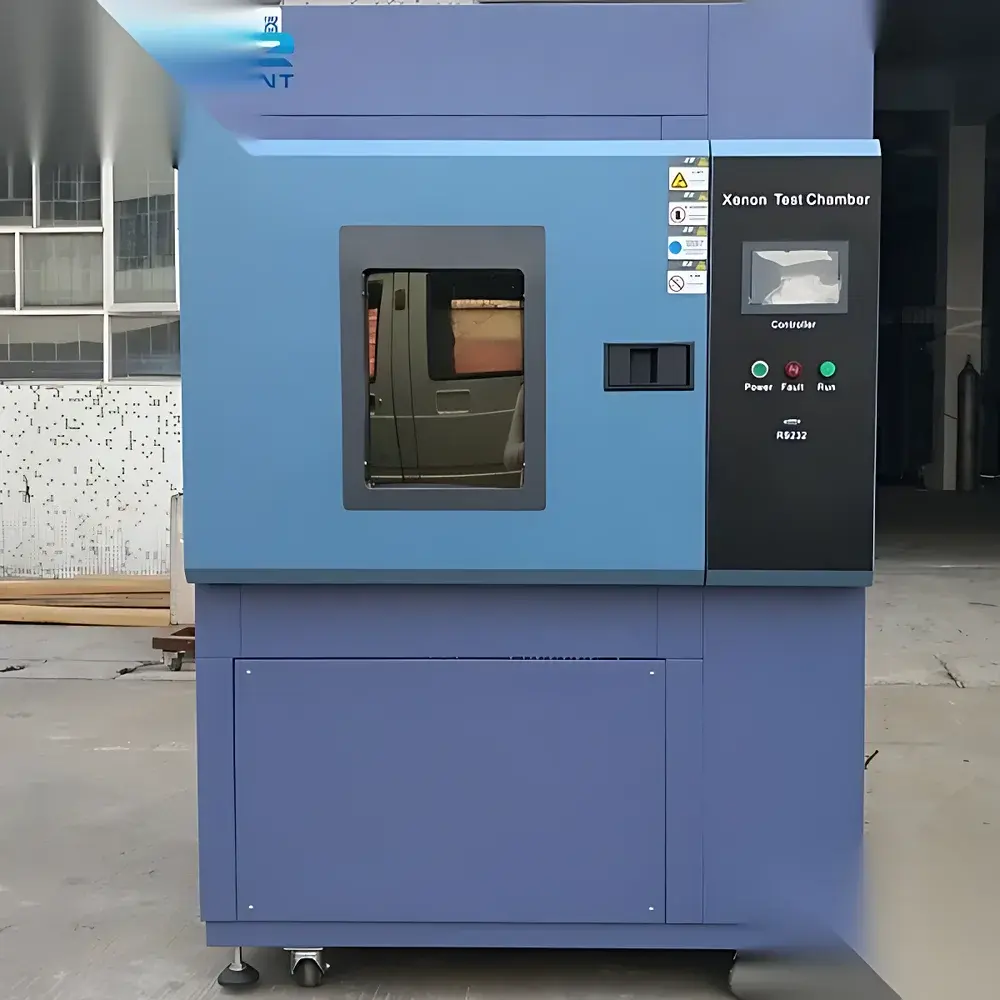

Xenon Arc Weathering Test Chamber

Overview

The Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the photodegradative effects of natural sunlight, heat, and moisture on polymeric, coating, textile, automotive, and architectural materials. It utilizes a high-intensity xenon arc lamp—spectrally filtered to closely match terrestrial solar irradiance (290–800 nm)—to accelerate aging processes under controlled conditions. Unlike UV fluorescent or metal halide sources, xenon lamps deliver a continuous spectrum that includes critical UVA, UVB, visible, and near-infrared components, enabling realistic simulation of photochemical degradation mechanisms such as chain scission, oxidation, and chromophore bleaching. The chamber integrates precise humidity control, programmable dark/light cycles, and uniform sample rotation to ensure reproducible exposure profiles compliant with international weathering standards.

Key Features

• Xenon Light Source: Air- or water-cooled 1.8 kW or 2.5 kW xenon arc lamp with quartz envelope and optical filters (e.g., Daylight-Q, Window Glass-Q) to emulate direct sunlight or through-glass exposure conditions.
• Programmable Irradiance Control: Digital closed-loop feedback system maintains setpoint irradiance (typically 0.35–0.65 W/m² @ 340 nm) with ±5% stability over time.
• Spray System: Stainless steel (SUS304) spray manifold with calibrated 0.4 mm nozzles; spray pressure adjustable from 78–127 kPa; spray duration programmable from 1 minute to 99 hours per cycle.
• Dark Cycle Functionality: Independent control of light/dark periods; dark interval range: 10 minutes to 99 hours, supporting ISO 4892-2 and ASTM G155 step-cycle protocols.
• Rotating Sample Holder: 360° continuously rotating turntable operating at 1 rpm; accommodates standard 75 × 150 mm specimens (up to 48 positions depending on configuration); ensures uniform angular exposure and minimizes edge-shadowing effects.
• Environmental Control: Temperature range: 10–90°C (black panel), humidity range: 10–95% RH; control resolution: ±0.1°C for temperature, ±1% RH for humidity.
• Intelligent Controller: 7-inch color LCD touchscreen interface with multi-segment programmable profiles (up to 100 steps), real-time data logging, USB export, and password-protected parameter locking.
• Robust Construction: Exterior: powder-coated cold-rolled steel; interior: mirror-finish SUS304 stainless steel; door seal: high-temperature silicone rubber gasket rated for -40°C to +150°C operation.

Sample Compatibility & Compliance

This chamber accommodates flat-panel specimens (paints, plastics, textiles, adhesives, roofing membranes, automotive trim), as well as three-dimensional parts via custom fixtures. It supports standardized specimen mounting per ISO 4892-2, ASTM G155, SAE J2527, AATCC TM16, and GB/T 16422.2. All operational parameters—including irradiance calibration traceability to NIST-traceable reference cells, temperature/humidity sensor validation, and spray uniformity mapping—are documented to support GLP-compliant testing environments. The system architecture enables audit-ready data integrity when integrated with validated software platforms meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

Embedded controller firmware provides real-time monitoring of irradiance, chamber temperature, black panel temperature, relative humidity, spray status, and cycle phase. Data is timestamped and stored internally for ≥30 days. Optional PC-based software (sold separately) enables remote monitoring, automated report generation (PDF/CSV), alarm history review, and trend analysis across multiple test runs. Calibration logs, maintenance records, and user activity traces are retained with immutable timestamps to satisfy internal quality audits and external regulatory reviews (e.g., IATF 16949, ISO/IEC 17025).

Applications

• Accelerated weathering evaluation of automotive exterior coatings and interior trims
• UV stability screening of packaging films and medical device polymers
• Colorfastness and gloss retention testing per ISO 105-B02 and AATCC 16
• Photostability assessment of pharmaceutical packaging under ICH Q1B guidelines
• Qualification of aerospace composites exposed to tropical or desert service environments
• Validation of protective coatings for offshore wind turbine blades and solar panel encapsulants
• Comparative durability analysis during formulation development of architectural sealants and elastomers

FAQ

What spectral filters are available for this xenon chamber?
Standard configurations include Daylight-Q (full-spectrum sunlight simulation) and Window Glass-Q (transmitted through 3 mm clear float glass). Additional filters (e.g., Extended UV, UV-B Enhanced) are available upon request.
Is the spray system deionized water compatible?
Yes—the stainless steel reservoir and pump are compatible with DI water; however, use of DI water requires optional corrosion-resistant solenoid valves and regular descaling maintenance.
How often does the xenon lamp require replacement?
Typical lamp service life is 1,500–2,000 hours under continuous operation; output decay is monitored automatically, and replacement alerts trigger at 85% initial irradiance.
Can the chamber operate without humidity control?
Yes—humidity can be disabled while maintaining temperature and irradiance control, enabling dry-heat or light-only exposure protocols.
Does the system support third-party calibration services?
Yes—certified calibration services (including irradiance, temperature, and humidity sensor verification) are available globally through accredited partners aligned with ISO/IEC 17025 standards.
