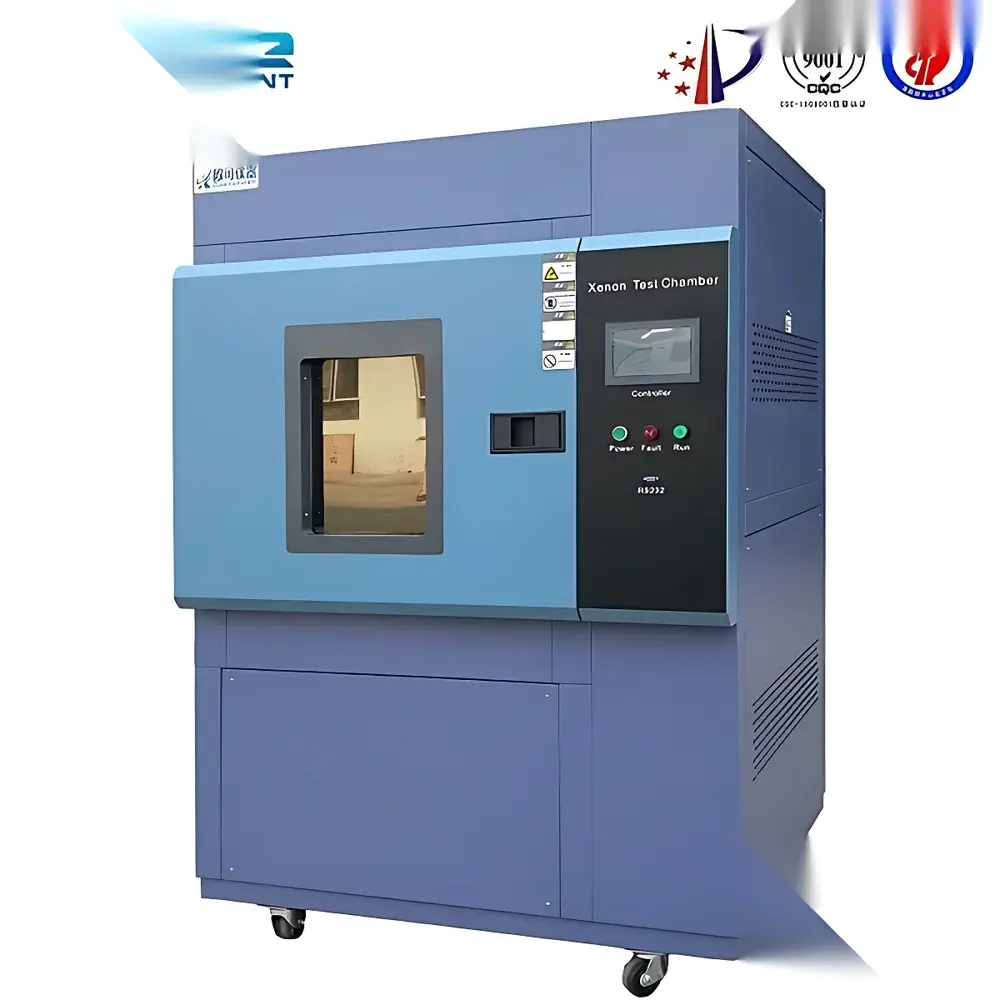

Xenon Arc Weathering Test Chamber for Coatings – Standard Model XW-650

Overview

The Xenon Arc Weathering Test Chamber for Coatings – Standard Model XW-650 is an engineered environmental simulation system designed to replicate the cumulative effects of solar radiation, temperature, and humidity on organic coating systems under controlled laboratory conditions. It employs a filtered xenon arc lamp source to deliver spectral irradiance closely aligned with natural sunlight (CIE 85:1989, ISO 4892-2, ASTM G155), enabling accelerated aging evaluation of architectural paints, automotive topcoats, industrial primers, and polymer-based protective finishes. Unlike UV fluorescent lamp systems, xenon arc technology provides full-spectrum output—including visible and near-infrared wavelengths—making it the internationally preferred method for assessing color fading, gloss loss, chalking, cracking, and delamination mechanisms governed by photochemical degradation pathways.

Key Features

• Calibrated xenon arc lamp assembly with quartz envelope and integrated optical filters (Daylight-Q, Window Glass-Q) to meet ISO 4892-2 Cycle 1 and ASTM G155 A1/B1 spectral requirements
• Precision-engineered air-cooled lamp housing with real-time current monitoring and thermal cutoff protection
• Dual-zone climate control: independent regulation of black-panel temperature (BPT) and chamber air temperature, both monitored via PT-100 sensors with traceable calibration certificates
• SUS304 stainless steel chamber interior and exterior—fully welded, electropolished finish resistant to corrosion from condensate and aggressive test atmospheres
• Adjustable sample rack with 0–120 mm vertical positioning range, accommodating standard 75 × 150 mm panels or custom fixtures per ISO 11341 and ASTM D6695 specimen mounting protocols
• Digital PID + TSSR (Time-Proportional Solid-State Relay) control architecture ensuring stable irradiance and thermal setpoint maintenance within ±0.5°C over 99-hour continuous operation
• Integrated humidity generation via steam injection system capable of sustaining ≥95% RH at elevated temperatures without condensation on lamp optics

Sample Compatibility & Compliance

The XW-650 supports flat-panel specimens up to 75 × 150 mm in dimension and 10 mm maximum thickness, conforming to ISO 11341, ASTM D4329, ASTM D6695, and JIS K 5600-7-7 dimensional specifications. Its lamp-to-specimen geometry (50 mm distance, 35 mm inter-lamp spacing) ensures uniform irradiance distribution across the test area as verified per ASTM G147 spatial mapping guidelines. All electrical components comply with IEC 61000-4 electromagnetic compatibility standards; structural design adheres to CE Machinery Directive 2006/42/EC and meets factory acceptance testing (FAT) criteria for Class II environmental chambers per ISO 17025-accredited verification procedures.

Software & Data Management

The chamber operates via embedded microcontroller firmware with non-volatile memory logging of irradiance (W/m²), black-panel temperature (°C), chamber humidity (%RH), and elapsed time at user-defined intervals (1–60 min). Data export is supported via USB 2.0 port in CSV format for post-processing in MATLAB, Excel, or LIMS platforms. While no proprietary GUI software is bundled, the unit is compatible with third-party SCADA systems via RS-485 Modbus RTU protocol (addressable register map provided upon request). Audit trail functionality satisfies GLP documentation requirements per OECD Series on Principles of Good Laboratory Practice, and timestamped operational logs support FDA 21 CFR Part 11-compliant electronic record retention when integrated with validated enterprise systems.

Applications

• Accelerated weathering validation of waterborne and solvent-based architectural coatings per ISO 11341 and ASTM D4587
• Correlation studies between laboratory xenon exposure and real-world field performance of automotive clearcoats (SAE J2527)
• UV stability benchmarking of pigment dispersions and resin binders during R&D formulation screening
• Gloss retention and colorimetric delta-E evaluation (CIE L*a*b*) using paired spectrophotometric measurements pre- and post-exposure
• Qualification testing of anti-graffiti coatings, marine antifouling systems, and aerospace polyurethane topcoats under cyclic light/dark and wet/dry regimes

FAQ

What standards does this chamber comply with?
ISO 4892-2, ASTM G155, ASTM D4329, ISO 11341, and JIS K 5600-7-7 — all verified through third-party irradiance spectral scans and thermal uniformity mapping.
Can the chamber operate with unfiltered xenon lamps?
No. The XW-650 is supplied exclusively with daylight- and window-glass-filtered lamps to ensure spectral fidelity and reproducibility; unfiltered operation violates ISO 4892-2 Clause 6.2 and voids calibration validity.
Is black-panel temperature (BPT) measurement included?
Yes. Dual PT-100 sensors monitor both chamber air temperature and black-panel temperature independently, with BPT control enabled via dedicated PID loop.
What maintenance intervals are recommended for the xenon lamp and filters?
Lamp replacement is required every 1,500 ± 100 hours of operation; borosilicate inner and outer filters must be replaced concurrently per manufacturer’s service bulletin QM-XEN-2023-04.
Does the unit support automated spray-water cycles?
Not natively. The XW-650 is configured for dry-heat and dark-humidity cycles only; optional water spray modules (per ASTM G155 Cycle 4) are available as field-upgradable accessories with separate validation documentation.
