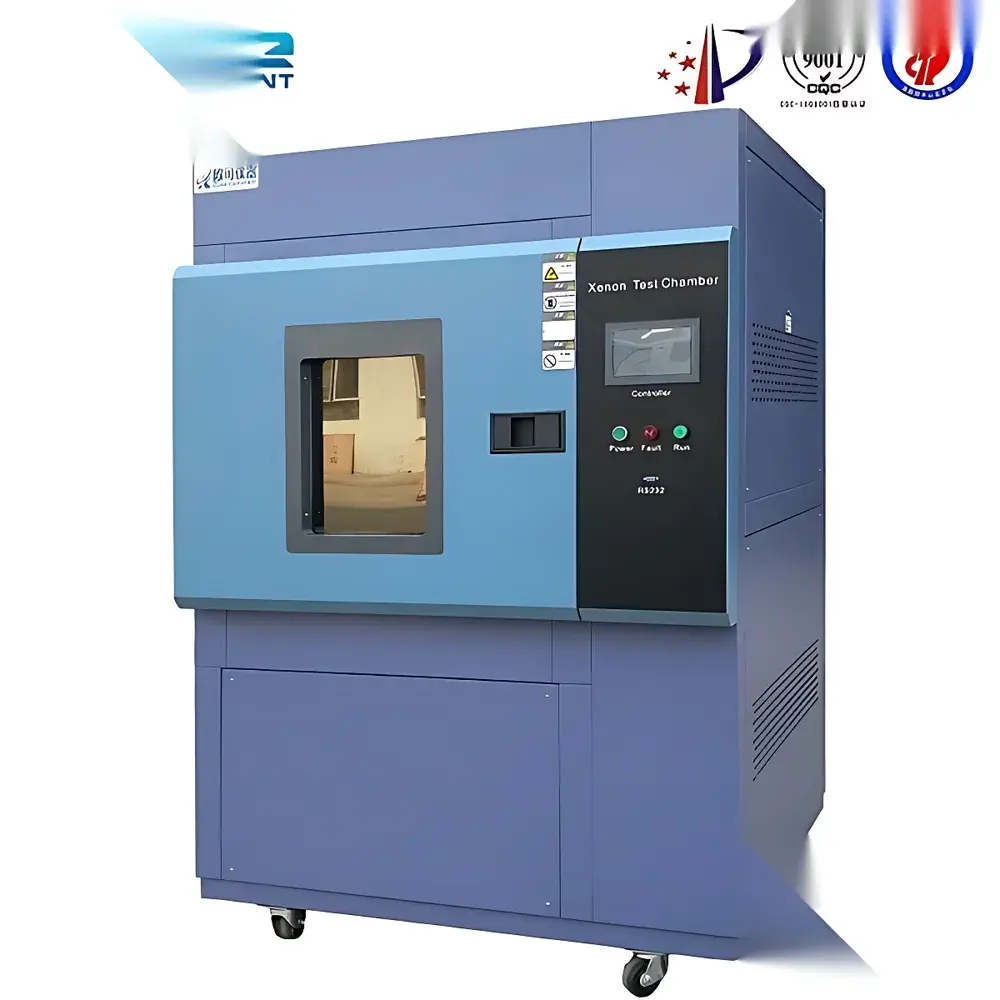

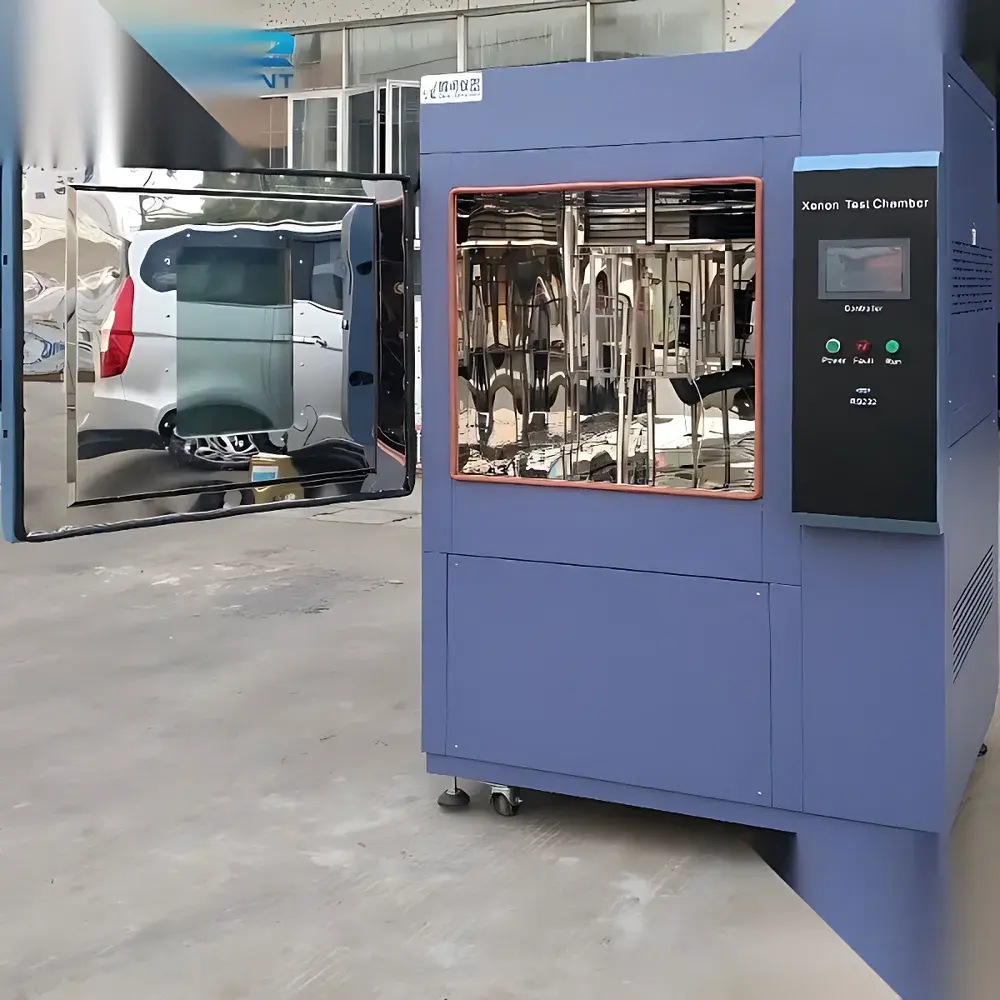

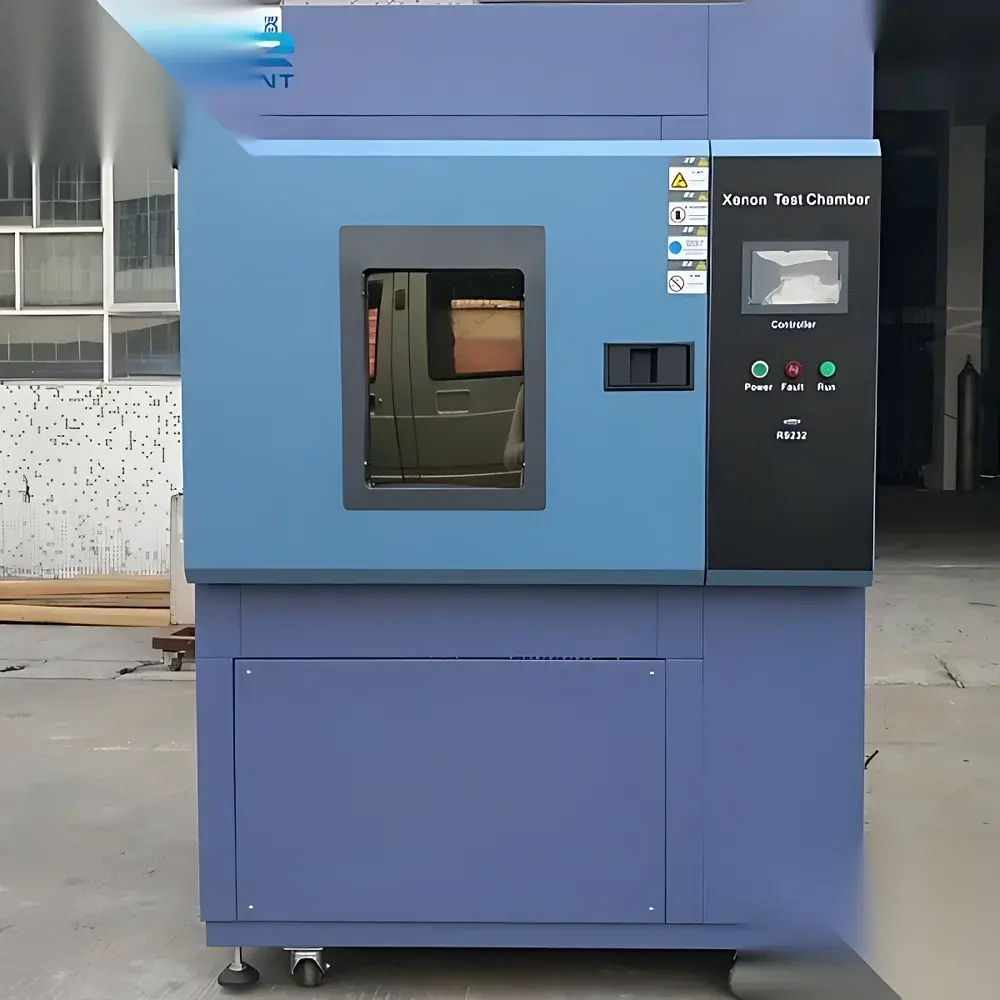

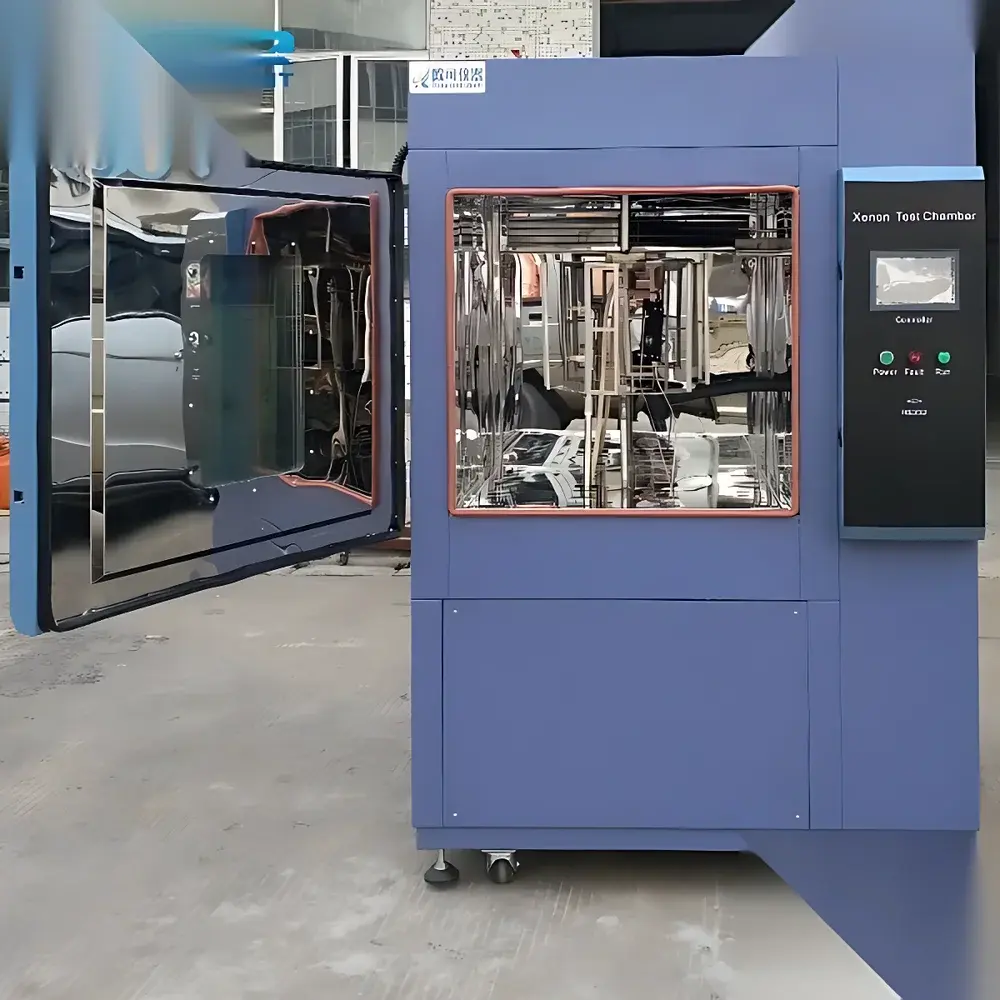

Xenon Arc Weathering Test Chamber – Manufacturer-Supplied Environmental Test System
| Brand | OEM / Custom-Built |
|---|---|
| Origin | Imported |
| Supplier Type | Authorized Distributor |
| Price | USD 5,300 (ex-works, subject to configuration and compliance options) |
Overview
The Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the full-spectrum solar radiation, temperature, and humidity conditions encountered in real-world outdoor exposure. Utilizing a high-stability xenon arc lamp as the irradiation source—calibrated to match the spectral power distribution (SPD) of natural sunlight between 290 nm and 800 nm—the chamber enables accelerated weathering evaluation of polymeric materials, coatings, textiles, automotive components, and electronic enclosures. Unlike UV fluorescent or carbon arc systems, xenon arc technology provides the most photometrically accurate simulation of terrestrial solar irradiance, making it the reference method specified in ISO 4892-2, ASTM G155, SAE J2527, and IEC 60068-2-9. This chamber is not a sand/dust test device; the provided description contains a critical misclassification—sand/dust ingress testing (e.g., IP5X/IP6X) is performed in separate Ingress Protection (IP) dust chambers per IEC 60529 and ISO 20623, and must not be conflated with xenon arc weathering functionality.
Key Features
- High-fidelity xenon arc lamp assembly with quartz envelope and integrated IR-filtering outer glass, delivering stable irradiance output across UV-A, visible, and near-IR bands.
- Microprocessor-based controller with PID-regulated black panel temperature (BPT) and chamber air temperature control, compliant with ASTM D7869 requirements for thermal management fidelity.
- Wireless black panel temperature sensor (BPT) with ±0.5 °C accuracy and real-time telemetry, eliminating thermocouple lead-induced measurement drift and enabling precise specimen surface thermal monitoring.
- Fiber-optic radiometer integration for non-contact, temperature-independent irradiance measurement at specimen plane—ensuring traceable, NIST-traceable UV and total irradiance calibration without thermal loading artifacts.
- Programmable digital timer with auto-shutdown function, supporting up to 999-hour continuous or cyclic exposure protocols with configurable ramp/hold segments.
- Safety interlock system: automatic lamp extinguishment and full system shutdown upon door opening, preventing operator UV exposure and protecting lamp life per IEC 62471 photobiological safety guidelines.
- Forced-air convection cooling with variable-speed blower and heat-exchange coil, maintaining uniform chamber temperature distribution (±2 °C across working volume) under sustained irradiance load.
Sample Compatibility & Compliance
The chamber accommodates flat-panel specimens up to 100 mm × 100 mm (standard rack) or custom fixtures for 3D automotive parts, lighting housings, and electrical enclosures. It supports both open-face and closed-loop humidity control configurations (optional). All operational parameters comply with regulatory testing frameworks including: ASTM G155 (Class A & B cycles), ISO 4892-2 (Method A & B), GB/T 16422.2, JIS D 0205, and Ford CETP 00.00-L-467. Data logging meets GLP/GMP audit requirements with optional 21 CFR Part 11-compliant software packages (electronic signatures, audit trail, user access control).
Software & Data Management
Equipped with PC-based control software (Windows 10/11 compatible), the system enables full protocol definition, real-time parameter visualization (irradiance W/m², BPT °C, RH %, time), and automated data export in CSV and PDF formats. Optional firmware upgrade supports Ethernet/IP connectivity, remote monitoring via secure TLS 1.2, and integration into enterprise LIMS environments. All irradiance calibrations are stored with timestamped metadata and certificate-of-calibration references traceable to national metrology institutes.
Applications
This chamber is routinely deployed in R&D labs and QC departments for evaluating: color fade resistance of automotive interior trims (per GMW14124); gloss retention of architectural coatings (ASTM D4303); UV stability of OLED display encapsulants; weathering durability of PV module backsheets (IEC 61215-2 MQT10); and long-term integrity of medical device polymer housings (ISO 10993-12). Its reproducibility supports comparative benchmarking across material batches and supplier qualification programs.
FAQ
Is this chamber suitable for IP5X or IP6X dust ingress testing?
No. This is a xenon arc weathering chamber only. Sand and dust resistance testing requires a dedicated IP-rated dust chamber meeting IEC 60529 and ISO 20623 specifications.
Does the system include irradiance calibration certification?
Yes—each unit ships with a factory-issued irradiance calibration report valid for 12 months, referencing NIST-traceable reference cells.
Can humidity be controlled during exposure cycles?
Humidity control is available as an optional add-on module, enabling combined light/heat/humidity testing per ISO 4892-2 Cycle 2.
What lamp lifetime can be expected under standard operating conditions?
Typical xenon lamp service life is 1,500–2,000 hours at 0.35 W/m² @ 340 nm, depending on power setting and cooling efficiency.
Is third-party validation support available for IQ/OQ/PQ documentation?
Yes—qualified validation engineers provide installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) packages aligned with ISO/IEC 17025 and FDA guidance.
