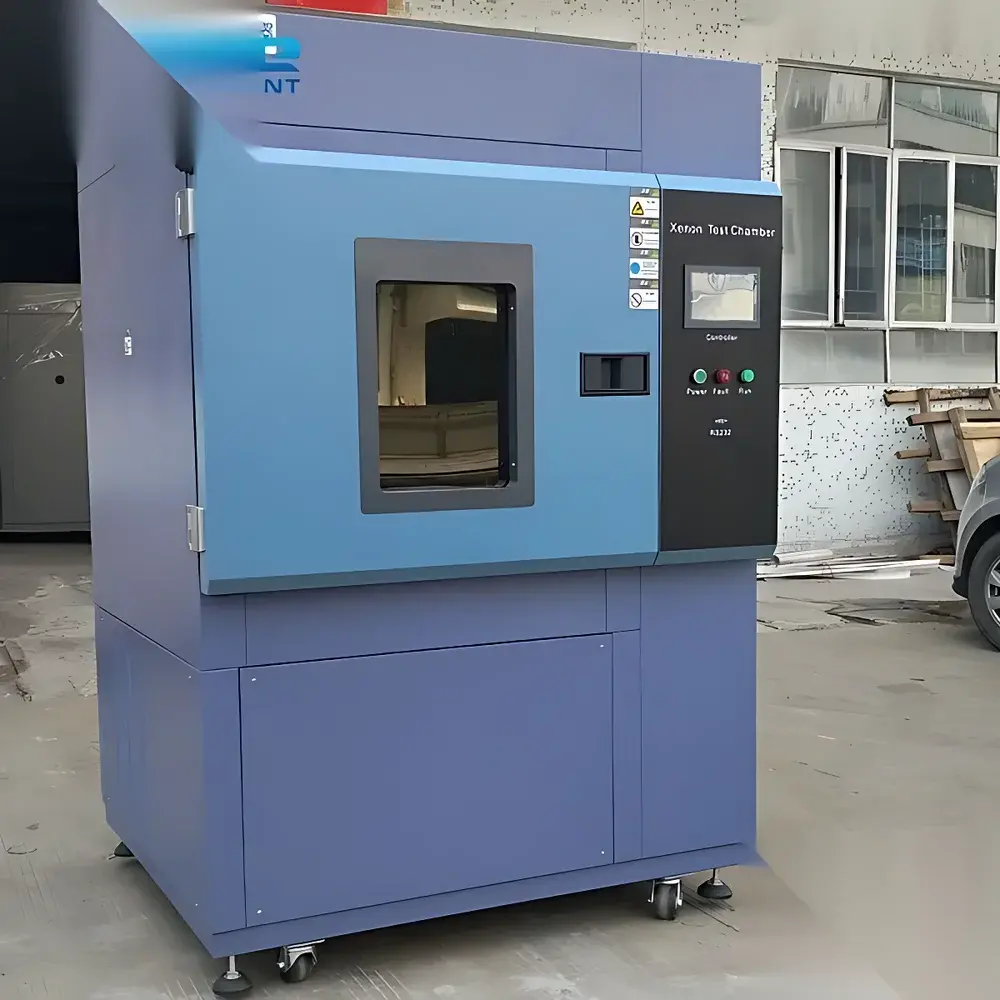

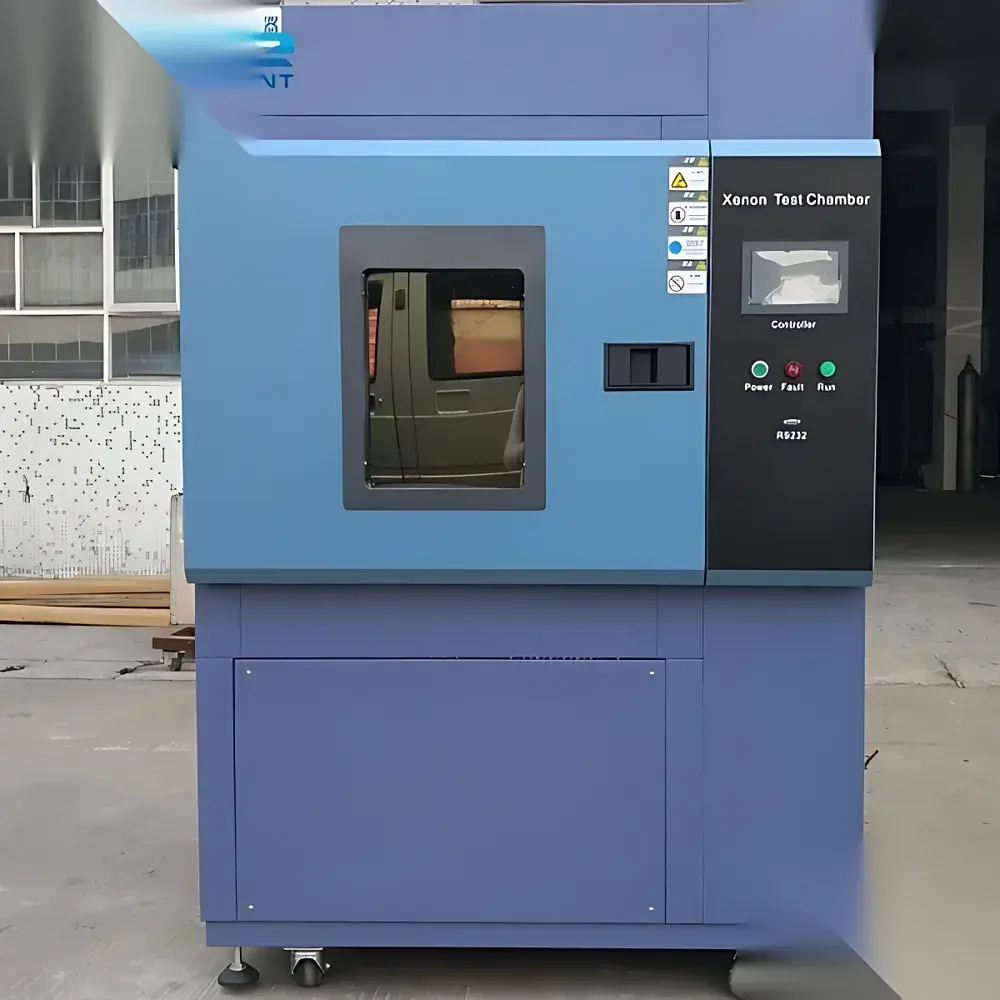

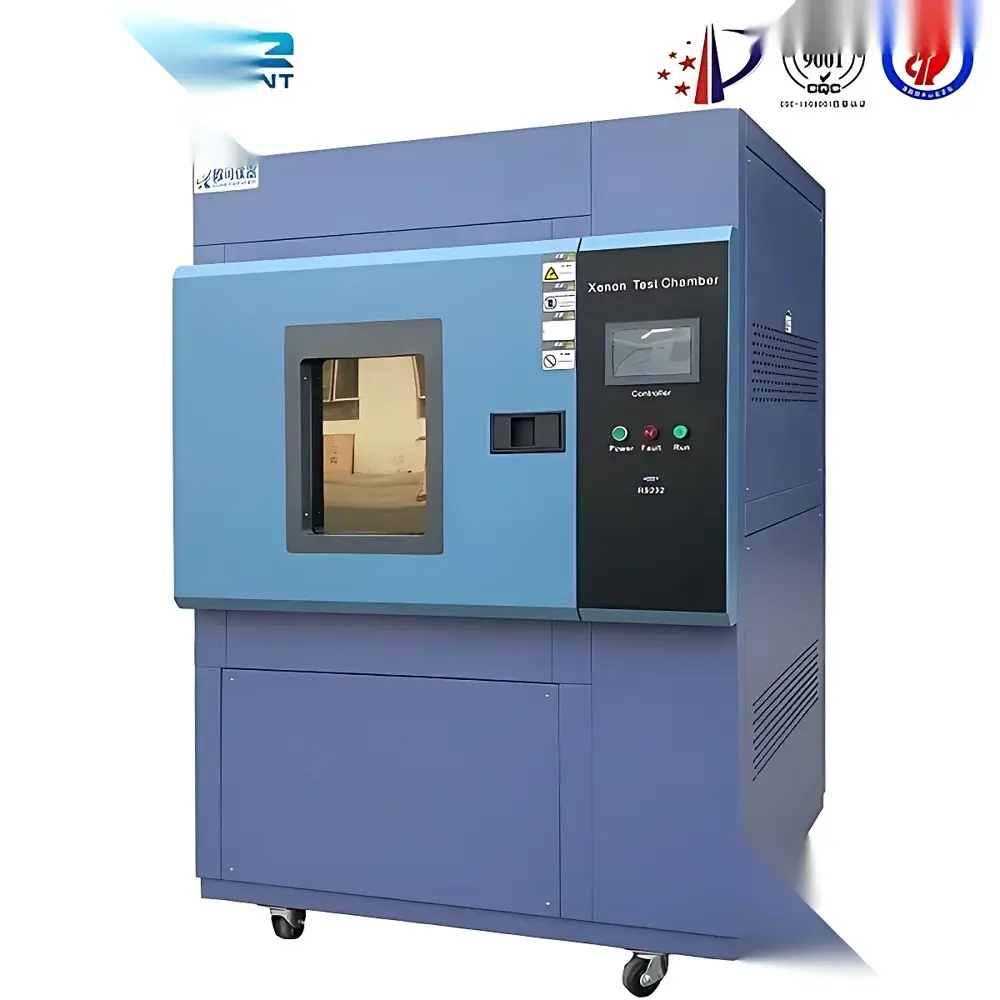

Xenon Arc Weathering Test Chamber OK-XD Series

Overview

The OK-XD Series Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to accelerate the evaluation of material degradation under controlled solar radiation, thermal stress, and moisture exposure. It employs long-arc, air-cooled xenon lamps that emit a continuous spectrum closely matching natural sunlight (300–1200 nm), enabling reproducible assessment of photochemical aging mechanisms—including photolysis, oxidation, and polymer chain scission—in accordance with internationally recognized weathering standards. Unlike UV fluorescent or metal halide sources, xenon arc technology delivers full-spectrum irradiance with appropriate UV-B, UV-A, visible, and near-infrared energy distribution—critical for realistic simulation of outdoor service conditions in automotive trim, architectural coatings, textile dye systems, and polymer composites. The chamber integrates precise black panel temperature control, programmable humidity cycling, and synchronized water spray to replicate diurnal wet/dry cycles, making it suitable for both accelerated colorfastness testing and long-term durability qualification.

Key Features

• Full-spectrum xenon arc lamp system with calibrated spectral output across 300–1200 nm, compliant with ISO 4892-2 and ASTM G155 spectral requirements;
• Independent black panel temperature control (40–85°C) and chamber air temperature regulation (0–150°C), ensuring accurate thermal load simulation;
• Dual-mode humidity control: 20–75% RH during irradiation cycles and 20–98% RH during dark condensation phases;
• Programmable water spray function with adjustable duration (1–999 min), pressure (70–127 kPa), and cycle mode (continuous or intermittent);
• Rotating sample turntable (Ø500 mm, 0–3 rpm) and dual-layer flat mesh racks accommodate irregularly shaped specimens without mechanical interference;
• High-stability optical filtering system—comprising inner and outer quartz sleeves plus broadband glass filters—to maintain spectral fidelity over lamp lifetime;
• SUS304 stainless steel interior construction ensures corrosion resistance against chlorinated or acidic spray media;
• Modular design supports custom internal dimensions (OK-XD-100 to OK-XD-1000) and integration into GLP-compliant laboratory workflows.

Sample Compatibility & Compliance

The OK-XD chamber accommodates diverse specimen geometries—from flat textile swatches and painted panels to 3D automotive components—via its configurable mounting options. Its operational envelope meets the physical and radiometric requirements of major international test standards, including ISO 4892-2 (plastics), ISO 11341 (paints), ASTM D2565 (rubber), ASTM D4329 (plastics), GB/T 16422.2 (China), and GB/T 8427 (textile colorfastness). The system supports compliance with quality management frameworks such as ISO/IEC 17025, and when operated with audit-trail-enabled controllers and calibration documentation, satisfies traceability requirements under FDA 21 CFR Part 11 and EU Annex 11 for regulated product development.

Software & Data Management

Standard configuration includes a programmable touchscreen controller with multi-segment cycle programming, real-time irradiance monitoring (via integrated broadband sensor), and data logging at user-defined intervals. Optional PC-based software enables remote operation, historical trend analysis, alarm event reporting, and export of CSV-formatted datasets for statistical process control (SPC) and report generation. All critical parameters—including irradiance intensity, black panel temperature, chamber humidity, and spray timing—are recorded with timestamped metadata, supporting GLP/GMP audit readiness and long-term comparative studies across instrument fleets.

Applications

• Colorfastness evaluation of textiles, leather, and dyed polymers per ISO 105-B02, AATCC TM16, and GB/T 8427;
• Weathering resistance validation of automotive exterior materials (e.g., PP/TPO bumpers, PU coatings, headlamp lenses) per SAE J2527 and ISO 20693;
• Photostability testing of architectural paints, wood finishes, and PVC siding per ASTM D4587 and ISO 11341;
• Lightfastness qualification of printing inks, packaging films, and graphic arts media;
• Accelerated aging of rubber compounds, sealants, and elastomeric gaskets under combined UV, heat, and moisture stress;
• Research-grade investigation of photooxidative degradation kinetics in polymer science and materials chemistry laboratories.

FAQ

What spectral irradiance levels does the OK-XD chamber deliver, and how are they calibrated?
The system provides two standard irradiance settings: 550 W/m² (300–800 nm) and 1000 W/m² (300–1200 nm), both traceable to NIST-calibrated reference sensors. Irradiance is continuously monitored and automatically adjusted via feedback-controlled lamp power regulation.
Can the chamber operate under dark condensation cycles without irradiation?
Yes. The controller supports fully independent dark cycles with active humidity control up to 98% RH and temperature ramping, simulating nighttime dew formation per ISO 4892-2 Annex B.
How often must the xenon lamp and filters be replaced?
Lamp service life is rated at approximately 1,500 hours under nominal irradiance. Outer filters require replacement every 1,000–1,200 hours; inner quartz sleeves should be inspected quarterly and cleaned or replaced based on transmittance loss.
Is the OK-XD series compatible with third-party data acquisition systems?
Yes. RS485 Modbus RTU and optional Ethernet/IP interfaces allow integration with SCADA platforms, LIMS, and enterprise MES systems for centralized environmental test data management.
Does the chamber support automated sample rotation synchronization with irradiation cycles?
Yes. The turntable rotation speed (0–3 rpm) is programmable and can be paused or resumed in coordination with light/dark transitions and spray events to ensure uniform exposure across all specimen surfaces.
