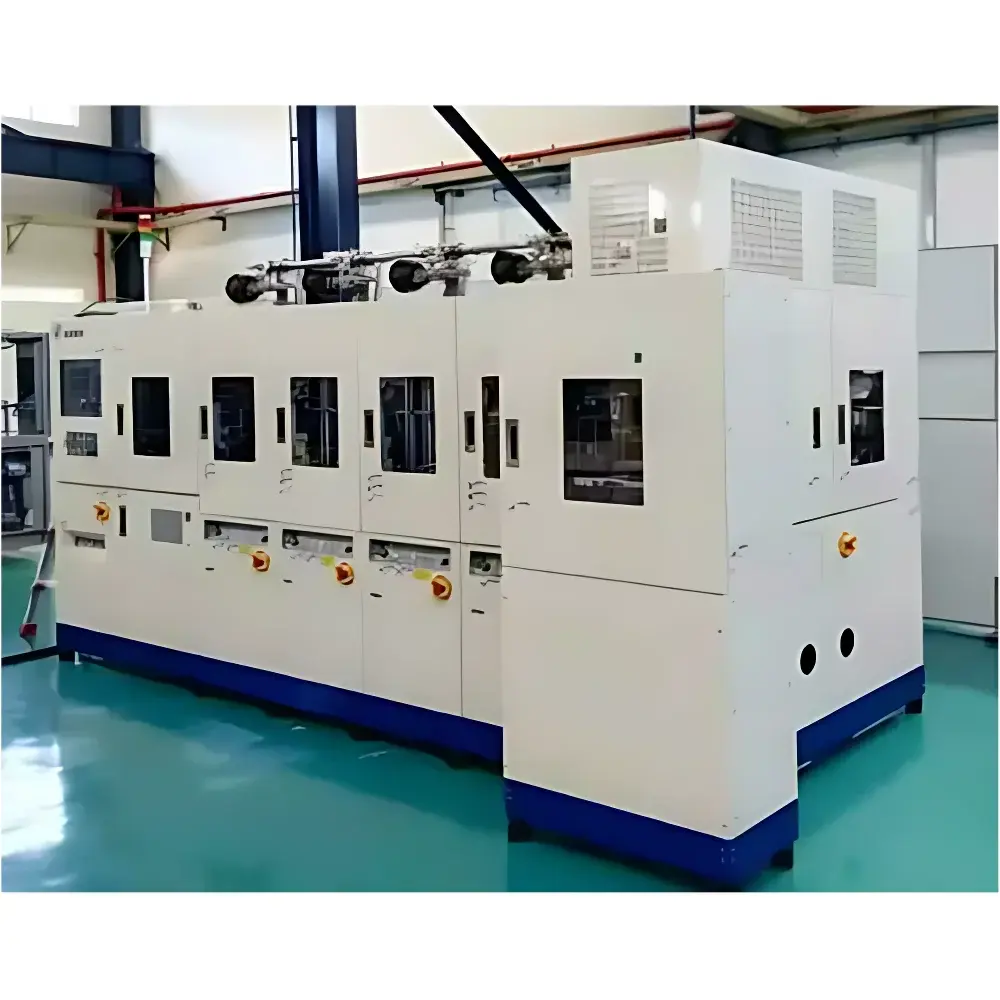

XinSheng Technology XSM-FA100 Full-Automatic Semiconductor Encapsulation Molding System

Overview

The XinSheng Technology XSM-FA100 Full-Automatic Semiconductor Encapsulation Molding System is an industrial-grade transfer molding platform engineered for high-volume, high-reliability encapsulation of discrete devices, IC packages (including QFP, SOP, SOIC, and leadframe-based modules), and advanced heterogeneous integration substrates. It operates on the principle of thermoset resin transfer under controlled temperature, pressure, and time parameters—utilizing precision hydraulic clamping, servo-driven plunger injection, and multi-zone heated mold platens to ensure uniform resin flow, minimal wire sweep, and consistent die attach integrity. Designed specifically for front-end packaging lines in semiconductor assembly facilities, the XSM-FA100 meets the mechanical and thermal stability requirements for molding epoxy-based compounds (e.g., EMCs conforming to JEDEC J-STD-020 and IPC-7095 standards) while maintaining repeatability across >10,000 cycles per mold set.

Key Features

• Full automation with integrated robotic arm handling (pick-and-place cycle time ≤ 4.2 s), supporting wafer-level frames, strip carriers, and tray-fed input configurations
• Dual-platen hydraulic clamping system delivering up to 120 metric tons of closing force with ±0.5 µm parallelism control across 300 × 300 mm mold area
• Servo-motor-driven transfer plunger enabling programmable injection speed profiles (0.5–15 mm/s) and real-time pressure monitoring (0–20 MPa range)
• Multi-zone mold temperature control (±0.3 °C stability) across upper/lower platens (operating range: 140–180 °C), compliant with JEDEC TM-650 thermal cycling protocols
• Integrated mold protection logic with cavity pressure sensing, resin viscosity monitoring via inline torque feedback, and automatic mold cleaning sequence
• Modular I/O architecture supporting SECS/GEM communication for factory-level MES integration and traceability (SEMI E30/E37 compliant)

Sample Compatibility & Compliance

The XSM-FA100 accommodates standard industry package formats including but not limited to: leadframe-based QFN (3×3 mm to 12×12 mm), SOIC-8/16, TSSOP, DIP, and embedded die substrates using copper or ceramic interposers. It supports both conventional epoxy molding compounds (EMCs) and low-stress, halogen-free formulations meeting IEC 61249-2-21 and RoHS 2015/863/EU directives. All motion control firmware and safety interlocks comply with ISO 13857 (separation distances) and ISO 13849-1 PL e / Category 4 requirements. The system is pre-configured for GLP-aligned operation, with audit-ready event logging, user access levels (admin/operator/maintenance), and optional 21 CFR Part 11-compliant electronic signature modules.

Software & Data Management

Control and diagnostics are managed via the XinSheng MoldingSuite™ v4.2 HMI software, running on a hardened Windows IoT Enterprise OS platform. The interface provides real-time visualization of cavity pressure curves, plunger displacement vs. time, mold temperature gradients, and cycle-by-cycle parameter deviation alerts. All process recipes—including material lot tracking, mold ID association, and environmental chamber correlation—are stored in encrypted SQLite databases with daily automated backup to network-attached storage (NAS). Raw data export supports CSV, XML, and SEMI E57 formats for statistical process control (SPC) analysis using JMP or Minitab. Optional cloud gateway enables remote diagnostics via TLS 1.3-secured MQTT channels without exposing internal OT network segments.

Applications

• High-yield encapsulation of power discretes (MOSFETs, IGBTs, Schottky diodes) requiring low void content (<0.5% by X-ray inspection per IPC-A-610 Class 3)
• Advanced packaging of SiP (System-in-Package) modules integrating RF, analog, and digital dies with fine-pitch copper pillars
• Thermal management-critical molding for automotive-grade AEC-Q100 Grade 1 components using high-Tg, low-CTE EMCs
• Qualification runs for new mold compound formulations under JEDEC JEP182 accelerated reliability test conditions
• Process development support for fan-out wafer-level packaging (FOWLP) redistribution layer (RDL) encapsulation trials

FAQ

Does the XSM-FA100 support mold changeover under vacuum?

Yes—the system includes optional vacuum-assisted mold purging (≤50 Pa residual pressure) to minimize moisture-induced blistering during high-Tg compound curing.
What is the maximum allowable mold height and weight?

The platen opening stroke accommodates molds up to 420 mm in height; maximum supported mold weight is 1,800 kg with reinforced base mounting.
Can the system be validated for GMP environments?

Yes—documentation packages include IQ/OQ protocols aligned with ISO 9001:2015 and ICH Q7 Annex 15; PQ execution requires site-specific qualification with reference standards.
Is offline recipe simulation available?

MoldingSuite™ includes a physics-based digital twin module that simulates resin fill patterns and thermal shrinkage using boundary-condition inputs from actual mold CAD geometry.
What maintenance intervals are recommended for hydraulic and heating systems?

Hydraulic oil analysis every 2,000 operating hours; heater cartridge calibration annually or after 10,000 cycles—both tracked automatically in the maintenance scheduler.
