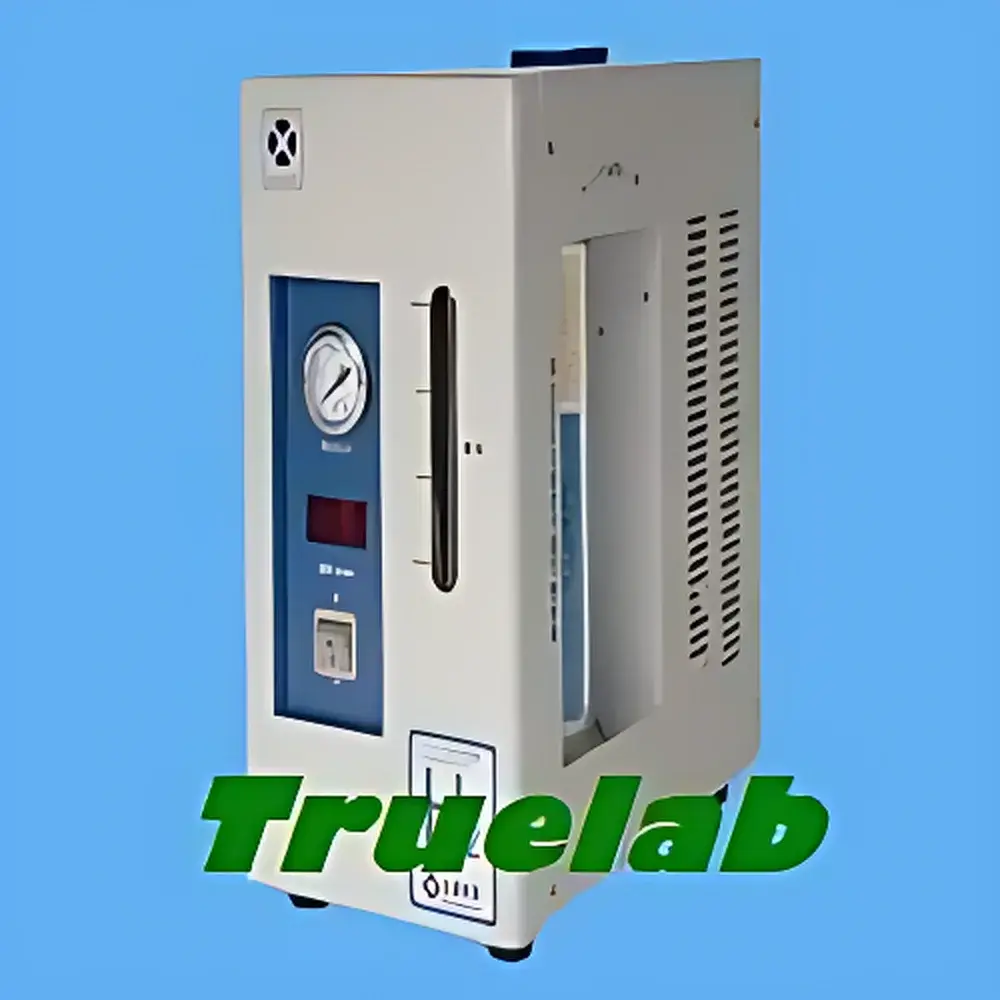

XiYou XYHP-500 High-Purity Hydrogen Generator

Overview

The XiYou XYHP-500 is a laboratory-grade, high-purity hydrogen generator engineered for continuous, on-demand supply of ultra-high-purity hydrogen (≥99.999%) to analytical instrumentation—primarily gas chromatographs (GC), hydrogen flame ionization detectors (FID), and other hydrogen-dependent systems. Unlike traditional alkaline electrolyte-based generators, the XYHP-500 employs a solid polymer electrolyte (SPE) membrane technology, enabling pure water electrolysis without caustic additives. This eliminates operator exposure to corrosive KOH solutions, reduces maintenance frequency, and enhances long-term system stability. The device operates on deionized water feedstock, producing hydrogen via electrochemical decomposition at the anode and cathode interfaces of the proton-exchange membrane. Integrated thermal management maintains optimal cell temperature during extended operation, ensuring consistent output flow and purity across varying load conditions. Designed for benchtop deployment in ISO/IEC 17025-accredited laboratories and regulated QC environments, the XYHP-500 complies with fundamental safety and performance expectations aligned with IEC 61010-1 (Electrical Safety for Laboratory Equipment) and supports GLP/GMP-aligned operational documentation.

Key Features

• Solid Polymer Electrolyte (SPE) membrane stack—no alkali addition required; only deionized water input ensures operator safety and eliminates electrolyte handling risks.
• Integrated dual-stage purification: palladium-doped molecular sieve pre-filter + catalytic recombination unit removes residual oxygen, moisture, and trace hydrocarbons to sustain ≥99.999% H₂ purity.
• Intelligent pressure–flow coupling control: real-time feedback loop dynamically adjusts electrolysis current to maintain stable outlet pressure (0–0.4 MPa) and flow rate (0–300 mL/min), even under fluctuating demand from connected instruments.
• Over-pressure protection circuitry and automatic shut-down triggered by abnormal cell resistance or coolant temperature deviation—fully compliant with EN 851 (Gas Generators – Safety Requirements).
• Stainless steel 316L fluid path components, electropolished and ultrasonically cleaned, minimize metallic leaching and ensure compatibility with trace-level analytical applications.
• Front-panel digital display with LED indicators for system status, water level, pressure, flow, and fault codes—enabling rapid diagnostics without software dependency.

Sample Compatibility & Compliance

The XYHP-500 delivers hydrogen suitable for all major GC configurations—including Agilent, Thermo Fisher, Shimadzu, and PerkinElmer platforms—as well as standalone FID, TCD, and PDD detectors requiring carrier or fuel gas. Its output meets ASTM D7217–22 specifications for hydrogen purity in chromatographic applications (<1 ppm O₂, <1 ppm H₂O, <0.1 ppm total hydrocarbons). While not certified to UL or CSA standards out-of-the-box, the unit’s electrical architecture conforms to Class I, Division 2 hazardous location guidelines when installed per manufacturer-recommended ventilation and grounding protocols. For regulated pharmaceutical or clinical labs, audit-ready operation logs (via optional RS-232/USB interface) support 21 CFR Part 11-compliant data integrity when paired with validated LIMS or instrument control software.

Software & Data Management

The XYHP-500 operates autonomously without mandatory software integration. However, its optional RS-232 and USB-C ports enable bidirectional communication with third-party lab automation systems. Compatible drivers allow remote monitoring of real-time parameters—including instantaneous flow, pressure, cell voltage, and cumulative runtime—within LabVIEW, Python (PySerial), or custom SCADA environments. All event-triggered alarms (e.g., low-water, over-pressure, thermal fault) generate timestamped entries stored in non-volatile memory for up to 30 days. When used in conjunction with validated chromatography data systems (CDS), these logs may be exported as CSV or XML for inclusion in electronic batch records per ALCOA+ principles.

Applications

• Carrier gas supply for capillary GC columns requiring inert, dry, high-purity hydrogen.
• Fuel gas source for hydrogen FIDs operating at stoichiometric ratios (typically 30–40 mL/min) with air co-flow.
• Reducing atmosphere generation in thermal desorption units and purge-and-trap concentrators.
• Calibration gas dilution systems where hydrogen serves as matrix gas for ppb-level VOC standards.
• Research-scale hydrogenation reactors requiring metered, contamination-free H₂ feed without cylinder logistics.

FAQ

What type of water is required for optimal operation?
Deionized water with resistivity ≥15 MΩ·cm and total organic carbon (TOC) <50 ppb is mandatory. Distilled water alone is insufficient due to residual ionic contaminants that accelerate membrane degradation.
Can the XYHP-500 replace high-pressure hydrogen cylinders in all GC applications?
Yes—for carrier and detector fuel gas applications within standard GC pressure ranges (≤0.4 MPa). It is not designed for high-pressure storage or direct use in hydride generation AAS systems requiring >1 MPa delivery.
How often does the SPE membrane require replacement?
Under normal operating conditions (≤8 h/day, proper water quality), the membrane is rated for ≥5,000 hours of service life. Replacement is indicated only upon persistent purity decay (<99.995%) after full system regeneration and filter changes.
Is external cooling required?
No—the unit incorporates passive convection cooling with thermally optimized housing geometry. Ambient operating temperature must remain between 10–35°C with ≤80% non-condensing relative humidity.
Does the generator include validation documentation?
Factory test reports (including flow accuracy verification, purity chromatograms, and pressure hold tests) are supplied with each unit. IQ/OQ protocol templates compatible with ASTM E2500 and Annex 11 are available upon request for GxP implementation.
