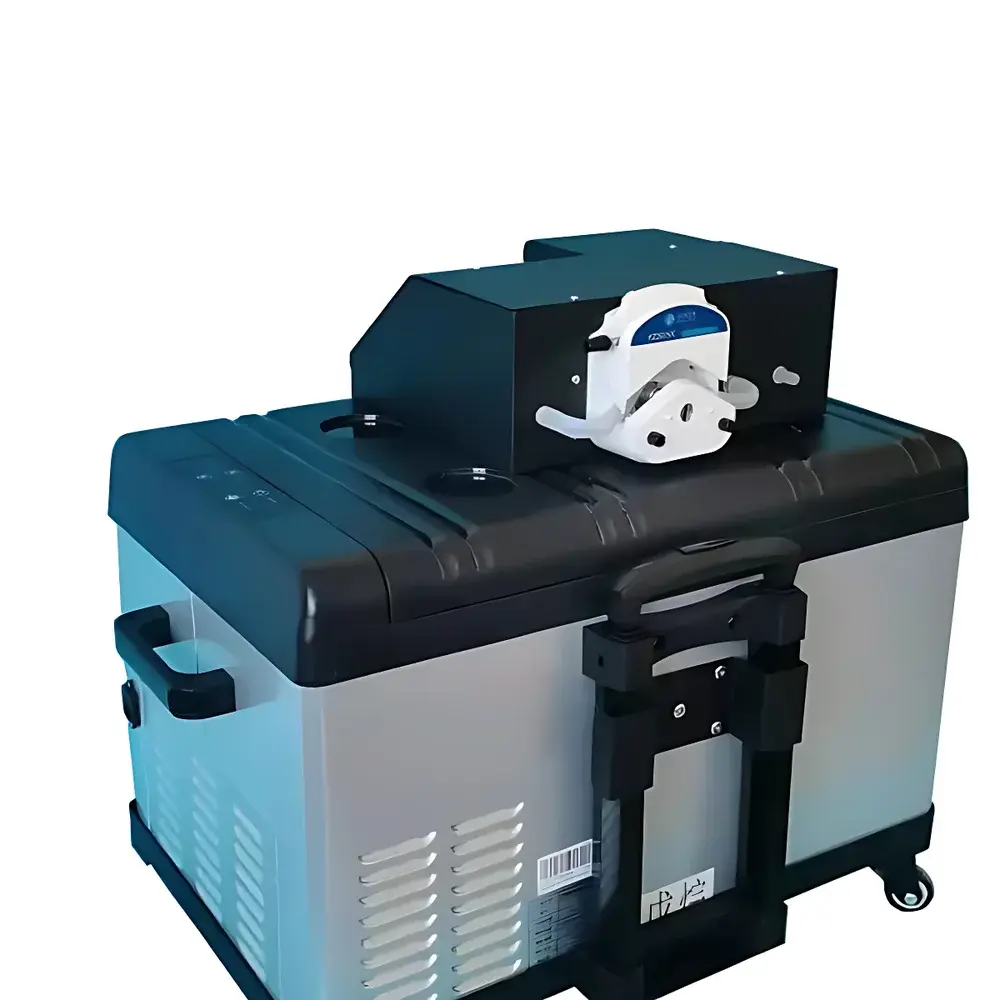

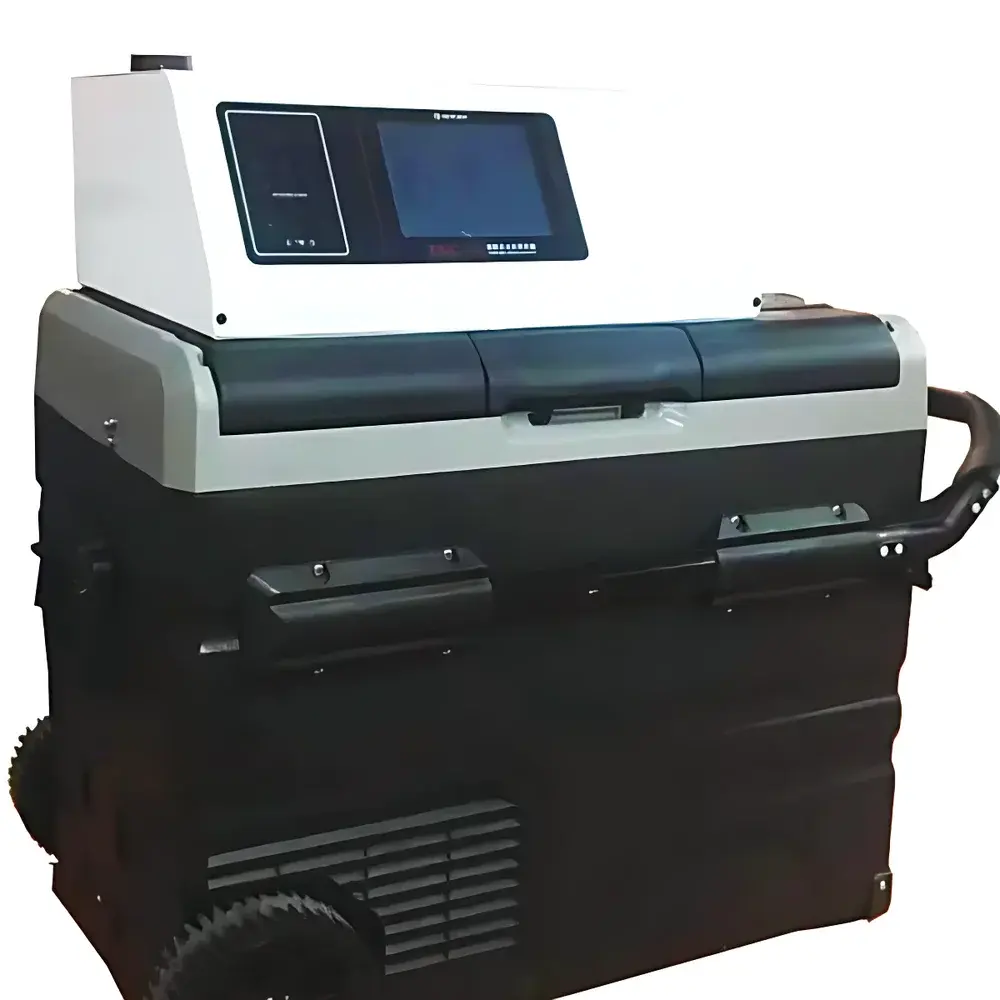

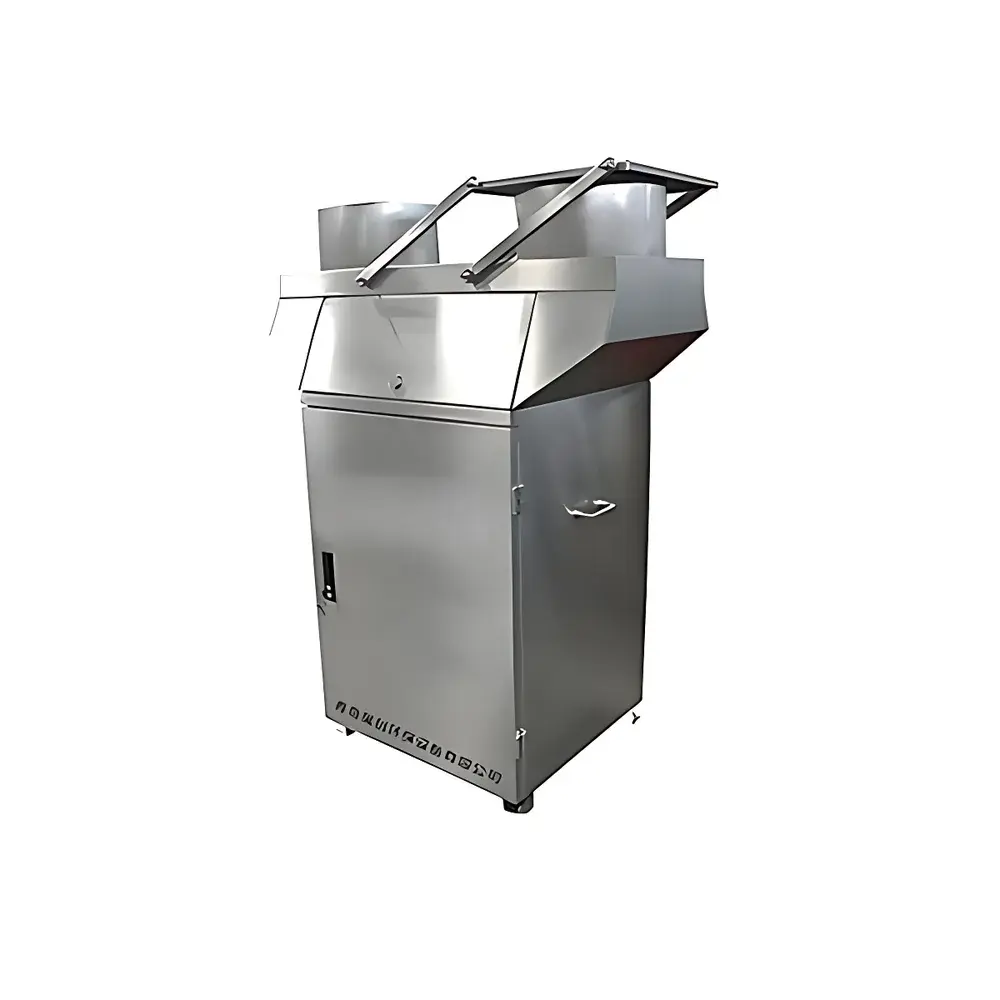

XY-HCS5 Precipitation and Dustfall Automatic Sampling & Monitoring System

Overview

The XY-HCS5 Precipitation and Dustfall Automatic Sampling & Monitoring System is an integrated, field-deployable environmental monitoring platform engineered for long-term, unattended collection and real-time physicochemical characterization of atmospheric wet and dry deposition. It operates on a dual-mode principle: rain-triggered active sampling via high-sensitivity capacitive rain sensors, and passive dustfall accumulation in standardized cylindrical collectors. The system conforms to internationally referenced methodologies—including ISO/IEC 17025-aligned field sampling protocols—and delivers traceable, audit-ready data for regulatory reporting under national and regional air quality management frameworks. Its architecture supports simultaneous measurement of rainfall depth (via calibrated tipping-bucket or weighing-type rain gauge integration), pH, electrical conductivity (EC), and water temperature—each recorded with timestamped metadata per precipitation event. Designed for deployment at national monitoring networks, ecological research stations, and industrial emission boundary sites, the XY-HCS5 meets rigorous environmental durability requirements for operation across -30 °C to +50 °C ambient conditions.

Key Features

• Dual independent comb-type intelligent rain sensors with three-stage heating capability—enabling reliable discrimination between closely spaced precipitation events and minimizing false triggers during dew or fog condensation.
• Full inert fluid path construction: PTFE-coated funnel surface, borosilicate glass sample bottles, and fluoropolymer-lined tubing ensure minimal leaching, adsorption, or ion exchange during collection and storage.
• Eight-position automated sample fractionation module supporting four programmable sampling strategies: composite sampling (24-hr cycle), time-based segmentation (e.g., 5-min intervals), volume-based segmentation (e.g., 5-mL increments), and event-based segmentation (one bottle per rainfall episode).
• Integrated refrigerated sample chamber maintaining 4±1 °C throughout collection and post-event storage—critical for preserving labile analytes (e.g., NH₄⁺, NO₃⁻, dissolved organic carbon) prior to off-site analysis.
• Robust mechanical actuation system featuring dual-arm, four-bar linkage lid mechanism—ensuring repeatable, contamination-free sealing with silicone gasket compression and IP65-rated environmental protection.
• Onboard data logging with non-volatile memory storing up to 8,000 precipitation records, each containing start/end timestamps, cumulative rainfall depth, average pH, average EC, average water temperature, bottle assignment index, and system diagnostic flags.
• Comprehensive electrical safety design: rain-resistant power cabling, ≥5 MΩ insulation resistance between input terminals and chassis ground, and built-in residual-current circuit breaker (RCCB) compliant with IEC 61000-4-5 surge immunity standards.

Sample Compatibility & Compliance

The XY-HCS5 complies with multiple Chinese national standards governing atmospheric deposition monitoring, including GB/T 13580.2 (Sampling and Analysis Methods for Atmospheric Precipitation), HJ/T 174–2005 and HJ/T 175–2005 (Technical Requirements for Automatic Rain Samplers), GB/T 19117–2017 (Specifications for Acid Rain Observation), and HJ/T 165–2004 (Technical Specifications for Acid Deposition Monitoring). While not certified to ISO 9001 or ISO/IEC 17025 for calibration traceability, its sensor subsystems are validated against reference instrumentation per JJG 211–2019 (Verification Regulation for Rain Gauges) and JJG 1105–2015 (pH Meters). All wet-chemistry interfaces adhere to GLP principles for sample integrity; data export formats support CSV and Excel-compatible structured tables suitable for ingestion into LIMS platforms. Optional GSM telemetry enables remote firmware updates and alarm notification (e.g., lid failure, refrigeration fault, overflow detection) without requiring on-site intervention.

Software & Data Management

Data acquisition and retrieval are performed via embedded ARM Cortex-M4 microcontroller firmware with real-time clock (RTC) synchronization and battery-backed SRAM for power-loss resilience. Field data transfer occurs through USB 2.0 mass-storage mode—no proprietary drivers required. Inserting a FAT32-formatted USB flash drive initiates automatic export of chronologically sorted event logs, with filenames including site ID and UTC timestamp prefixes. Each record includes: Event ID, Start DateTime (ISO 8601), End DateTime, Total Rainfall (mm), Mean pH, Mean EC (mS/m), Mean Water Temp (°C), Assigned Bottle No., and System Status Code. Internal clock accuracy is ±1 sec/month (temperature-compensated crystal oscillator). RS232 serial interface supports Modbus RTU protocol for integration with SCADA systems or centralized environmental data hubs. Audit trail functionality logs all configuration changes, manual overrides, and maintenance actions with user ID and timestamp—meeting foundational requirements for 21 CFR Part 11–aligned data governance where local regulatory adoption permits.

Applications

• National and provincial acid rain monitoring networks requiring long-term trend analysis of SO₄²⁻, NO₃⁻, and NH₄⁺ deposition fluxes.
• Industrial fence-line monitoring near coal-fired power plants, smelters, and chemical manufacturing facilities to quantify pollutant washout efficiency and assess atmospheric dispersion models.
• Ecological research on nutrient cycling in forested, alpine, and coastal ecosystems—particularly where base cation depletion or nitrogen saturation is suspected.
• Urban air quality assessment programs integrating wet deposition data with PM₂.₅/PM₁₀ concentration measurements to apportion anthropogenic vs. natural aerosol contributions.
• Educational laboratories conducting undergraduate atmospheric chemistry experiments involving precipitation chemistry, buffering capacity, and ionic balance calculations.

FAQ

What is the minimum detectable rainfall intensity?
The XY-HCS5 achieves a rain sensor sensitivity of ≥0.03 mm/min—exceeding the 0.05 mm/min threshold specified in HJ/T 174–2005.
How does the system handle overlapping or intermittent rainfall events?
The dual comb-type sensors with adaptive heating logic distinguish sequential events separated by as little as 15 minutes, preventing misclassification due to evaporative drying or dew formation.
Can the pH and conductivity sensors be recalibrated in the field?
Yes—both sensors feature removable, replaceable electrodes with standardized BNC connectors; two-point pH calibration (pH 4.01 and 7.00 buffers) and single-point EC verification (1413 µS/cm KCl standard) are supported via menu-driven calibration wizard.
Is the refrigeration unit operational during extreme cold ambient conditions?
The compressor-based cooling system maintains 4±1 °C within the sample chamber across the full rated operating range of -30 °C to +50 °C ambient, verified per GB/T 2423.1–2008 low-temperature testing.
Does the system support remote data transmission without GSM?
Standard configuration includes RS232 only; optional Ethernet or LoRaWAN modules are available upon request—but GSM remains the only factory-integrated wireless telemetry option.
