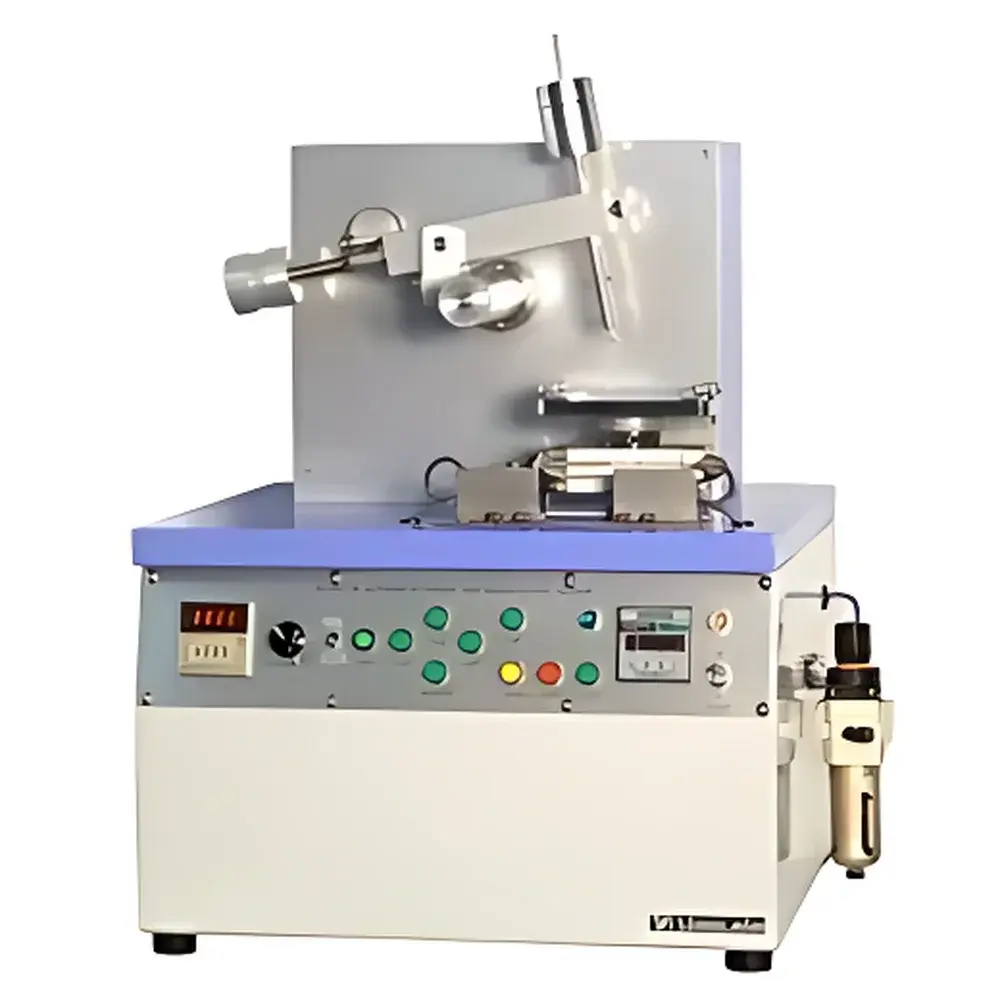

Yasuda No.551-AUTO-2 Automatic Cross-Cut Adhesion Tester

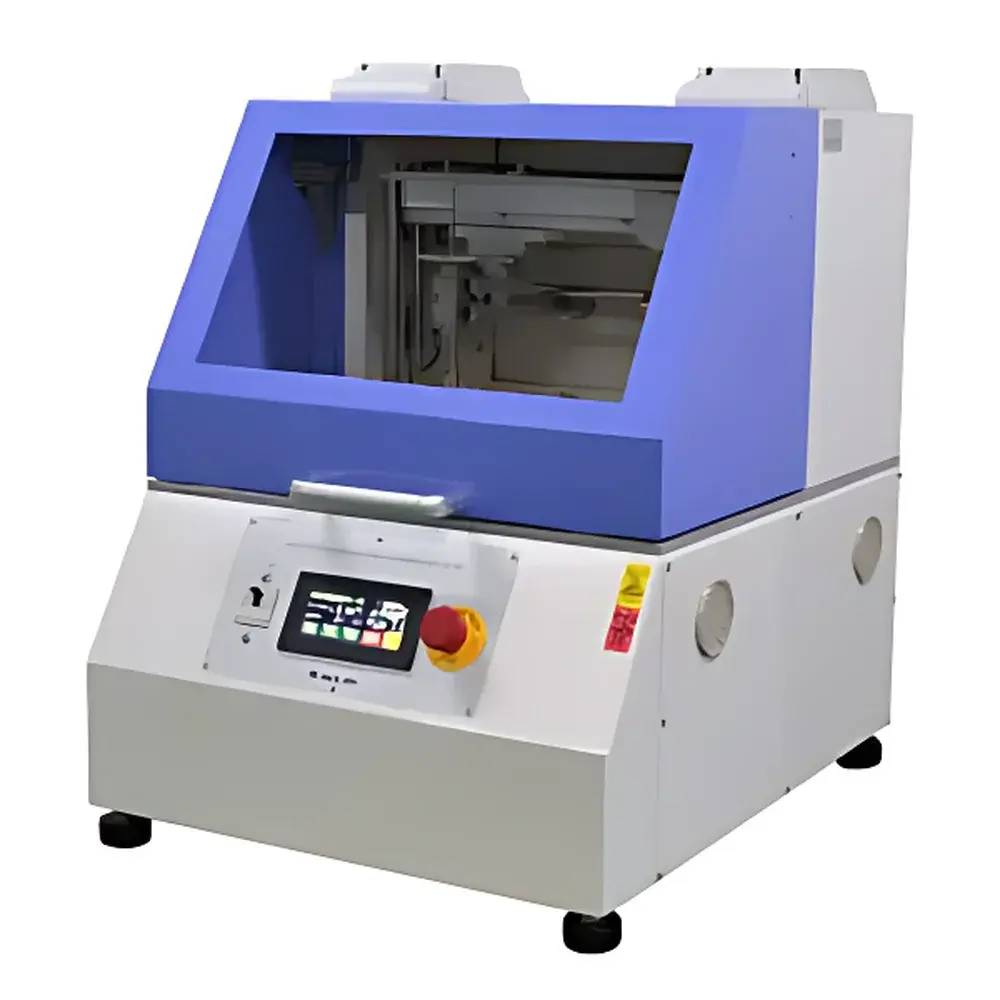

| Brand | Yasuda |
|---|---|
| Origin | Japan |
| Model | No.551-AUTO-2 |
| Test Standards | JIS D 0202, JIS K 5400, JIS K 5600-5-6, ASTM D2197, ISO 2409 |
| Sample Stage | 90 × 90 mm, 90° automatic rotation |
| Max. Travel | 50 mm (X & Y) |
| Cut Spacing | 0.5 / 1.0 / 1.5 / 2.0 mm (4-step selection) |
| Cutting Speed | 5 / 10 / 15 / 20 mm/s |
| Cut Count | Programmable via timer (standard: 6 or 11 cuts) |
| Load Range | 10–350 gf (counterweight-based) |
| Cutting Needle | φ3 mm diameter, 23 mm length, 60° tip angle |
| Power Supply | AC 100 V, 1-phase, 5 A, 50/60 Hz |
| Dimensions (w/o guard) | 630 × 750 × 700 mm (W×D×H) |
| Weight | ~90 kg |
| Dimensions (with guard) | 630 × 750 × 760 mm |
| Weight | ~95 kg |
| Optional Accessories | Electrical continuity module, blade mounting jig, sliding distance sensor |
Overview
The Yasuda No.551-AUTO-2 Automatic Cross-Cut Adhesion Tester is an electromechanically controlled instrument engineered for standardized evaluation of coating adhesion to rigid substrates using the cross-cut method. It operates on the principle of controlled mechanical incision—employing a precision-ground tungsten carbide or hardened steel needle to produce a uniform grid pattern of parallel and perpendicular cuts through the applied coating layer down to the substrate surface. The resulting lattice enables quantitative assessment of cohesive and interfacial failure modes under defined mechanical stress, in accordance with internationally recognized test protocols including ISO 2409, ASTM D2197, JIS K 5600-5-6, and JIS D 0202. Unlike manual cross-hatch tools, the No.551-AUTO-2 eliminates operator-induced variability by automating stage positioning, cut spacing, cutting speed, and load application—ensuring repeatability across laboratories and production shifts. Its modular architecture supports integration into quality control workflows requiring traceable, auditable, and GLP-compliant test execution.
Key Features
- Fully automated cross-cut grid generation with programmable X-Y stage movement (max. 50 mm travel per axis) and 90° motorized sample rotation for orthogonal cut alignment.
- Four-step selectable cut spacing (0.5, 1.0, 1.5, and 2.0 mm), compliant with ISO 2409 classification tiers for coatings ranging from thin decorative finishes to thick industrial primers.
- Adjustable cutting speed (5–20 mm/s) to accommodate varying coating viscoelasticity and substrate hardness without chipping or feathering artifacts.
- Counterweight-based loading system (10–350 gf range) enabling precise, stable normal force application during incision—critical for reproducible cut depth and edge definition.
- Standardized cutting needle geometry: φ3 mm shank diameter, 23 mm overall length, 60° included tip angle—designed to meet ISO 2409 dimensional tolerances and minimize lateral deformation.
- Interchangeable blade mounting fixture (optional) for rapid tool change and calibration verification; electrical continuity module (optional) for real-time conductive coating integrity monitoring during testing.
Sample Compatibility & Compliance
The No.551-AUTO-2 accommodates flat, rigid specimens up to 90 × 90 mm, including metal panels (steel, aluminum), glass slides, plastic sheets (e.g., ABS, polycarbonate), and composite laminates. Substrate thickness must ensure mechanical stability under applied load (recommended ≥0.5 mm for metallic substrates). The instrument conforms to the mechanical and procedural requirements of ISO 2409:2023 (Paints and varnishes — Cross-cut test), ASTM D2197-22 (Standard Test Method for Adhesion of Organic Coatings by the Cross-Cut Tape Test), and JIS K 5600-5-6:2017. Its design facilitates audit readiness for ISO/IEC 17025-accredited laboratories and supports documentation of test parameters—including cut count, spacing, speed, load, and environmental conditions—for FDA 21 CFR Part 11–aligned electronic records when paired with validated software.
Software & Data Management
While the base unit operates via front-panel digital controls with LED parameter display, optional PC interface modules enable RS-232 or USB connectivity for remote operation and data logging. Compatible software packages support configuration file storage, test sequence scripting, timestamped parameter export (CSV), and integration with LIMS environments. All executed tests retain immutable metadata: date/time, operator ID (if authenticated), specimen ID, standard reference, and full parameter set—enabling retrospective analysis and compliance with GLP/GMP documentation requirements. Audit trails are maintained for parameter changes, ensuring traceability during regulatory inspections.
Applications
- Automotive OEM and Tier-1 suppliers evaluating primer-surfacer-topcoat adhesion on electrocoated steel panels.
- Aerospace component manufacturers validating thermal spray or enamel coatings on titanium or Inconel substrates.
- Architectural coating producers assessing acrylic, fluoropolymer, or silicone-based facade systems on aluminum composite panels.
- Electronics enclosures testing anti-corrosion conversion coatings on zinc-plated steel housings.
- R&D labs conducting structure-property studies on nanocomposite coatings, where controlled delamination onset correlates with filler dispersion and interfacial bonding energy.
FAQ
What standards does the No.551-AUTO-2 directly support?
It is mechanically and functionally aligned with ISO 2409, ASTM D2197, JIS K 5600-5-6, JIS K 5400, and JIS D 0202—covering cut geometry, load application, and evaluation methodology.
Can the instrument perform both 6-cut and 11-cut patterns as specified in ISO 2409?
Yes—the cut count is programmable via integrated timer logic, with factory presets for 6 and 11 cuts, and user-defined values for non-standard configurations.
Is calibration verification possible without third-party service?
Yes—using the optional blade mounting jig and certified reference needles, users can verify tip geometry, perpendicularity, and load application accuracy per internal SOPs.
Does the safety guard affect test reproducibility?
No—the transparent polycarbonate guard is structurally isolated from the motion system and introduces no measurable deflection or vibration coupling during operation.
How is traceability maintained for regulated environments?
Parameter logs, operator inputs, and timestamped test events are exportable in machine-readable format; optional software adds digital signatures and 21 CFR Part 11–compliant audit trail functionality.
