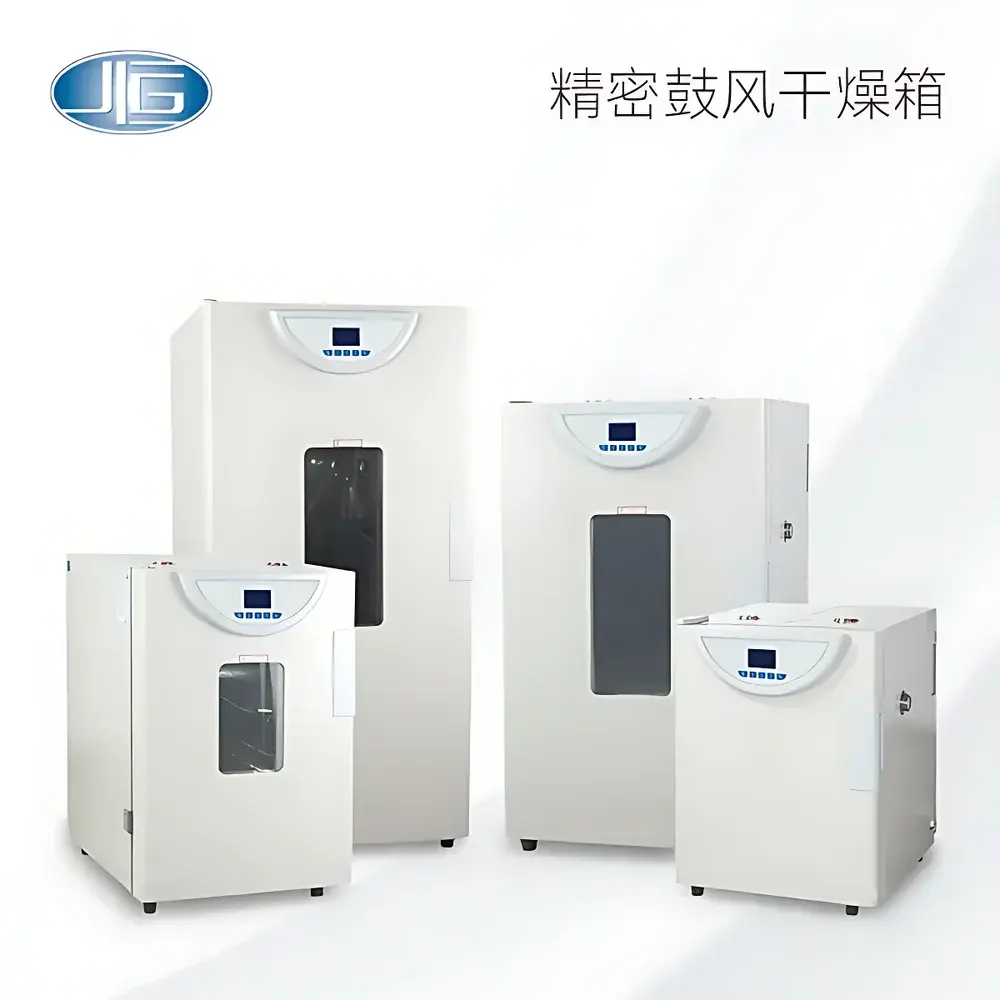

Yiheng BPG-9000 Series Precision Forced-Air Drying Oven

Overview

The Yiheng BPG-9000 Series Precision Forced-Air Drying Oven is an engineered solution for controlled thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed around the principle of forced convection heating, this oven maintains precise temperature setpoints across its working chamber through a dynamically balanced axial fan system and optimized airflow ducting. Unlike natural convection ovens, the BPG-9000 series ensures rapid heat transfer and minimized thermal gradients—critical for applications requiring consistent moisture removal, thermal stabilization, or pre-conditioning of samples prior to analytical testing. Its operational envelope spans from ambient +10°C to 200°C standard (with optional extension to 250°C), meeting the thermal requirements of ASTM D1654 (corrosion testing), ISO 554 (standard atmospheres), and USP <1211> (sterile product drying validation protocols). The chamber’s AISI 304 stainless steel construction provides corrosion resistance, non-reactivity with common solvents and reagents, and compliance with GLP/GMP facility hygiene standards.

Key Features

• Microprocessor-based programmable controller supporting up to 7 multi-step programs (63 total segments), each with independently adjustable temperature setpoint, dwell time (0–5999 minutes), and ramp rate;
• Adjustable-speed circulating fan enabling fine-tuned airflow optimization for sensitive or layered sample configurations;
• High-visibility backlit LCD display showing real-time chamber temperature, setpoint, elapsed time, program status, and active alarm codes;
• Dedicated 25 mm diameter access port on left side wall—sealed with silicone gasket—for sensor feedthrough, gas purging lines, or thermocouple routing without compromising chamber integrity;
• Self-diagnostic firmware that identifies and displays fault conditions—including heater failure, fan stall, sensor open/short, and PID control deviation—on the main interface;
• Independent over-temperature cut-off circuit with visual and audible alarm, compliant with IEC 61000-6-2 EMC immunity and EN 61010-1 safety requirements;
• Smooth, mirror-polished 304 stainless steel interior with radius-corner transitions and removable, height-adjustable shelf supports for simplified cleaning and validation swabbing.

Sample Compatibility & Compliance

The BPG-9000 series accommodates a broad range of sample types including polymer films, pharmaceutical granules, ceramic precursors, metal coupons, filter media, and biological substrates. Its uniform temperature distribution (±2.5% at 100°C per internal qualification per ISO 17025-accredited methodology) ensures reproducible drying kinetics across heterogeneous loads. The unit meets structural and performance criteria referenced in ISO 17025 Clause 5.5.2 (equipment suitability), ASTM E145-22 (specification for gravity and forced-convection ovens), and EU Annex 15 (validation of dry heat sterilization processes). Optional IQ/OQ documentation packages are available to support 21 CFR Part 11-compliant validation workflows in regulated environments.

Software & Data Management

While the base configuration operates via embedded firmware, optional digital interfaces enable traceable data acquisition. The RS-485 port supports Modbus RTU protocol for integration into SCADA or LIMS platforms. The USB port accepts standard FAT32-formatted USB flash drives, allowing timestamped logging of temperature and program status at user-defined intervals (1–60 sec resolution). When paired with optional thermal printer modules, hard-copy records satisfy audit requirements for ISO 9001 clause 8.5.2 (preservation of documented information) and FDA 21 CFR Part 11 Subpart B (electronic record retention). All logged data includes device ID, operator code (if enabled), and cryptographic checksums to prevent post-acquisition tampering.

Applications

• Moisture content determination per AOAC 950.46 and ASTM D2298;
• Accelerated aging studies for packaging materials (ASTM F1980);
• Pre-drying of gravimetric filters prior to particulate mass analysis (EPA Method 201A);
• Thermal conditioning of calibration standards and reference materials;
• Residual solvent removal from coated substrates in semiconductor and optical coating labs;
• Stabilization of hygroscopic reagents before volumetric analysis;
• Supporting role in GLP-compliant stability testing per ICH Q1A(R2).

FAQ

What is the maximum allowable load volume for optimal temperature uniformity?
For certified uniformity performance (±2.5%), loading should not exceed 60% of chamber volume. Full-load qualification reports are available upon request.

Is the BPG-9000 series suitable for use in Class 100 cleanrooms?
The unit is not ISO 14644-1 certified for cleanroom operation; however, its sealed chamber design and absence of internal lubricants make it compatible with adjacent buffer zones when installed with HEPA-filtered air supply.

Can the oven be validated under GMP conditions?
Yes—Yiheng provides IQ/OQ templates aligned with Annex 15 and ASTM E2500-22. Installation must be performed by qualified personnel using NIST-traceable reference thermometers.

Does the controller support ramp-and-soak profiles with variable rates?
Yes. Each segment allows independent definition of target temperature, dwell duration, and linear ramp rate (°C/min), enabling complex thermal cycles such as polymer annealing or desorption profiling.

What maintenance is required to sustain calibration integrity?
Annual verification of temperature sensors and controller output against a calibrated reference thermometer is recommended. Fan motor bearings require inspection every 24 months in continuous-use environments.
