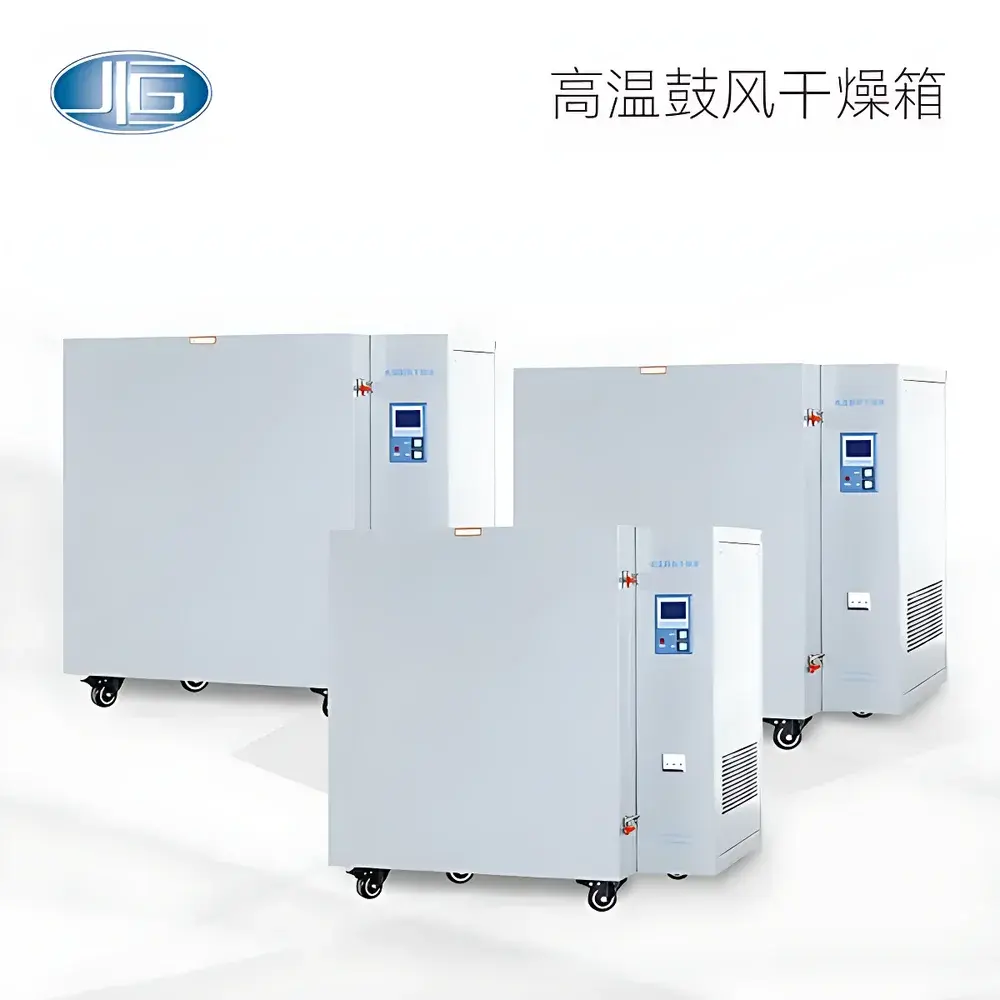

YiHeng BPG-AH/BH Series Programmable High-Temperature Forced-Air Drying Oven

Overview

The YiHeng BPG-AH/BH Series Programmable High-Temperature Forced-Air Drying Oven is engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings requiring stable, uniform heating up to 500 °C. Designed around a robust forced-air convection architecture, the oven ensures rapid heat-up times and exceptional temperature homogeneity across the working chamber—critical for applications such as moisture loss determination, polymer curing, ash content analysis, pre-conditioning of ceramic substrates, and thermal stability testing of electronic components. Unlike natural-convection ovens, the BPG series employs an adjustable-speed axial fan and optimized air duct geometry to deliver consistent airflow distribution, minimizing thermal gradients and enhancing reproducibility between runs. The unit complies with general laboratory safety principles aligned with IEC 61010-1 and meets structural requirements for Class II, Division 1 laboratory equipment under ambient conditions.

Key Features

• Mirror-finish 304 stainless steel interior chamber with radius-rounded corners and removable shelf supports—enabling complete access for cleaning and residue-free operation after high-temperature use.
• Advanced P.I.D. fuzzy logic temperature controller with auto-tuning capability—reducing overshoot, accelerating stabilization, and maintaining setpoint accuracy within ±0.5 °C across the full operating range.
• Ceramic fiber door gasket rated for continuous operation at 500 °C—providing superior thermal insulation, extended service life, and minimal heat leakage compared to conventional silicone or rubber seals.
• Multi-segment programmable logic: supports up to 7 independent programs, each containing up to 9 time-temperature segments (63 total steps), with individual segment durations configurable from 0 to 5999 minutes.
• Independent over-temperature protection circuit—hardwired separately from the main controller—to automatically cut power if internal temperature exceeds user-defined safety limits, ensuring compliance with GLP/GMP operational safeguards.
• Adjustable circulation fan speed (typically 3–5 preset levels)—allowing users to optimize airflow intensity based on sample sensitivity, load density, or drying kinetics requirements.
• Optional RS485 serial interface (Modbus RTU protocol) and analog printer output—enabling integration into centralized lab data acquisition systems or legacy chart recorder infrastructure.

Sample Compatibility & Compliance

The BPG-AH/BH series accommodates a wide range of sample types including metal alloys, pharmaceutical excipients, geological specimens, composite laminates, and coated substrates. Its stainless steel chamber resists oxidation and corrosion during repeated exposure to elevated temperatures, making it suitable for ASTM E145-22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and ISO 17025-accredited calibration workflows when used with traceable reference thermometers. While not intrinsically rated for hazardous atmospheres, the oven’s design conforms to standard electrical safety classifications for non-explosive environments. It supports method validation protocols required under USP (Uncertainty in Measurement) and serves as a foundational tool in thermal pretreatment steps outlined in ISO 527-2 (plastics tensile testing) and ISO 11357-3 (DSC sample conditioning).

Software & Data Management

The built-in controller provides local menu-driven operation via a backlit LCD interface with tactile keypad navigation—no external PC required for routine use. For audit-ready documentation, optional RS485 connectivity allows real-time temperature logging using third-party SCADA or LIMS platforms compliant with FDA 21 CFR Part 11 (electronic records and signatures). When paired with compatible software, the system supports timestamped event logging—including program start/stop, alarm triggers, and manual parameter adjustments—fulfilling ALCOA+ data integrity criteria (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Printer output (via optional thermal strip recorder) delivers hard-copy traceability for batch release or regulatory review without digital dependency.

Applications

• Thermal gravimetric analysis (TGA) sample preparation and pre-drying prior to weighing.
• Moisture content determination per AOAC 950.46 and ASTM D2231 for textiles, paper, and agricultural products.
• Curing of epoxy, silicone, and polyimide coatings on aerospace-grade substrates.
• Ash residue quantification in food, feed, and pharmaceutical raw materials (AOAC 942.05, USP ).
• Stabilization of reference standards and calibration artifacts prior to metrological use.
• Accelerated aging studies for battery electrode materials and solid-state electrolytes.
• Pre-baking of PCBs and semiconductor wafers before thin-film deposition processes.

FAQ

What is the maximum continuous operating temperature for the BPG-BH model?
The BPG-BH series is rated for continuous operation at up to 500 °C, with thermal stability maintained within ±0.5 °C across the chamber volume.
Can the oven be validated for GMP-compliant processes?
Yes—the unit supports IQ/OQ documentation packages and integrates with calibration-grade PT100 probes for temperature mapping per Annex 15 (EU GMP) and FDA Process Validation Guidance.
Is the stainless steel chamber electropolished or passivated?
The interior uses standard mirror-finish 304 stainless steel; electropolishing is available as a custom option upon request.
Does the controller support ramp-soak profiles with rate limiting?
Yes—each segment allows independent ramp rate definition (°C/min) and soak duration, enabling precise simulation of thermal cycling protocols.
Are replacement ceramic fiber gaskets available as spare parts?
Yes—original-equipment ceramic fiber door seals are stocked and supplied with full dimensional specifications for field replacement.
