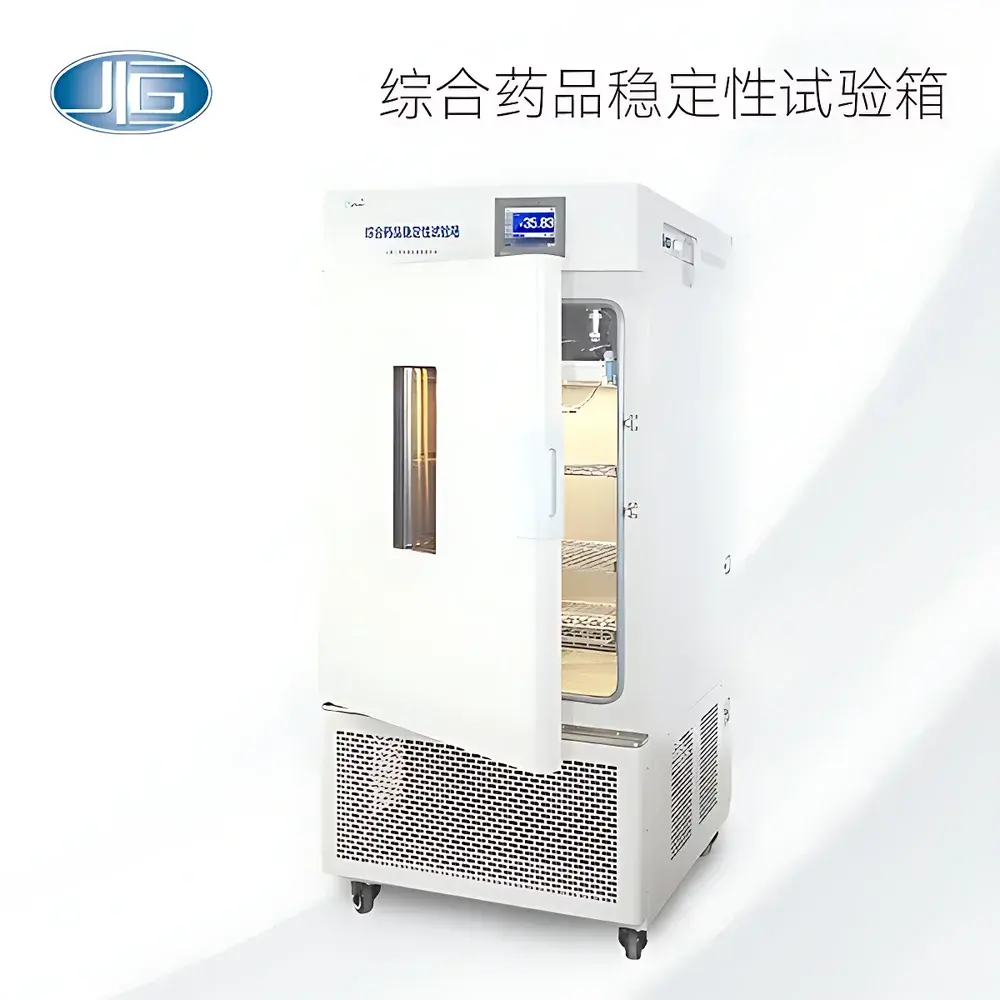

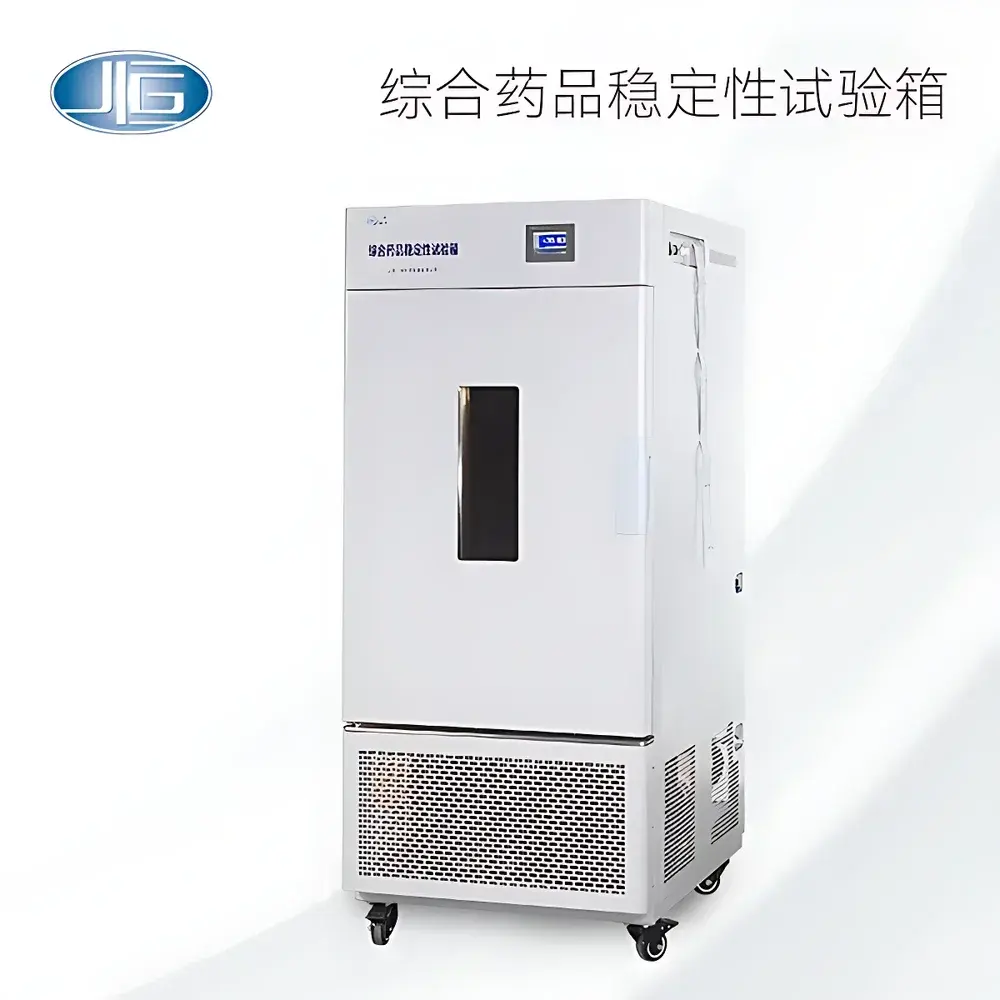

YiHeng Drug Stability Testing Chamber

Overview

The YiHeng Drug Stability Testing Chamber is a purpose-built environmental simulation system engineered for pharmaceutical stability studies in compliance with international regulatory frameworks—including ICH Q1 series guidelines, USP , the Chinese Pharmacopoeia (2020 Edition), and GB/T 10586–2006. It operates on a dual-thermodynamic control principle: precise refrigeration/dehumidification via cascaded or parallel imported compressors, combined with PID-regulated steam humidification and resistive heating. The chamber maintains highly reproducible temperature and humidity profiles across its working volume through a unidirectional air circulation system with optimized duct geometry and low-turbulence airflow—ensuring spatial uniformity within ±0.5°C and ±3% RH under standard operating conditions (25°C/60% RH). Its architecture supports continuous operation over extended durations (≥180 days) without manual defrost intervention, eliminating thermal/hygrometric transients that compromise data continuity in long-term stability protocols.

Key Features

• Redundant dual-compressor system with automatic switchover logic—ensures uninterrupted operation during compressor maintenance or failure.
• Microprocessor-based touch-screen controller with 100 programmable profiles (up to 1000 segments, 999 cycles), supporting complex multi-step stability protocols (e.g., ramp-hold sequences for accelerated → intermediate → long-term transitions).
• High-stability capacitive humidity sensor rated for continuous operation at up to 85°C—eliminates drift and frequent recalibration associated with traditional wet-bulb systems.
• Stainless steel 304 interior with radius-corner construction and seamless welding—meets ISO 14644-1 Class 7 cleanroom-compatible surface finish standards for microbial control.
• Integrated 25 mm diameter access port (left-side, gasket-sealed) for real-time probe insertion, cable routing, or external sensor interfacing without compromising chamber integrity.
• Independent over-temperature/over-humidity alarm circuit with audible-visual alert and automatic cut-off—certified to IEC 61000-4-2 ESD immunity Level 3.
• Optional UV-C (254 nm) sterilization module with programmable duty cycle—validated for ≥3-log reduction of Aspergillus niger and Bacillus subtilis spores on internal surfaces and in recirculated air streams.

Sample Compatibility & Compliance

The chamber accommodates primary and secondary packaging configurations—including blister packs, HDPE bottles, glass vials, low-density polyethylene (LDPE) infusion bags, and ophthalmic dropper bottles—under defined semi-permeable container conditions per ICH Q1A(R2) Section II.C.3. Temperature and humidity setpoints are traceably calibrated against NIST-traceable reference standards (Fluke 9143 dry-well, Rotronic HC2-S温/RH probe). All operational parameters—including ramp rates, dwell times, and illumination intensity—are logged with time-stamped audit trails compliant with 21 CFR Part 11 Annex 11 requirements. Data export supports CSV, PDF, and XML formats; optional RS-485 Modbus RTU interface enables integration into LIMS or MES platforms for automated batch record generation.

Software & Data Management

The embedded controller firmware implements ALCOA+ principles: Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. Each test run generates an immutable digital log containing operator ID (via password-protected login), start/stop timestamps, deviation flags, and full parameter history at 1-minute intervals. Optional PC software (YiHeng StabilitySuite™) provides graphical trend analysis, statistical process control (SPC) charts (X-bar R), and automated report generation per ICH Q5C Annex 1 templates. Electronic signatures comply with Part 11 Subpart B §11.200; all user actions—including parameter edits and alarm acknowledgments—are recorded in a non-erasable audit trail with IP address and workstation ID.

Applications

• ICH-aligned accelerated stability testing (40°C ±2°C / 75% RH ±5% RH, 6 months)
• Long-term storage condition validation (25°C ±2°C / 60% RH ±5% RH, 12 months)
• Intermediate condition assessment (30°C ±2°C / 65% RH ±5% RH)
• Photostability testing per ICH Q1B (4500 ±500 lx, UV cutoff filter, 10 days)
• Container closure integrity evaluation under stress-humidity conditions (e.g., 40°C / 25% RH for semi-permeable LDPE bags)
• Forced degradation studies requiring controlled oxidative or hydrolytic environments

FAQ

Does this chamber meet ICH Q1A(R2) and Q1B requirements for photostability testing?
Yes—the optional illumination module includes spectral filtering to exclude UV-B/C wavelengths below 320 nm and integrates a NIST-calibrated lux sensor with closed-loop feedback control to maintain ±5% irradiance accuracy throughout lamp aging cycles.
Can humidity be maintained stably at 20% RH during high-temperature operation (e.g., 40°C)?
Yes—dual-stage refrigeration coupled with precision desiccant-assisted dehumidification ensures stable 20–98% RH control across the full temperature range (0–65°C), validated per ISO 12780-1.
Is remote monitoring and control supported?
Yes—RS-485 Modbus RTU and optional Ethernet/WiFi modules enable real-time telemetry, alarm push notifications, and remote parameter adjustment via secure TLS 1.2 encrypted connection.
What documentation is provided for IQ/OQ/PQ qualification?
Factory-supplied qualification kits include URS template, FAT/SAT protocols, calibration certificates (temperature/humidity/illumination), and blank PQ forms aligned with ASTM E2500-13 and EU GMP Annex 15.
How is data integrity ensured during power interruption?
Non-volatile flash memory retains all logs and active programs for ≥72 hours without backup power; optional UPS integration preserves runtime continuity and prevents parameter corruption.
