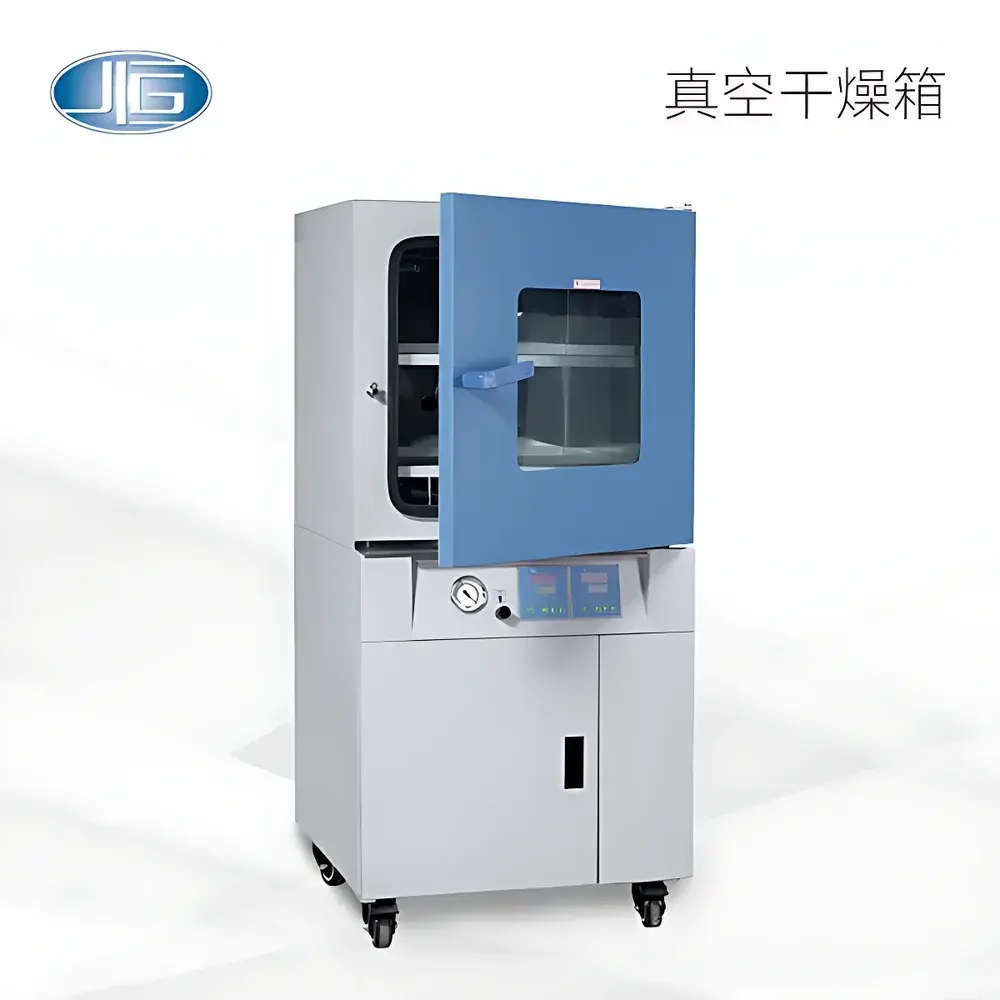

YiHeng DZF-Series Vacuum Drying Oven with Microprocessor Timer

Overview

The YiHeng DZF-Series Vacuum Drying Oven is an engineered solution for controlled thermal processing under reduced pressure environments. Designed in accordance with fundamental principles of vacuum thermodynamics and mass transfer kinetics, it enables solvent removal, moisture elimination, and thermal stabilization of heat-sensitive, oxygen-labile, or chemically unstable samples—including pharmaceutical intermediates, polymer precursors, biological extracts, and nanomaterials. Unlike conventional convection ovens, the DZF-Series operates by lowering the ambient pressure inside the chamber to reduce the boiling point of volatile components, thereby facilitating gentle drying at lower temperatures while minimizing thermal degradation, oxidation, or decomposition. Its integrated microprocessor-based temperature controller maintains setpoint stability within ±1°C across the entire working volume, supporting reproducible process validation in R&D, QC, and production-scale laboratories.

Key Features

• Stainless steel (AISI 304) interior chamber with seamless welded construction—resistant to corrosion, easy to clean, and compliant with ISO 14644-1 Class 8 cleanroom-compatible surface finish requirements.
• Independent temperature control and real-time monitoring per shelf: Each adjustable stainless steel shelf incorporates a dedicated Pt100 sensor and localized heating element, eliminating thermal lag and ensuring uniform energy delivery regardless of load distribution or sample height.
• Dual-layer tempered glass observation window with argon-filled interlayer—provides optical clarity while maintaining structural integrity and thermal insulation during vacuum operation.
• Adjustable door latching system paired with a one-piece molded silicone gasket—certified to maintain ≤133 Pa vacuum for ≥4 hours without active pumping, meeting ASTM E145-22 Class III vacuum oven performance criteria.
• Direct plate-integrated resistive heating architecture—reduces average drying cycle time by >50% compared to perimeter-heated chambers, as confirmed by internal thermal mapping studies conducted per ICH Q5C guidelines.
• Microprocessor timer with programmable ramp-soak profiles (up to 99 hours, 59 minutes), auto-start function, and power-failure memory retention—supports unattended overnight operation under GLP-compliant logging conditions.

Sample Compatibility & Compliance

The DZF-Series accommodates a broad range of sample formats—including Petri dishes, weighing boats, glass vials, aluminum pans, and custom fixtures—without compromising vacuum integrity or thermal uniformity. It supports inert gas purging (N₂ or Ar) via standardized 6 mm BSP inlet port (optional), enabling oxygen-free processing essential for USP sterile compounding workflows or ISO 10993-12 extractables testing. The unit complies with EN 61000-6-3 (EMC emission standards) and EN 61000-6-2 (immunity), and its electrical safety design conforms to IEC 61010-1:2010 for laboratory equipment. While not inherently 21 CFR Part 11–compliant, audit-ready data export (CSV/TXT) and optional RS485/Modbus RTU interface enable integration into validated systems requiring electronic record traceability.

Software & Data Management

The embedded controller features non-volatile memory for up to 10 user-defined drying protocols, each storing target temperature, dwell time, vacuum setpoint, and inert gas flow trigger logic. Real-time temperature and vacuum status are displayed on a high-contrast LCD with backlighting. All operational events—including door opening, vacuum pump activation, over-temperature alarms, and timer completion—are timestamped and stored locally for ≥30 days. Data export is supported via USB-A port (FAT32 formatted drive required); exported logs include ISO 8601 timestamps, shelf-specific temperature readings, and vacuum decay rate metrics. Optional PC software (YiHeng LabLink v3.2) provides graphing, statistical analysis (min/max/mean/stdev per shelf), and PDF report generation aligned with ISO/IEC 17025 documentation frameworks.

Applications

• Pharmaceutical: Residual solvent removal from APIs per ICH Q3C, lyophilization pre-drying, excipient moisture content verification (USP <921>).
• Materials Science: Degassing of ceramic slurries, binder burnout in MIM processes, moisture conditioning of battery electrode coatings.
• Food & Agriculture: Water activity determination (ISO 21527-1), pesticide residue stabilization prior to GC-MS analysis.
• Electronics: Outgassing of PCB substrates and conformal coatings to prevent delamination during reflow soldering.
• Academic Research: Controlled dehydration of hydrogels, enzymatic reaction quenching, and catalyst precursor calcination under inert atmospheres.

FAQ

What vacuum level can the DZF-Series achieve and how is it maintained?
The chamber reaches and holds ≤133 Pa (1 Torr) using a standard two-stage rotary vane pump (not included). Vacuum integrity is sustained via the integrated silicone gasket, adjustable door latch, and leak-tight stainless steel welds—validated per ASTM E456-21 Annex A2.
Is calibration documentation provided with the unit?
A factory calibration certificate (traceable to NIM, China) is supplied, covering temperature uniformity (9-point mapping at 105°C) and vacuum gauge linearity. Optional UKAS-accredited field calibration services are available through authorized regional partners.
Can multiple shelves operate at different temperatures simultaneously?
No—the system maintains a single chamber setpoint, but each shelf has independent sensing and heating to compensate for vertical thermal gradients, ensuring consistent drying performance across all levels.
Does the oven support remote monitoring or network connectivity?
Standard configuration includes RS485 Modbus RTU output for integration with SCADA or LIMS platforms. Ethernet/WiFi modules are available as factory-installed options for centralized fleet management.
What maintenance is required for long-term vacuum performance?
Biannual inspection of the door gasket for compression set, quarterly cleaning of the vacuum port filter, and annual verification of pressure transducer drift against a reference manometer are recommended per manufacturer’s technical bulletin TB-DZF-2023-04.
