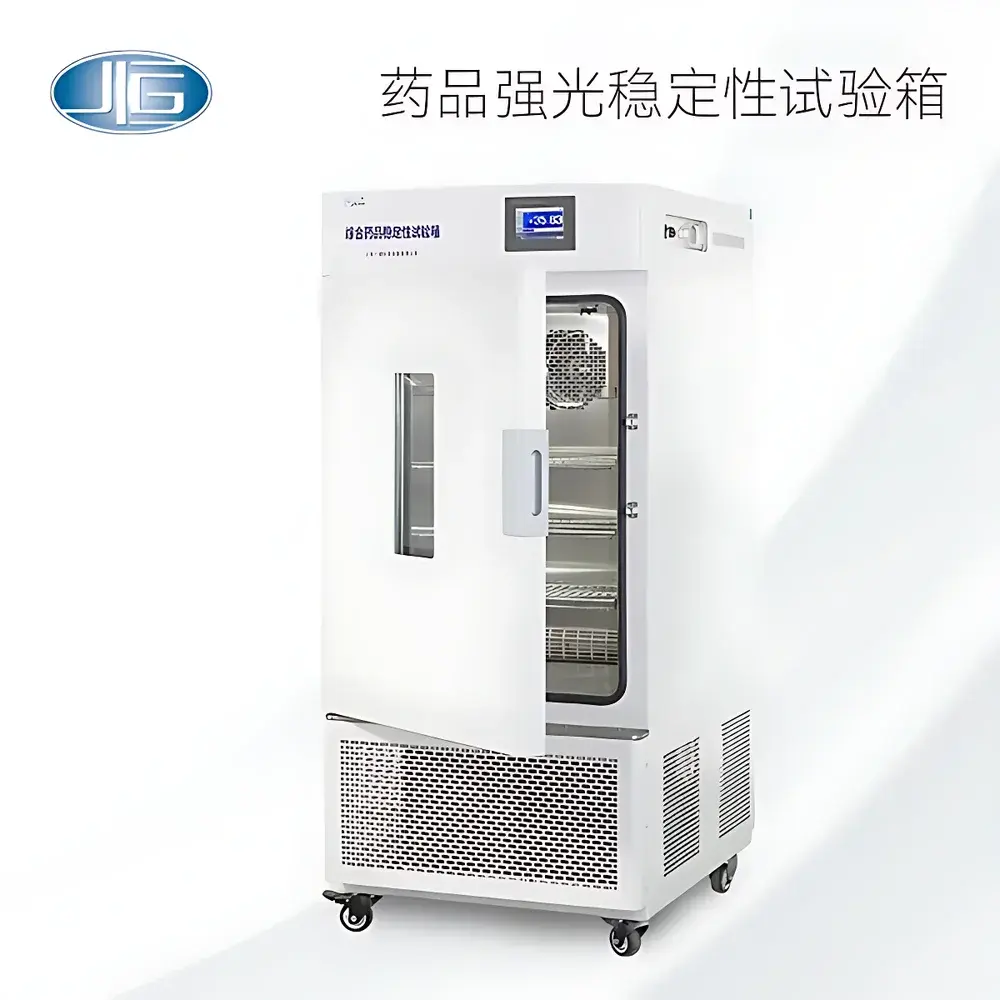

YiHeng LHH-GP Pharmaceutical Photostability Testing Chamber

Overview

The YiHeng LHH-GP Pharmaceutical Photostability Testing Chamber is an engineered environmental simulation system designed specifically to meet ICH Q1B (Photostability Testing of New Drug Substances and Products) and ICH Q5C (Quality of Biotechnological/Biological Products: Stability Testing of Biotechnological/Biological Products) requirements. It provides precise, long-term control of temperature, relative humidity, and irradiance—critical parameters for assessing drug degradation pathways under accelerated stress conditions. Unlike general-purpose climate chambers, the LHH-GP integrates photometric feedback control, dual-compressor redundancy, and continuous non-defrost operation to support uninterrupted stability studies lasting weeks or months. Its architecture adheres to GLP-compliant design principles, supporting audit-ready data integrity when paired with validated software and external logging systems.

Key Features

• Dual independent imported compressors with automatic switchover—ensures uninterrupted operation for >1,000 hours without maintenance or defrost cycles;
• Microprocessor-based programmable controller with PID algorithm, enabling ±0.3 °C temperature stability and ±2.5% RH accuracy across operating ranges;
• Stainless steel 304 interior chamber with radius-corner construction for full cleanability and compliance with pharmaceutical hygiene standards;
• Uniform airflow distribution via optimized rear-mounted air duct system; calibrated air velocity profile verified per ISO 14644-1 Class 8 baseline;
• Integrated 25 mm diameter test port on left side wall—compatible with external sensor feedthroughs, gas sampling lines, or real-time monitoring probes;
• High-temperature-capable capacitive humidity sensor—eliminates dry-wet bulb drift and recalibration frequency associated with traditional psychrometric systems;
• Optional UV-C germicidal lamp (254 nm) mounted on rear chamber wall—validated for ≥99.9% reduction of airborne and surface microbial load in humidified environments;
• Optional irradiance monitoring and regulation module using calibrated silicon photodiode sensor—supports continuous real-time measurement and stepless adjustment of light intensity (0–600 W/m², 320–400 nm UV-A band);
• Touchscreen HMI with bilingual (English/Chinese) interface, 100 programmable profiles (each up to 1,000 segments), and password-protected parameter locking;
• RS-232 and RS-485 communication ports—enables integration with LIMS, SCADA, or centralized lab monitoring platforms.

Sample Compatibility & Compliance

The LHH-GP accommodates standard pharmaceutical packaging formats including blister packs, HDPE bottles, glass vials, and aluminum tubes—up to 30 L total sample volume. Its chamber dimensions (W×D×H: 500 × 450 × 600 mm) comply with ICH Q1A(R2) recommended minimum exposure area requirements. All materials in contact with the internal environment—including gaskets, insulation, and sensor housings—are non-outgassing and USP Class VI compliant. The system supports validation protocols aligned with ASTM E2799-21 (Standard Guide for Validation of Environmental Chambers Used in Stability Testing) and meets mechanical safety requirements per IEC 61010-1. Optional IQ/OQ documentation packages are available upon request for GMP-regulated facilities.

Software & Data Management

While the onboard controller stores local event logs (alarms, setpoint changes, runtime statistics), the LHH-GP is designed for interoperability with third-party data acquisition systems. Via its serial interface, it transmits timestamped temperature, humidity, and optional irradiance values at user-defined intervals (1 s to 60 min). When connected to a PC running compliant software (e.g., LabVIEW, WinCC OA, or custom Python-based DAQ), the chamber supports 21 CFR Part 11–compliant electronic records—including audit trails, user authentication, and digital signature capability. Printer output (via optional thermal or dot-matrix interface) generates time-stamped hardcopy curves meeting FDA inspection readiness criteria.

Applications

• ICH Q1B-compliant photostability testing of APIs and finished dosage forms under Option 1 (UV + visible) and Option 2 (cool white fluorescent + near-UV) conditions;
• Long-term stability studies per ICH Q5C at 25 °C / 60% RH and accelerated conditions (40 °C / 75% RH);
• High-humidity challenge testing for hygroscopic formulations and moisture-permeable packaging evaluation;
• Forced degradation studies investigating oxidative, hydrolytic, and photolytic pathways;
• Reference standard storage under controlled ambient conditions during analytical method validation;
• Environmental qualification of cleanroom-adjacent storage areas and quarantine rooms.

FAQ

Does the LHH-GP meet ICH Q1B photostability requirements?
Yes—the optional irradiance control module enables traceable, adjustable UV-A exposure within the 320–400 nm range, fulfilling both Option 1 and Option 2 illumination specifications when configured with appropriate lamp arrays.
Can the chamber operate continuously for 6 months without interruption?
Yes—its dual-compressor architecture, non-defrost evaporator design, and industrial-grade components are validated for unattended operation exceeding 4,320 hours under nominal load conditions.
Is the humidity sensor suitable for operation at 40 °C / 75% RH?
Yes—the capacitive RH sensor is rated for continuous use up to 80 °C and 100% RH, eliminating calibration drift and wet-bulb replacement typical of older psychrometric systems.
What validation support is provided for GMP environments?
YiHeng supplies factory-assembled IQ/OQ templates, component traceability documentation, and calibration certificates for critical sensors—custom PQ execution support is available through authorized partners.
Can irradiance decay due to lamp aging be compensated automatically?
Yes—the closed-loop photometric control system dynamically adjusts lamp drive current to maintain target irradiance, compensating for spectral shift and lumen depreciation over lamp lifetime.
