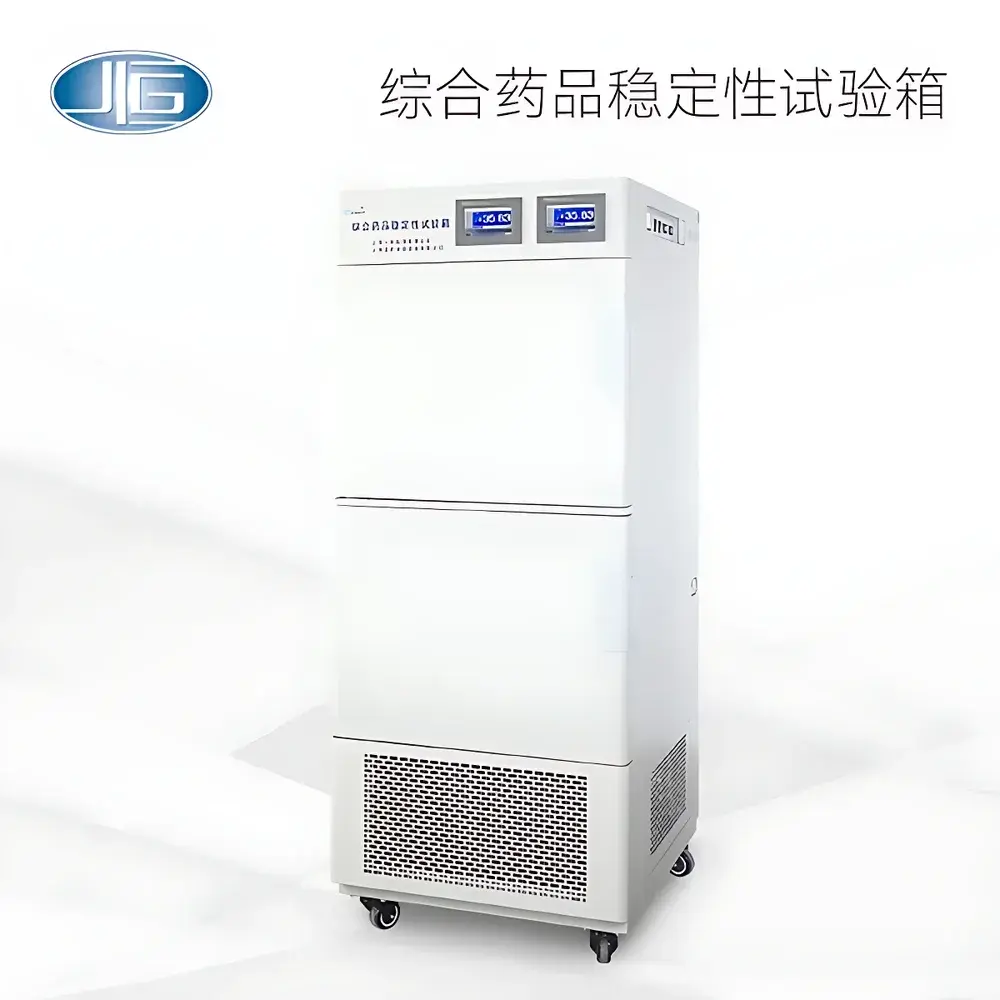

YiHeng Multi-Chamber Drug Stability Testing System — LHH-SS / LHH-SG / LHH-SSG Series

Overview

The YiHeng Multi-Chamber Drug Stability Testing System (LHH-SS / LHH-SG / LHH-SSG Series) is a purpose-built environmental simulation platform engineered for compliance with ICH Q1–Q5 guidelines and regional regulatory requirements including USP , FDA 21 CFR Part 11, and EU Annex 15. Designed specifically for pharmaceutical stability studies, this multi-compartment chamber integrates temperature, humidity, and photostability testing capabilities within a single footprint—eliminating the need for sequential or parallel use of separate chambers. Each independent test compartment operates under programmable, isolated environmental control, enabling concurrent evaluation of multiple formulations, packaging configurations, or storage conditions (e.g., long-term, accelerated, intermediate, and photostability per ICH Q1B). The system employs a dual-compressor refrigeration architecture with automatic switchover logic, ensuring uninterrupted operation over extended test durations (≥6 months), critical for real-time stability protocols mandated by regulatory submissions.

Key Features

• Modular multi-chamber design: Three distinct models (LHH-SS, LHH-SG, LHH-SSG) support 2–3 independently controlled test zones—each with dedicated temperature (0–70 °C), humidity (20–95% RH, non-condensing), and optional UV/visible light irradiance (ICH Q1B-compliant LED arrays).
• Stainless steel interior with seamless semi-circular corners and electropolished finish—compliant with ISO 14644-1 Class 8 cleanroom-compatible surface standards; resistant to disinfectants and validated for routine cleaning validation.
• Zero-ozone, R290/R600a hydrocarbon-based refrigerant system—meeting global F-Gas Regulation (EU No 517/2014) and China’s GB/T 7778-2017 low-GWP requirements; energy consumption reduced by ≥22% versus legacy R404A systems.
• 7-inch capacitive touchscreen controller with real-time graphical trend display (temperature, humidity, light intensity, compressor status); supports up to 256-step programmable profiles with ±0.1 °C/±1% RH setpoint resolution.
• No-defrost continuous operation mode: Humidity control via chilled-mirror dew point sensing (Vaisala HUMICAP® HMP110 series) eliminates wet-bulb maintenance and prevents transient RH excursions during defrost cycles.
• Dual redundant safety architecture: Independent mechanical high-limit thermostat, digital over-temperature alarm (±0.5 °C deviation threshold), compressor thermal overload protection, refrigerant pressure monitoring, and auto-shutdown on door opening.

Sample Compatibility & Compliance

The system accommodates standard stability sample racks (ISO 17025-compliant tray dimensions: 450 × 450 × 150 mm), vial trays, blister packs, and secondary packaging units without airflow obstruction. All internal surfaces meet USP extractables profiling criteria. Built-in audit trail functionality records user login/logout events, parameter changes, alarm triggers, and profile execution history—with timestamped, tamper-evident logs exportable in CSV/PDF format. Optional IQ/OQ/PQ documentation packages are available for GMP-regulated environments and align with ASTM E2500-22 and WHO TRS 992 Annex 4 validation frameworks.

Software & Data Management

The embedded controller firmware supports role-based access control (RBAC) with three predefined permission tiers: Administrator (full configuration + log export), Operator (profile execution + manual override), and Guest (read-only view). User authentication includes alphanumeric password enforcement and optional Windows-domain integration via LDAP. All operational data—including sensor raw outputs, control loop PID parameters, and alarm event metadata—are stored locally on encrypted industrial-grade SD card (16 GB, rated for >100,000 write cycles) and synchronized to external network drives via Ethernet (TCP/IP) or USB host interface. Data integrity complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• ICH Q1A(R3)/Q1B photostability and accelerated stability testing of APIs and finished dosage forms (tablets, capsules, injectables, topicals).
• Accelerated aging studies for primary packaging compatibility (e.g., moisture permeation through HDPE, blister foil delamination).
• Reference standard storage qualification under long-term conditions (25 °C/60% RH, 30 °C/65% RH).
• Forced degradation studies supporting ICH Q5C biopharmaceutical stability assessment.
• Environmental stress screening for formulation robustness prior to clinical phase transitions.

FAQ

Does the system support 21 CFR Part 11-compliant electronic records?
Yes—the controller provides full audit trail logging, electronic signatures (via password-authenticated user accounts), and data immutability features required for Part 11 compliance.
Can individual chambers operate at different ICH-specified conditions simultaneously?
Yes—each chamber has fully independent PID control loops, allowing concurrent execution of ICH Q1A long-term (25 °C/60% RH), accelerated (40 °C/75% RH), and photostability (1.2 Mlx·hr visible + 200 W·hr/m² UV) protocols.
Is third-party calibration and qualification support available?
YiHeng offers optional IQ/OQ/PQ services performed by ISO/IEC 17025-accredited partners, including temperature/humidity mapping per ISO 14644-3 and light uniformity verification per ICH Q1B.
What maintenance intervals are recommended for long-term reliability?
Compressor oil analysis every 24 months; humidity sensor recalibration annually; stainless steel interior inspection per cleaning SOP (minimum weekly wipe-down with 70% IPA).
