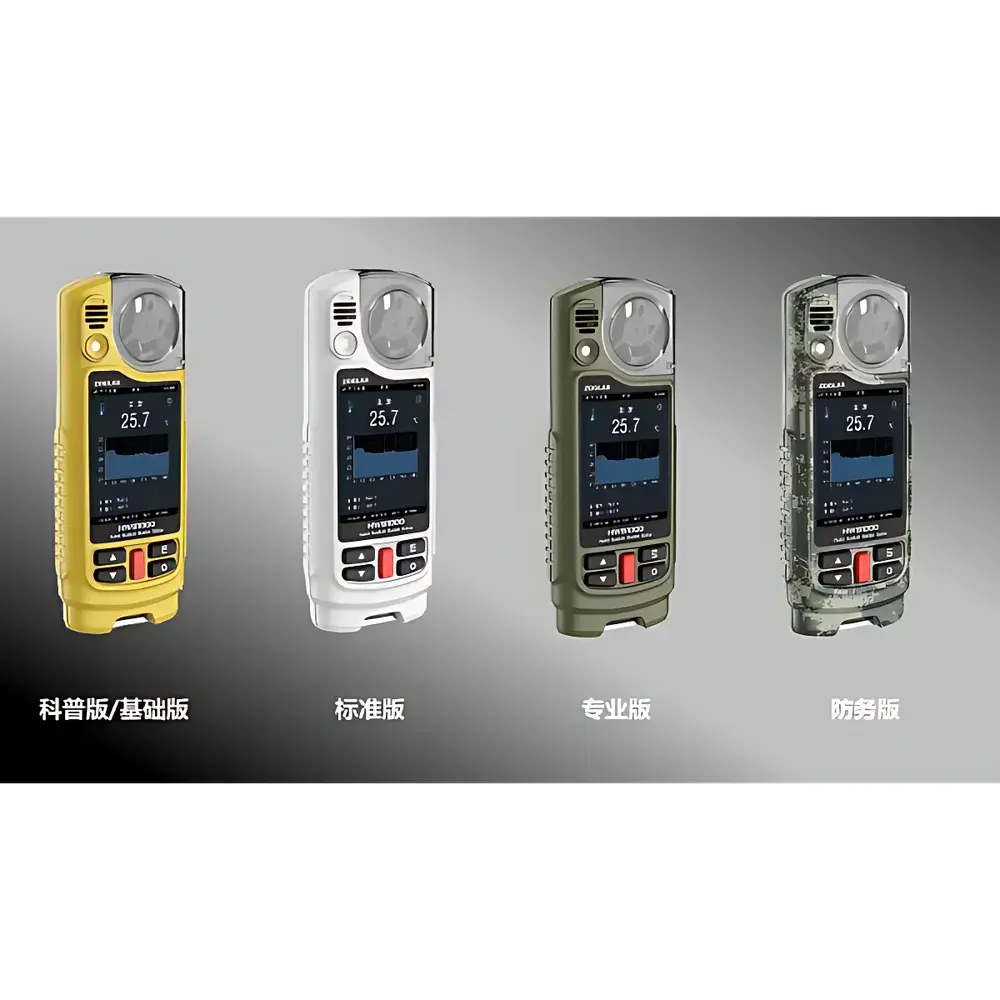

YL-WS Handheld Weather Station by Azure Cloud & Wind Confluence

Overview

The YL-WS Handheld Weather Station is a compact, field-deployable environmental monitoring instrument engineered for real-time measurement of core atmospheric parameters in outdoor, mobile, and educational applications. Designed around an integrated sensor array operating on industry-standard transduction principles—including capacitive humidity sensing, thermistor-based temperature detection, piezoresistive barometric pressure measurement, and electromagnetic anemometry—the device delivers synchronized readings without external power dependency beyond its internal rechargeable lithium-ion battery. Its ergonomic, IP65-rated enclosure ensures operational reliability under transient rain exposure and dust-laden conditions, supporting continuous logging during site surveys, agricultural scouting, emergency response assessments, and student-led meteorological fieldwork. Unlike fixed-station systems requiring mounting infrastructure or network connectivity, the YL-WS operates autonomously with onboard memory and intuitive tactile interface—making it suitable for rapid deployment where portability, immediate data visibility, and low logistical overhead are critical.

Key Features

• Integrated multi-parameter sensing: simultaneous acquisition of air temperature (°C), relative humidity (%RH), barometric pressure (hPa), wind speed (m/s), wind direction (degrees), and ambient light intensity (lux)
• High-resolution 2.8-inch TFT LCD display with backlight for daylight-readable visualization and real-time trend indicators
• Internal data logger storing up to 32,000 timestamped records (configurable sampling intervals from 1 second to 60 minutes)
• USB-C interface for firmware updates and bulk data export in CSV format; compatible with Windows, macOS, and Linux platforms
• Rechargeable 3.7 V / 2600 mAh Li-ion battery providing ≥12 hours of continuous operation at 10-second sampling intervals
• Calibration traceability: factory-calibrated against NIST-traceable reference standards; user-accessible zero-offset adjustment for wind vane and pressure sensor

Sample Compatibility & Compliance

The YL-WS is designed for ambient outdoor air sampling only and is not intended for use in corrosive, explosive, or high-particulate industrial atmospheres. It complies with IEC 60529 for IP65 ingress protection and meets EMC Directive 2014/30/EU for electromagnetic compatibility. While not certified to ISO/IEC 17025 for accredited laboratory use, its sensor modules conform to relevant sections of WMO No. 8 (Guide to Meteorological Instruments and Methods of Observation) for portable weather instrumentation. Data output formats align with CF Standard Names conventions for interoperability with GIS and environmental modeling software (e.g., QGIS, R’s “weathermetrics” package). The device supports GLP-aligned field documentation via embedded operator ID fields and configurable station metadata tags.

Software & Data Management

The YL-WS ships with PC-based configuration and analysis software (Windows 10/11, 64-bit), enabling full control over logging parameters, calibration coefficient editing, and geotagged data visualization. Raw datasets include UTC timestamps, GPS-derived location coordinates (when paired with optional Bluetooth GNSS module), and sensor-specific diagnostic flags (e.g., “humidity saturation warning”, “pressure drift alert”). Export functions support direct integration into Excel, MATLAB, and Python pandas workflows. Audit trails—including firmware version, last calibration date, and user-initiated configuration changes—are retained in non-volatile memory and accessible via diagnostic mode. The software architecture adheres to FDA 21 CFR Part 11 principles for electronic records, including role-based access control and immutable log entries when enabled.

Applications

• Agricultural microclimate assessment: monitoring diurnal temperature/humidity gradients across crop rows to inform irrigation scheduling and frost-risk forecasting
• Environmental education: hands-on atmospheric science instruction aligned with NGSS standards for middle and high school curricula
• Wildfire pre-suppression planning: rapid characterization of local wind vector stability and atmospheric moisture content prior to controlled burns
• Urban heat island studies: comparative transect measurements across pavement, green space, and building façade zones
• Disaster response triage: post-storm validation of local pressure recovery rates and wind shear profiles for hazard reclassification

FAQ

Does the YL-WS require annual recalibration?
No mandatory annual recalibration is specified; however, users performing GLP-compliant field studies are advised to verify sensor drift against a reference hygrometer and barometer every 12 months or after exposure to extreme thermal shock.
Can the device log data while powered off?
No—logging requires active power. However, the internal clock maintains time/date continuity during battery replacement, preserving chronological integrity of sequential sessions.
Is GPS built-in or optional?
GPS functionality is not integrated; geolocation is supported only via optional Bluetooth 5.0 pairing with certified GNSS receivers (e.g., Bad Elf GPS Pro+, Garmin GLO 2).
What is the operating temperature range?
–20 °C to +60 °C, with full specification accuracy maintained between 0 °C and +45 °C per IEC 60068-2-1/2.
Are sensor replacement modules available?
Yes—field-replaceable sensor cartridges (temperature/humidity, anemometer, barometer) are available as spare parts under part numbers YL-WS-THM, YL-WS-WIND, and YL-WS-PRES respectively.
