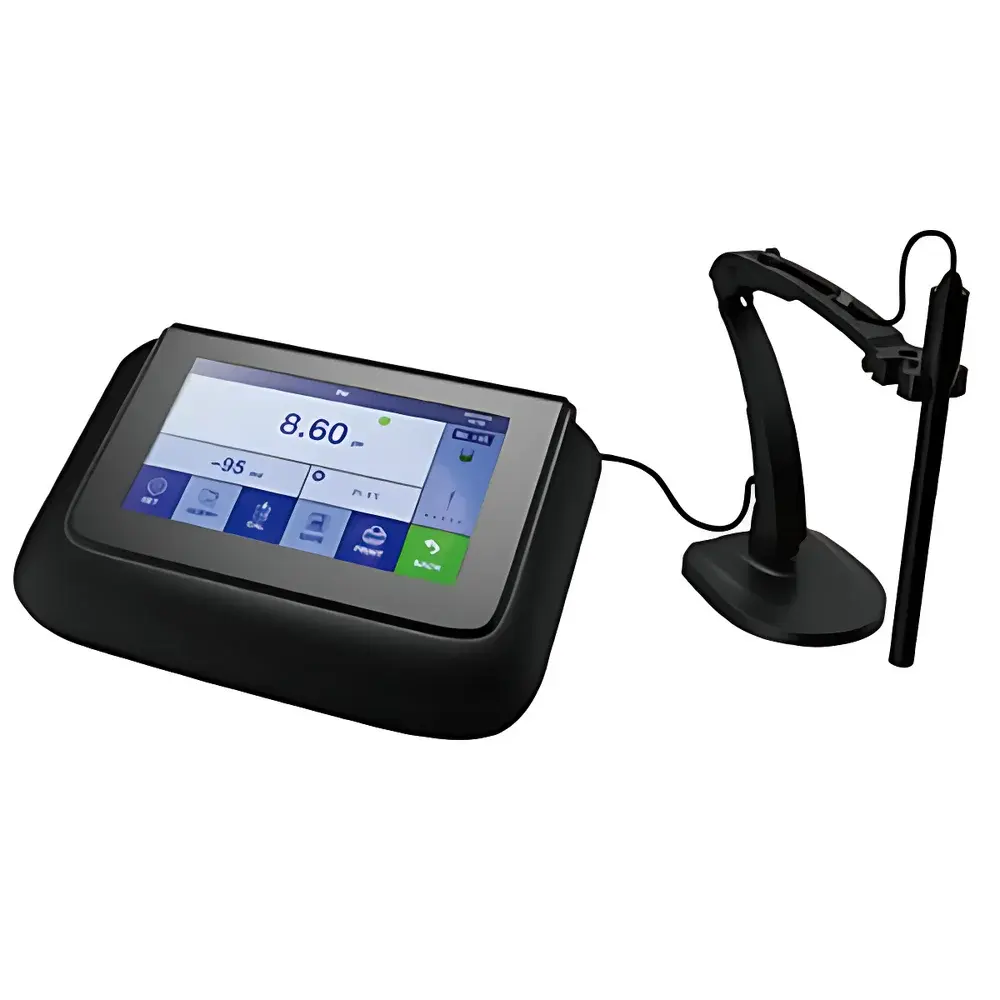

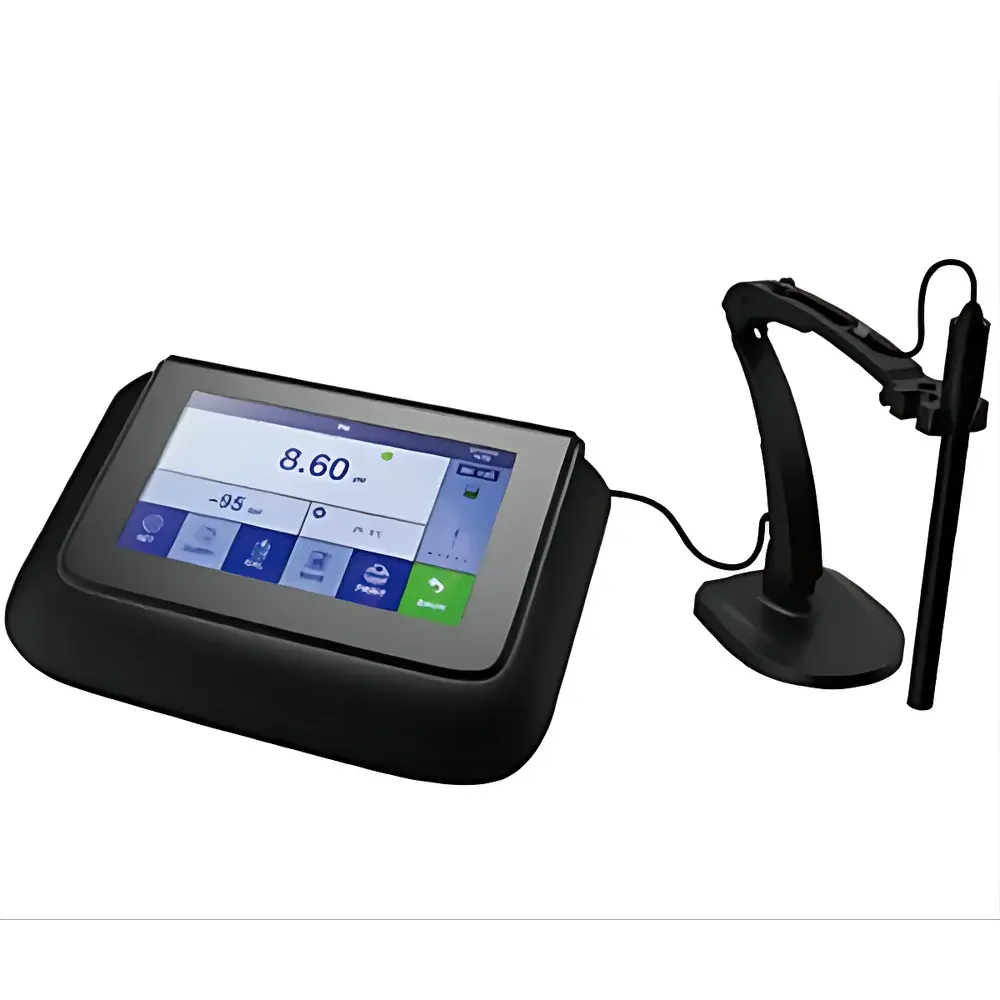

Yoke L-701 Touchscreen Ion Meter

Overview

The Yoke L-701 Touchscreen Ion Meter is a portable, multi-parameter water quality analyzer engineered for field-deployable and laboratory-based ion concentration and dissolved oxygen (DO) measurements in compliance with standard environmental monitoring protocols. Unlike conventional electrochemical DO sensors, the L-701 employs an optical fluorescence quenching principle—where molecular oxygen modulates the lifetime and intensity of a luminophore embedded in a robust, non-consumptive sensing membrane. This eliminates electrode polarization, electrolyte depletion, and flow-dependency issues associated with Clark-type amperometric sensors. The instrument simultaneously supports direct potentiometric ion measurement (pH, pX) via solid-state or combination electrodes, enabling quantification of H⁺, Ag⁺, Na⁺, K⁺, NH₄⁺, Cl⁻, F⁻, and other monovalent ions across a wide dynamic range (–2.00 to 20.00 pX). Its architecture conforms to fundamental metrological requirements for Class 0.01 analytical instruments per IEC 61000-4 and ISO/IEC 17025–aligned calibration traceability frameworks.

Key Features

• 7-inch high-resolution capacitive color touchscreen with glove-compatible touch response, UV-resistant surface coating, and auto-dimming logic to extend battery life and reduce glare under ambient lab or outdoor lighting conditions.
• Dual-mode temperature compensation: automatic real-time correction using integrated NTC thermistor (±0.1 °C accuracy) and manual override for reference-point validation during inter-laboratory comparisons.
• Flexible measurement modes: direct concentration readout (mg/L, g/L, mol/L, pX), standard addition, sample addition, and GRAN plot analysis—each supporting full audit trail logging per GLP requirements.
• Built-in electrode health diagnostics: real-time impedance monitoring, slope evaluation (mV/pH), and asymmetry potential assessment to flag aging or contaminated electrodes prior to data acquisition.
• Multi-language OS (English/Chinese) with user-configurable date/time stamping, brightness levels, and temperature unit switching (°C/°F), facilitating international deployment and multilingual team operation.
• Modular electrode interface accommodating industry-standard BNC and DIN connectors, compatible with Yoke’s line of ruggedized waterproof pH/ORP, ion-selective, and optical DO probes.

Sample Compatibility & Compliance

The L-701 is validated for use with natural waters (freshwater, estuarine, wastewater effluents), drinking water distribution systems, aquaculture tanks, and industrial process streams. It meets ASTM D888-22 (Standard Test Methods for Dissolved Oxygen in Water) for fluorescence-based DO determination and complies with ISO 5814:2012 (Water quality — Determination of dissolved oxygen — Electrochemical probe method), though its optical detection mechanism provides superior long-term stability over membrane-covered electrochemical alternatives. All ion measurement functions align with ISO 7870-2:2013 (Control charts — Part 2: Shewhart control charts) for intra-batch repeatability verification. Data output formats support CSV export for integration into LIMS platforms compliant with FDA 21 CFR Part 11 when paired with optional secure authentication modules.

Software & Data Management

Data capture, storage, and export are managed through the embedded firmware without external PC dependency. Up to 2,000 measurement records—including timestamp, temperature, electrode ID, calibration history, and raw sensor signals—are retained internally with cyclic overwrite protection. USB-C interface enables encrypted batch export to removable storage devices; no cloud connectivity or remote telemetry is implemented, preserving data sovereignty in regulated environments. Calibration logs include buffer identification (automatically recognized for NIST-traceable pH 4.01/7.00/10.01 and ionic strength standards), slope deviation alerts, and user-defined calibration notes—all structured to satisfy internal QA audits and external accreditation reviews (e.g., CNAS, UKAS).

Applications

• Regulatory compliance monitoring for municipal wastewater discharge permits (e.g., EPA NPDES requirements for DO minima and pH excursions).
• Source water quality screening in watershed management programs where rapid, on-site ion profiling reduces turnaround time versus off-site lab analysis.
• Pharmaceutical water system validation (Purified Water, WFI) per USP and EP 2.2.44, particularly for chloride and conductivity correlation studies.
• Aquaculture and hydroponic facility management, where sub-mg/L DO fluctuations directly impact biomass yield and feed conversion ratios.
• Academic environmental chemistry labs conducting comparative studies of ion leaching from construction materials or sediment pore water extraction protocols.

FAQ

Does the L-701 require routine membrane replacement like traditional DO probes?
No—the fluorescence-based DO sensor contains no consumable membranes or electrolytes. The optode film is chemically stable for ≥12 months under continuous immersion in freshwater matrices, with recalibration recommended every 30 days or after exposure to high-solids or biofouling-prone samples.
Can the instrument store calibration data for multiple electrode types simultaneously?
Yes—up to six independent calibration profiles (e.g., pH, F⁻, NH₄⁺, DO, ORP, Na⁺) can be saved and recalled with one-touch selection, each retaining slope, offset, date, and operator ID.
Is the touchscreen operable with nitrile or latex gloves?
Yes—the capacitive layer is tuned for low-impedance response, supporting reliable actuation with standard laboratory-grade disposable gloves without stylus dependency.
What is the battery life under typical field-use conditions?
With screen brightness set to 60% and auto-sleep enabled, the rechargeable Li-ion battery delivers ≥18 hours of continuous operation or ~7 days of intermittent use between charges.
Does the device support GLP-compliant electronic signatures?
While the base firmware does not implement biometric or PKI-based e-signatures, it provides immutable operator ID fields, time-stamped calibration entries, and tamper-evident data logs—sufficient for internal GLP adherence when combined with documented SOPs and supervisory review workflows.
