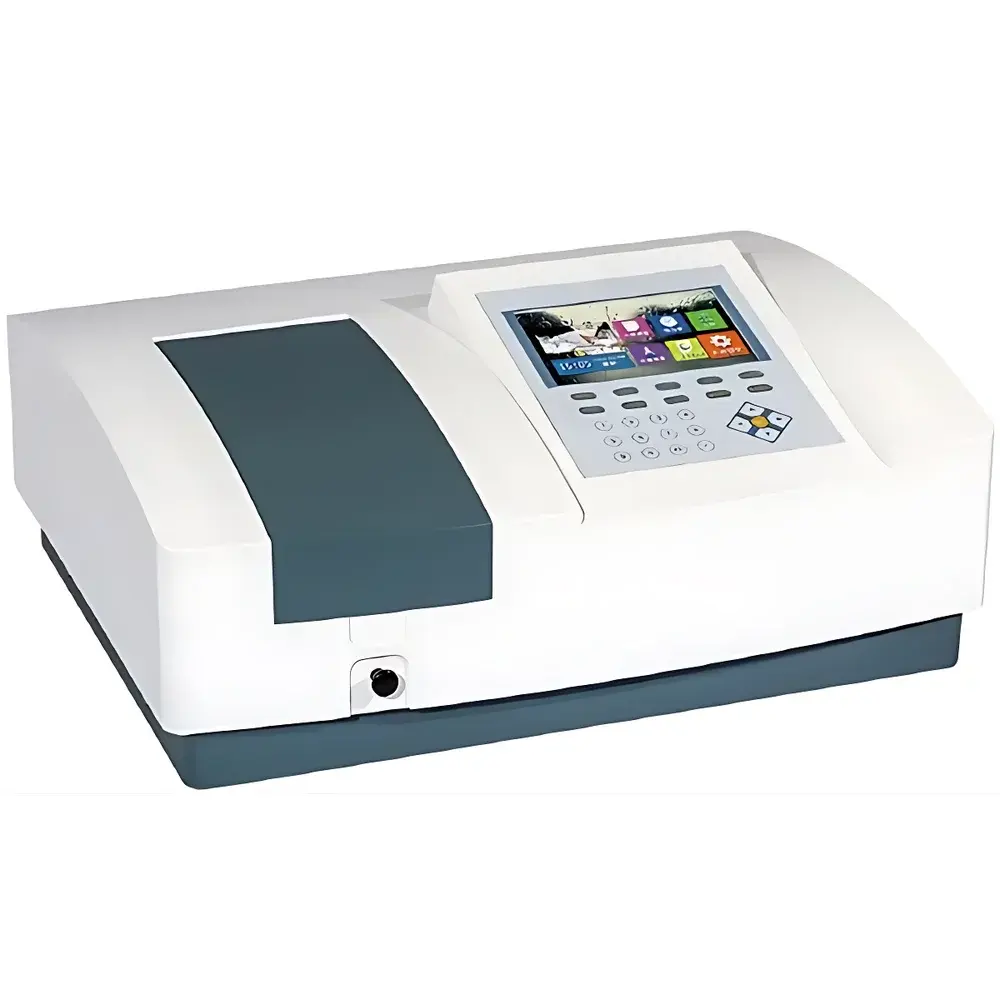

Yoke T-N6000Plus Dual-Beam Ultraviolet-Visible Spectrophotometer

Overview

The Yoke T-N6000Plus is a high-performance dual-beam ultraviolet-visible (UV-Vis) spectrophotometer engineered for precision quantitative and qualitative analysis across academic, pharmaceutical, environmental, and industrial laboratories. Based on the classic double-beam optical architecture, it continuously compares sample and reference beam intensities in real time—effectively compensating for source drift, detector instability, and solvent absorption fluctuations. Its optical path employs a sealed, self-aligning Czerny-Turner monochromator design with a 1200 lines/mm holographic plane grating, ensuring minimal stray light (<0.03% at 220 nm, measured per ASTM E387 with sodium iodide solution) and high wavelength fidelity. The instrument operates across a broad spectral range of 190–1100 nm, covering deep UV through near-infrared—enabling applications from nucleic acid quantification (260 nm) and protein A₂₈₀ analysis to colorimetric assays and thin-film transmittance profiling.

Key Features

• Dual-beam optical system with real-time reference compensation for enhanced photometric stability and baseline reproducibility.
• High-sensitivity photomultiplier tube (PMT) detector optimized for low-light UV response and extended dynamic range (up to 3.5 AU).
• 7-inch full-color capacitive touchscreen interface enabling standalone operation—no external PC required for scanning, kinetics, multi-wavelength, or quantitative analysis.
• Sealed, vibration-dampened optical bench with suspended mounting architecture to isolate the monochromator and detector from mechanical perturbations.
• Automated lamp management: intelligent switching between deuterium (D₂) and tungsten-halogen (W) sources based on wavelength selection; embedded lamp-hour counter and socket-style replacement for rapid maintenance.
• Integrated 32-bit ARM Cortex-M3 microcontroller running at 120 MHz ensures responsive UI navigation, fast scan speeds (up to 3000 nm/min), and deterministic data acquisition timing.
• Onboard storage capacity of 8 GB supports ≥5000 single-point measurements or up to 500 user-defined calibration curves with metadata (date/time, operator ID, method name).

Sample Compatibility & Compliance

The T-N6000Plus accommodates standard 10 mm square cuvettes (glass, quartz, or plastic), as well as specialized cells including micro-volume, flow-through, and temperature-controlled holders. Its extra-large sample compartment allows seamless integration of optional accessories: an 8-position motorized rotating carousel for unattended multi-sample workflows, and a 5-cell wide-format rack for heterogeneous or high-volume screening. All optical components—including the grating, mirrors, and PMT housing—are hermetically sealed to prevent dust ingress and humidity-induced degradation. The instrument complies with ISO 9001 manufacturing protocols and meets essential performance criteria outlined in ISO/IEC 17025 for testing laboratories. When configured with password-protected user roles, electronic signatures, and timestamped audit logs, the system supports GLP and GMP environments aligned with FDA 21 CFR Part 11 requirements.

Software & Data Management

The T-N600Plus includes a comprehensive PC-based software suite supporting spectral acquisition, derivative analysis, peak detection, spectral subtraction, and kinetic modeling. Data export is natively supported in four interoperable formats: CSV (for Excel and statistical packages), .qua (instrument-native binary), plain-text .txt, and bitmap .bmp—eliminating dependency on proprietary viewers. All exported files retain embedded metadata (wavelength, slit width, scan speed, date/time stamp). USB flash drives are recognized automatically for direct file transfer; no driver installation is required on Windows or macOS hosts. Firmware updates are delivered via secure HTTPS download and installed over local network or direct USB connection—ensuring long-term instrument maintainability without hardware intervention.

Applications

This spectrophotometer serves core analytical functions in diverse domains: quantification of DNA, RNA, and proteins using established extinction coefficients; validation of cleaning efficacy in pharmaceutical equipment (e.g., residual active pharmaceutical ingredient detection); determination of dye concentrations in textile effluents per EPA Method 450.1; measurement of chlorophyll-a in water quality monitoring; verification of optical density in semiconductor thin-film deposition; and routine QC of raw materials in food and beverage production. Its 1 nm spectral bandwidth and <0.1 nm wavelength repeatability make it suitable for resolving closely spaced absorption peaks in complex mixtures—such as distinguishing between ortho-, meta-, and para-substituted aromatic compounds.

FAQ

What wavelength calibration standards are recommended for routine verification?
NIST-traceable holmium oxide (Ho₂O₃) and didymium filters are advised for wavelength accuracy checks at 241.1, 279.4, 287.5, 333.7, 360.9, 418.5, 460.0, 484.5, 536.2, and 637.5 nm.
Is the instrument compliant with 21 CFR Part 11 for regulated environments?
Yes—when operated with enabled audit trail, electronic signature, and role-based access control features, the system satisfies key technical controls required for Part 11 compliance.
Can the T-N600Plus perform time-resolved kinetic measurements?
Yes—it supports fixed-wavelength kinetic mode with adjustable sampling intervals from 0.1 s to 600 s, storing up to 10,000 data points per run.
What is the minimum detectable absorbance change under optimal conditions?
With a 1 cm quartz cuvette and stabilized D₂ lamp, the instrument achieves a photometric noise level of ≤0.0003 AU at 1.0 AU (RMS, 250 nm, 1 nm SBW, 1 s integration).
Are third-party cuvette holders or fiber-optic probes supported?
Yes—the large sample compartment accepts industry-standard mechanical interfaces; custom adapters for fiber-optic reflectance probes and integrating spheres can be mounted without modification to the base unit.
