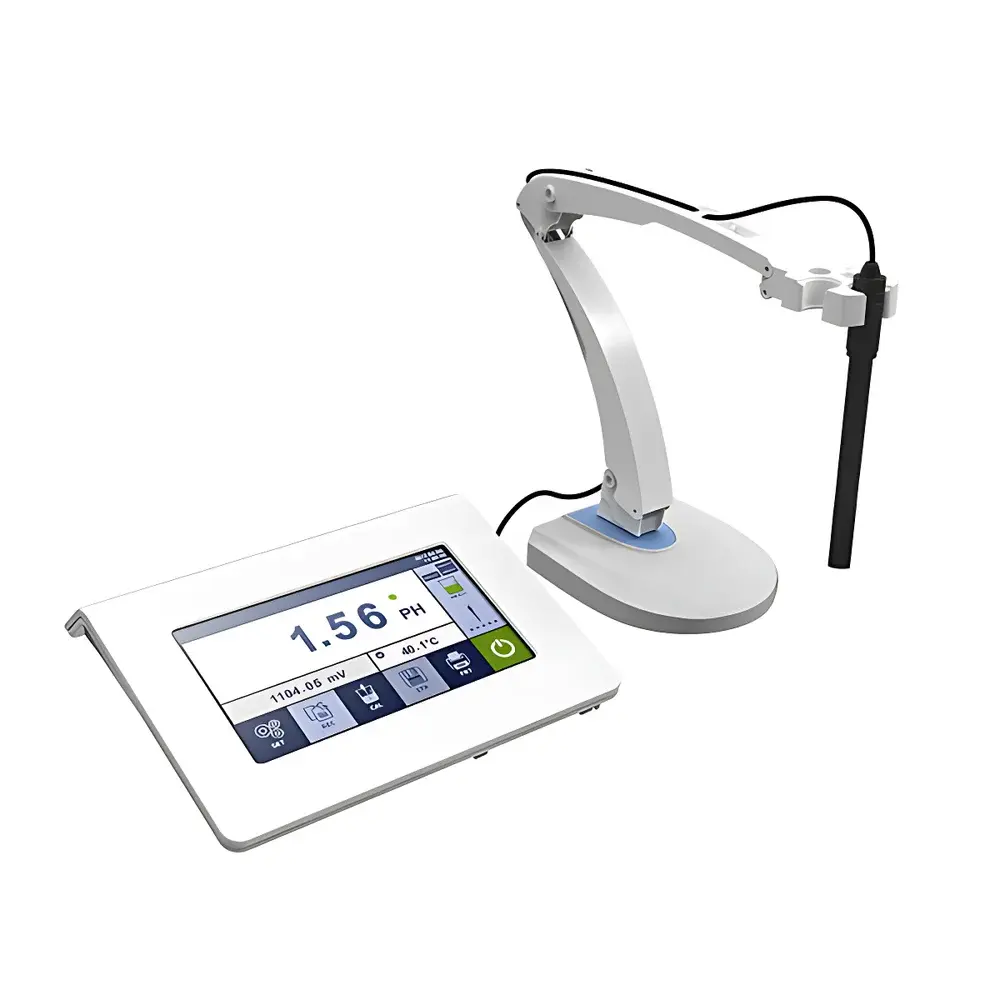

Yoke P8 Series Touchscreen Benchtop pH Meter

Overview

The Yoke P8 Series Touchscreen Benchtop pH Meter is a high-precision electrochemical analyzer engineered for routine and regulated laboratory applications requiring traceable, reproducible pH, mV, and temperature measurements. Built upon a robust potentiometric measurement architecture, the instrument employs high-input-impedance circuitry (≥1×10¹² Ω) and ultra-low input current (<1 pA) to minimize electrode polarization and ensure stable readings—even with high-resistance glass electrodes or low-conductivity samples. Its core measurement principle follows the Nernst equation, with automatic temperature compensation (ATC) applied via integrated Pt1000 or thermistor probes to correct for thermal drift in real time. Designed for compliance-driven environments, the P8 Series meets fundamental GLP (Good Laboratory Practice) requirements through built-in calibration tracking, user-defined audit trails, and time-stamped data logging—making it suitable for QC labs operating under ISO/IEC 17025, USP , or internal quality management systems.

Key Features

• 7-inch full-color capacitive touchscreen display with intuitive icon-based navigation and adjustable brightness for glare-free operation in diverse lighting conditions.
• Intelligent buffer recognition supporting 13 standardized pH buffers across four international series: NIST (U.S.), DIN (EU), GB (China), and user-defined solutions—enabling rapid, error-resistant calibration without manual entry.
• Multi-point calibration protocols (1–5 points) with slope and offset diagnostics; automatic acceptance criteria validation per IUPAC and ASTM E70 guidelines.
• Real-time stability indicator and auto-hold function that locks measurement when signal drift falls below configurable thresholds (e.g., ±0.002 pH/3 h).
• Integrated temperature measurement using either external ATC probe or manual input; supports both automatic and manual temperature compensation modes.
• GLP-compliant data management including operator ID assignment, calibration history with date/time stamps, and full traceability of all critical parameters (electrode ID, buffer lot numbers, ambient conditions).

Sample Compatibility & Compliance

The P8 Series accommodates a broad range of aqueous and semi-aqueous samples—including buffers, pharmaceutical formulations, food extracts, environmental water, and industrial process streams—provided conductivity exceeds 25 µS/cm for reliable reference junction stability. Electrode compatibility includes standard single-junction, double-junction, and refillable pH electrodes with BNC or DIN connectors. All models comply with electromagnetic compatibility (EMC) standards IEC 61326-1 and safety standard IEC 61010-1 (CAT II, Pollution Degree 2). While not certified for FDA 21 CFR Part 11 out-of-the-box, the system supports ALCOA+ data integrity principles through immutable USB-exported CSV files containing raw values, timestamps, calibration metadata, and operator identifiers—facilitating integration into validated LIMS or ELN platforms.

Software & Data Management

Data is stored internally in non-volatile memory (2000 datasets maximum), each containing pH/mV/temperature values, electrode ID, calibration status, buffer IDs used, and full timestamp (YYYY-MM-DD HH:MM:SS). Export occurs via USB mass-storage mode—no proprietary drivers required—generating human-readable .CSV files compatible with Excel, MATLAB, or statistical process control (SPC) software. The instrument logs all calibration events with slope (%), offset (mV), and asymmetry potential, enabling trend analysis of electrode health over time. Optional firmware updates (delivered via USB) extend functionality and maintain alignment with evolving metrological best practices.

Applications

• Pharmaceutical QC testing of injectables, oral suspensions, and buffer solutions per USP and EP 2.2.3.
• Environmental monitoring of surface water, wastewater effluents, and soil leachates in accordance with EPA Method 150.1 and ISO 10523.
• Food & beverage quality control—measuring acidity in dairy products, fruit juices, and fermented foods per AOAC 973.41 and ISO 2954.
• Academic research labs requiring high-resolution pH profiling in enzymatic assays, titration studies, or corrosion inhibition experiments.
• Industrial process support for bioreactor pH control verification, cleaning-in-place (CIP) solution validation, and chemical synthesis endpoint detection.

FAQ

Does the P8 Series support ISO/IEC 17025-compliant calibration records?
Yes—the instrument stores complete calibration metadata (date, time, buffers used, slope, offset, operator ID) and allows export of unalterable CSV logs for inclusion in technical records.
Can I use non-Yoke branded pH electrodes with this meter?
Yes, provided they feature standard BNC or DIN connectors and meet minimum impedance specifications (≤1×10¹² Ω recommended); however, optimal performance and diagnostic accuracy are guaranteed only with Yoke-certified electrodes.
Is temperature compensation mandatory during pH measurement?
No—temperature can be entered manually or disabled; however, automatic compensation using an ATC probe is strongly recommended for measurements outside 20–25 °C to maintain Nernstian response fidelity.
What file format is generated during USB data export?
Standard comma-separated values (.CSV) with UTF-8 encoding, containing columns for timestamp, pH, mV, temperature, electrode ID, calibration status, and buffer identifiers.
How often should the instrument be verified between calibrations?
Per GLP guidance, daily system suitability checks using a mid-range buffer (e.g., pH 7.00) are advised; documented verification results should accompany each batch of sample measurements.
