York Instruments DM9800 Cold Mirror Dew Point Analyzer

Overview

The York Instruments DM9800 Cold Mirror Dew Point Analyzer is a high-precision, microprocessor-controlled hygrometer engineered for trace moisture measurement in industrial gas streams and calibration-grade laboratory environments. It operates on the fundamental physical principle of chilled-mirror condensation hygrometry: a thermoelectrically cooled, chromium-plated copper mirror surface is dynamically regulated until dew (or frost) forms under controlled sample flow conditions. The equilibrium temperature at which condensation occurs—detected optically via integrated photodiode reflectance monitoring—is the thermodynamic dew point temperature. This first-principle method delivers primary-standard-level accuracy without reliance on empirical calibration curves, making the DM9800 suitable for applications demanding metrological traceability per ISO/IEC 17025 and compliance with ASTM D1193 (Type I water), ISO 8573-1 (Class 0–4 compressed air), and USP for pharmaceutical process gases.

Key Features

• Chromium-plated copper mirror with active thermal control and automated optical condensation detection ensures long-term stability and resistance to chemical adsorption or surface contamination.
• Dual-stage thermoelectric cooling enables continuous operation down to −90 °C dew point, supported by digital fuzzy logic control that minimizes thermal overshoot and accelerates equilibration.
• Integrated multi-sensor suite includes mass flow (0–2 L/min, ±5% FS), absolute pressure (0–200 kPa abs, ±0.25% FS), and remote 4-wire PT100 temperature sensing (±0.1 °C), enabling real-time compensation of dew point to standardized conditions (e.g., 101.325 kPa, 25 °C).

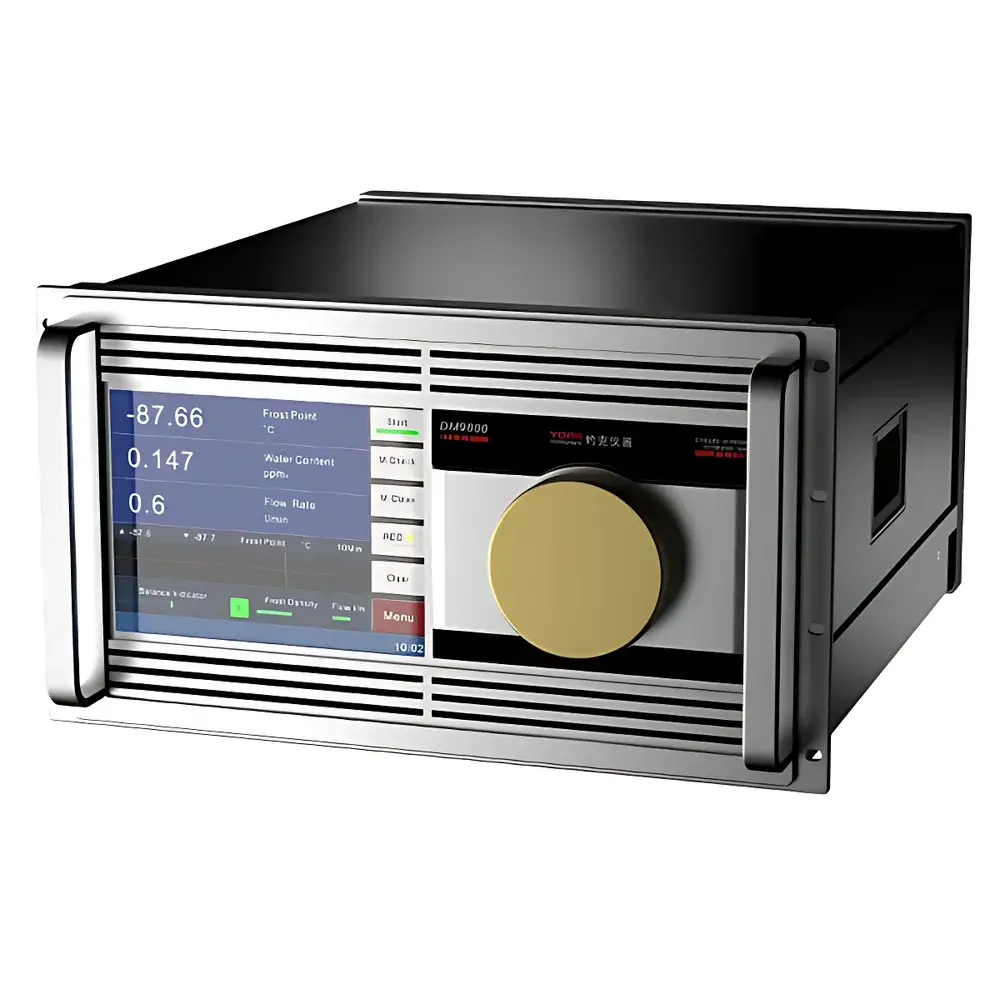

• 9.7-inch WVGA touchscreen interface with bilingual (English/Chinese) graphical UI supports direct parameter configuration, trend visualization, and contextual help—designed for both field technicians and QA/QC personnel.
• Three independently configurable analog outputs (4–20 mA, 0–10 V, etc.) allow seamless integration into DCS/PLC systems; dual programmable SPDT relays provide fail-safe alarm signaling for out-of-spec conditions.
• Onboard SD card logging (FAT32, up to 32 GB) records timestamped dew point, flow, pressure, mirror temperature, and diagnostic flags at user-defined intervals—critical for 21 CFR Part 11-compliant audit trails when paired with validated PC software.

Sample Compatibility & Compliance

The DM9800 is validated for use with non-corrosive, particle-free gas matrices including nitrogen, argon, helium, hydrogen, oxygen, synthetic air, and purified instrument air. Sample inlet conditioning (filtration to ≤0.1 µm, particulate removal, and hydrocarbon scrubbing) is recommended for aggressive or contaminated streams. All wetted materials—including 316L stainless steel gas pathways and the chromium-coated mirror—are compatible with Class 1–4 compressed air per ISO 8573-1 and meet FDA-recommended material requirements for pharmaceutical utility gases. The instrument’s design supports GLP/GMP-aligned workflows through password-protected user roles, electronic signature capability (via PC software), and immutable data logging with time-stamped event markers.

Software & Data Management

The DM9800 ships with York Instruments’ proprietary DewTrack™ PC application, a Windows-based platform supporting real-time remote monitoring, historical data export (CSV, Excel), statistical process control (SPC) charting, and report generation compliant with ISO/IEC 17025 documentation standards. Data files include embedded metadata (operator ID, calibration certificate number, ambient conditions), and the software enforces audit-trail integrity per FDA 21 CFR Part 11 through electronic signatures, access logs, and write-protection of archived datasets. Firmware updates are delivered via secure USB or network-initiated download, with version rollback capability and checksum validation.

Applications

• Pharmaceutical manufacturing: Monitoring dew point in nitrogen blanketing systems, lyophilizer purge gas, and cleanroom compressed air networks.
• Semiconductor fabrication: Verifying ultra-dry N₂ or Ar purge lines (<−70 °C DP) for lithography tool chambers and wafer handling environments.
• Petrochemical refining: Quality assurance of instrument air, fuel gas drying verification, and natural gas custody transfer moisture compliance (per GPA 2172).
• Calibration laboratories: Serving as a reference standard for verifying capacitance-type or tunable diode laser (TDLAS) hygrometers.
• Power generation: Moisture monitoring in SF₆ switchgear and hydrogen-cooled turbine generators per IEEE C37.122.1.

FAQ

What is the lowest measurable dew point temperature?
The DM9800 achieves a verified lower limit of −90 °C dew point under nominal flow (0.5–1 L/min) and ambient conditions ≤30 °C.
Does the instrument require periodic mirror cleaning?
Yes—though the automated mirror inspection algorithm detects optical degradation, manual cleaning with spectroscopic-grade methanol and lint-free wipes is recommended every 3–6 months depending on sample cleanliness.
Can the DM9800 operate unattended for extended periods?

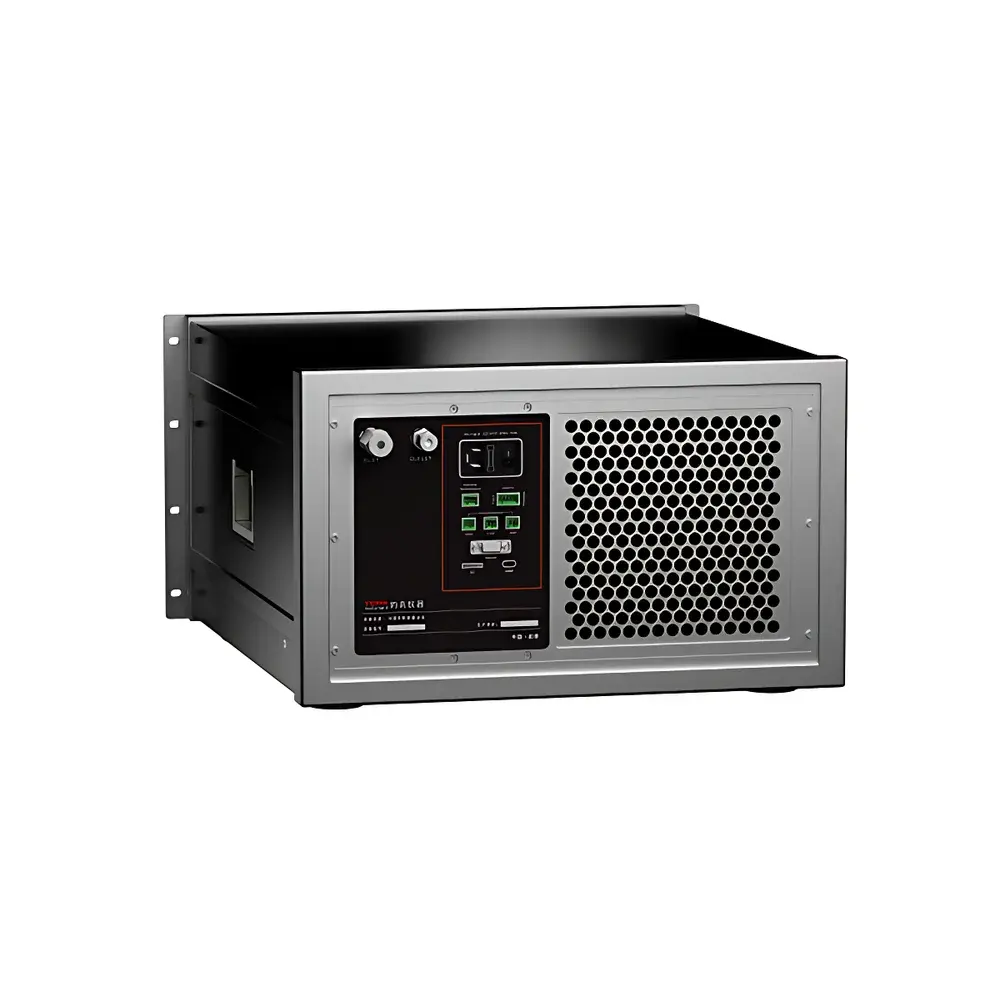

Yes—its 6U rack-mount form factor, redundant power supply design (198–254 VAC), and internal watchdog timer enable 7×24 operation in controlled environments meeting IP20 specifications.
Is NIST-traceable calibration available?
York Instruments provides factory calibration against NIST-traceable chilled-mirror standards (NIST SRM 2365), with optional on-site verification services and full calibration certificates per ISO/IEC 17025.
How does the DM9800 handle condensable contaminants like oil mist or siloxanes?
It does not tolerate such contaminants. A pre-filter (coalescing + activated carbon) is mandatory upstream to prevent mirror fouling and signal drift—failure to do so voids the accuracy warranty.
