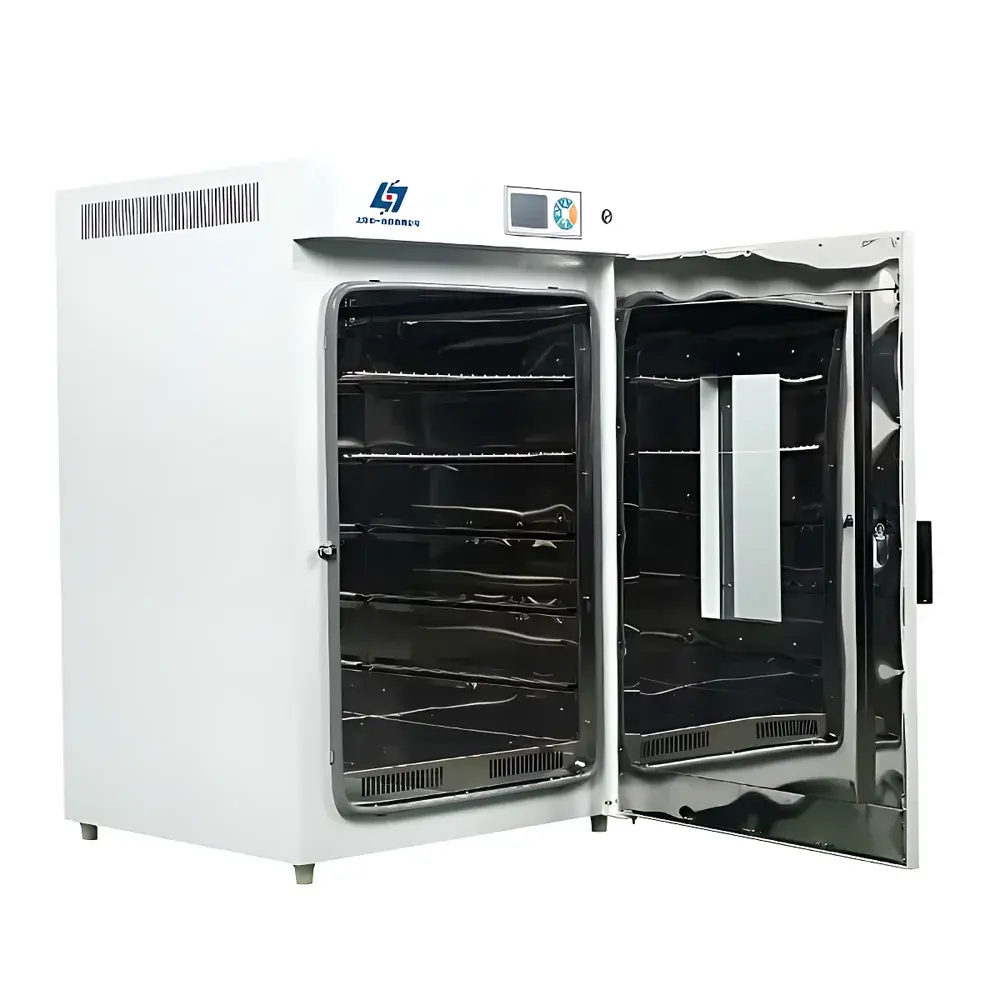

Yoyi LHG-9035A Vertical Forced-Air Precision Drying Oven

Overview

The Yoyi LHG-9035A Vertical Forced-Air Precision Drying Oven is an engineered solution for controlled thermal processing in research laboratories, quality control environments, and industrial R&D settings. Designed in strict accordance with GB/T 30435–2013 (the Chinese national standard for electrically heated forced-convection drying ovens), this unit employs a microprocessor-based temperature control architecture grounded in PID feedback regulation. Its core operational principle relies on uniform convective heat transfer: an internally mounted centrifugal blower circulates preheated air through a symmetrically optimized duct system—ensuring laminar flow distribution across the entire working chamber. This configuration minimizes thermal stratification and delivers reproducible, spatially consistent heating profiles essential for applications requiring traceable thermal treatment, such as moisture content determination (per ISO 5530-1), polymer curing validation, pharmaceutical residual solvent removal (aligned with ICH Q5C), and pre-sterilization conditioning of glassware and instrumentation components.

Key Features

• Microcomputer-controlled PID temperature regulation with 0.1°C resolution and real-time digital display of setpoint, actual chamber temperature, and remaining timer duration
• Intelligent power-loss recovery function: automatically resumes prior operating parameters—including temperature setpoint and elapsed time—following unexpected power interruption or system reset
• Double-layer tempered glass observation window with high-transparency coating enables non-intrusive visual monitoring without thermal leakage or condensation interference
• High-efficiency forced-air circulation system featuring rear-mounted axial blower, calibrated airflow path, and adjustable air velocity (optional accessory)
• Robust structural design: cold-rolled steel outer casing with electrostatic epoxy-polyester powder coating; mirror-finish SUS304 stainless steel interior chamber and removable, height-adjustable stainless steel shelves (2 included)
• High-integrity sealing: high-temperature silicone rubber gasket ensures >95% thermal retention efficiency at 300°C and supports extended service life under repeated thermal cycling
• Dual safety architecture: primary PID controller + independent mechanical over-temperature cutoff (optional, factory-installed) compliant with IEC 61000-4-2 immunity requirements
• Integrated rear ventilation ports with passive humidity exhaust capability—eliminates need for manual vent adjustment during prolonged drying cycles

Sample Compatibility & Compliance

The LHG-9035A accommodates a broad spectrum of sample types including but not limited to: biological tissue specimens (pre-fixation drying), ceramic green bodies, printed circuit board (PCB) substrates, lyophilized pharmaceutical intermediates, calibration standards for thermogravimetric analyzers (TGA), and reference materials for moisture balance verification. Chamber geometry (300 × 300 × 345 mm) permits upright placement of standard ISO/IEC 17025-compliant desiccators and ASTM E145-compliant weighing boats. All electrical and thermal performance metrics—including temperature uniformity (±2.5% at 100°C, empty), stability (±1.0°C), and recovery time (<15 min after 50 mL water evaporation load)—are validated under ISO/IEC 17025-accredited environmental conditions (20°C ±2°C, 50% RH ±5%). The oven meets electromagnetic compatibility (EMC) Class B requirements per EN 61326-1 and conforms to low-voltage directive 2014/35/EU.

Software & Data Management

While the base unit operates via standalone front-panel interface, optional RS485 serial communication (Modbus RTU protocol) enables integration into centralized laboratory information management systems (LIMS) or SCADA platforms. With supplied PC software (Windows 10/11 compatible), users can log timestamped temperature profiles at user-defined intervals (1–60 s), generate CSV-formatted audit trails compliant with FDA 21 CFR Part 11 (when paired with electronic signature module), and export data for statistical process control (SPC) analysis. Optional embedded thermal printer provides hard-copy record of cycle start/end timestamps, peak temperature, and deviation alerts—supporting GLP/GMP documentation workflows in regulated environments.

Applications

• Moisture loss-on-drying assays per USP , EP 2.2.32, and JP 2.07
• Pre-conditioning of test samples prior to tensile strength, hardness, or dielectric testing (ASTM D638, D2240, D150)
• Accelerated aging studies for packaging materials and medical device polymers (ISO 11607-1)
• Baking of thin-film coatings and photomask substrates in semiconductor R&D labs
• Thermal stabilization of analytical standards and volumetric glassware calibration sets
• Residual solvent removal from API batches under cGMP Annex 11-aligned controls
• Post-cleaning drying of precision optical components and metrology fixtures

FAQ

What is the maximum operating temperature and certified accuracy range?
The LHG-9035A is rated for continuous operation up to 300°C. Temperature accuracy is specified as ±1.0°C across the full range (RT+10°C to 300°C), verified at three points (100°C, 150°C, 250°C) using NIST-traceable Class A PT100 probes.
Is the oven suitable for inert-atmosphere processing?
Yes—optional inert gas inlet port (standard 6 mm BSP thread) with integrated rotameter allows precise nitrogen or argon purging at flow rates from 0–15 L/min, enabling oxygen-sensitive drying of lithium battery cathode precursors or metal-organic frameworks (MOFs).
Can the unit be validated for GxP environments?
Fully. IQ/OQ protocols are available upon request. The oven supports 21 CFR Part 11-compliant electronic records when configured with RS485 + audit trail software and user access controls.
What maintenance is required for long-term reliability?
Annual calibration of the main sensor and blower motor inspection are recommended. The stainless steel chamber requires only mild detergent cleaning; silicone door gaskets should be inspected quarterly for compression set.
Are custom shelf configurations or additional load capacity options available?
Yes—up to five load-bearing shelves (SUS304, 3 mm thickness) can be installed. Custom perforated trays and wire mesh inserts are available under OEM engineering support.
