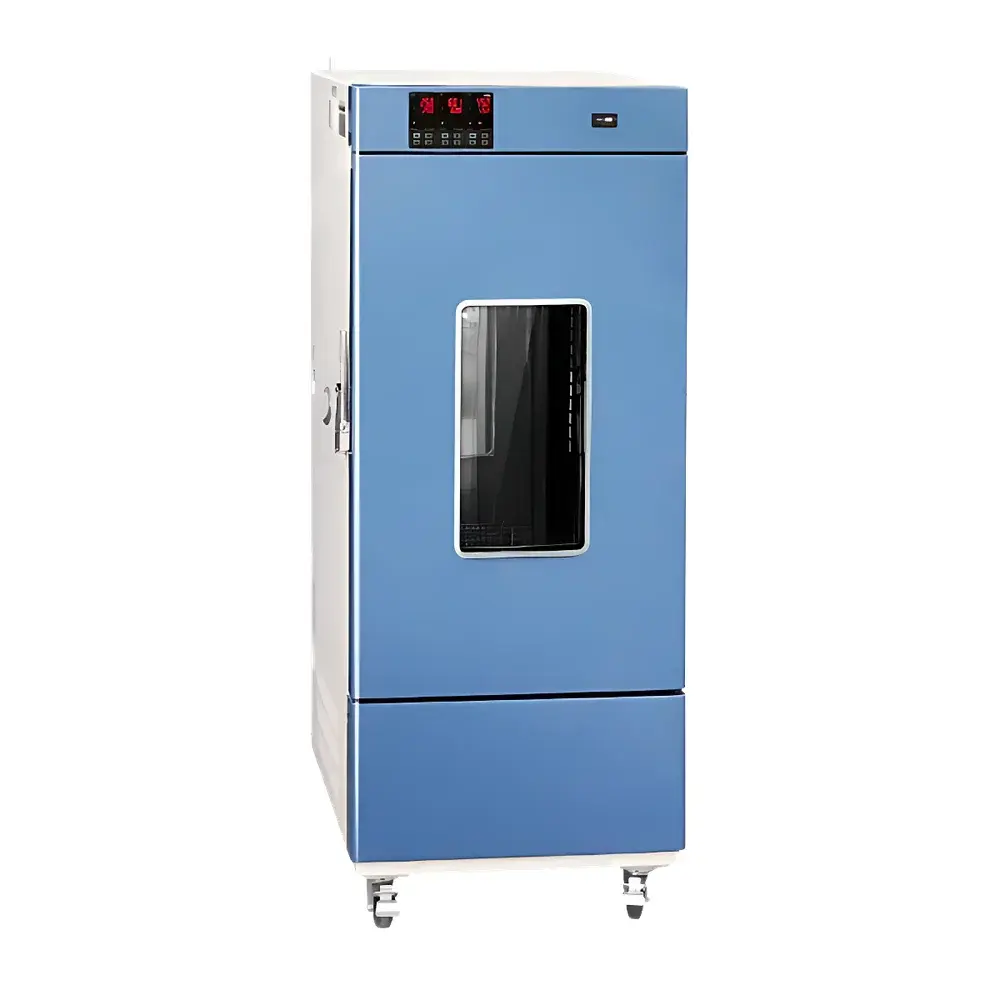

YSEI SHH-150SD Drug Stability Testing Chamber

Overview

The YSEI SHH-150SD Drug Stability Testing Chamber is an engineered environmental simulation system designed explicitly for pharmaceutical stability studies in accordance with ICH Q1A(R3), Q1B, Q1C, Q5C, and relevant national pharmacopoeial requirements (e.g., Chinese Pharmacopoeia 2020 Edition, Volume IV). It operates on a dual-control principle—precisely regulating both temperature and relative humidity within a sealed, insulated chamber using PID-controlled refrigeration, heating, and steam-based humidification subsystems. The chamber’s architecture supports long-term, accelerated, and intermediate storage conditions required for bracketing and matrixing study designs, including the demanding 40°C/20% RH condition specified for large-volume parenterals and moisture-sensitive formulations. Its robust thermal insulation, laminar airflow distribution, and high-stability sensor array ensure spatial uniformity meeting ICH-recommended acceptance criteria (<±0.5°C temperature deviation, <±3% RH deviation across working volume).

Key Features

• Regulatory-aligned environmental control: Validated performance across ICH-specified conditions—including 25°C/60% RH (long-term), 30°C/65% RH (intermediate), 40°C/75% RH (accelerated), and 40°C/20% RH (low-humidity challenge testing).
• Dual-redundant monitoring: Independent PT100 temperature sensors and capacitive RH sensors with NIST-traceable calibration options.

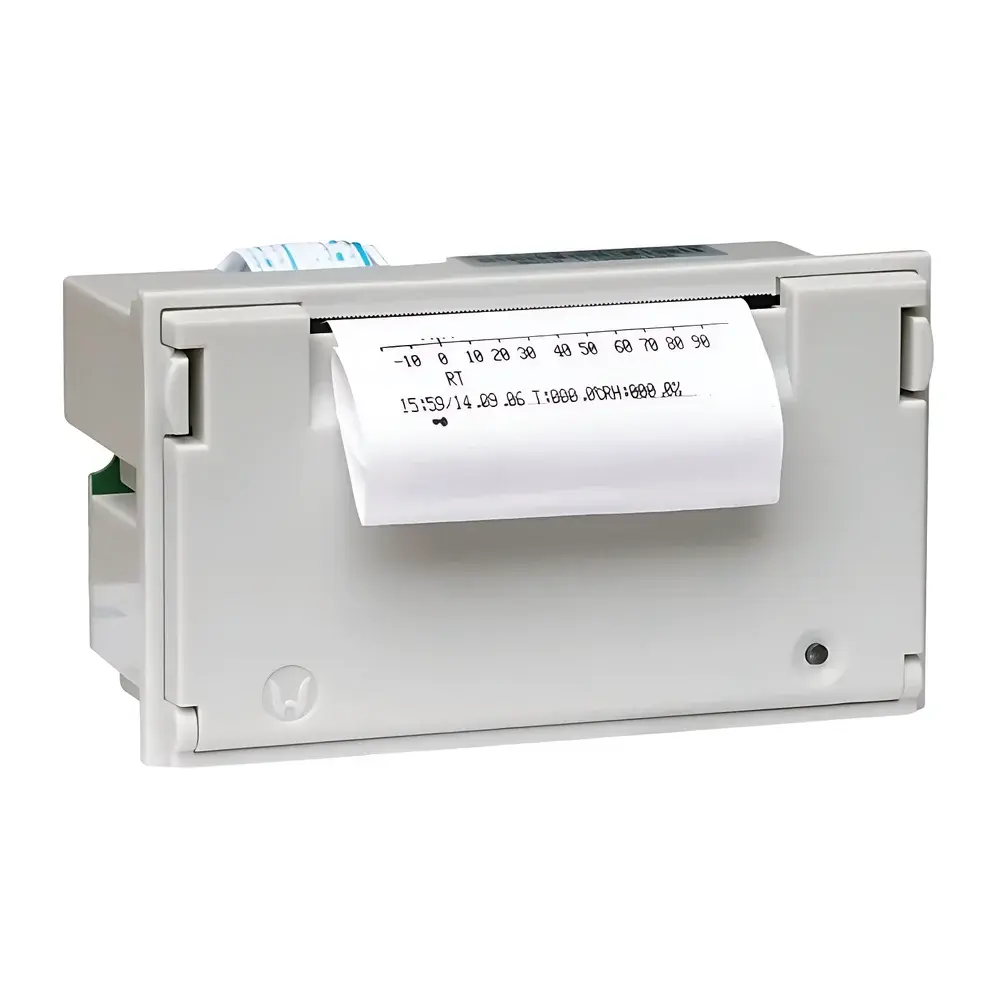

• Integrated thermal line printer: Generates time-stamped, tamper-evident hardcopy records of temperature and humidity profiles; print interval configurable from 1 minute to 24 hours.
• Comprehensive safety architecture: Dedicated overtemperature cutoff circuit independent of main controller; automatic deactivation of humidifier upon water reservoir depletion; compressor thermal overload relay; uninterruptible power detection with timestamped event logging.
• Remote operational oversight: GSM-enabled SMS alerting system delivers real-time notifications for out-of-specification excursions, power loss, or system faults—configurable per device group for centralized fleet management.
• Energy-optimized operation: Variable-speed compressor drive and adaptive heater duty cycling reduce average power draw during steady-state 40°C/75% RH operation; acoustic enclosure design achieves <62 dB(A) noise emission at 1-meter distance.

Sample Compatibility & Compliance

The SHH-150SD accommodates standard pharmaceutical packaging configurations—including blister cards, HDPE bottles, glass vials, and secondary cartons—within its internal chamber volume. Its environmental profile satisfies the hardware qualification requirements outlined in USP , FDA Guidance for Industry: Q5C Quality of Biotechnological Products, and Annex 15 of the EU GMP Guidelines. All electronic records—including printed outputs and internal memory logs—support ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and are compatible with 21 CFR Part 11-compliant audit trail implementation when interfaced with validated LIMS or ELN platforms. The chamber’s mechanical design conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions) standards.

Software & Data Management

While the SHH-150SD operates via embedded firmware without cloud connectivity, its local data handling infrastructure meets regulatory expectations for standalone stability equipment. The built-in thermal printer produces raw, unprocessed analog traces and digital value tables synchronized to internal real-time clock (RTC) with battery-backed memory retention. All logged parameters include timestamps accurate to ±1 second, and printed reports embed device ID, model number, serial number, and operator-defined batch/study identifiers. Optional RS-485 Modbus RTU interface enables integration into facility-wide SCADA systems for centralized monitoring and automated backup to network-attached storage—subject to site-specific cybersecurity validation per ICH GCP E6(R3) and Annex 11.

Applications

• ICH Q1-compliant long-term stability studies (25°C/60% RH, 30°C/65% RH) for registration batches and commercial release.
• Accelerated stability assessment (40°C/75% RH) to support shelf-life prediction and degradation pathway analysis.
• Low-humidity stress testing (40°C/20% RH) for lyophilized products, hygroscopic APIs, and large-volume parenteral containers.
• Photostability pre-screening when used in conjunction with ICH Q1B-compliant light cabinets (not included).
• Excursion tolerance evaluation during transport simulation and warehouse qualification.
• Method suitability verification for dissolution, assay, and impurity testing under controlled environmental baselines.

FAQ

Does the SHH-150SD comply with 21 CFR Part 11 requirements?
The unit itself is not Part 11–certified as a standalone system, but its printed output and internal logging meet predicate rule requirements for record retention. When integrated with validated third-party software supporting electronic signatures and audit trails, it fulfills Part 11 compliance within a qualified ecosystem.
Can humidity be maintained stably at 20% RH across the full temperature range?
Yes—the system achieves and sustains 20% RH at 40°C using precision dew-point control and desiccant-assisted dehumidification; performance at sub-ambient temperatures requires optional low-RH retrofit.
Is IQ/OQ documentation provided with the instrument?
Standard delivery includes Factory Acceptance Test (FAT) report and user manual. Site-specific Installation Qualification (IQ) and Operational Qualification (OQ) protocols are available as optional services, aligned with ASTM E2500 and ISPE GAMP 5.
What is the expected service life under continuous 24/7 operation?
Based on accelerated life testing and field data from >1,200 installed units, mean time between failures (MTBF) exceeds 18,000 hours for core climate control subsystems when operated within specified ambient conditions and maintained per YSEI’s scheduled preventive maintenance plan.
