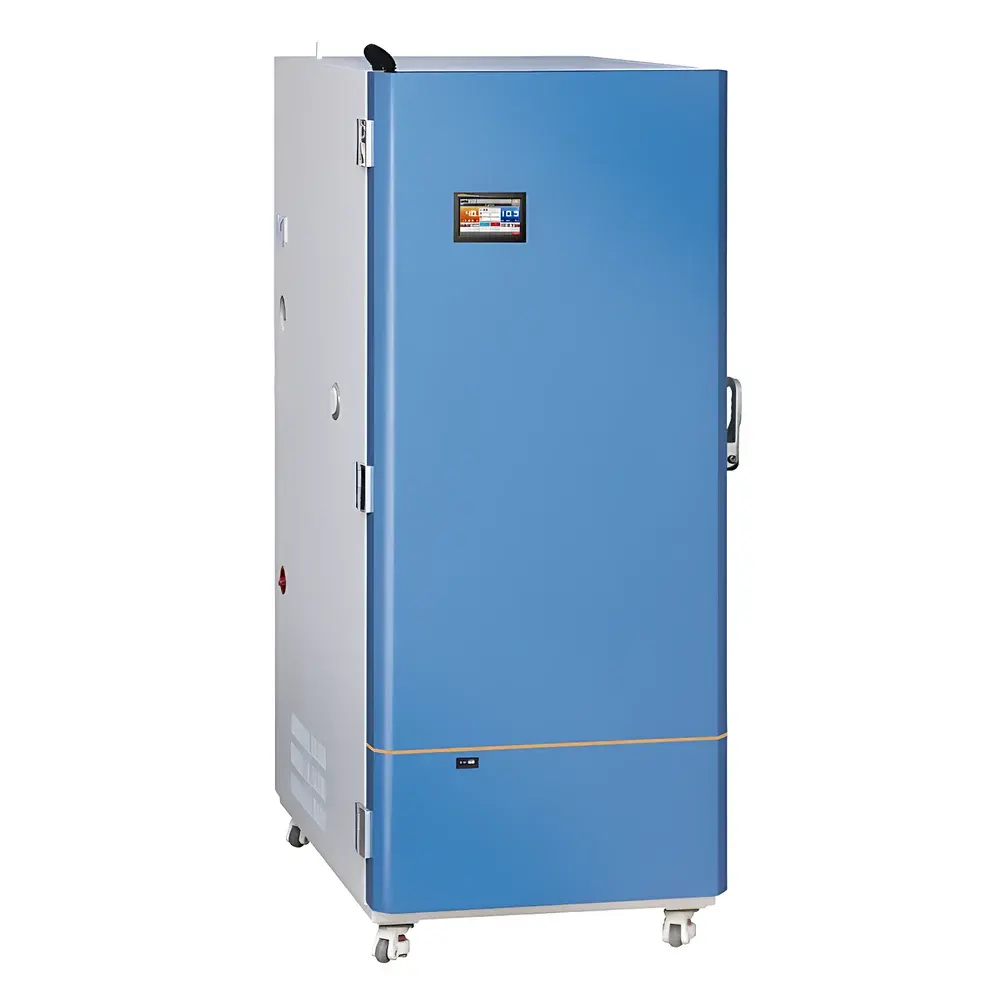

YSEI SHH-2000SD-2T Drug Stability Testing Chamber

Overview

The YSEI SHH-2000SD-2T Drug Stability Testing Chamber is an engineered environmental simulation system designed specifically for pharmaceutical stability studies in compliance with ICH Q1–Q5 guidelines, United States Pharmacopeia (USP) , European Pharmacopoeia (Ph. Eur.) 2.2.43, and Chinese Pharmacopoeia (ChP) General Chapter 9001. It operates on a dual-temperature/humidity control architecture utilizing precision PID-regulated refrigeration, steam-based humidification, and independent air circulation systems to maintain stable, traceable, and reproducible test conditions across long-term (25°C/60% RH), accelerated (40°C/75% RH), intermediate (30°C/65% RH), and low-humidity (40°C/20% RH) protocols. The chamber’s thermal uniformity meets ±0.5°C (at setpoint) and humidity uniformity ±3% RH across the working volume — critical for GLP-compliant shelf-life determination of APIs, finished dosage forms, and large-volume parenterals.

Key Features

• Redundant data integrity architecture: Dual independent recording paths — embedded 64 MB non-volatile memory (circular buffer) + removable industrial-grade SD card — both logging temperature, relative humidity, timestamp, setpoints, and alarm events at user-defined intervals (1 min to 24 hr).
• FDA 21 CFR Part 11–compliant software suite (Sims v4.2+) supporting electronic signatures, audit trails, role-based access control, and immutable data export in CSV/PDF formats.
• RS485 Modbus RTU interface enabling centralized monitoring and control of up to 30 units via a single PC; optional Ethernet/WiFi gateway for cloud-based remote supervision and SMS alerting (via GSM module) on power failure, sensor deviation (>±2°C or >±5% RH), or door intrusion.
• Dual-glass door configuration: Outer keyed mechanical lock prevents unauthorized access; inner tempered low-emissivity glass minimizes thermal load disturbance during visual inspection.
• Energy-optimized design: High-efficiency hermetic compressor, variable-speed EC fans, and insulated double-wall construction achieve ≤2.8 kW average power consumption under 40°C/75% RH continuous operation.
• Comprehensive safety layering: Independent over-temperature cutoff (hardware-based), dry-run protection for humidifier, compressor current overload detection, and real-time fault diagnostics displayed on the 7-inch capacitive touchscreen HMI.

Sample Compatibility & Compliance

The SHH-2000SD-2T accommodates standard ICH-compliant sample racks (up to 200 L usable volume) and supports heterogeneous loading including blister packs, vials, ampoules, IV bags, and lyophilized trays without compromising chamber uniformity. All materials in contact with the test environment — stainless steel 304 interior, silicone gaskets, and PTFE-coated sensors — are USP Class VI certified and non-outgassing per ISO 10993-5. The system conforms to GB/T 10586–2025 (Environmental Test Equipment — Technical Requirements), ICH Q5C (Stability of Biotechnological/Biological Products), and Annex 15 (Qualification and Validation) requirements. IQ/OQ documentation packages—including protocol templates, test scripts, calibration certificates, and raw verification data—are provided pre-validated and ready for GMP audit submission.

Software & Data Management

The bundled Sims Stability Suite delivers full lifecycle data governance: automated generation of trend charts (temperature/humidity vs. time), statistical process control (SPC) overlays, deviation flagging, and batch-level report compilation per ICH Q5C Annex II. All electronic records include embedded digital signatures, version-controlled metadata, and tamper-evident hashing (SHA-256). Audit trail logs capture operator ID, action timestamp, parameter changes, and reason-for-change entries — fully compliant with FDA 21 CFR Part 11 Subpart B and EU Annex 11. Data export supports 21 CFR Part 11–compliant PDF/A-2u archival format with embedded electronic signatures and certificate-based encryption.

Applications

• ICH Q1A(R3) long-term, accelerated, and stress testing for small-molecule APIs and solid oral dosage forms.
• ICH Q5C stability assessment of monoclonal antibodies, recombinant proteins, and vaccine formulations under defined temperature/humidity stress profiles.
• USP packaging compatibility studies evaluating moisture permeation through primary containers and closures.
• cGMP-compliant retest date establishment for raw materials and intermediates per FDA Guidance for Industry (2022).
• Regulatory submission support: Raw stability datasets formatted for inclusion in Module 3 (Quality) of CTD/eCTD dossiers.

FAQ

Does the SHH-2000SD-2T meet ICH Q1E analytical evaluation requirements for bracketing and matrixing designs?

Yes — the chamber’s documented thermal/humidity uniformity, stability, and sensor traceability (NIST-traceable Pt100 and capacitive RH sensors) support statistical analysis per ICH Q1E Annex 1, enabling valid bracketing and matrixing protocols.
Can the system be integrated into an existing MES or LIMS infrastructure?

Yes — via OPC UA or Modbus TCP gateways, the chamber exports real-time process variables and alarm states to enterprise systems; validation support for ASTM E2500–22 is available upon request.
Is the SD card data export function compliant with ALCOA+ principles?

Yes — exported files include embedded hash values, complete metadata headers, and uneditable timestamps; file integrity is verifiable using the included checksum utility.
What is the recommended calibration frequency for regulatory compliance?

Annual calibration against NIST-traceable standards is recommended; YSEI provides accredited calibration services with ISO/IEC 17025–certified certificates and uncertainty budgets.
How is software validation handled for Part 11 compliance?

Sims v4.2+ includes a vendor-supplied URS, FRS, DQ/IQ/OQ/PQ documentation package, along with validation execution support and change control logs — all aligned with GAMP 5 Category 3 software classification.
