YSEI SHH-400SD Drug Stability Testing Chamber

Overview

The YSEI SHH-400SD Drug Stability Testing Chamber is an engineered environmental simulation system designed explicitly for compliance-driven pharmaceutical stability studies in accordance with ICH Q1A(R3), Q1B, Q1C, Q1D, and Q1E guidelines, as well as USP , Chinese Pharmacopoeia (ChP) General Chapter 9001, and FDA 21 CFR Part 11 requirements. It operates on a dual-control principle—simultaneous precision regulation of temperature and relative humidity within a thermally insulated, stainless-steel-walled chamber—enabling reproducible execution of long-term (25 °C/60 % RH), accelerated (40 °C/75 % RH), and intermediate (30 °C/65 % RH) storage condition protocols. Its architecture integrates a cascade refrigeration module, PID-controlled steam humidification, and forced-air convection with multi-point sensor feedback to ensure spatial uniformity across the entire working volume. Unlike generic climate chambers, the SHH-400SD incorporates design adaptations for pharmaceutical-grade validation—such as minimized condensation risk during low-RH operation (e.g., 40 °C/20 % RH for large-volume parenterals), traceable calibration pathways, and hardware-level data integrity safeguards.

Key Features

• ICH-compliant chamber performance: Validated temperature uniformity ≤±0.5 °C and humidity uniformity ≤±3 % RH at defined ICH probe locations (e.g., geometric center and six corners)
• Dual-mode humidity control: Steam-based humidification with anti-dry-run safety cutoff and desiccant-assisted dehumidification for stable low-RH operation down to 20 % RH at 40 °C

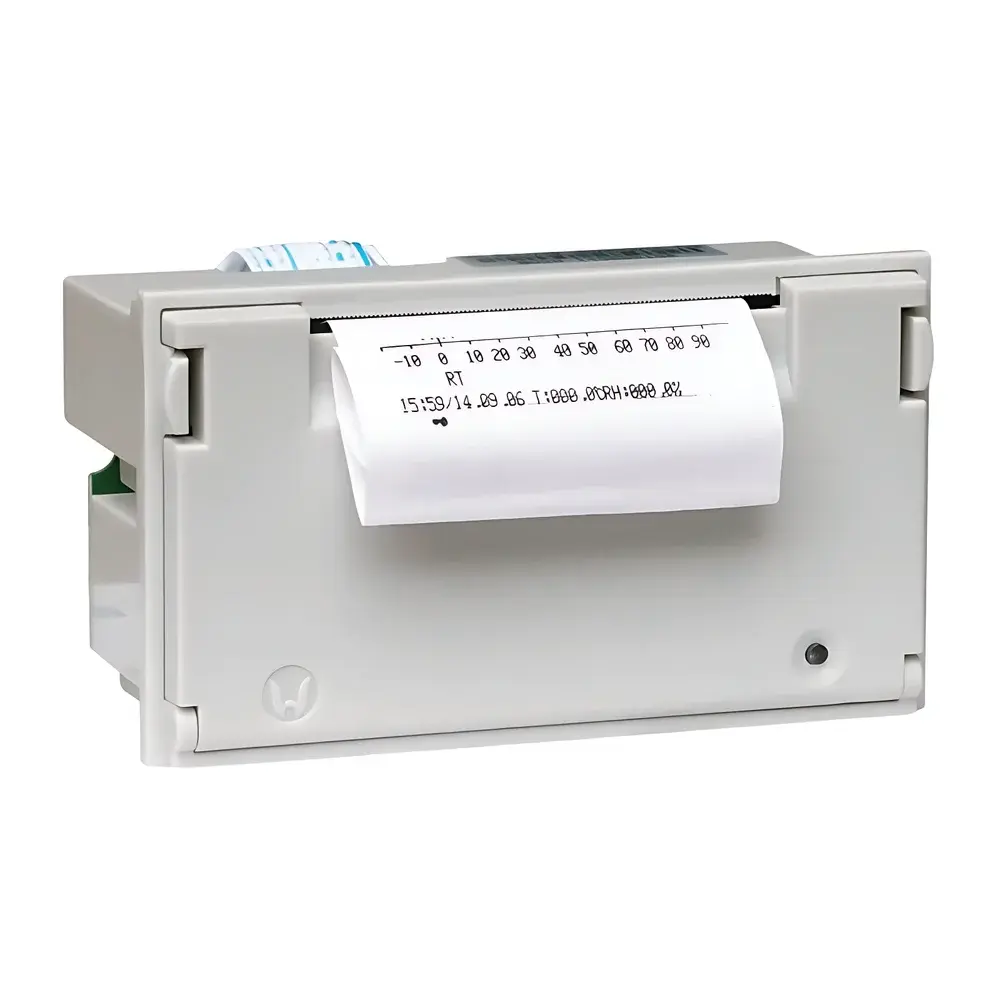

• Regulatory-grade data recording: Embedded real-time thermal printer with configurable logging intervals (1 min to 24 h); printed output includes date/time stamp, setpoints, measured values, and deviation flags—serving as auditable hardcopy evidence per ALCOA+ principles
• Redundant safety architecture: Independent high-limit thermostat, compressor current monitoring, humidifier water-level sensor, and uninterruptible power detection—all triggering audible/visual alerts and SMS notifications via integrated GSM module
• Low-noise operational profile: Sound pressure level maintained below 62 dB(A) at 1 meter distance, suitable for shared laboratory environments without acoustic isolation
• Energy-optimized thermal envelope: High-density polyurethane foam insulation (≥120 mm thickness), low-emissivity interior surfaces, and adaptive compressor staging reduce average power draw by up to 22% versus conventional stability chambers under identical load conditions

Sample Compatibility & Compliance

The SHH-400SD accommodates standard ICH-compliant sample configurations—including open trays, sealed blister packs, amber glass vials, and polyethylene containers—without airflow obstruction or localized microclimate formation. Its internal geometry supports placement of ≥120 units of 10-mL Type I glass vials while maintaining required air exchange rates (≥0.5 air changes per minute). All materials in contact with the chamber atmosphere (interior walls, shelves, gaskets) are non-outgassing, non-corrosive, and compliant with USP Class VI biological safety standards. The system meets ISO 14644-1 Class 8 cleanroom-compatible construction criteria and is prequalified for 21 CFR Part 11 Annex 11 readiness through built-in electronic signature support, audit trail generation (with immutable timestamps and operator ID), and role-based access control (admin/operator/viewer modes).

Software & Data Management

While the SHH-400SD operates autonomously with embedded firmware, it supports optional Ethernet/RS485 connectivity for integration into centralized Laboratory Information Management Systems (LIMS) or Electronic Lab Notebooks (ELN). Raw sensor data (temperature, humidity, runtime, alarm status) is stored internally for ≥12 months with cyclic overwrite protection. Export formats include CSV and PDF reports compliant with GLP/GMP documentation standards. All printed records include unique batch identifiers, instrument serial number, calibration due dates, and digital signatures where enabled—ensuring full traceability from raw measurement to final stability report submission to regulatory authorities.

Applications

• ICH-aligned stability protocol execution: Long-term, accelerated, and stress testing per Q1A–Q1E
• Bracketing and matrixing study support for multi-strength/multi-package configurations
• Photostability pre-screening (when used in conjunction with ICH Q1B-compliant light cabinets)
• Excipient compatibility assessment under controlled humidity gradients
• Real-time shelf-life determination for biologics, sterile injectables, and lyophilized products
• Pre-approval stability data generation for ANDA, NDA, and MAA submissions

FAQ

Does the SHH-400SD support 21 CFR Part 11 compliance out of the box?

Yes—when equipped with optional software license and configured with user authentication, electronic signatures, and immutable audit trails, it satisfies core Part 11 requirements for record retention and system validation.
Can the chamber maintain 20% RH at 40°C continuously for 6 months?

Yes—its dual-path dehumidification system (refrigerative + desiccant assist) and low-permeability insulation enable sustained operation at this demanding condition without condensation or sensor drift.
Is third-party IQ/OQ/PQ documentation available?

YSEI provides standardized qualification templates aligned with ASTM E2500 and ISPE GAMP5; site-specific protocols and executed reports are supported by authorized service engineers.
What is the recommended calibration frequency for temperature and humidity sensors?

Per ISO/IEC 17025 and ChP guidance, quarterly calibration against NIST-traceable references is advised, with as-found/as-left records archived alongside stability study data.
How many devices can be monitored simultaneously via the SMS alert system?

The integrated GSM module supports concurrent monitoring of up to 8 SHH-series chambers under a single SIM-enabled management interface, with customizable alert thresholds per unit.
