YSEI SHH-GSD-2TA Series Comprehensive Drug Stability Testing Chamber

Overview

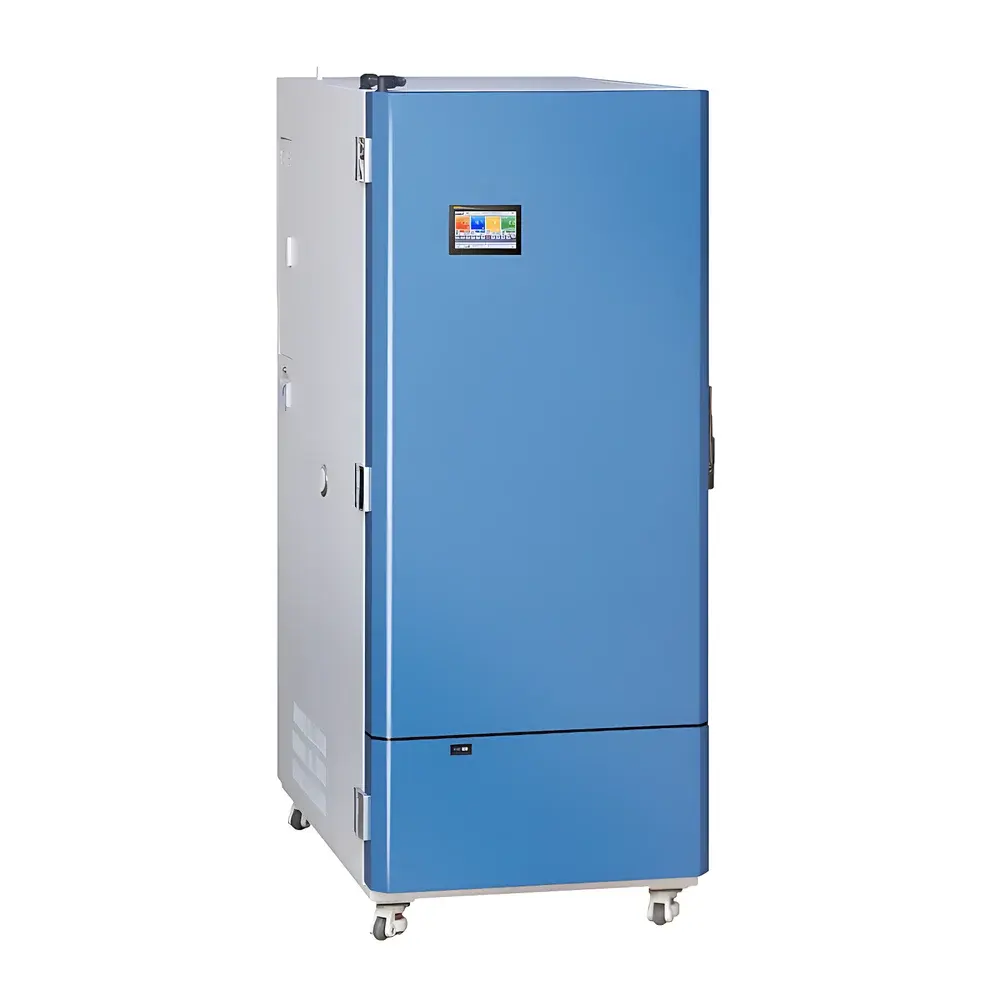

The YSEI SHH-GSD-2TA Series Comprehensive Drug Stability Testing Chamber is an integrated environmental simulation system engineered for pharmaceutical stability studies in accordance with ICH Q1 guidelines and regulatory requirements for long-term, accelerated, and intermediate condition testing. It provides simultaneous, independent, and tightly controlled regulation of four critical stress factors—temperature, relative humidity, visible light intensity, and ultraviolet radiation—within a single chamber architecture. Unlike modular or add-on systems, the SHH-GSD-2TA employs a unified control algorithm that ensures cross-factor coupling compensation (e.g., humidity drift during UV irradiation, thermal load shifts during lighting cycles), thereby maintaining measurement integrity across all ICH-specified test conditions—including low-humidity accelerated protocols (e.g., 40°C / 20% RH for large-volume parenterals). Its dual-door design with tempered glass inner door minimizes thermal and hygric perturbation during visual inspection, while the outer keyed access door supports GMP-aligned access control.

Key Features

• Quad-parameter environmental control: Precise regulation of temperature (0–60°C ±0.3°C), humidity (10–95% RH ±2% RH), visible light (0–10,000 lux, adjustable spectral distribution), and UV-A irradiance (320–400 nm, calibrated per ICH Q1B)

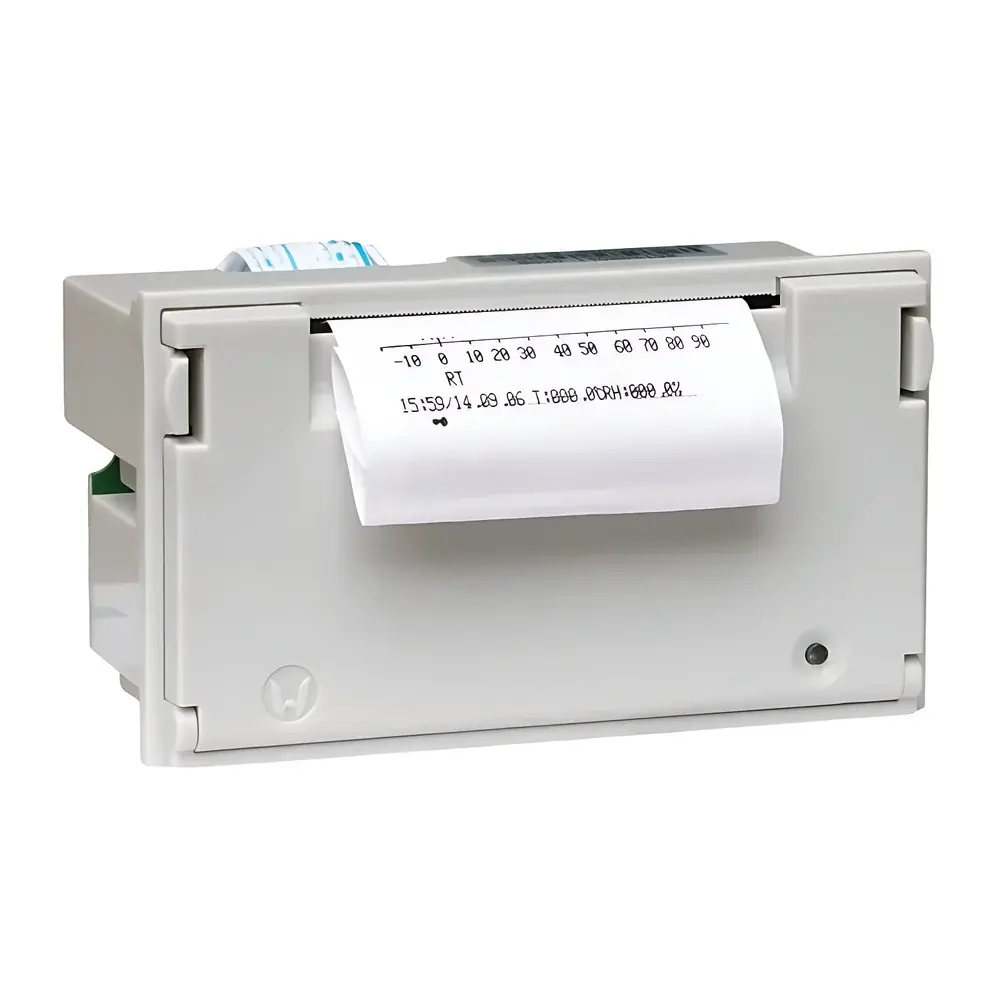

• Integrated triple-layer data recording: Real-time RS485-exported digital logs, 64 MB circular internal memory (configurable 1-minute sampling, supporting >10 years of continuous storage), and optional thermal printer output with user-defined print intervals
• Remote multi-unit supervision: Web-enabled Ethernet interface allows centralized monitoring and parameter adjustment of up to 30 SHH-GSD-2TA units from a single PC or mobile browser—fully compatible with corporate LIMS and ELN platforms
• GMP-compliant operational safeguards: Independent over-temperature cutoff, dry-run protection for humidifier, compressor overload relay, and SMS-based alarm notification for power failure, sensor deviation (>±1.5°C / ±5% RH), or door intrusion
• Energy-optimized architecture: EC fan motors, high-efficiency scroll compressors, and adaptive PID+ fuzzy logic control reduce average power consumption by 28% vs. legacy chambers under 40°C/75% RH operation
• Human-centric interface: 10.1″ capacitive touchscreen with multilingual GUI (English, Chinese, Spanish), intuitive calibration wizard, and context-sensitive help overlays

Sample Compatibility & Compliance

The SHH-GSD-2TA accommodates standard ICH-compliant sample trays (up to 6 layers, each accommodating 20×20 cm vial racks or blister cards), with optional UV-transparent quartz shelves for photostability assessment. All internal surfaces are electropolished stainless steel (AISI 316L) with non-outgassing silicone gaskets, ensuring no volatile organic compound (VOC) interference during extended exposure. The system meets mechanical and performance qualification requirements per ISO 14644-1 Class 8 cleanroom-compatible airflow design and complies with electromagnetic compatibility (EMC) standards IEC 61326-1. Full IQ/OQ documentation packages—including protocol templates, executed reports, sensor traceability certificates (NIST-traceable PT100 and capacitive RH sensors), and 21 CFR Part 11-compliant audit trail configuration—are provided upon request.

Software & Data Management

YSEI’s proprietary StabilityLink™ software (v4.2+) supports automated data export in CSV, PDF, and XML formats compliant with ALCOA+ principles. Built-in electronic signature workflows, role-based user permissions (admin/operator/auditor), and immutable timestamped audit trails satisfy FDA 21 CFR Part 11 and EU Annex 11 requirements. Data encryption (AES-256 at rest and TLS 1.3 in transit), automatic daily backups to network drives, and configurable retention policies enable seamless integration into enterprise quality management systems (QMS). Raw sensor values—including chamber setpoints, actual readings, deviation alarms, and actuator status—are logged with microsecond-resolution timestamps.

Applications

• ICH Q1A(R2)-mandated long-term (25°C/60% RH), accelerated (40°C/75% RH), and intermediate (30°C/65% RH) stability protocols
• ICH Q1B photostability testing (Option A: visible light only; Option B: combined visible + UV)
• Low-humidity stress testing for lyophilized products and large-volume parenterals (e.g., 40°C/20% RH)
• Forced degradation studies under controlled oxidative, thermal, and photolytic stress
• Real-time stability monitoring for ANDA, NDA, and MA submissions to FDA, EMA, PMDA, and NMPA
• Environmental qualification of packaging materials and container-closure systems

FAQ

Does the SHH-GSD-2TA support 21 CFR Part 11 compliance out of the box?

Yes—preconfigured electronic signature workflows, audit trail logging, and role-based access control are factory-enabled and validated.
Can the system perform ICH Q1B Option C (near-UV only) testing?

Yes—the UV-A module is independently controllable and calibrated to deliver 1.4 W/m² ±0.1 W/m² within 320–400 nm, meeting Option C irradiance requirements.
Is third-party calibration certification included with delivery?

Each unit ships with a full calibration certificate (temperature, humidity, light, UV) traceable to NIST and CNAS-accredited labs, valid for 12 months.
What is the maximum number of concurrent users supported on the remote monitoring platform?

Up to 16 concurrent authenticated sessions via HTTPS, with granular permission tiers defined per user group.
How is data integrity ensured during unexpected power loss?

Non-volatile FRAM memory preserves the last 72 hours of critical parameters; auto-resume functionality restores setpoints and logging without manual intervention.
