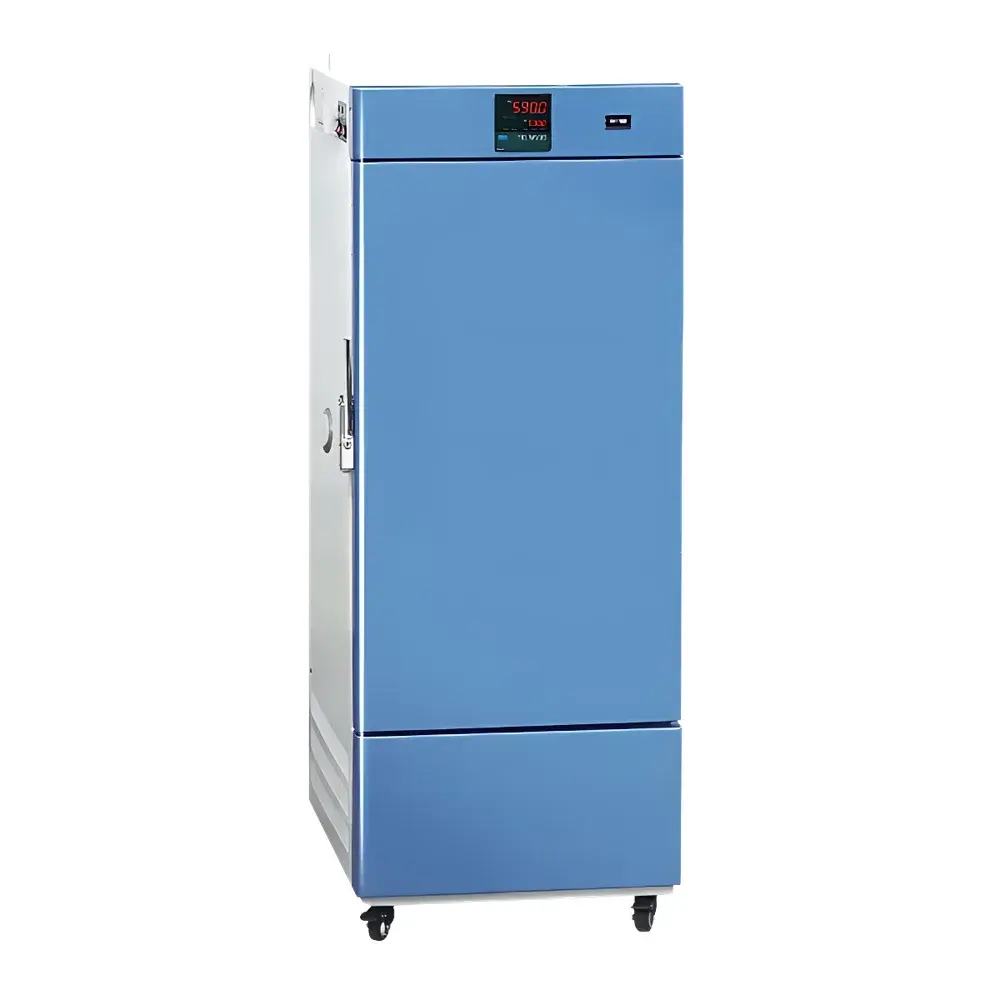

YSEI SHH-MP Series Pharmaceutical Stability Testing Chamber

Overview

The YSEI SHH-MP Series Pharmaceutical Stability Testing Chamber is an engineered environmental chamber designed specifically for long-term, low-temperature stability studies of pharmaceutical products under regulated conditions. It operates within a tightly controlled temperature range of 6 ± 3 °C — aligning precisely with ICH Q1A(R2) guidance for “accelerated” and “intermediate” storage conditions used in bracketing and matrixing study designs. Unlike general-purpose refrigerated cabinets, the SHH-MP series integrates pharmaceutical-grade thermal uniformity control (±0.5 °C spatial variation across working volume, validated per ISO 14644-3 and ASTM E2297), dynamic air circulation architecture, and redundant sensor monitoring to ensure compliance with GLP and GMP requirements for stability-indicating testing. Its primary function is to support shelf-life determination, retest date establishment, and post-approval change evaluation for small-molecule drugs, biologics, vaccines, and sterile parenterals.

Key Features

• Pharmaceutical-validated thermal performance: Achieves ≤±0.3 °C temperature stability over 24 h (per ICH Q5C Annex 2) with dual Pt100 sensors and real-time deviation alarms.
• Dual-mode data integrity system: Simultaneous digital logging (with timestamped, encrypted CSV export) and thermal-printed hardcopy output — both traceable to NIST-traceable calibration certificates.
• Independent safety architecture: Physically isolated high-limit thermostat circuit triggers immediate power cutoff independent of main controller; compressor motor protected by thermal overload relay and phase-loss detection.
• Modular chamber construction: Stainless steel 316L inner chamber with non-porous, electro-polished finish; double-glazed tempered glass door with anti-fog heater and argon-filled insulation gap.
• Validation-ready design: Preconfigured mounting points for temperature mapping probes (15+ locations); built-in USB port for firmware updates and audit log extraction without network exposure.

Sample Compatibility & Compliance

The SHH-MP series accommodates standard ICH-compliant stability sample configurations including open trays, sealed vials (2–50 mL), blister packs, and pre-filled syringes mounted on custom racks. Chamber volume options (from 200 L to 1000 L net capacity) are validated per ISO 14644-3 Class 8 cleanroom ambient equivalency (non-laminar airflow, particle generation <3,520,000 particles/m³ ≥0.5 µm). All units ship with full regulatory alignment documentation: conformity statement per ICH Q5A(R2) for biotechnological product storage, test reports referencing USP “Stability Considerations for Pharmaceutical Products”, and alignment matrix against Chinese Pharmacopoeia Volume IV General Chapter 9001 “Stability Testing of Drug Substances and Products”.

Software & Data Management

Embedded firmware supports 21 CFR Part 11-compliant electronic records through role-based user access (admin/operator/auditor), mandatory electronic signatures for parameter changes, and immutable audit trails retaining all temperature deviations, alarm events, and manual interventions for ≥10 years. Data export complies with CDISC SEND standards for regulatory submissions. Optional Ethernet/Wi-Fi module enables integration into enterprise LIMS or MES platforms via MQTT or OPC UA protocols. Printer logs include batch ID, operator ID, timestamp, and chamber ID — each page bearing a unique sequential number and cryptographic hash for forensic verification.

Applications

• ICH Q1A–Q1E compliant long-term and accelerated stability trials for registration dossiers (IND, NDA, MAA).
• Real-time stability monitoring of clinical trial supplies stored at refrigerated conditions (e.g., mRNA vaccines, monoclonal antibodies).
• Forced degradation studies requiring cold-chain simulation prior to stress testing (e.g., freeze-thaw cycling protocol prep).
• Reference standard storage under pharmacopeial conditions (USP , Ph. Eur. 2.2.42).
• QC release testing environment for temperature-sensitive intermediates and APIs pending final packaging.

FAQ

Does the SHH-MP series meet FDA 21 CFR Part 11 requirements for electronic records?
Yes — when configured with optional network module and enabled audit trail settings, it satisfies all three core criteria: electronic signature validation, secure audit trail generation, and record retention integrity.
Can temperature mapping be performed internally without third-party tools?
Yes — the chamber includes 16 dedicated probe ports (12 internal + 4 ambient), pre-calibrated reference sensor input, and built-in mapping report generator compliant with WHO TRS 961 Annex 9.
Is IQ/OQ documentation included with purchase?
A complete IQ/OQ protocol package (including acceptance criteria, test methods, and blank execution worksheets) is provided at no additional cost; on-site qualification support is available as a billable service.
What is the warranty coverage scope?
Standard coverage includes 12 months parts-and-labor warranty from commissioning date; lifetime technical support and spare parts availability guaranteed under YSEI’s global service agreement.
How is humidity controlled in this model?
The SHH-MP series is optimized for low-humidity refrigerated operation (≤60% RH typical at 6 °C); optional dehumidification module (SHH-DH) achieves ≤40% RH with condensate auto-evaporation and desiccant regeneration cycle.
