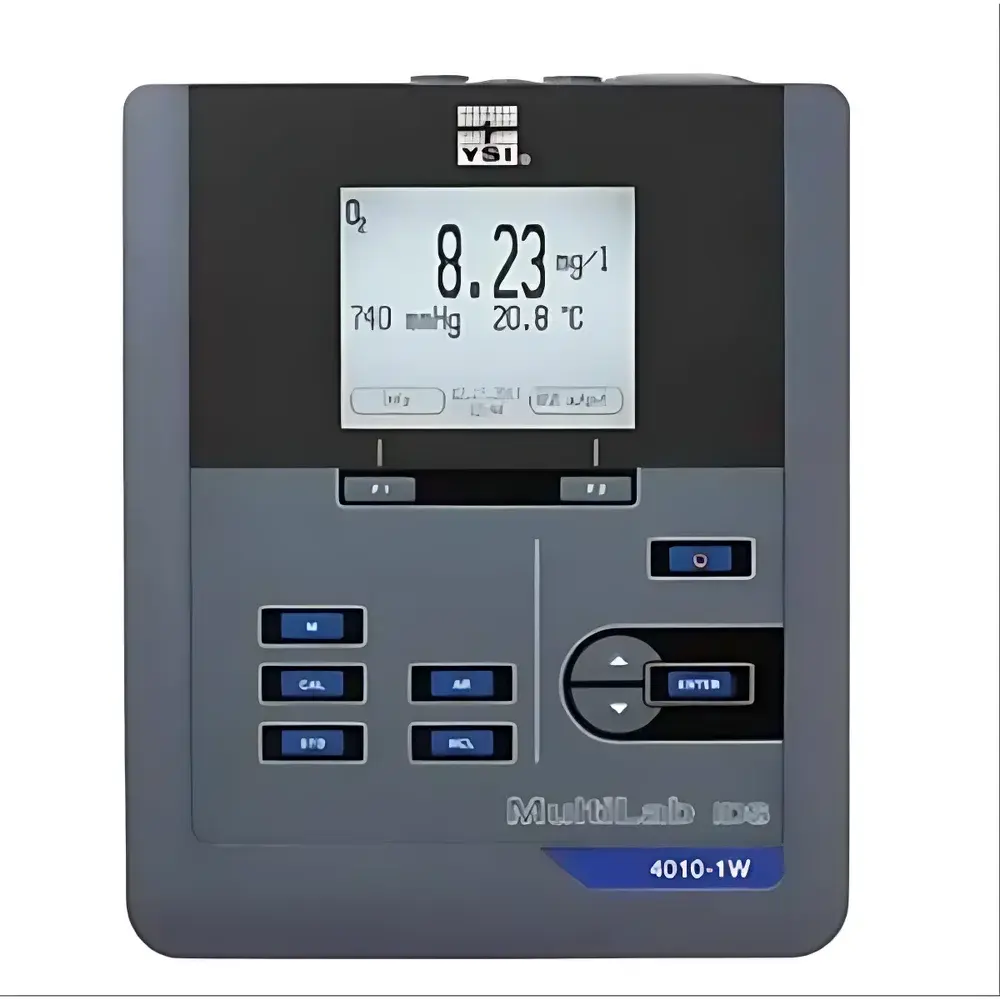

YSI 4010-1W Benchtop Dissolved Oxygen (DO) and Biochemical Oxygen Demand (BOD) Analyzer

Overview

The YSI 4010-1W Benchtop Dissolved Oxygen (DO) and Biochemical Oxygen Demand (BOD) Analyzer is a precision-engineered laboratory instrument designed for standardized, reproducible measurement of dissolved oxygen concentration and five-day BOD (BOD₅) in environmental, wastewater, and regulatory compliance testing. Based on the Clark-type polarographic electrode principle, the system employs a temperature-compensated, membrane-covered amperometric sensor that generates a current proportional to molecular oxygen diffusion across a selective gas-permeable membrane. Unlike manual or non-stirred DO probes, the 4010-1W integrates a motor-driven, self-contained stirring mechanism within its dedicated BOD probe (e.g., YSI 5010 or compatible 50-series electrodes), ensuring hydrodynamic consistency across samples—critical for meeting the strict mixing requirements of BOD₅ protocols per GB 7488–87 and EPA Method 405.1. The analyzer operates as a standalone benchtop unit with real-time analog output and digital display, optimized for controlled lab environments where trace-level DO stability, inter-laboratory comparability, and audit-ready documentation are essential.

Key Features

• Integrated self-stirring BOD probe eliminates external stirrers and operator-induced variability—ensuring uniform mass transfer and compliance with GB 7488–87 agitation specifications.
• Pre-tensioned 5906-style replaceable membranes minimize installation error, eliminate zero drift, and remove manual calibration steps prior to use.
• Real-time membrane integrity monitoring alerts users automatically upon membrane breach or electrolyte depletion—preventing invalid data acquisition.
• Temperature-compensated DO measurement with built-in thermistor (±0.2 °C accuracy) and automatic atmospheric pressure correction (when used with optional barometric sensor).
• Onboard data logging supports up to 100 timestamped readings with date/time stamping—enabling GLP-compliant manual recordkeeping without external software.
• Wide-input AC power supply (100–240 V, 50/60 Hz) ensures stable operation in global laboratory infrastructure without voltage converters.

Sample Compatibility & Compliance

The 4010-1W is validated for aqueous matrices including raw and treated wastewater, surface water, drinking water, and industrial effluents. Its electrochemical sensing architecture meets the performance criteria of multiple international standards: ISO 5814 (water quality — determination of dissolved oxygen — electrochemical probe method), ASTM D888 (standard test methods for dissolved oxygen in water), and EPA 450/4-85-001 (method for biochemical oxygen demand). For BOD₅ analysis, the system fully satisfies the procedural and instrumentation requirements outlined in GB 7488–87 (China’s national standard for BOD determination) and HJ/T 99–2003 (technical specification for water quality monitoring). When paired with YSI 5120 BOD Analysis Software (PC-based, optional), the platform supports full audit trails, electronic signatures, and 21 CFR Part 11–compliant data handling—including automated initial/final DO capture, dilution factor application, and BOD₅ calculation per standard formula.

Software & Data Management

While the 4010-1W functions autonomously, it is fully compatible with YSI 5120 BOD Analysis Software—a Windows-based application designed for regulated laboratories. The software communicates directly with the instrument via RS-232 or USB interface, enabling complete automation of the BOD₅ workflow: automatic initiation of measurement sequences, detection of DO stabilization (with configurable time window and slope threshold), storage of time-stamped initial and final readings, and generation of compliant reports. Advanced features include saturation and temperature range violation warnings, automatic blank subtraction, seed correction, and extrapolation of non-standard incubation periods (e.g., 2-day or 7-day BOD). All data files are stored in encrypted binary format with immutable metadata (user ID, instrument ID, calibration history), supporting GMP/GLP audit readiness and traceability requirements.

Applications

• Regulatory wastewater discharge monitoring per municipal and industrial permits (e.g., NPDES, China’s “Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants” GB 18918–2002).
• Environmental impact assessment (EIA) studies requiring BOD₅ and DO profiling of receiving waters.
• Process control in activated sludge systems—supporting oxygen uptake rate (OUR) estimation when combined with timed DO depletion curves.
• Drinking water treatment optimization, particularly in post-filtration and distribution system DO surveillance.
• Academic and research laboratories conducting standardized biodegradability testing of organic compounds or effluent toxicity screening.

FAQ

Does the 4010-1W require daily calibration?

No—its pre-tensioned membrane design and factory-calibrated sensor eliminate routine zero/span adjustments; only periodic verification against saturated air or Winkler titration is recommended per QA/QC protocols.

Can it measure BOD without external software?

Yes—the instrument provides direct DO readouts; BOD₅ calculation is performed manually using recorded initial/final values and dilution factors per GB 7488–87.

Is the probe compatible with YSI 5000-series accessories?

Yes—the 4010-1W accepts all YSI 50-series self-stirring DO/BOD probes (e.g., 5010, 5020) and shares consumables (5906 membranes, 5907 electrolyte) with the broader YSI 5000 platform.

What maintenance intervals are recommended?

Membrane replacement every 30 days under continuous use; electrolyte refill every 60 days; full probe inspection and cleaning quarterly per YSI Technical Bulletin TB-5010.

Does it support multi-point DO calibration?

No—it is factory-calibrated to NIST-traceable standards; user calibration is limited to single-point verification at ambient air saturation (100% O₂ at known temperature/pressure).
