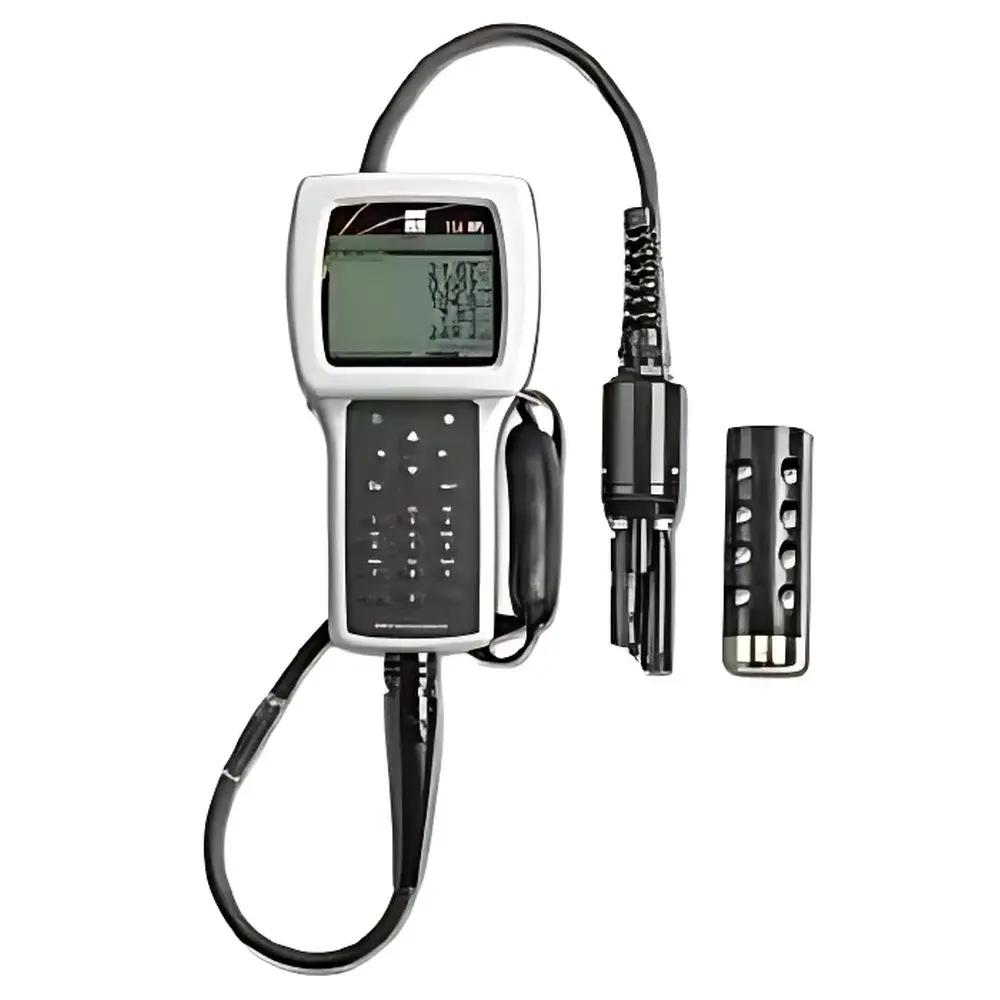

YSI 556MPS Multiparameter Water Quality Meter

Overview

The YSI 556MPS Multiparameter Water Quality Meter is a field-deployable, integrated sensor platform engineered for high-reliability in situ monitoring of freshwater, estuarine, and coastal environments. Based on galvanic dissolved oxygen sensing, potentiometric pH/ORP measurement, four-electrode conductivity cell architecture, and thermistor-based temperature compensation, the 556MPS delivers simultaneous, real-time quantification of seven core water quality parameters: temperature, conductivity, salinity, dissolved oxygen (mg/L and % saturation), pH, oxidation-reduction potential (ORP), and total dissolved solids (TDS). Its measurement algorithms conform to Standard Methods for the Examination of Water and Wastewater (23rd ed.), enabling automatic derivation of temperature-compensated specific conductance (at 25 °C), resistivity, and TDS from raw conductivity readings using industry-accepted conversion factors. Designed for regulatory compliance workflows, the instrument supports GLP-aligned data integrity through time-stamped logging, user-defined site IDs, and audit-ready export protocols.

Key Features

• IP67-rated rugged housing—submersible to 1 meter for 30 minutes; buoyant design prevents loss if dropped into water
• Modular, field-replaceable probe assembly—no tools required for sensor swaps; includes next-generation low-stirring-dependency DO membrane for stable readings under low-flow conditions
• Backlit, menu-driven LCD with intuitive mobile-style keypad—enables single-hand operation even with gloves
• High-capacity internal memory storing up to 49,000 timestamped measurements plus 100 customizable site identifiers
• RS-232 serial interface compatible with YSI EcoWatch™ software for post-processing, statistical analysis, calibration history review, and regulatory report generation
• Flexible power management: operates on four C-cell alkaline batteries (typical life >100 hours) or optional rechargeable pack
• Selectable cable lengths (4 m, 10 m, 20 m) with shielded, waterproof connectors rated for repeated submersion

Sample Compatibility & Compliance

The 556MPS is validated for use across natural surface waters (rivers, lakes, reservoirs), wastewater effluents, aquaculture systems, and brackish tidal zones. Its sensor suite meets ASTM D1293 (pH), ASTM D3693 (conductivity), ASTM D888 (dissolved oxygen), and ISO 5814 (electrochemical DO) performance criteria. The instrument’s firmware implements NIST-traceable calibration routines and supports dual-point pH calibration (4.01/7.00/10.01 buffers) and conductivity standard verification (e.g., KCl 0.01 M, 1413 µS/cm). Data output formats comply with EPA Method 160.1 requirements for field instrumentation used in NPDES monitoring programs. Optional barometric pressure sensor enables altitude-corrected DO saturation calculations per USGS protocols.

Software & Data Management

EcoWatch™ software provides secure, role-based access control for calibration logs, sensor diagnostics, and raw dataset validation. All stored records include embedded metadata: UTC timestamp, GPS coordinates (when paired with external receiver), operator ID, probe serial numbers, and calibration verification flags. The software enforces FDA 21 CFR Part 11-compliant electronic signatures for audit trails and generates PDF reports with configurable headers, footers, and pass/fail thresholds aligned with state-specific water quality standards (e.g., TMDL benchmarks, Class A/B/C criteria). Export options include CSV, Excel, and XML for integration into LIMS platforms or GIS-based spatial analysis workflows.

Applications

• Regulatory ambient monitoring under Clean Water Act Section 304/305(b) reporting frameworks
• Wastewater treatment plant influent/effluent QA/QC and process optimization
• Wetland restoration project baseline and long-term trend assessment
• Drinking water source protection surveys and watershed health indexing
• Academic limnology and marine ecology field studies requiring multi-parameter synchrony
• Industrial discharge compliance verification at outfall points

FAQ

Does the 556MPS support automatic temperature compensation for all measured parameters?
Yes—temperature is continuously monitored via a precision thermistor and applied in real time to conductivity, DO, pH, and ORP calculations per Standard Methods equations.
Can data be exported directly to cloud-based environmental databases?
Raw files exported via EcoWatch™ can be ingested by third-party middleware (e.g., Aquarius, HydroDesktop) supporting OGC SensorML and WaterML 2.0 schemas.
Is the DO sensor membrane replaceable in the field without returning to the lab?
Yes—the PE membrane cap is designed for tool-free replacement in under 60 seconds, with no recalibration required beyond zero-point verification.
What is the operating temperature limit for extended deployment in tropical or arctic conditions?
The unit functions reliably from −5 °C to +70 °C; battery performance below 0 °C is maintained using low-temperature alkaline cells or optional NiMH packs.
How does the instrument handle biofouling during long-term deployments?
While not designed for unattended mooring, the 556MPS incorporates anti-fouling geometry on probe surfaces and supports periodic cleaning with mild detergent—recommended before each field campaign per YSI Field Maintenance Guide Rev. 4.2.
