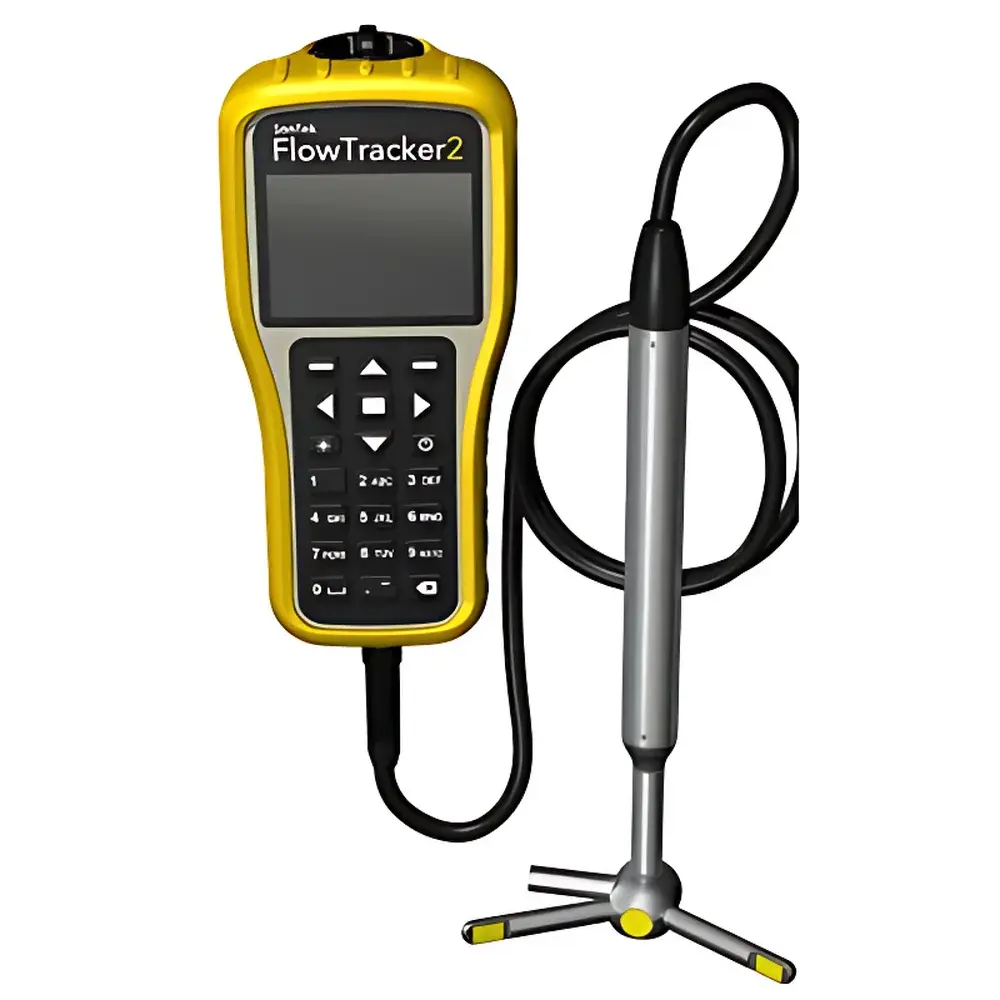

YSI FlowTracker2 Acoustic Doppler Velocimeter

Overview

The YSI FlowTracker2 Acoustic Doppler Velocimeter (ADV) is an engineered field instrument designed for high-fidelity, non-intrusive measurement of instantaneous water velocity vectors in open-channel and natural flow environments. Based on the principle of acoustic Doppler shift, the device transmits ultrasonic pulses into the water column and analyzes frequency shifts in backscattered signals from suspended particles—enabling precise, point-based velocity determination with minimal flow disturbance. Unlike mechanical current meters, which rely on moving parts and are susceptible to biofouling or sediment abrasion, the FlowTracker2 delivers laboratory-grade accuracy under dynamic field conditions—including shallow flows, low-velocity wetlands, and turbulent discharge structures. Its deployment aligns with internationally recognized hydrometric standards, including ISO 748 (measurement of liquid flow in open channels), ISO 10721 (velocity-area method), and USGS Techniques of Water Resources Investigations (TWRI) Book 3, Chapter A17—ensuring data integrity for regulatory reporting, hydrologic modeling, and long-term environmental monitoring programs.

Key Features

• SmartQC™ Real-Time Quality Assurance: Proprietary signal-to-noise ratio (SNR) and correlation threshold algorithms continuously evaluate raw ADV data quality during acquisition—flagging marginal measurements before storage and enabling immediate re-sampling without post-processing delays.
• Enhanced ADV Signal Processing: Improved transducer design and digital filtering yield higher sampling rates (up to 200 Hz), reduced electronic noise floor, and lower standard error in velocity estimates—particularly critical in low-SNR environments such as turbid wetlands or low-flow irrigation ditches.
• Integrated Multi-Sensor Platform: Onboard tilt and orientation sensors correct for probe misalignment; embedded GPS logs georeferenced velocity profiles; Bluetooth 4.2 LE enables wireless data export and remote configuration via compatible PCs or tablets.
• Modular Hardware Architecture: Detachable probe and handheld display units support rapid field swaps—reducing downtime during battery replacement, calibration verification, or sensor maintenance without requiring full system recalibration.
• Intuitive Graphical Interface: High-resolution color TFT touchscreen supports multi-language operation (including English, Spanish, French, and Chinese), contextual help overlays, and real-time visualization of velocity time series and vertical profiles.
• Ruggedized Field Design: IP67-rated housing withstands immersion at 1 m depth for 30 minutes; operating temperature range spans –20 °C to 60 °C; total system mass of 1.55 kg ensures portability across remote survey sites.

Sample Compatibility & Compliance

The FlowTracker2 is validated for use across heterogeneous hydraulic regimes: from laminar, slow-moving marshes (10 ppm) for reliable acoustic backscatter—making it suitable for most natural and engineered waterways except optically clear, particle-deficient flows (e.g., highly filtered recirculating lab flumes). All firmware and data logging routines comply with GLP-aligned audit trails: timestamps, operator ID, GPS coordinates, instrument serial number, and QC flags are embedded in every exported dataset. The system supports traceable calibration via NIST-traceable velocity standards and meets documentation requirements for ISO/IEC 17025-accredited laboratories conducting flow certification per ASTM D5389 (Standard Test Method for Determining Open-Channel Flow with Acoustic Doppler Instruments).

Software & Data Management

Data acquisition and post-processing are managed through YSI’s FlowTracker2 Desktop Software (v3.2+), a Windows-based application certified for FDA 21 CFR Part 11 compliance when configured with electronic signatures and audit-log retention. The software imports native .FT2 binary files and exports fully annotated CSV and Excel-compatible formats—including metadata headers, coordinate transformations, and SmartQC status codes. Advanced features include automated cross-sectional area integration using user-defined bathymetric points, customizable report templates (PDF/DOCX), and time-series interpolation for gap-filling in intermittent telemetry deployments. Raw ADV time series can be exported for third-party spectral analysis (e.g., turbulence intensity, Reynolds stress estimation) using MATLAB or Python libraries compliant with IEEE Std 1139.

Applications

• Natural streamflow monitoring for USGS gaging stations and EPA watershed assessments
• Discharge validation of Parshall flumes, Palmer-Bowlus channels, and Palmer-type weirs
• Irrigation canal efficiency audits and conveyance loss quantification
• Wetland hydroperiod characterization and marsh inundation modeling
• Stormwater outfall compliance reporting under NPDES permits
• Mine drainage and tailings pond flow safety verification
• Urban drainage infrastructure assessment (combined sewer overflows, detention basins)
• Academic research in fluvial geomorphology, sediment transport, and ecohydraulics

FAQ

What velocity accuracy specifications apply under low-flow conditions?
The stated accuracy of ±1% of measured velocity or ±0.0025 m/s (whichever is greater) remains valid down to 0.001 m/s, provided SNR exceeds 15 dB and correlation exceeds 70%—conditions verified in real time by SmartQC.
Can the FlowTracker2 operate in saline or brackish water?
Yes—the transducers are corrosion-resistant stainless steel and rated for continuous operation in conductivity up to 50 mS/cm; however, sound speed corrections must be applied manually or via salinity input in software for optimal profiling accuracy.
Is firmware upgrade supported in the field?
Yes—updates are delivered via microSD card or Bluetooth; all versions maintain backward compatibility with legacy .FT2 file structures and calibration coefficients.
Does the system support external power sources?
Yes—DC input (8–12 V) is available via the accessory power port, enabling extended deployment with external battery packs or solar-charged systems.
How is tilt compensation implemented during vertical profiling?
The integrated MEMS inclinometer measures pitch and roll angles at 10 Hz; velocity vectors are automatically rotated into true horizontal/vertical components prior to storage, eliminating manual correction in post-processing.
