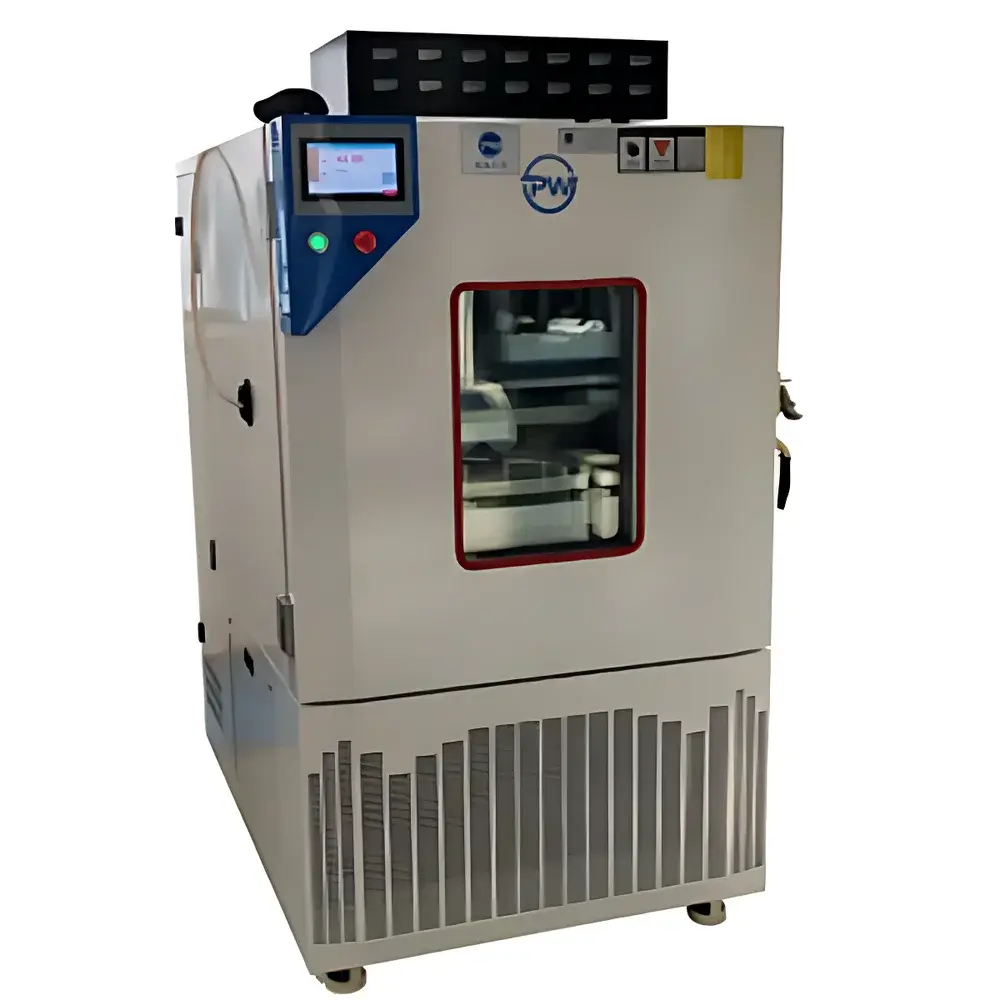

Yuelian PW-CSS10-40A Programmable Temperature and Humidity Controlled Adhesive Holding Power Tester with Shear Capability

Overview

The Yuelian PW-CSS10-40A is a programmable environmental holding power tester engineered for precision evaluation of adhesive persistence under controlled thermal and hygrometric conditions. It integrates the functional rigor of a temperature- and humidity-regulated chamber with a dedicated static shear testing platform compliant with standardized vertical peel-and-hold methodologies. The instrument operates on the principle of applying a constant tensile load (via calibrated stainless steel weights) to a pressure-sensitive adhesive specimen bonded to a standardized test plate (75 mm × 50 mm × 1.6 mm SUS304 steel), suspended vertically within the climatic chamber. Time-to-failure—or displacement after fixed durations—is recorded automatically upon specimen detachment, enabling quantitative assessment of adhesive durability across defined environmental stress profiles. This architecture supports both ISO/ASTM-aligned static holding power tests and extended-duration accelerated aging protocols relevant to R&D, QC, and regulatory validation workflows.

Key Features

• Programmable environmental control with 12-user-defined program groups, up to 120 segments per program, and 999-cycle looping capability
• 7-inch full-color touchscreen controller with real-time graphical display of temperature/humidity setpoints and actual profiles, plus data logging and alarm history
• Advanced refrigeration system featuring imported hermetic compressor and Sanyo/Ranco electronic expansion valve for precise refrigerant flow modulation—reducing heater and humidifier energy demand by up to 35% versus conventional PID-controlled systems
• 10 independent test stations with synchronized timing, each equipped with electromagnetic release mechanism and digital retention memory (up to 99999.9 minutes)
• Stainless steel interior (SUS304 mirror finish) and powder-coated carbon steel exterior; 100-mm diameter cable/port access with silicone plug
• Dual safety architecture: over-temperature cut-off, dry-run protection, water-level monitoring, leakage current interruption, and compressor discharge temperature safeguard

Sample Compatibility & Compliance

The PW-CSS10-40A accommodates standard specimens measuring 50 mm × 25 mm, compatible with pressure-sensitive adhesives including acrylics, rubber-based tapes, silicone adhesives, hydrogel medical dressings, and protective films. Its mechanical and environmental fidelity ensures repeatability across diverse substrate types (e.g., stainless steel, aluminum, PET, skin simulants). The system meets the physical and procedural requirements of GB/T 4851–2014 (China), ASTM D3654/D3654M–22 (Standard Test Methods for Holding Power of Pressure-Sensitive Tapes), JIS Z0237:2021, PSTC-7 (Pressure Sensitive Tape Council), and CNS 11887/11888 (Taiwan). While not inherently 21 CFR Part 11–compliant, audit-ready data export (CSV/TXT), timestamped event logs, and user-accessible calibration records support GLP/GMP-aligned documentation practices when integrated into validated laboratory information management systems (LIMS).

Software & Data Management

The embedded controller supports RS-232/RS-485 communication interfaces and optional PC-based software for remote parameter configuration, real-time monitoring, and automated report generation. All test events—including start/stop timestamps, detachment detection signals, ambient deviations exceeding tolerance bands, and maintenance alerts—are logged with millisecond resolution and stored in non-volatile memory. Exported datasets include metadata such as operator ID, test program ID, chamber setpoint history, and individual station status. Optional firmware upgrades enable CSV-formatted output compatible with statistical process control (SPC) platforms and FDA-submission-ready PDF reports with digital signature fields.

Applications

This instrument serves critical functions across multiple industrial sectors: validating shelf-life stability of transdermal patches under tropical climate simulations (40 °C/75% RH); assessing low-temperature performance of automotive masking tapes at −40 °C; qualifying medical adhesive integrity during sterilization cycle preconditioning; benchmarking repositionability of optical film laminates under cyclic humidity swings; and supporting ICH Q1A–Q1E stability protocol execution for Class II/III adhesive-based devices. Its dual-role design eliminates the need for separate environmental chambers and mechanical testers—reducing footprint, cross-contamination risk, and inter-system calibration drift.

FAQ

What standards does the PW-CSS10-40A directly support?

It complies with GB/T 4851, ASTM D3654, JIS Z0237, PSTC-7, and CNS 11887/11888 for holding power measurement under controlled temperature and humidity.

Can test parameters be modified during an active run?

No—programmed environmental profiles are locked during execution to ensure test integrity; modifications require pausing and reinitializing the sequence.

Is remote monitoring supported out-of-the-box?

Yes, via RS-485 interface and included Windows-compatible software; Ethernet/WiFi modules are available as field-installable options.

What maintenance intervals are recommended for long-term accuracy?

Monthly lubrication of linear guide rails, quarterly verification of weight calibration (±0.1 g tolerance), biannual sensor recalibration using NIST-traceable reference hygrometers and PRTs, and annual refrigerant charge verification.

Does the system provide audit trails for GxP environments?

Raw event logs contain immutable timestamps and operator IDs; full 21 CFR Part 11 compliance requires integration with third-party LIMS or e-signature middleware.
