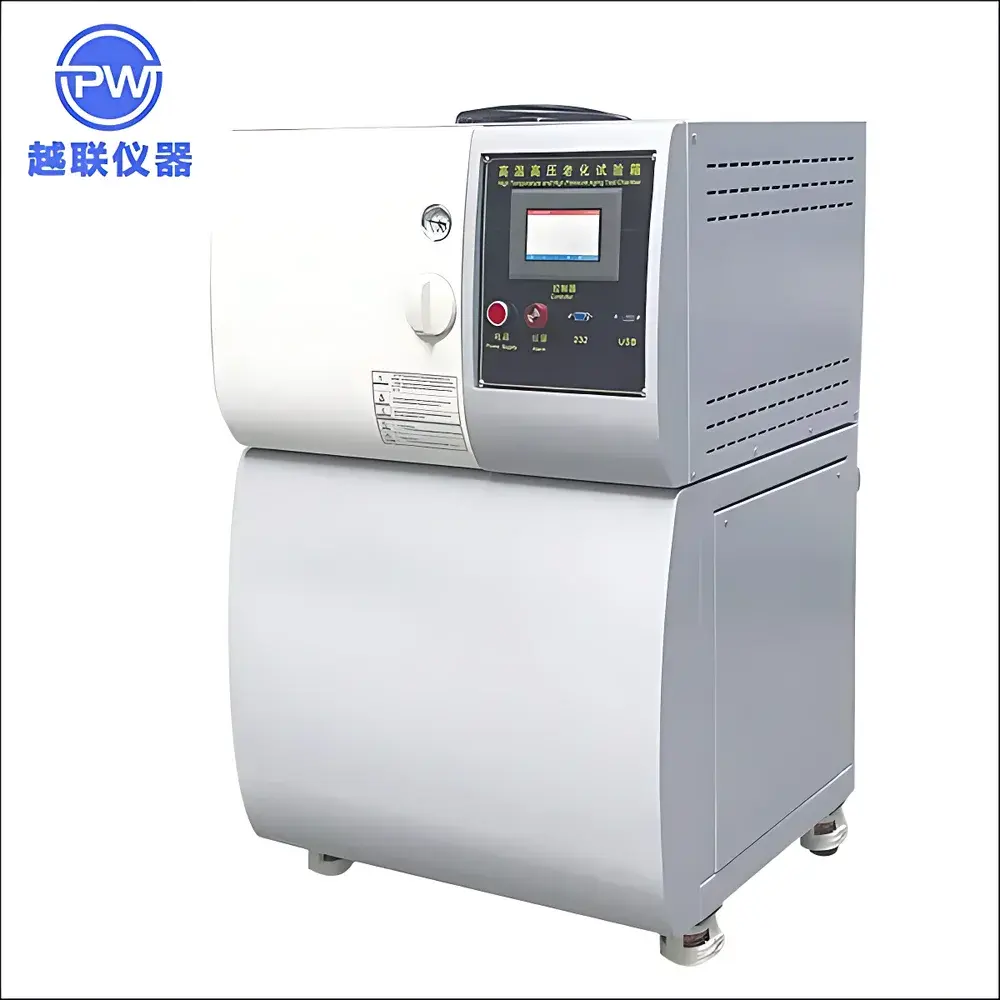

Yuelian / PW PW-30T High-Pressure Accelerated Life Testing Chamber

Overview

The Yuelian / PW PW-30T High-Pressure Accelerated Life Testing Chamber is an engineered environmental stress test system designed to evaluate the long-term hermetic integrity and moisture resistance of sealed electronic, medical, and precision industrial components under controlled saturated steam conditions. It operates on the principle of accelerated aging via elevated temperature, pressure, and 100 % relative humidity—conditions that replicate and compress decades of ambient moisture ingress into hours or days. Unlike conventional thermal or humidity chambers, the PW-30T generates and maintains true saturated steam environments within a pressurized cylindrical vessel, enabling rigorous validation of seal performance for devices subjected to sterilization cycles (e.g., autoclave-compatible medical instruments), multilayer PCB assemblies, IC packages, LCD modules, and permanent magnets. Its design adheres to fundamental thermodynamic constraints of saturated steam tables—ensuring traceable correlation between setpoint temperature, absolute pressure, and vapor density—thereby supporting repeatable, physics-based reliability qualification.

Key Features

• Cylindrical inner chamber constructed from high-purity SUS-304 stainless steel, conforming to ASME BPVC Section VIII Div. 1 guidelines for low-pressure vessels and optimized for uniform steam distribution and condensate management.
• Patented dual-seal door mechanism featuring non-compressive gasket geometry—eliminating mechanical deformation during repeated thermal cycling and extending packing service life by ≥3× versus conventional compression seals.
• Yokogawa UT-150 microprocessor controller with auto-tuning PID algorithm for precise regulation of saturated steam temperature (±0.5 °C accuracy over full range), supported by redundant overtemperature and overpressure limit switches.
• Integrated vacuum pre-conditioning and post-test vacuum drying functions, enabling controlled de-airing prior to pressurization and residual moisture removal after test completion—critical for moisture-sensitive substrates.
• Optimized thermal inertia design: stainless-steel radial baffles and steam-diffusing inner liners minimize localized thermal shock and prevent direct impingement of latent heat on test specimens.
• Low water consumption architecture: single fill supports up to 400 hr of continuous operation under standard test profiles, reducing maintenance frequency and operational downtime.

Sample Compatibility & Compliance

The PW-30T accommodates a broad spectrum of hermetically sealed and encapsulated devices—including implantable medical sensors, soldered flex circuits, MEMS packages, and magnet assemblies—without requiring sample-specific fixtures. Its cylindrical geometry ensures symmetrical exposure to saturated steam, eliminating directional bias in moisture penetration assessment. The system satisfies national-level environmental testing standards including GB/T 2423.1 (cold), GB/T 2423.2 (dry heat), and GB/T 2423.3 (damp heat, steady state), and its operational envelope aligns with the thermodynamic boundary conditions referenced in IEC 60068-2-78 for damp heat testing. While not certified to ISO 13485 or FDA 21 CFR Part 820 out-of-the-box, the chamber’s deterministic control architecture, audit-ready parameter logging (via optional data recorder), and hardware-level safety interlocks support integration into GLP- and GMP-aligned validation protocols when paired with documented IQ/OQ/PQ procedures.

Software & Data Management

The PW-30T operates via embedded firmware without proprietary software dependencies. All critical parameters—including chamber temperature, internal pressure, elapsed time, and vacuum status—are continuously monitored and displayed on the front-panel LED interface. Optional accessories enable expanded data governance: a 4–20 mA pressure signal transmitter permits integration with third-party SCADA or LIMS platforms, while the external experiment data recorder logs timestamped temperature and pressure values at user-defined intervals (1 sec to 60 min resolution). For regulated environments, the system supports manual calibration verification logs per ISO/IEC 17025 requirements; all control deviations trigger non-volatile fault memory storage and illuminated status indicators—facilitating root-cause analysis during quality audits.

Applications

• Accelerated hermeticity validation of Class II/III medical devices undergoing ethylene oxide or steam sterilization requalification.
• Failure mode analysis of conformal-coated PCBs exposed to humid tropical environments (e.g., IPC-J-STD-001, J-STD-020).
• Reliability screening of wafer-level chip-scale packages (WLCSP) and molded ICs for moisture-induced popcorning during reflow.
• Qualification of adhesive bonds and epoxy encapsulants used in automotive sensor housings per AEC-Q200 stress criteria.
• Material compatibility testing of elastomeric seals and gasket compounds under prolonged saturated steam exposure.

FAQ

What steam saturation conditions does the PW-30T maintain at 121 °C and 132 °C?

At 121 °C, the chamber achieves 2.04 kgf/cm² absolute pressure (≈200 kPa); at 132 °C, it reaches 3.00 kgf/cm² (≈294 kPa)—both values correspond precisely to the saturated steam table per NIST SRD-12, ensuring thermodynamically valid test conditions.

Is distilled water mandatory, and why?

Yes. Use of deionized or distilled water is required to prevent scale deposition on heating elements and pressure sensors, which would compromise thermal response time, pressure measurement fidelity, and long-term system reliability.

Can the chamber perform vacuum-only cycles without steam?

Yes. The integrated vacuum function supports standalone pre-vacuum conditioning (≤−0.1 MPa) and post-test vacuum drying, both programmable independently of steam generation.

How is safety ensured during overpressure events?

The system employs dual independent mechanical pressure relief valves calibrated to 4.0 kgf/cm², plus electronic LIMIT circuitry that cuts power and vents steam upon detection of sustained overpressure or temperature excursion beyond set thresholds.

Does the PW-30T support automated reporting for regulatory submissions?

While the base unit lacks built-in report generation, the optional data recorder outputs CSV-formatted time-series data compatible with statistical process control (SPC) software and 21 CFR Part 11-compliant document management systems when deployed with appropriate access controls and electronic signature workflows.
