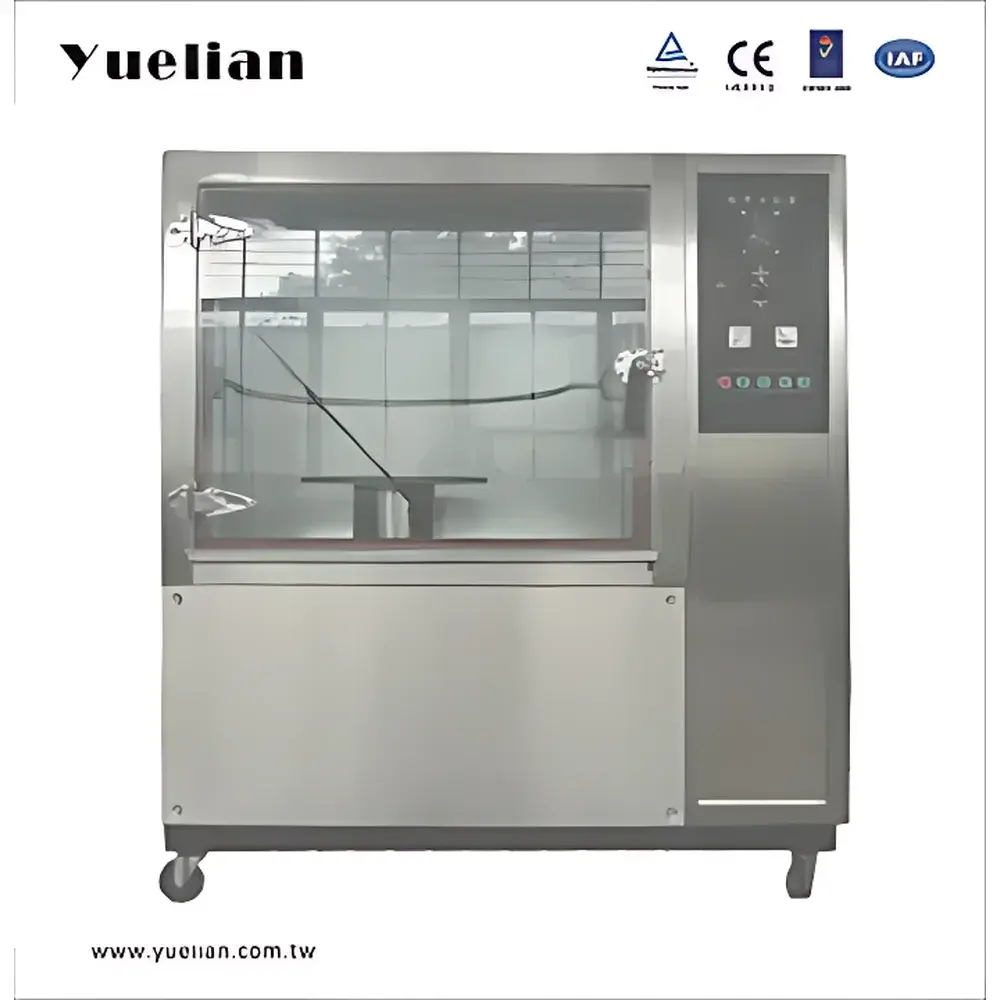

Yuelian RX1 Rain Test Chamber for Automotive Lighting IPX3/IPX4 Compliance

Overview

The Yuelian RX1 Rain Test Chamber is an engineered environmental test system specifically designed for evaluating the ingress protection (IP) performance of automotive lighting assemblies under controlled simulated rainfall conditions. It operates on the principle of calibrated water projection—using precisely spaced nozzles and regulated pressure to replicate standardized rain exposure scenarios defined in international testing protocols. Unlike generic water spray cabinets, the RX1 integrates a motorized rotating turntable and programmable spray sequencing to emulate real-world dynamic vehicle motion during precipitation events. Its architecture supports repeatable, traceable, and auditable test execution—critical for R&D validation, production line quality assurance (QA), and regulatory compliance documentation in Tier-1 supplier environments.

Key Features

• Corrosion-resistant chamber interior fabricated from AISI 304 stainless steel, ensuring long-term integrity in high-humidity, chloride-rich test environments.
• Exterior housing constructed from A3 structural steel with industrial-grade electrostatic powder coating for mechanical durability and aesthetic consistency.
• Full-wetted-path design: all water-contact components—including spray arms, manifolds, nozzles, and drainage channels—are manufactured from stainless steel or copper alloys to prevent electrolytic degradation and particulate contamination.
• Adjustable spray arm assembly with selectable length (900–2700 mm) and fixed 350 mm radius curvature, enabling precise angular coverage per IEC 60529 IPX3 (oscillating 60°) and IPX4 (360° rotation) requirements.
• High-reproducibility nozzle array: 0.4 mm diameter orifices with uniform spacing mounted on a 600 mm diameter stainless steel ring (OD 20 mm), delivering consistent droplet size distribution and impact density.
• Regulated hydraulic system with pressure control range of 60–100 kPa, maintained via integrated pressure regulator and digital gauge—ensuring compliance with flow rate specifications across varying ambient temperatures.
• Programmable turntable drive with 1–10 rpm continuous adjustment and 300 mm diameter platform, accommodating headlamps, fog lamps, DRL modules, and complete front-end lighting clusters.
• Embedded cycle controller supporting user-defined on/off timing sequences, enabling multi-phase test profiles (e.g., pre-wet, steady-state rain, post-drain) required by OEM-specific test plans.
• Dedicated elapsed-time counter with non-volatile memory for test duration logging—facilitating GLP-aligned recordkeeping and audit readiness.

Sample Compatibility & Compliance

The RX1 accommodates lighting units up to 1000 mm in maximum dimension, with unrestricted vertical clearance for vertically mounted assemblies. Its modular turntable interface supports custom fixtures for E-marked headlamp housings, adaptive driving beam (ADB) modules, and camera-integrated lighting systems. The chamber’s operational envelope aligns with multiple regulatory and industry standards: IEC 60529 (IPX3 drip-box and IPX4 splashing tests), ISO 20653:2021 (road vehicles—degrees of protection against foreign objects, water, and access), SAE J575e (laboratory environmental test procedures for lighting devices), and China’s GB/T 4208–2017 (equivalent to IEC 60529). While not certified as a standalone test laboratory, the RX1 provides hardware-level conformance for in-house verification prior to third-party certification at accredited facilities.

Software & Data Management

The RX1 operates via a dedicated microprocessor-based controller with tactile membrane keypad and LCD display. All operational parameters—including spray duration, turntable speed, cycle count, and elapsed time—are locally configurable without external software dependency. For integration into centralized QA infrastructure, analog output signals (0–10 V or 4–20 mA) are available for pressure and runtime monitoring via SCADA or MES platforms. Though it does not include embedded data logging or network connectivity, its deterministic control logic ensures full repeatability across shifts and operators—supporting 21 CFR Part 11–aligned procedural controls when paired with SOP-driven manual recording and electronic signature workflows.

Applications

• Functional validation of LED, HID, and laser-based headlamps under simulated roadside rain exposure.
• Sealing integrity assessment of gaskets, lens-retention clips, and housing joints after thermal cycling or vibration preconditioning.
• OEM PPAP (Production Part Approval Process) submission support for lighting subassemblies targeting Tier-1 automotive suppliers.
• Design verification testing during NPI (New Product Introduction) phases to identify early-stage ingress vulnerabilities.
• Root-cause analysis of field returns linked to moisture-induced corrosion or condensation-related optical scatter.
• Compliance screening for UN Regulation No. 112 (headlamp approval) and GB 4599 (Chinese headlamp standard) wet-condition photometric stability requirements.

FAQ

Does the RX1 comply with IPX5 or IPX6 test requirements?
No—the RX1 is configured for IPX3 and IPX4 testing only. Its spray pressure, nozzle geometry, and arm kinematics do not satisfy the higher-flow-rate demands of IPX5 (6.3 mm nozzle, 12.5 L/min) or IPX6 (12.5 mm nozzle, 100 L/min) per IEC 60529.
Can the chamber be used for saltwater immersion simulation?
Not recommended. While wetted parts resist corrosion, the RX1 lacks sealed recirculation filtration, pH stabilization, or conductivity monitoring required for ASTM B117 or ISO 9227 salt spray testing.
Is calibration documentation provided with shipment?
The unit ships with a factory verification report confirming nominal pressure, turntable speed, and timer accuracy against traceable reference instruments. Full ISO/IEC 17025 calibration requires engagement with an accredited third-party lab.
What maintenance intervals are recommended?
Nozzle inspection and cleaning every 50 operational hours; pressure regulator servicing annually; stainless steel chamber wipe-down with deionized water after each test cycle to prevent mineral residue buildup.
